New GORE® PolyVent Ex+: IECEx / ATEX Explosion Protection Certified

GORE PolyVent Ex+ Adds Explosion Protection to the Protective Vents Series

GORE PolyVent Ex+ Adds Explosion Protection according to IECEx and ATEX to the Protective Vents Series

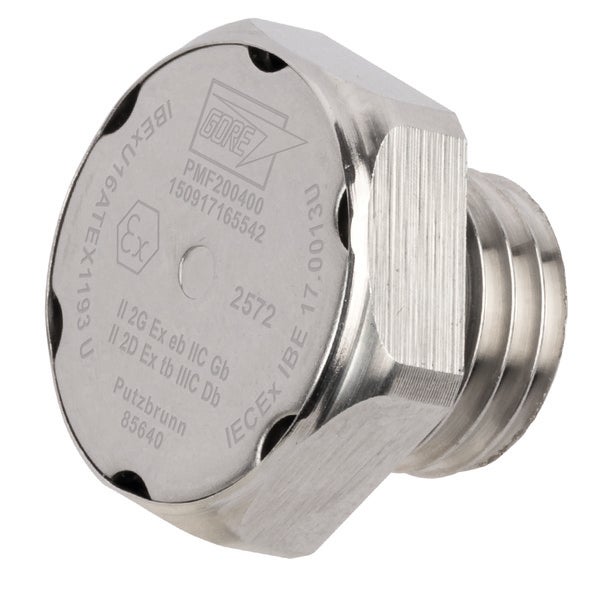

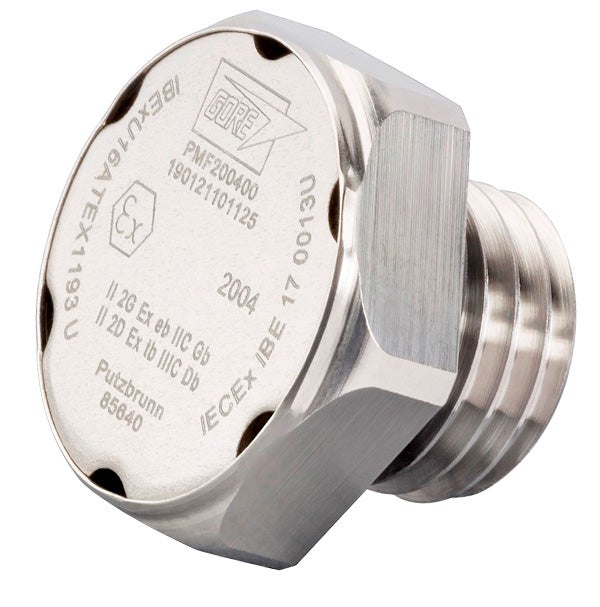

New GORE® PolyVent Ex+

Safety + Uncompromising Performance

GORE® PolyVent Ex+ Adds Explosion Protection according to IECEx and ATEX to the Protective Vents Series

New GORE® PolyVent Ex+ is both IECEx and ATEX certified for equipment operating in potentially explosive environments and offers exceptional venting performance for enclosures up to 20 liters in volume.

The GORE® PolyVent Ex+ offers you the safety required in potentially explosive environments and combines this with the exceptional venting performance and reliable protection found in GORE® Protective Vent solutions.

The PolyVent Ex+ has earned the IECEx and ATEX certification codes Ex II 2G Ex eb IIC Gb and Ex II 2D Ex tb IIIC Db. IECEx and ATEX directives describe general requirements for equipment, components and devices that are used in potentially explosive atmospheres. PolyVent Ex+ is allowed in areas with potentially explosive atmospheres caused by combustible gases or dust as following:

  • Gas: All non-mining, above-ground applications (equipment group 2) in the Zones 1 and 2 with need for protection type “eb” (increased safety) for Equipment Category 2 Gb.
  • Dust: All non-mining, above-ground applications (equipment group 2) in the Zones 21 and 22 with need for protection type “tb” (standard protection by housing) for Equipment Category 2 Db.

IECEx / ATEX describe the requirements for equipment intended for use in potentially explosive atmospheres.

Learn more about the explosion protection level of new GORE PolyVent Ex+ !



High-Quality Materials and Construction for Best Protection

In sensitive and potentially explosive environments especially, you don’t want to make any compromises when it comes to the quality of your components. Due to its unique design, GORE PolyVent Ex+ offers:

  • Excellent corrosion and flammability resistance: High-quality materials such as the advanced 100% ePTFE GORE™ membrane with a reliable oleophopic and hydrophobic coating, premium 1.4404 (316L) non-flammable stainless steel and a UL 94 V-0 rated O-ring offer safety without compromises.
  • Exceptional protection: Outstanding ingress protection (IP68/IP69k) and airflow (1600 ml/min at 70 mbar) ratio for reliable pressure equalization for enclosures up to 20 liters.
  • Long-lasting durability: GORE PolyVent Ex+ reliably operates in temperatures of -40 °C to +125 °C and provides a tight, reliable housing seal to your sensitive devices.

Safety + Uncompromising Performance

The use of high-quality materials and creative design results in a unique combination of venting performance and protection for your enclosure. The earned IECEx and ATEX certification codes meet global industry requirements and standards. This allows you to speed up your time-to-market and reduce costs in the certification process.

ACT NOW!

  For complete technical details of the GORE PolyVent Ex+ see our new Screw-In Series Datasheet.
  To request samples or a technical consultation, speak with your local Gore representative, or contact us.



Technical Details

GORE® PolyVent Ex+

Thread Size

M12 x 1.5

Product Number

PMF200400
Product Performance Characteristics

Typical airflow

1600 ml / min (dp = 70 mbar)

Laminate: membrane / backing material

ePTFE / –

Membrane characteristic

Oleophobic & Hydrophobic

Vent body & cap: material

Stainless steel (1.4404 / 316L)

Vent body & cap: color

Metallic

Wrench size

18 mm

O-ring material

Silicone 60 Shore A

Counter nut: material/color/part number

n/a

Traceability

Yes: individually laser-marked

IECEx / ATEX Certification

YES

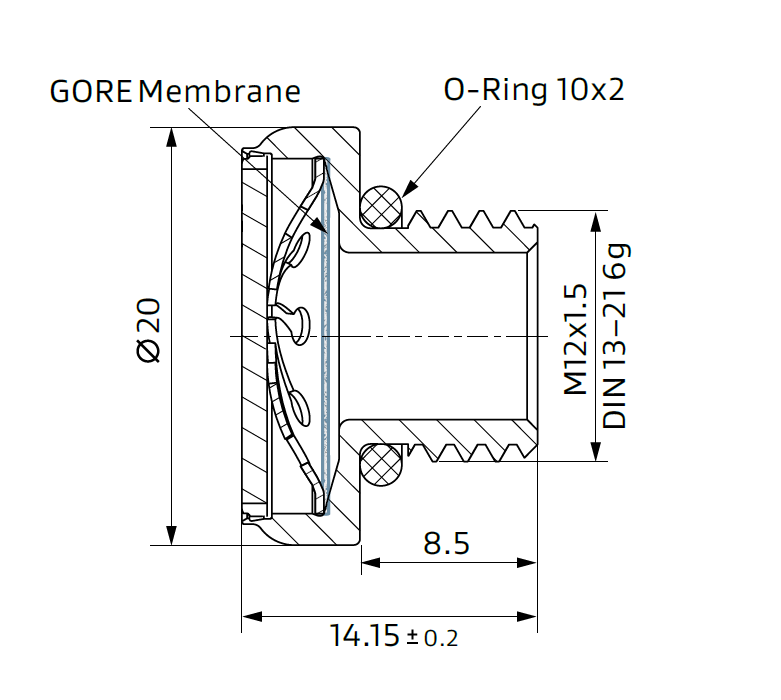

Design & Dimensions

Units are in mm

GORE® PolyVent Ex+ Design and Dimensions

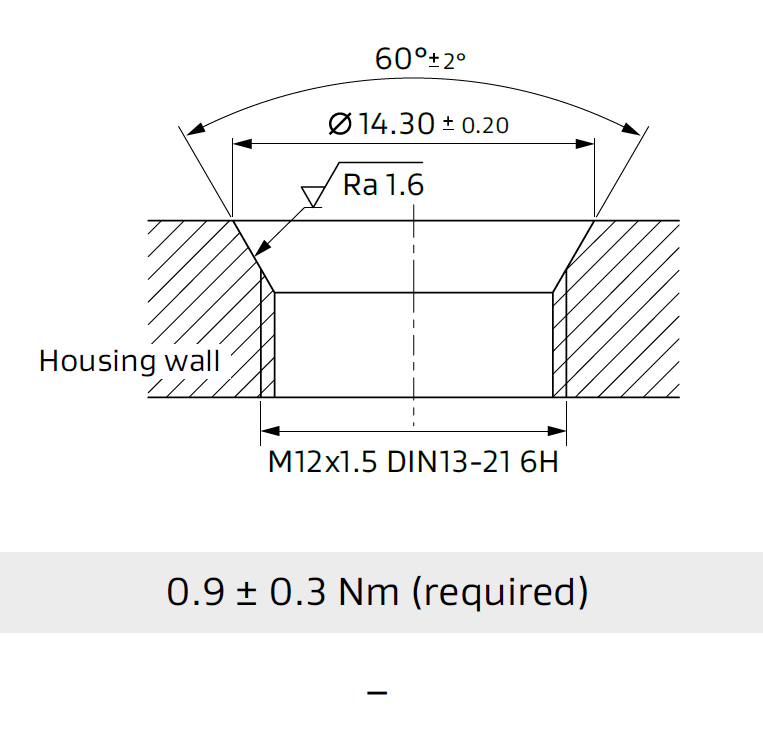

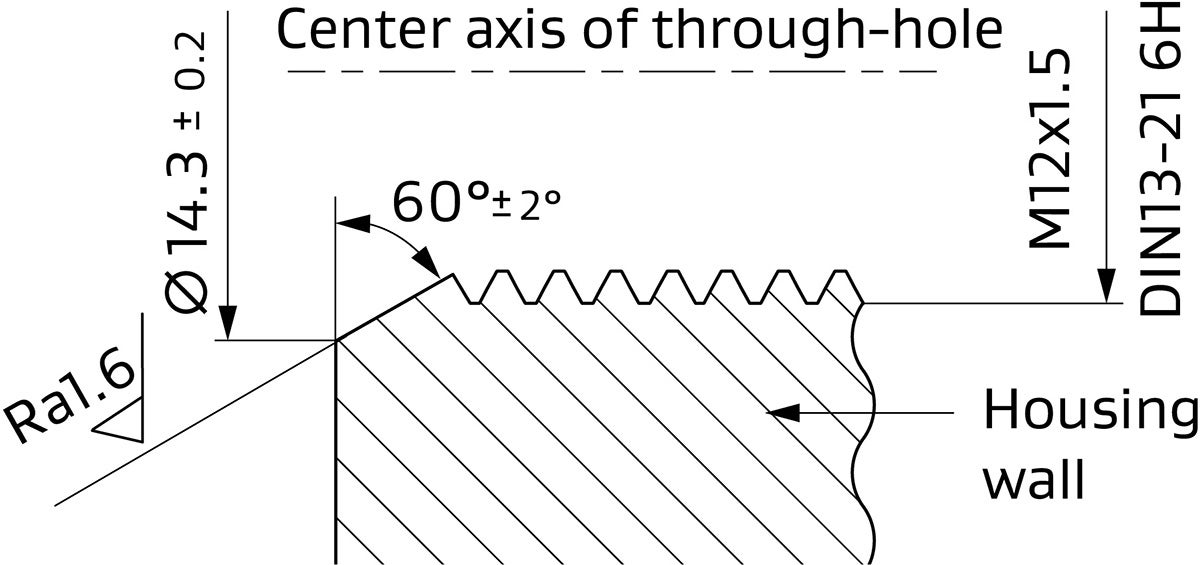

Recommended Installation

Units are in mm


  • Install on a flat, vertical housing surface where water or other contaminants will not pool.
  • Install vent with cap on exterior of the housing.
  • Torque: 0.9 ± 0.3 Nm (required)
  • Through-hole diameter: –
GORE® PolyVent Ex+ Recommended Installation
