Meeting 2.0, 3.0 and 3.1 protocols, GORE® USB Cables offer fast, non-stop signal transmission up to 10 Gb/s without interruptions. They make sure high volumes of data and video are uploaded and downloaded instantly. Our RF shielded USB cable solution is manufactured with engineered fluoropolymer materials to deliver a lifetime of service.

Features & Benefits
Applications

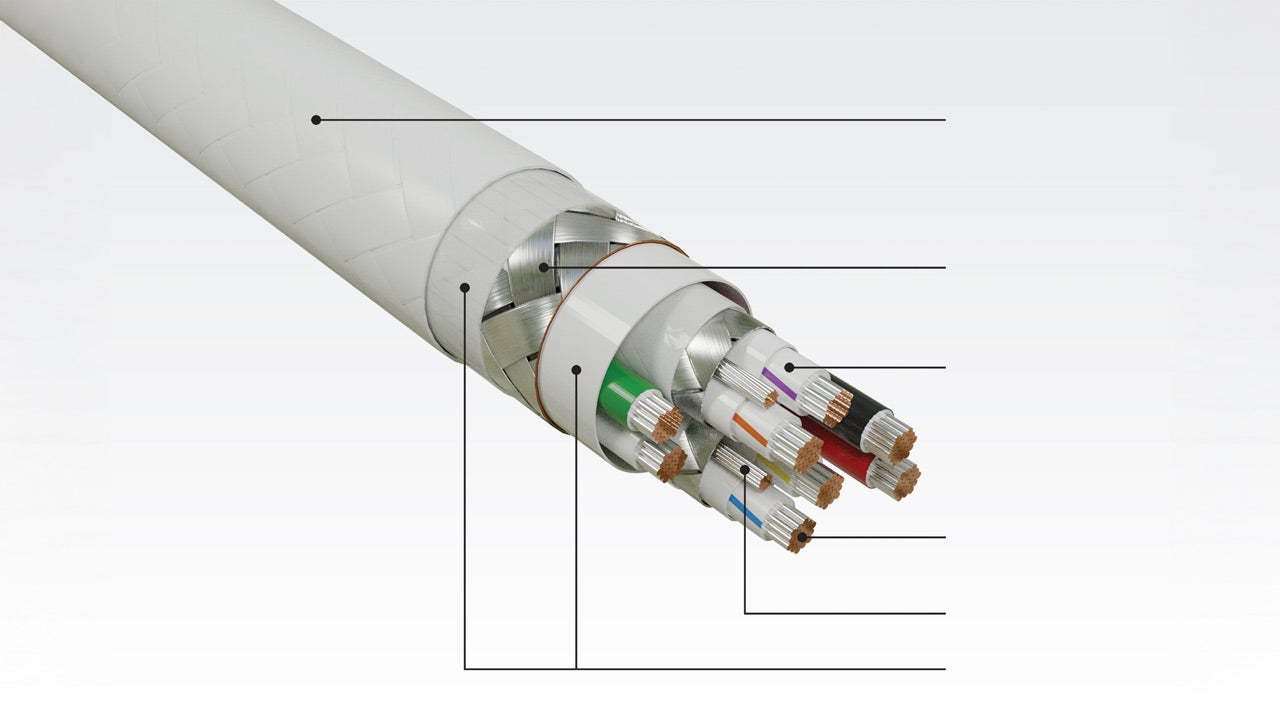

USB 3.1 Cross section with lines for hotspot.

We engineer GORE USB Cables with sturdy features that make them resistant to challenging environmental factors, maintenance activities and operational conditions, including:

  • chemically inert materials
  • temperature-resistant materials
  • abrasion-resistant materials

For system architects and engineers, these cable bundles offer numerous benefits that ensure reliable performance for the life of the military aircraft or vehicle as well as civilian aircraft, like:

  • meet 2.0, 3.0 and 3.1 high data rate protocol requirements
  • fast, non-stop signals for data and video transmission up to 10 Gb/s
  • instant high-volume content uploads and downloads
  • charge carry-on devices quickly and easily without delays
  • durable protection in harsh air and land environments, like extreme temps
  • compatible with a variety of high-speed connector systems and backshells
Behind shot of Military gear including a uniform and communication system.

Courtesy of Rheinmetall©

Gore Military Grade USB Cable

Passenger in-seat IFE system.

Meeting the latest protocols in avionics and vetronics, GORE USB Cables deliver trustworthy results in a variety of high power and high data rate transmission applications, like:

  • content loading
  • data transfer
  • electronic flight bag (EFB)
  • HD video systems
  • portable electronic devices
  • power remote devices
  • peripheral/sensor networking
  • soldier systems
  • vehicle/dismount connectivity

Our mil-spec USB cables can also be terminated with a variety of high-speed connector systems and backshells such as ARINC and MIL-STD-38999 with size 8 contacts.

Technical Information

These values demonstrate the electrical, mechanical and environmental performance of GORE USB Cables for defense aircraft and vehicles, as well as civil aircraft.

Elec./Mech./Environ. PropertyValue
Signal Transmission Speed Gb/sUp to 10
Standard Impedance Ohms
 High-Speed Pairs
 Low-Speed Pair
90 ± 5
90 ± 10
Typical Operating Voltage V< 15
Nominal Velocity of Propagation %80
Nominal Time Delay ns/m (ns/ft.)4.07 (1.24)
Capacitance pF/m (pF/ft.)50.0 (15.2)
Maximum Skew Within Paira ps/m (ps/ft.)15.0 (4.6)
Dielectric Withstanding Voltage Vrms
 Conductor-to-Conductor
 Conductor-to-Shield

1500
1000
Jacket MaterialEngineered Fluoropolymer or PU Halogen-Freeb
Jacket ColorEF: White (Laser Markable)
PU: Blackb
ConductorSilver-Plated Copper Alloy
Conductor Color-CodingHigh-Speed Pairs: Blue/White, Yellow/White, Orange/White, Violet/White
Low-Speed Pair: Green/White
Power Pair: Black/Red
Dielectric MaterialExpanded PTFE/PTFE
Temperature Range °C-65 to +200

a Shielded twisted pairs only
b Based on Gore’s part number GSC-01-85201-VG for military vehicle systems.

​Fill out a short form for instant access to selected USB cable construction drawings from W. L. Gore & Associates.

We thoroughly test and qualify GORE USB Cables to meet the most rigorous industry standards and customer requirements, including:

  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ANSI/NEMA WC 27500: Environmental Testing, Jacket and Marking
  • CS/FAR Part 25, Section 25.853, Appendix F, Part I (b)(7): Flammability
  • SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)
  • VG95218-31: Performance Requirements (GSC-01-85201-VG)

2.0 Protocol
RCN8800-22D-22P-H
RCN8800-24D-22P-H
RCN8800-26D-24P-H

3.0 Protocol
GSC-01-85201-VG

3.1 Protocol
GSC-03-84761-24D
