GORE® MEMS Membranes for Sensors
Our customizable membranes and adhesives accelerate higher-accuracy, higher-reliability open port MEMS sensors while increasing manufacturing efficiency and yields.
More Reliable MEMS Sensors. Higher Yields. Faster Market Entry.
Our tailored membranes and adhesives help OEMs speed up the development of open-port MEMS sensors with enhanced accuracy and reliability, while also supporting OSAT companies in boosting manufacturing efficiency and output. Throughout every stage, from development and installation to handling and operation, our global membrane team provides fast rapid sampling and expert technical expertise.
Protective Membranes for MEMS Open-Port Sensors
Designed for gas, pressure, and humidity sensing applications, our protective membranes enable stable sensor operation, reduce contamination risks and improve long-term durability.
Particle Shielding
Increase yields and control costs with reliable particle and contamination protection in SMT process and during end-use.
Ingress Protection
Enable ingress protection up to IP68 lifetime component-level protection, depending upon materials set.
Superior Gas Diffusion
Maintain fast and reliable sensor response time with consistent, high-quality membranes in compact designs.
Excellent Reflow Capability
Stand up to high temperature soldering (according to JEDEC) without compromising material integrity or sensor function.
Manufacturing efficiency
Supports high-volume production with seamless integration and proven durability by offering different product forms.

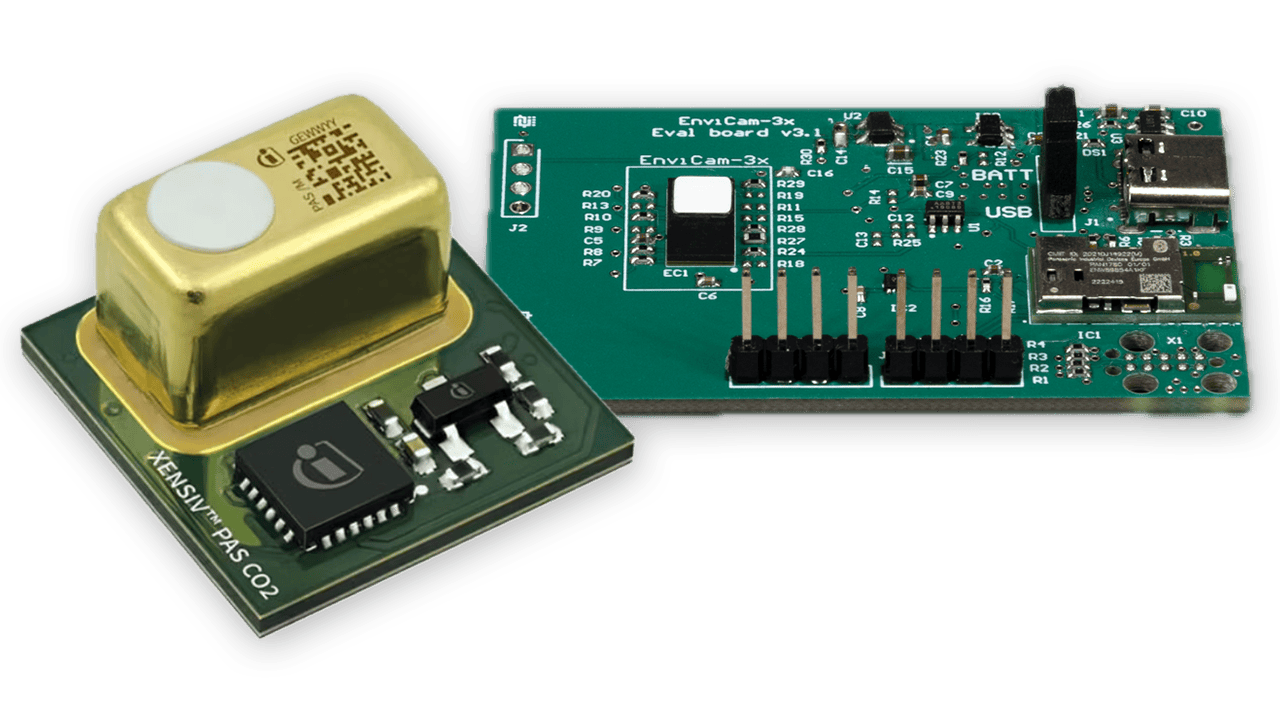

Advanced Membranes for MEMS Open-Port Sensor Applications
Our membranes are engineered for easy integration into a range of MEMS open-port sensors including:
- Gas sensors
- Humidity sensors
- Pressure Sensors
- Ultrasonic sensors
- LiDAR sensors

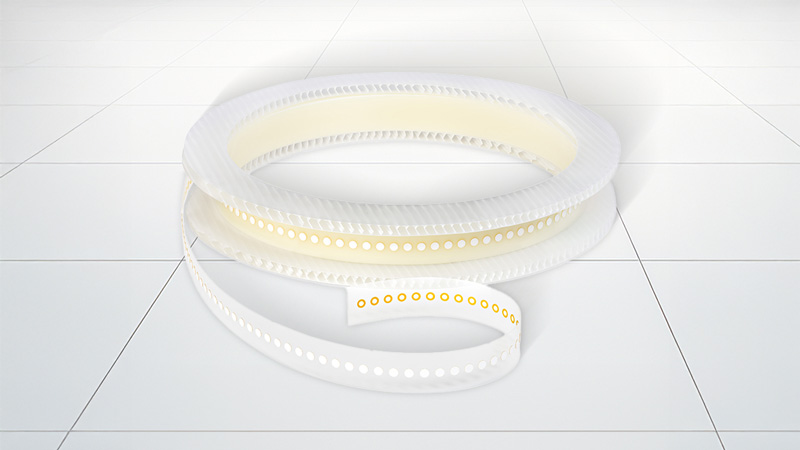

A Customizable Portfolio
These products are available in a wide range of customizable shapes and dimensions, with a minimum outer dimension (O.D.) of 1.0mm. Temperature resistance and thickness vary depending on selected material, offering flexibility to meet diverse application requirements. Users can combine membrane properties and adhesive types to create tailored configurations.
Membranes
| Oleophobic & Hydrophobic | Hydrophobic |
|---|---|
| Re-flow capable (according to JEDEC) Non-reflow | Re-flow capable (according to JEDEC) |
Adhesives
| Silicone | Acrylic |
|---|---|
| Re-flow capable (according to JEDEC) Non-reflow capable (according to JEDEC) | Non-reflow |
We work in partnership with you to simplify and accelerate your sensor development processes.
Application Leadership
Gore is a pioneer in MEMS protection, based on our membrane expertise.
Reliable Product Performance
OEMs and their suppliers worldwide know they can rely on our highly consistent, high-quality membrane material sets.
Supply Chain Security
With global R&D and manufacturing resources, we can customize to your specs, and scale to meet the demands and deadlines of high-volume, fast-ramp programs.
Global Support
Our local sales and global technical support enable fast and customized sampling, and effective consultations on materials selection, sensor design and manufacturing integration.
Technical Information
Tailor membrane and adhesive selection to your design-and-build requirements. Choose from six membranes and three adhesives according to your reflow, diffusion, protection or other technical requirements.
| Product Number | Membrane Type/Characteristic | Membrane Color | Diffusion (Response Time) | Ingress Protection | Mechanical Stability |
|---|---|---|---|---|---|
| Reflow-capable (according to JEDEC) | |||||
| MMS311 | Oleophobic | Black | ● | ●●● | ●●● |
| MMS321 | Oleophobic | White | ●● | ●●● | ●●● |
| MMS331 | Oleophobic | White | ●●● | ●●● | ●●● |
| MMS341* | Oleophobic | White | ●●● | ●● | ● |
| MMS381** | Hydrophobic | White | ● | ●● | ● |
| Non-Reflow | |||||
| MMS221 | Oleophobic | White | ●● | ●● | ●● |
| MMS231 | Oleophobic | White | ●●● | ●● | ●● |
*Highest relative diffusion rate material
**Ideal for photoacoustic sensor (PAS) applications
| Product Number | Adhesive Characteristic | Bond Strength |
|---|---|---|
| Reflow-capable (according to JEDEC) | ||
| MA321 | Silicone | ● |
| Non-Reflow | ||
| MA223 | Silicone | ●●● |
| MA212 | Acrylic | ●● |
Key
| Good | ● |
|---|---|
| Better | ●● |
| Best | ●●● |
Gore monitors and strives to comply with all regulations applicable to our products.
We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/2021.
Membranes:
Reflow-capable (according to JEDEC)
MMS311
MMS321
MMS331
MMS341*
MMS381**
Non-Reflow
MMSM221
MMS231
Adhesive:
Reflow-capable (according to JEDEC)
MA321
Non-Reflow
MA223
MA212
Case Studies
Explore More
FOR INDUSTRIAL USE ONLY
Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
