GORE® GR Sheet Gasketing for Strong, Chemically Resistant Seals
Exceptionally resistant to creep, cold flow and aggressive media, this 100% expanded PTFE gasket sheet reliability seals steel piping and equipment.
A Stronger and More Dimensionally Stable Expanded PTFE Gasket Sheet
GORE® GR Sheet Gasketing has the chemical resistance of conventional PTFE sheet gasketing without the creep and cold flow. Stronger and more dimensionally stable than other ePTFE gaskets, it conforms to rough or irregular sealing surfaces to create a tight, long-lasting seal. This makes it a versatile, single-solution material for both standard and custom, complex gasketing shapes and sizes.
Whether your application requires long-term reliable sealing, a high-temperature gasket or a chemical resistant gasket sheet, GORE GR Sheet Gasketing offers all that and more. This high performance often results in maximized process uptime and significantly reduced maintenance costs.
Superior tensile strength and dimensional stability
With the highest degree of expansion available, our proprietary, patented technology creates an ePTFE sheet that offers superior tensile strength and dimensional stability over other ePTFE material, creating significant performance advantages in demanding applications.
Resistance to creep and cold flow
Tests show that, even in high heat, GR Sheet Gasketing is more dimensionally stable than other PTFE or ePTFE gasketing. (Tested at 34.5 MPa (5000 psi) load, 230 °C (446 °F) for 15 minutes.)

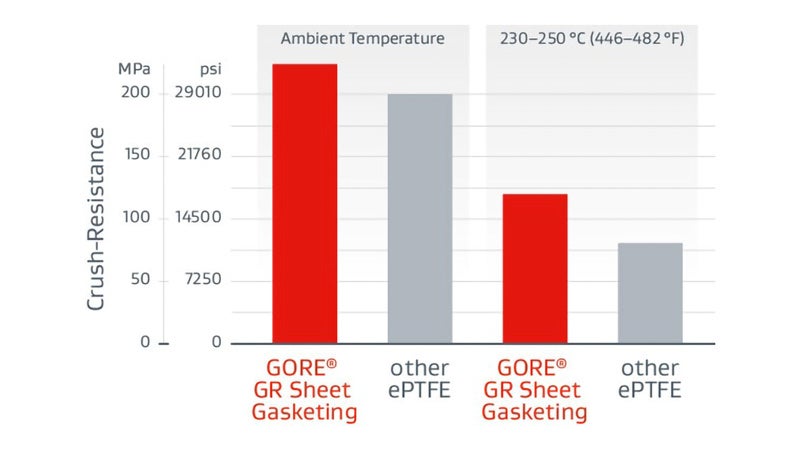

With greater tensile strength, GORE GR Sheet Gasketing is able to retains greater dimensional stability in-use — in both size and width — than any other PTFE-based or ePTFE flange gasket sheets. This helps to avoid gasket intrusion into the pipe bore which can negatively affect process performance.

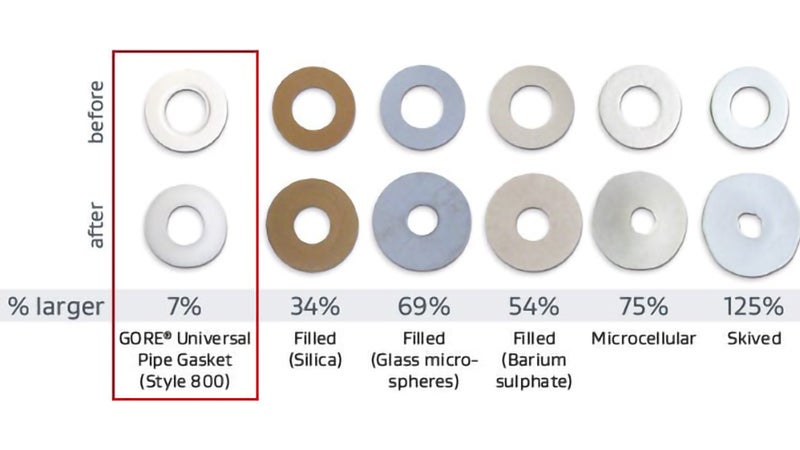

With better creep-resistance than any other PTFE gasket sheet, GORE GR Sheet Gasketing maintains a greater percentage of bolt load in operation for more reliable flange connections, especially in thermal cycling and high heat conditions.
Exceptionally reliable sealing performance
GORE GR Sheet Gasketing creates a durable, reliable seal that offers a wider safety margin than other ePTFE at installation and under harsh operating conditions.
Chemically inert GORE GR Sheet Gasketing seals durably, even in strong alkali-, acid- or solvent-based process systems.
Greater consistency, fewer problems

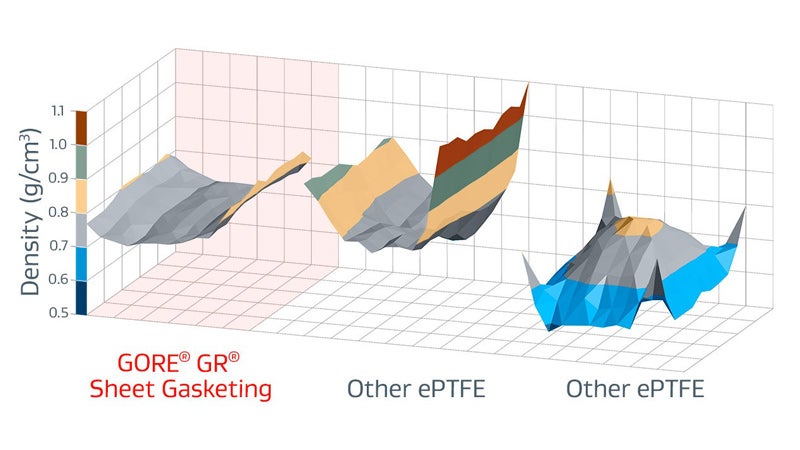

Gore manufactures a more consistently dense and conformable product for more reliable seals on rough or damaged flanges.
Our manufacturing processes give our gaskets a more uniform distribution of mass than other ePTFE sheets, eliminating the need for flange resurfacing and expanding the window of applicability, ultimately creating a highly reliable initial seal.

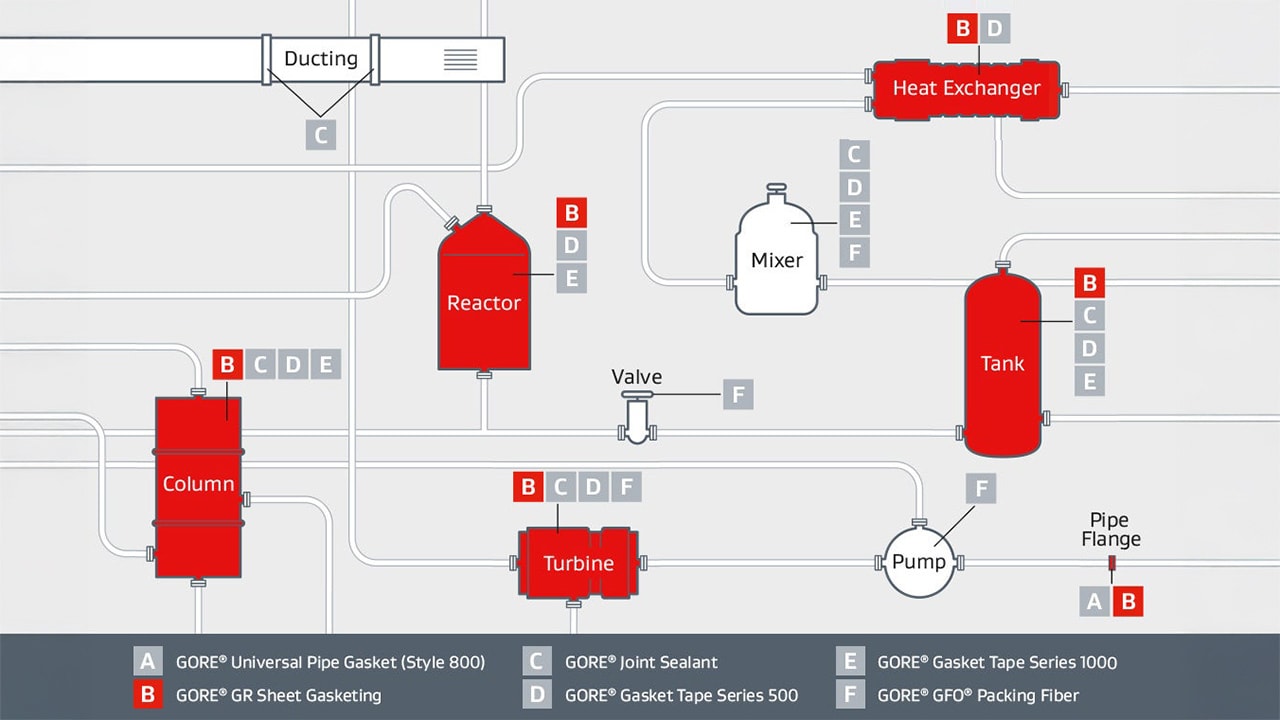

Our gasketing performs durably across a range of challenging applications, reliably sealing steel flanges that demand a chemical resistant gasket sheet or a high-temperature gasket sheet. Ideal for flanges that require complex gasketing shapes or larger gasketing sizes.
Processes utilizing highly aggressive media:
- Chemical processing
- Pulp and paper manufacturing
- Mining and minerals
- Semiconductor manufacturing
- Power generation
Large, complex or non-standard steel equipment flanges in:
- Columns
- Reactors
- Turbines
- Heat exchangers
- Tanks
- Pipe flanges

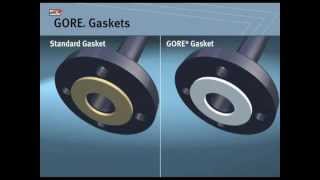

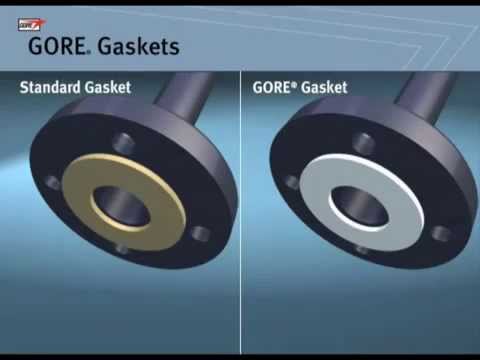

See how GORE® Gaskets resist creep relaxation compared to standard gaskets.
Technical Information
| Material | 100% expanded PTFE (polytetrafluoroethylene), with multidirectional strength |
|---|---|
| Chemical Resistance | Chemical resistance to all media pH 0-14, except molten alkali metals and elemental fluorine. |
| Operating Range | The maximum applicable pressure and temperature depend mainly on the equipment and installation. Typical use: -60 °C to 230 °C (-76 °F to 445 °F); industrial full vacuum(1) to 40 bar (580 psi) Maximum use: -269 °C to 315 °C (-452 °F to 600 °F); full vacuum to 210 bar (3000 psi) For applications outside the typical use range, Gore recommends an application specific engineering design calculation and extra care during installation. Also, consider retorquing after a thermal cycle when the equipment has returned to an ambient temperature condition. Please contact Gore if further guidance is required. |
| Shelf Life | Expanded PTFE is not subject to aging and can be stored indefinitely. |
(1) absolute pressure of 1 mmHg (Torr) = 133 Pa = 1.33 mbar = 0.019 psi
GORE GR Sheet Gasketing is manufactured to metric dimensions. The standard sheet size of 1524 mm x 1524 mm (60” x 60”) is available in a range of thicknesses, and two styles:
- Ink-printed, to identify the genuine Gore product
- Embossed (ink-free), for applications where ink is not acceptable
| Thickness | 1.0 mm | 1.5 mm | 3.0 mm | 6.0 mm |
|---|---|---|---|---|
| Printed Sheet | ✓ | ✓ | ✓ | ✓ |
| Embossed Sheet |
| ✓ | ✓ | ✓ |
Other sheet thicknesses may be available upon request.
Test Data
Test Results
| Thickness | Compressibility (average of 3 tests) | Recovery (average of 3 tests) | |
|---|---|---|---|
| ASTM F36-95 Procedure L Compressed to 17.2 MPa (2500 psi) | 1.5 mm (1/16") | 56% | 8% |
Test Method
The ASTM F36 test method covers determination of the short-time compressibility and recovery at room temperature of sheet-gasket materials. It is not intended as a test for compressibility under prolonged stress application, generally referred to as "creep."
Source: ASTM International. Standard Test Method for Compressibility and Recovery of Gasket Materials - Designation: F36–99 (Reapproved 2009)
Test Results
| Thickness | Relaxation (average of 3 tests) | |
|---|---|---|
| ASTM F38-95 Method B Annular specimens Loaded to 26.7 kN (6000 lbf) to give approximately 20.7 MPa (3000 psi) compressive stress Heated in an oven at 212 °F +/- 3 °F for 22 hours | 0.8 mm (0.030") | 23% |
Test Method
ASTM F38 provides a means of measuring the amount of creep relaxation of a gasket material at a predetermined time after a compressive stress has been applied. This test method is designed to compare related materials under controlled conditions and their ability to maintain a given compressive stress as a function of time.
Source: ASTM International. Standard Test Methods for Creep Relaxation of a Gasket Material - Designation: ASTM F38-00 (2014)
Test Results
| Thickness | Leak rate | |
|---|---|---|
| ASTM F37-95 Test Method B Gas Leakage 30 psig Dry Nitrogen 3000 psi compressive stress | 1.5 mm (1/16") | 0.3 ml/h |
Test Method
ASTM F37 provides a means of evaluating the sealing properties of sheet and solid form-in-place gasket materials at room temperature. This test method is designed to compare gasket materials under controlled conditions and to provide a precise measure of leakage rate.
Source: ASTM International. Standard Test Methods for Sealability of Gasket Materials - Designation: ASTM F37-06 (2013)
Test Results
| Gasket Thickness | % Relaxation (Average of 3 Tests) | Helium Leak Rate before aging (mg/s) | Helium Leak Rate after aging (mg/s) | |
|---|---|---|---|---|
| ARLA1 | 1/16" | 31 | 1.04E-04 | 1.42E-05 |
| 1/8" | 43 | 1.04E-03 | <1.0E-7 |
1 Compressive stress 34.5 MPa (5000 psi); 4 days at 315 °C (600 °F); 55.2 bar (800 psig) Helium
Test Method Overview
This test method is currently being proposed as a new ASTM test method by the Committee F03 on Gaskets. ARLA determines the long term (aged) relaxation, leakage, weight loss and adhesion performance of gasket materials for pressurized bolted flanged connections. A mechanical integrity check of the material is also done. The method applies mainly to circular gasket products typically used in process or power plant pressure vessels and piping.
Source: ASTM International. New Test Method for AGED RELAXATION LEAKAGE ADHESION PERFORMANCE of Gaskets - Designation: ASTM WK26065
General Test Method
ARLA Test Fixture
- Place the gasket in the ARLA fixture
- Measure the distance between platens
- Load the gasket to initial compressive stress
- Measure the stud length
- Measure the distance between platens
- Measure the leak rate (using a Helium Mass Spectrometer) using helium gas at 800 psig
- Age by placing the loaded fixture in a non-circulating air oven
- Remove the fixture from the oven and cool to room temperature
- Measure the stud length
- Measure the distance between platens
Test Results
| Thickness | Exposure Temperature | Initial Gasket Stress | Test Step 1 | Test Step 2 | |
|---|---|---|---|---|---|
| VDI 2200 (06-2007) DN40 / PN40 Steel | 3.0 mm (1/8") | 230°C (446°F) | 30 MPa (4350 psi) | Yes, 60 bar (870 psi) | Yes, 50 bar (725 psi) |
Test Method
"The aim of the VDI guideline is to analyze and organize the applicable seal connection conditions based on the technical standard. Furthermore to complete the conditions, including latest research results, and advise the user in selection, interpretation, design, and assembling of flange joints in particular consideration of the gaskets."(1) "The here described blowout safety test of seals in sealing systems with even flanges corresponds with the current state of test engineering [...] a seal itself cannot accomplish blowout safety. It always depends on the entire system of the flange joint."
General Test Procedure
- Installation of seal with installation surface pressure in four steps (25 %, 50 %, 75 % and 100 % of bolt force through crosswise tightening). Installation surface pressure and seal thickness are to be indicated in the test record. The lift-off force, caused by the nominal pressure, referring to the middle seal diameter, shall additionally be considered in all testing steps.
- Retightening to installation surface pressure after 5 minutes.
- Flange heating to temperature with 2 K/min in recirculation furnace or using inside heated cartridges.
- Maintenance of thermal storage temperature for minimum 48 hours.
- Cooling down of the flange to ambient temperature.
- Measurement of the remaining surface pressure.
Test Step 1
The blowout safety test is performed with nitrogen up to the 1.5-fold of the nominal pressure. Tests with higher pressures are allowed, if required. The internal pressure is to be increased stepwise, in steps of 5 bar to the above mentioned pressure. The holding period per pressure stage amounts to a minimum of 2 min.
As "blowout" is defined, if, within 5 s, a pressure decay of Δp ≥ 1 bar· (V0 = test room volume) is exceeded. The achieved internal pressure is to be indicated in the test record. If blowout did not occur until the maximum test pressure, the test is to be continued according to test step 2.
Test Step 2
The internal pressure is discharged and the surface pressure is reduced to 5 N/mm2 with regard to lifting force caused by the internal pressure. Variations of the surface pressure are to be stated in the testing report."(2)
(1) Source: Verein Deutscher Ingenieure e. V.: VDI 2200: Tight flange connections - Selection, calculation, design and assembly of bolted flange connections, June 2007, page 4
(2) Source: ibidem, page 64
Test Results
| Gasket Thickness | Blowout Temperature | Blowout Stress | Blowout Pressure | Trial Gasket Temperature Tgr | |
|---|---|---|---|---|---|
| HOBT with Cycling Draft 71 | 3.0 mm (1/8") | 392.2 °C (738 °F) | 8.8 MPa (1271 psi) | 30 bar (435 psig) | Actual: 339 °C Limited to: 315 °C |
1 NPS 3 Class 150 Slip-on Flange at 34.5 +/- 1.7 MPa (5000 +/- 250 psi), 30 bar (435 psig) Helium
Test Method
This test method is currently being proposed as a new ASTM test method by the Committee F03 on Gaskets. This test method provides a means to determine realistic temperature limits for polytetrafluoroethylene (PTFE) based sheet or sheet-like gaskets to assist in avoiding catastrophic failure or blowout. This test method focuses on flanged joints common in the chemical process industry for moderate temperature ASME B16.5 Class 150 and Class 300 services.
Source: ASTM International. New Test Method for Hot Blowout and Thermal Cycling Performance for Polytetrafluoroethylene (PTFE) Sheet or Sheet-Like Gaskets - Designation: ASTM WK26064
General Test Procedure (Draft 7)
- A gasket is loaded in a Hot Blow Out Test Rig, which is comprised of NPS 3 Class 150 or Class 300 raised face flanges. Using a torque wrench and best installation practices, the specified compressive stress is applied to the gasket.
- A waiting period for gasket creep and relaxation of 30 minutes is observed before the gasket is reloaded to the specified gasket stress.
- Another 30 minutes waiting period is observed before the rig is pressurized with helium gas.
- For HOBT without thermal cycles, once the pressure is applied, the temperature is increased up to 648.9°C (1200°F) maximum at a 16.1°C (3°F) per minute rate until blow-out or maximum temperature of the rig is reached.
- For HOBT with thermal cycles, once the pressure is applied, the temperature is increased at 16.1°C (3°F) per minute rate. The fixture is then cooled to room temperature. This cycle is repeated two more times for a total of three thermal cycles per test.
The procedure consists of three tests:
Test 1: HOBT without thermal cycles.
Test 2: HOBT with 3 thermal cycles using temperature estimation from Test 1.
Test 3: HOBT with 3 thermal cycles using temperature estimation from Test 2.
Test Results
| ROTT Draft 9 | GORE GR Sheet Gasketing | |
|---|---|---|
| Soft Gasket Test | Gasket Thickness: 1/16" | Gasket Thickness: 1/8" |
| Gb (psi) | 685 | 770 |
| a | 0.271 | 0.274 |
| Gs (psi) | 6.19E-02 | 9.38E-07 |
| Tpmin | 1416 | 1962 |
| Tpmax | 27706 | 16424 |
| S100 (psi) | 2391 | 2716 |
| S1000 (psi) | 4466 | 5099 |
| S10000 (psi) | 8343 | 9573 |
| Maximum Allowable Gasket Stress (psi) | Greater than 40030 (Equipment Max) | Greater than 40030 (Equipment Max) |
Test Method
This test method is currently being proposed as a new recommended practice for Gasket Constants for Bolted Joint Design by the Committee F03 on Gaskets. This practice determines room temperature gasket tightness design constants for pressurized bolted flanged connections such as those designed in accordance with The ASME Boiler & Pressure Vessel Code. It applies mainly to all types of circular gasket products and facings typically used in process or power plant pressure vessels, heat exchangers and piping including solid metal, jacketed, spiral wound and sheet type gaskets. As an option, the maximum assembly stress for those gaskets is also determined by this procedure.
Source: ASTM International. New Recommended Practice for GASKET CONSTANTS FOR BOLTED JOINT DESIGN - Designation: ASTM WK10193
Definitions of Test Parameters
| Gb | The gasket stress at Tp = 1 when loading the gasket. It indicates the initial gasket stress required to seat the gasket with tightness. |
|---|---|
| "a" | The slope obtained by linear regression. It indicates the capacity of the gasket to ensure tightness. |
| Gs | The gasket stress at Tp = 1 when unloading the gasket. It indicates the capacity of the gasket to maintain tightness when pressure is applied, as well as the gasket's sensitivity to unloading. |
| Tp | The Tightness Parameter is dimensionless. A value of 1 corresponds to a Helium leak rate of 1 mg/s under atmospheric pressure for a gasket with an outside diameter of 150 mm. Note: the greater the Tp, the greater the gasket tightness. |
| Tpmax | The maximum tightness obtained when loading the gasket. |
| Tpmin | The minimum tightness obtained when unloading the gasket. |

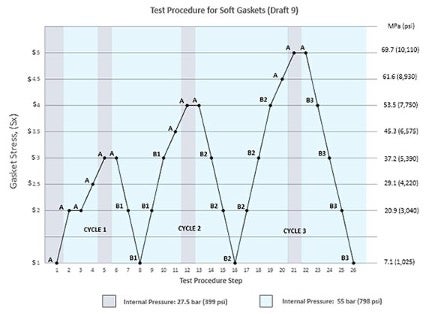

General Test Procedure for Soft Gaskets (Draft 9)
- A gasket is placed in a hydraulic flat platen test rig.
- A series of 3 loadings and unloading cycles is applied during which leak rate is measured at each stress level. Depending on the step, the system is pressurized to either 27.5 bar (399 psi) or 55 bar (798 psi) using helium gas. The holding time at each step is dependent on when a leak rate stabilizes, with a minimum hold time of 1 minute and a maximum hold time of 5 hours.
- The data collected is grouped into two Parts, Part A and Part B, and analyzed to generate the test parameters. Part A represents the initial seating performance of a gasket during initial flange tightening. Data from Part A is used to determine Gb, "a", and Tpmax. Part B simulates actual operating conditions. Data from Part B is used to determine Gs and Tpmin.

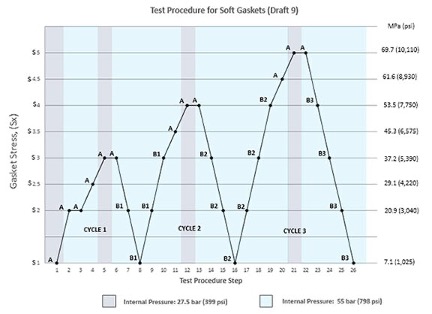

ROTT Test Procedure for Soft Gaskets
General Test Procedure for Crush (Draft 9)
- The gasket stress is restored to S1 level.
- Loading cycles, with gradually increasing compression stresses, are applied on the gasket during which leak rate is measured at each stress level. The system is pressurized to 27.5 bar (399 psi) using helium gas. The holding time shall not exceed 15 minutes at each stress level.
- The test is complete when the leak rate at a stress level exceeds the leak rate observed at S1 level or when the maximum load of the equipment is reached.
- Maximum Allowable Stress is the maximum stress level where S1 leak rates were maintained.
Gasket Design Factors
Test Results
Please find below the test results by sheet thickness.
GORE® GR Sheet Gasketing in 1.5 mm (1/16")
GORE® GR Sheet Gasketing in 3 mm (1/8")
GORE® GR Sheet Gasketing in 6 mm (1/4")
Note: if the gasket thickness is not directly listed above, use the data from the next higher thickness.
Test Method
EN 13555 provides the test method for generating the gasket parameters used in EN 1591-1 calculations.
Gasket Constant Definitions
| PQR | A measure of creep relaxation at a predefined temperature. It is the ratio between the gasket stress after relaxation and the initial gasket stress. The ideal PQR value is 1. The closer the test value is to the ideal value, the lower the loss of gasket stress. |
|---|---|
| Qmin(L) | The minimum required gasket stress at ambient temperature for a certain leakage class L when the seal is first installed. |
| QSmin(L) | The minimum required gasket stress for a certain leakage class L in service. |
| QSmax | The maximum gasket stress that may be applied on the gasket, without damage or intrusion into the bore, at the indicated temperatures. It depends on the temperature and the gasket thickness. |
| EG | The recovery (elastic behavior) of a seal at load reduction and is related to the modulus of elasticity. It depends on the applied gasket stress, the seal thickness and the temperature. |
General Test Method Description
| PQR | Creep Relaxation is measured at different temperatures, initial gasket stress, seal thickness values and flange stiffness values. The seal initially is exposed to the predefined gasket stress, then the temperature is increased and maintained for four hours. The residual gasket stress is then measured. |
|---|---|
| Qmin; QSmin | A load is applied to and removed from the seal in predefined increments, with the leakage being measured constantly. The internal pressure is usually 40 bar (test gas: helium). |
| QSmax; EG | The gasket stress is increased cyclically and then reduced to 1/3 of the previous gasket stress. The seal thickness is then measured. The test is repeated at various temperatures. The EG value is calculated from the load reductions and thickness changes. For QSmax, a sudden drop in seal thickness indicates failure. If a sudden drop occurs, the value of the loading step before failure is taken. In case no failure occurs, the maximum possible gasket stress of the test equipment is taken. The identified value is then used as the initial stress in a PQR test to verify the final QSmax under constant loading. |
Test Results
| m | 2.5 |
|---|---|
| y | 2800 |
Test Method
m & y are gasket constants used for flange design as specified in the ASME Boiler and Pressure Vessel Research Code Division 1 Section VIII Appendix 2. Leak Rates versus Y stresses and m factor for Gaskets is currently being proposed as a new test method in the ASTM F03 Working Group.
Gasket Constant Definitions
m, maintenance factor, is a factor that describes the amount of additional preload required to maintain the compressive load on a gasket after internal pressure is applied to a joint.
y, seating stress, is the minimum compressive stress (psi) required to achieve an initial seal.
Test Results
For GORE GR Sheet Gasketing in 3 mm thickness and with an internal pressure of 40 bar (580 psi), this results in:
| k1 | 2.5 · bD |
|---|---|
| k0KD | 24 MPa · bD |
| k0KDϑ | 80 MPa · bD temperature ϑ = 230 °C (446 °F) |
Test Method
There are no specific test standards for AD 2000 B 7 Gasket Parameters. However, an estimation is provided below. The 2015 edition of "AD 2000-Merkblatt B 7" refers to EN 13555 as a test standard(1) and uses table 9 from VDI 2200(2) for the conversion method. Please note that VDI2200 states that such a conversion is invalid due to the different measurement methods. "Only the method according to DIN EN 1591-1 and AD 2000 in conjunction with DIN EN 1591-1 and FE analysis can be used for providing stability, leak tightness and TA Luft proof." (3)
Gore supports the use of the AD 2000-Merkblatt B 7 and provides the necessary gasket parameters below.
There are the following relations(1):
k0KD ≙ Qmin · bD
k1 ≙ (QSmin / p) · bD since m ≙ QSmin / p (4)
k0KDϑ ≙ QSmax· bD
| Qmin | minimum required gasket stress at ambient temperature when the seal is first installed (based on EN 13555) |
|---|---|
| QSmin | minimum required gasket stress in service (based on EN 13555) |
| QSmax | maximum gasket stress that may be applied on the gasket at an indicated temperature ϑ (based on EN 13555) |
| bD | width of the gasket |
| p | internal pressure of the media |
| k1 | AD 2000 B 7 gasket parameter for service condition |
| k0KD | AD 2000 B 7 gasket parameter for gasket deformation |
| k0KDϑ | AD 2000 B 7 gasket parameter for gasket deformation in service at temperature ϑ |
If necessary for a specific application, Gore recommends to do individual conversions based on data from EN 13555.
The use of the general values given in table 1 of AD 2000-Merkblatt B 7(5) is not broadly recommended. However they may be applicable depending on the given situation.
Please also note that the quoted standards of DIN 2690 to DIN 2692 were superseded by EN 1514-1 in 1997.
(1) Arbeitsgemeinschaft Druckbehälter: AD 2000-Merkblatt B 7, Berechnung von Druckbehältern, Schrauben, Seite 4, 7.1.2.4, April 2015
(2) Verein Deutscher Ingenieure e. V.: VDI 2200, Tight flange connections - Selection, calculation, design and assembly of bolted flange connections, page 36, table 9, June 2007.
(3) Verein Deutscher Ingenieure e. V.: VDI 2290, Emission Control - Sealing constants for flange connections, page 8, June 2012
(4) Please note that factor m = QSmin / p was defined by DIN V 2505 which was superseded by EN 1591-1 where m is no longer used
(5) Arbeitsgemeinschaft Druckbehälter: AD 2000-Merkblatt B 7, Berechnung von Druckbehältern, Schrauben, Seite 6, Tabelle 1, April 2015
Certificates & Application Information
| Type | Description | File |
|---|---|---|
| TA Luft | For the TA Luft1 test, the seal is installed in a DN40/PN40 steel flange, usually with a gasket stress of 30 MPa. The flange is then exposed to a defined temperature for minimum 48 hours. After cool down, leakage rate is measured over a period of at least 24 hours. The test pressure is 1 bar helium. The ultimate final leakage rate after a test duration of 24 hours must remain below 10–4 mbar*l/(s*m) for the seal to qualify according to TA Luft. TA Luft certificates are available for thicknesses 1.5 mm, 3 mm and 6 mm. 1Federal Ministry of Germany for the Environment, Nature Conservation, Building and Nuclear Safety: First General Administrative Regulation Pertaining the Federal Emission Control Act (Technical Instructions on Air Quality Control - TA Luft), Joint Ministerial Gazette, July 30, 2012. | Download |
| OXYGEN SERVICE (BAM) | The Federal Institute for Materials Research and Testing (BAM) tests the sealing material compatibility for use in flanged connections with liquid and gaseous oxygen. Further information on the test procedure and the result can be found in the following test report. | Download |
| Chlorine Service | Eurochlor's publication on Experience of Gaskets in Liquid Chlorine and Dry or Wet Chlorine Gas Service and the Chlorine Institute's Pamphlet 95 Gaskets for Chlorine Service cover gaskets for both dry and wet chlorine service and highlight materials that have found user acceptance through field-testing and member company experience. GORE GR Sheet Gasketing and GORE® Universal Pipe Gasket (Style 800) are both listed in these publications. The documents are available from the respective organizations. | |
| Marine and Offshore Applications | GORE GR Sheet Gasket has received a Product Design Assessment (PDA) Certificate per the ABS Type Approval Program. | Download |
| Leachable Fluoride and Chloride | This test analyzes leachable water-soluble fluoride and chloride ions which can induce flange corrosion. The samples are leached for 24 hours at approximately 95 °C in demineralized water. Contact Gore for further information if this testing is required for your application. | |
| Safety Information | GORE® Gasketing products meet the definition of an article; therefore, a Material Safety Data Sheet (MSDS) or Safety Data Sheet (SDS) is not required. However, for your convenience, a Product Safety Sheet, which details the intended use and proper handling of our articles, is provided. | Download |
| Gore Quality Management System | The Gore Sealant Technologies Quality Management System is certified in accordance with ISO 9001. | |
| Food Contact | GORE® GR Sheet Gasketing meets the requirements for repeat-use food contact applications with all food types per FDA regulations 21CFR174.5 (d) (1-5), 21CFR177.1550 (and 21 CFR175.300 for products with red and green printing ink) and conform to the requirements of regulation (EC) No 1935/2004 including (E U) No 10/2011. Declaration of Compliance is available upon request. |
