Transmit Data from Space to Earth amid Harsh Conditions

For decades, GORE® Spaceflight Microwave RF Assemblies have transmitted unfailing signals with low loss up to 40 GHz in hundreds of global programs. They durably protect against shock, vibration, extreme temperatures, chemicals, radiation and ATOX. Small and low-mass, they help minimize mass budget problems and tight installation paths.

Featured Resources

Features & Benefits
Applications
Cable Types
Program Heritage

Ensure Mission Readiness & Success

Spaceflight Cable Construction

Featuring approved materials, GORE Spaceflight Microwave RF Assemblies deliver many advantages that ensure the success of LEO, GEO and deep space missions — from takeoff to landing and back.

  • reliable signal integrity with low loss and excellent phase stability from DC to 40 GHz
  • outstanding shielding effectiveness across wide operating frequencies
  • superior protection against shock, vibration, radiation, extreme temps, ATOX and more
  • small, low-mass designs help meet challenging mass budgets and tight installation paths
  • proven performance through ESCC and NASA qualification testing replicating mission life, including integration, launch and in-orbit phases
  • a variety of high-power, high-frequency and high-density cable types
  • more design options with robust, low-profile connector options
Traditional Space

Gore RF assemblies for traditional space applications

© ESA, NASA, S. Beckwith (STScI) and the HUDF Team, Northrop Grumman Aerospace Systems/STScI/ATG medialab

NewSpace & Launch

Gore RF assemblies for newspace & launch applications

© NASA/JPL-Caltech

GORE Spaceflight Microwave RF Assemblies are trusted to ensure readiness and success in many applications operating in low earth orbit (LEO), geostationary earth orbit (GEO) and deep space environments, like:

  • antennas
  • box-to-box connections
  • extreme temperatures
  • general & low-mass payload
  • high-density interconnections
  • high-frequency & high-power equipment
  • low-PIM & multipaction equipment
  • inside-the-box connections
  • limited-flex equipment
  • low insertion loss applications
  • mass-critical applications
  • Multiplexor
  • Quick connect
  • satellite panel-to-panel equipment

We offer a selection of cable types in various frequencies, diameters and lengths to accommodate many high-power, high-frequency and high-density applications for traditional space or NewSpace and launch.

  • Frequencies: 18, 22, 29.5, 32 and 40 GHz
  • Diameters: 0.085 in (2.2 mm), 0.120 in (3.0 mm), 0.140 in (3.6 mm), 0.170 in (4.3 mm), 0.190 in (4.8 mm), 0.290 (7.4 mm), 0.320 in (8.1 mm)

You can request specific phase or time delay matching for applications with frequencies up to 40 GHz. We can also provide absolute and relative time delay matching to sub-picosecond tolerances.

Spaceflight Program Heritage

W. L. Gore & Associates has a decades-long history of delivering highly reliable solutions to the space industry. Our products’ 100% failure-free flight records demonstrate our commitment to collaborating with customers when developing durable, trustworthy solutions for the most demanding space travel environments possible.

They’ve been used and trusted in many well-known missions and programs over the years, including:

  • 1969 Apollo 11 First Moon Landing
  • International Space Station
  • Mars Exploration Rover Programs
  • Space Shuttle Programs
  • James Webb Space & Hubble Telescopes
Gore spaceflight microwave assemblies in Mars Perseverance

Technical Information

We work closely with major space organizations like the ESA (European Space Agency) and NASA (National Aeronautics and Space Administration) to deliver low-risk assemblies with valued reliability from an ESA-qualified and ISO 9001:2000-certified manufacturing facility.

Our assemblies have undergone substantial qualification testing to replicate mission life, including integration, launch and in-orbit phases.

Traditional Space

  • ESA, ECSS-Q-ST-60-13C, Annex G Class 1
  • NASA, EEE-INST-002 Level 1
  • Technology Readiness Level (TRL) 9

NewSpace & Launch

  • ESA, ECSS-Q-ST-60-13C, Annex G Class 2
  • ESA, ESCC 3408 Chart F4A
  • NASA, EEE-INST-002 Level 2

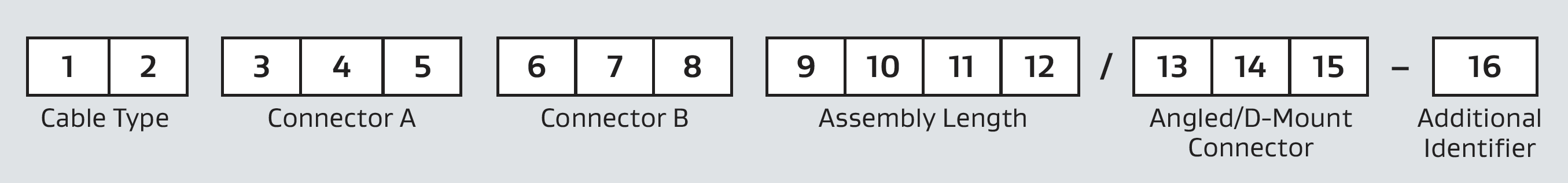

GORE Spaceflight Microwave RF Test Assemblies are identified by a 16-character part number that designates the cable type, connector codes and forms, assembly length and an additional identifier for temperature range based on the application for traditional space or NewSpace and launch.

For all of our cable types, we manufacture a variety of robust, low-profile connector options like SMA, SSMA, MSSS, SMP, SMPM, 2.92 mm and more. They’re specifically designed to complement the performance of each assembly, minimizing loss and reflection for optimized signal transmission.

GORE® Spaceflight Microwave/RF Assemblies

Example part numbers for our cable types include the following:

  • 27S71S710120/270-X
  • 41ZN1Y040161
  • 42ZN1ZN11805-X
  • 89S71S71140/090-NS
  • 4YOCQZQA0181-NS
  • G5C01C710236-NS
