GORE® TENARA® Sewing Thread for Outdoor & Marine Applications
GORE® TENARA® Sewing Thread resists UV sunlight, chemicals, saltwater, extreme weather, and acid rain, ideal for outdoor applications.
UV Resistant Thread Made to Last
GORE TENARA Sewing Thread can improve the performance of outdoor and marine products that demand exceptional seam life and seam integrity, withstanding sunlight, saltwater, harsh chemicals, pollution and extreme temperatures. Made from a unique ePTFE fiber, our thread retains its bold appearance over time and is guaranteed to outlast the fabric in which it is used.
Versatile, high-performance GORE TENARA Sewing Thread is designed for high-speed sewing. It maintains its good looks and strength even after extended environmental challenges.

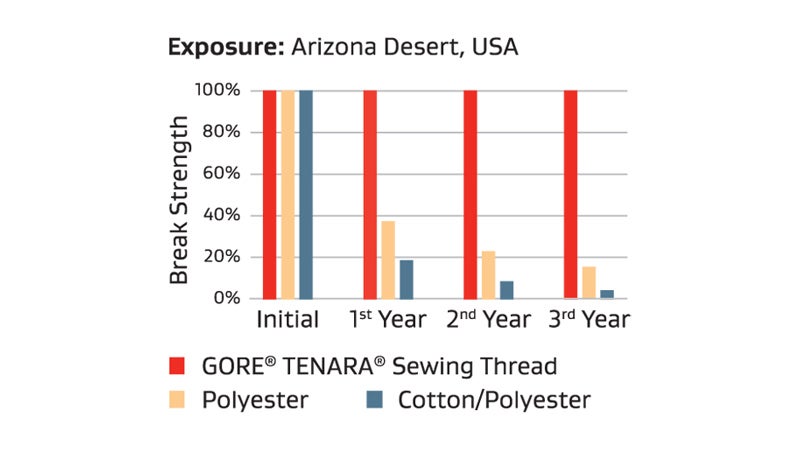

Sunlight-Resistant
Our UV resistant thread maintains its strength even after regular exposure to sunlight’s UV rays. This thread effectively resists breakage because UV resistance is permanently built right into our fibers — it’s not a coating or additive that can wear off.
Weatherproof
Gore’s weatherproof thread remains flexible and strong in extremes of hot and cold. It won’t absorb water and it durably resists acid rain, saltwater, pollution, snow and freezing temperatures.
Known for Premium Quality
Using GORE TENARA Sewing Thread lets your customers know you are providing a premium product with durable seams that are built to last. After more than 30 years in the market, our outdoor sewing thread has proven itself for delivering lasting quality, for performance that both you and your customers can trust.
Easy to Clean

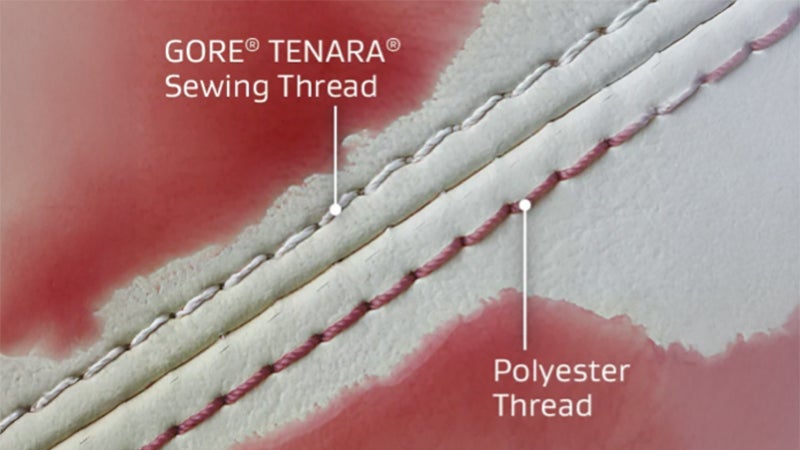

GORE TENARA Sewing Thread is unaffected by acids, alkaline solutions, bleach and cleaning chemicals. Just as important: it will not stain. After a red-wine spill, a typical polyester thread absorbed a red stain that couldn’t be removed by cleaning. Compare that to the GORE TENARA Sewing Thread, which cleaned up easily and looks like new.

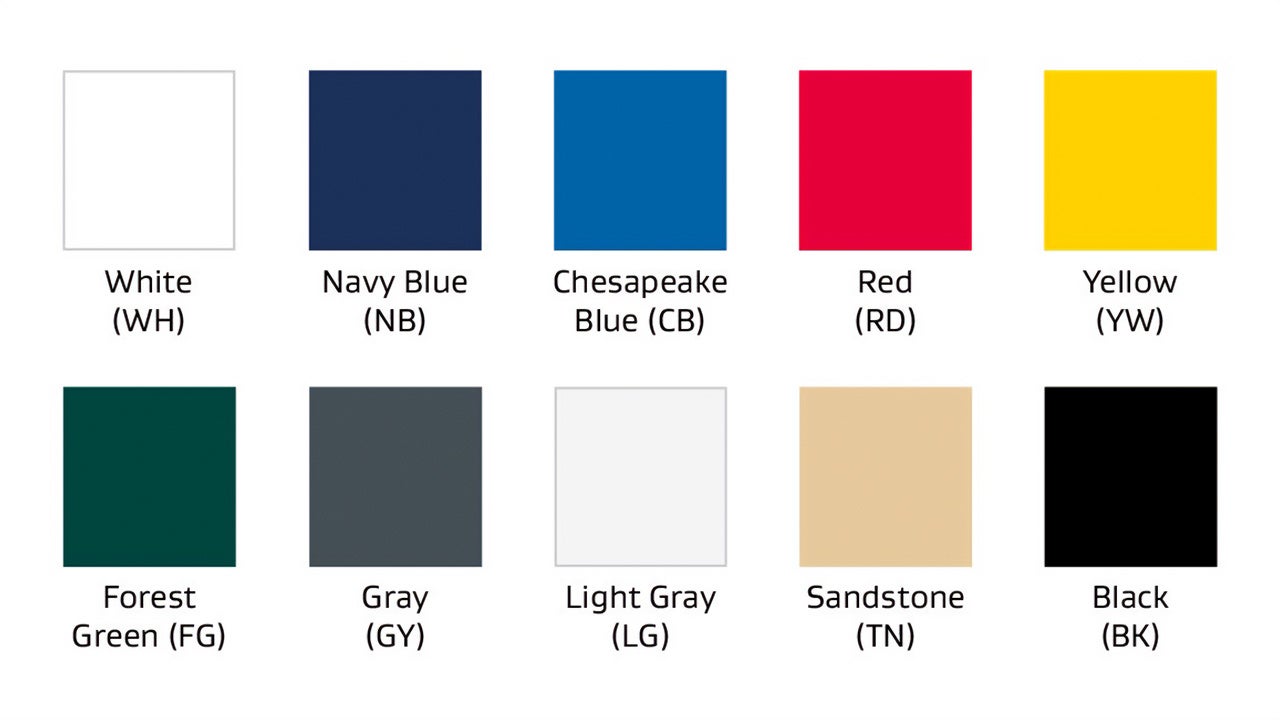

Fade-Resistant Colors
Our heavy-duty sewing thread is pigmented — not dyed. Because these non-fading pigments are highly resistant to light, our colorfast threads retain their bold appearance over time. In tests conducted by an independent laboratory*, GORE TENARA Sewing Thread received the highest score possible: a light-fastness rating of 8.
* Tests conducted by Q-Lab Corporation in 2019 according to DIN EN ISO 105-B06A:2004-07.
World-renowned manufacturers and fabricators have discovered how GORE TENARA Sewing Thread enhances the quality, beauty and durability of their products.
Marine Applications
- Bimini tops
- Boat covers
- Boat enclosures
- Dodgers
- Sails
- Sail covers
- Seat cushions
- Side curtains
- Upholstery
Outdoor Applications
- Awnings
- Garden structures
- Outdoor upholstery
- Patio furniture
- Sun protection and shade sails
- Swimming pool covers
- Umbrellas
Additional Applications
- Tarps and tents
- Artificial Turf installation
- Camping equipment
- Convertible tops
- Equestrian equipment
- Flag manufacturing
- Hunting blinds
- Kayak Covers
- Moon Bounces
- Inflatable Aircraft Hangers
- Recreational Vehicle (RV) Awnings
- Tennis and soccer nets
Technical Information
| Part Number | Linear Density (titer) | Approximate Polyester Equivalent | Minimum Break Strength N (lbs) | Minimum Elongation at Break (%) | Recommended Needle Size Nm (Number) | Typical Applications |
|---|---|---|---|---|---|---|
| M1003MTR-NW (Natural White) | 1850 d | 92 | 53.4 N (12 lbs) | 7 | 120-130 (18-20) | Marine and other outdoor applications requiring durable seams and high yield per spool. |
| M1003MTR-L (Clear) | 1850 d | 92 | 66.7 N (15 lbs) | 7 | 120-130 (18-20) | |
| M1003MTR-BK (Black) | 1850 d | 92 | 53.4 N (12 lbs) | 7 | 120-130 (18-20) |
Available Sizes:
- 1/2 pound spools, 1450 m/1585 yd yield
- One pound spools 2500 m/2734 yd yield
| Part Number | Linear Density | Approximate Polyester Equivalent | Minimum Break Strength cN (lbs) | Minimum Elongation at Break (%) | Recommended Needle Size Nm (Number) | Typical Applications** |
|---|---|---|---|---|---|---|
| M1000LTR-L | 1111 dtex 1000 denier | 69 Tex Nm 50/60 | 3114 cN 7 lbs | 17 | Nm 90-110 (14-16) | Awning binding, pillows, light weight cushions, curtains, awning side curtains, valances |
| M1000KTR-L | 1556 dtex 1400 denier | 92 Tex Nm 35/40 | 4448 cN 10 lbs | 17 | Nm 100-120 (18) | Awnings, marine, upholstery |
| M1003HTR-L | 2775 dtex 2500 denier | 138 Tex Nm 20/25 | 8452 cN 19 lbs | 10 | Nm 110-140 (19-22) | Large awnings or structures, marine, sails, heavy clear vinyls, zippers, areas where additional seam strength is desired |
Available Sizes:
- 300-meter spools
- 1/2 pound spools (1050–2100 m/1150–2300 yd yield depending on denier)
- 1 pound spools (1800–4500 m/1967–4921 yd yield depending on denier)
| Part Number | Linear Density | Approximate Polyester Equivalent | Minimum Break Strength cN (lbs) | Minimum Elongation at Break (%) | Recommended Needle Size Nm (Number) | Typical Applications** |
|---|---|---|---|---|---|---|
| M1000TR-(XX) | 1556 dtex 1400 denier | 92 Tex Nm 35/40 | 3559 cN 8 lbs | 17 | Nm 100-120 (18) | Awnings, marine, upholstery, decorative top stitching, awning side curtains, valances |
| M1003HTR-(XX) | 2775 dtex 2500 denier | 138 Tex Nm 20/25 | 6228 cN 14 lbs | 10 | Nm 120-140 (19-22) | Large awnings or structures, marine, heavy clear vinyls, zippers, areas where additional seam strength is desired |
Special order colors: Lime Green, Brown, Dark Red, Orange. Please contact us.
Available Sizes:
- 300-meter spools
- 1/2 pound spools (1050–2100 m/1150–2300 yd yield depending on denier)
- 1 pound spools (1800–4500 m/1967–4921 yd yield depending on denier)
Case Studies
Explore More
FOR INDUSTRIAL USE ONLY
Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
