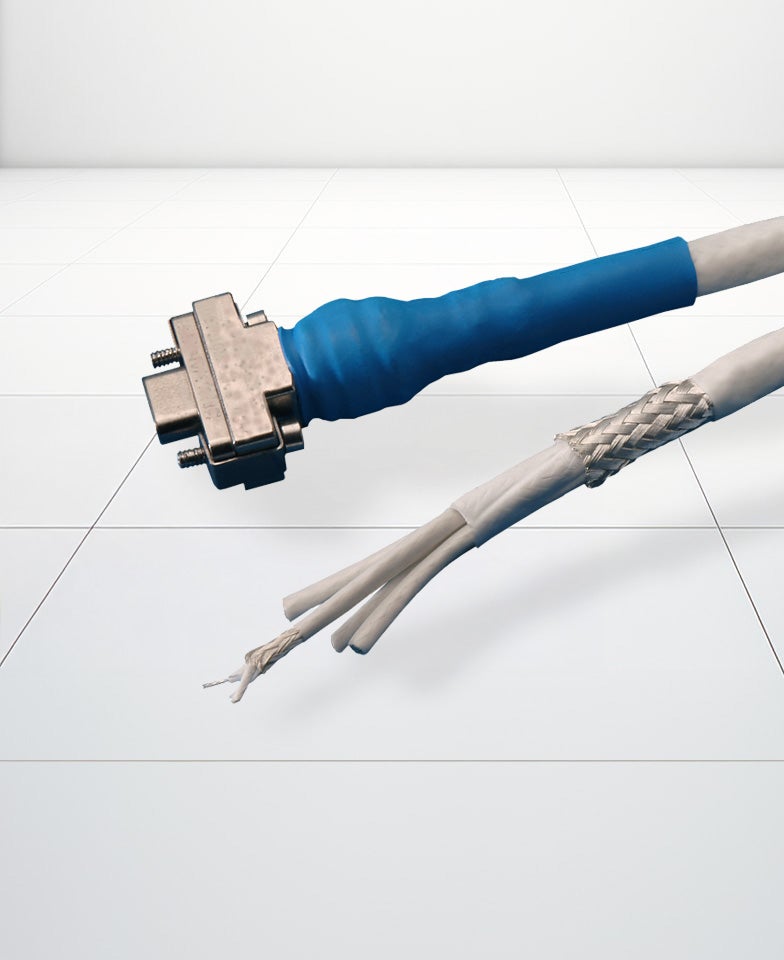

GORE® Space Cables, Type SpaceWire
Our cables deliver unfailing bi-directional signals at high data rates with low loss in critical spacecraft systems amid harsh launch and orbit environments.
Constant High Data Rate Transfer
GORE® Space Cables, Type SpaceWire, is proven to maintain constant bi-directional, high-speed data transmission up to 400 Mbps with minimal crosstalk, low insertion loss and low skew. They allow data to pass through the cable without significant signal loss using a serial, point-to-point dataline that supports LVDS.

Gore Solutions for Spaceflight
Watch and learn how Gore can help solve the design challenges inherent in space missions, providing decades of proven, reliable solutions to space companies.
Technical Information
GORE Space Cables, Type SpaceWire, meet these technical specifications:
Elec./Mech./Environ. Property | Traditional Space | NewSpace |
---|---|---|
Signal Transmission Speed Mbps | 400 | 400 |
Maximum Operating Voltage Vrms | 200 | 200 |
Time Delay ns/m (ns/ft.) | 4.30 (1.31) | 4.30 (1.31) |
Capacitance pF/m (pF/ft.) | 50.0 (15.2) | 50.0 (15.2) |
Skew Within Pair ps/m (ps/ft.) | ≤ 150.0 (46.0) | ≤ 150.0 (46.0) |
Dielectric Withstanding Voltage Vrms | 1400 | 1400 |
Cable Jacket Material | PFA | PFA |
Cable Jacket Color | White | Yellow |
Wire Insulation Material | Expanded PTFE | Expanded PTFE |
Conductor | Silver-Plated, High-Strength Copper Alloy | Silver-Plated, High-Strength Copper Alloy |
Conductor Color-Coding | Blue/White, Brown/White, Green/White, Red/White | Blue/White, Brown/White, Green/White, Red/White |
Dielectric Material | Expanded PTFE/PTFE | Expanded PTFE/PTFE |
Temperature Range °C | -200 to +180 | -200 to +180 |
Radiation Resistance MRad | 10+ | 10+ |
Vacuum Stability % (ASTM 595; ECSS-Q-70-02) | < 0.1 | < 0.1 |
Downloads |
GORE Space Cables, Type SpaceWire, are meticulously tested and qualified to comply with stringent industry standards and requirements.
Traditional Space
- ESA ESCC 3902/003
- ESA ECSS-Q-ST-60-13C Annex G Class 1
- NASA EEE-INST-002 Level 1
- Technology Readiness Level (TRL)
NewSpace
- ESA ECSS-Q-ST-60-13C, Annex G Class 2
- NASA EEE-INST-002 Level 2
Traditional Space
AWG Size | Ordering Number |
---|---|
28 | ESCC390200301B |
26 | ESCC390200302B |
NewSpace
AWG Size | Gore Part Number |
---|---|
26 | GNSSW10026MS |
28 | GNSSW10028MS |
