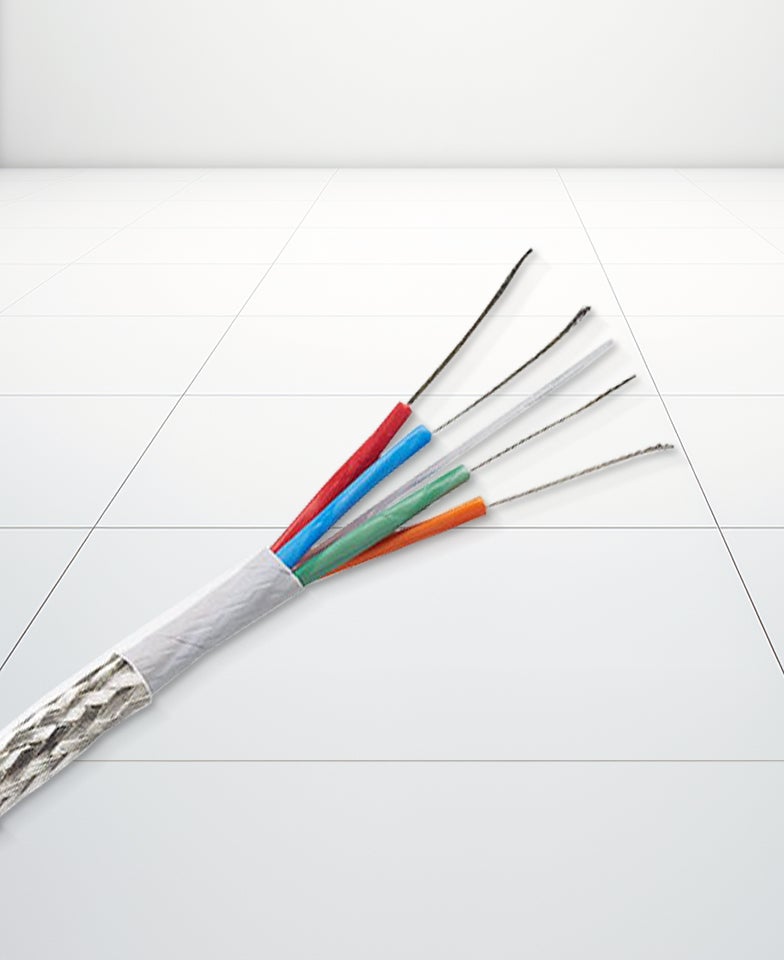

Smaller Cables Save Weight & Are Durable in Extreme Conditions

GORE® FireWire® Cables transmit uninterrupted S400 data rate signals with flexure at lengths up to 30 m (100 ft.) in all aircraft conditions. Our quadrax design is smaller and lighter than dual twisted pair constructions, saving weight while providing a protective barrier against tough flight and maintenance conditions.



Features & Benefits
Applications
Cable Design

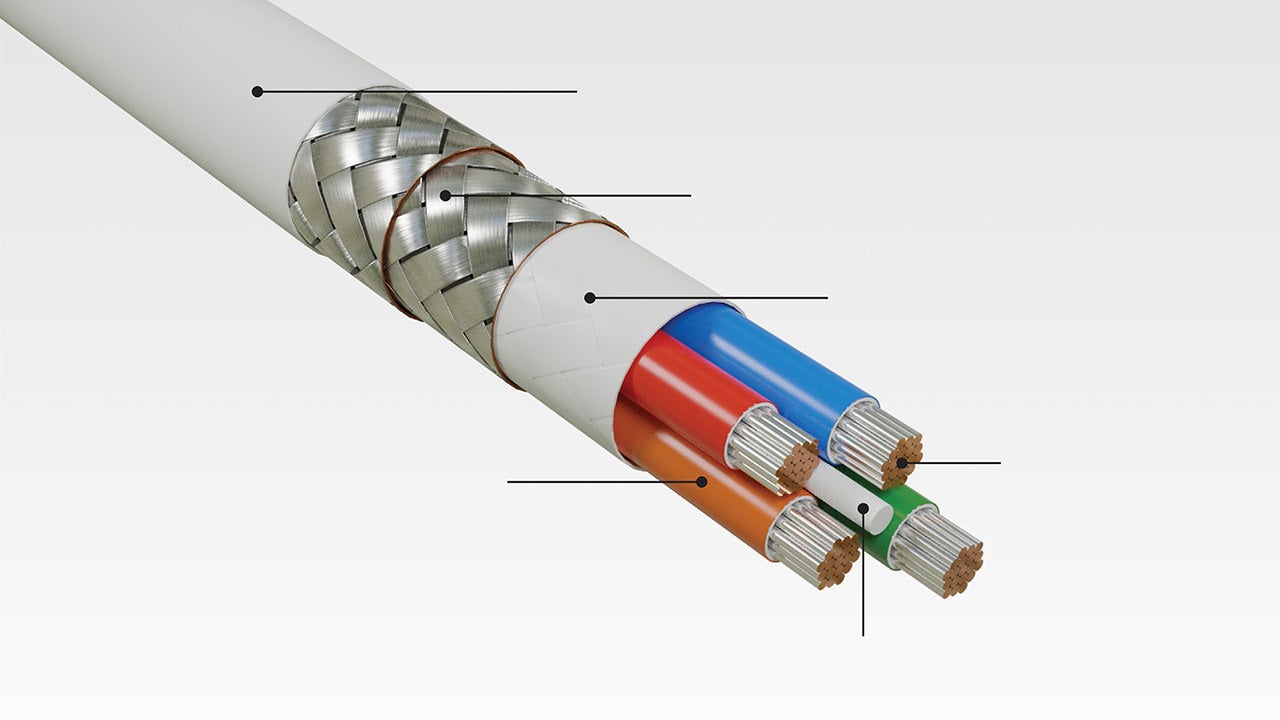

Gore durable and flexible quadrax cable materials


Durable, Flexible Cable Technology

We manufacture GORE FireWire Cables with exceptional features that make them stronger against challenging environmental factors and aircraft conditions, including:

  • temperature- and abrasion-resistant materials
  • chemically inert materials
  • smaller, lighter diameters

For system architects and engineers, this Gore-invented quadrax design offers several benefits that ensure lifelong performance in aircraft, like:

  • high fidelity signals up to 30 meters (100 feet) at S400 data rates
  • proven reliable signal integrity and greater transmission length with flexure
  • excellent shielding effectiveness due to a double-braided shield, each with 92% coverage
  • around 40% smaller than dual twisted pair constructions
  • lightweight design proven to save as much as 5.2 kg (11.5 lbs.) per aircraft
  • protective barrier against complex routing and harsh aviation conditions
  • easy routing in tight systems from proven flexure and small bend radius
  • compatible with a variety of high-speed connector systems and backshells

The reliable signal integrity with flexure at higher data rates makes GORE FireWire Cables the premier copper-based SAE 1394 solution for a variety of aviation applications, like:

  • avionics digital networks
  • flight control
  • HD camera/video systems
  • mission systems

Our cables can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC and MIL-STD-38999 with size 8 and 22D contacts.

Gore firewire cables for military cockpit displays

Military Aircraft
Gore firewire cables for civilian aircraft cockpit/cabin displays.

Civilian Aircraft
Smaller Gore firewire cable diameters

Smaller-Scale Design for More Weight Savings

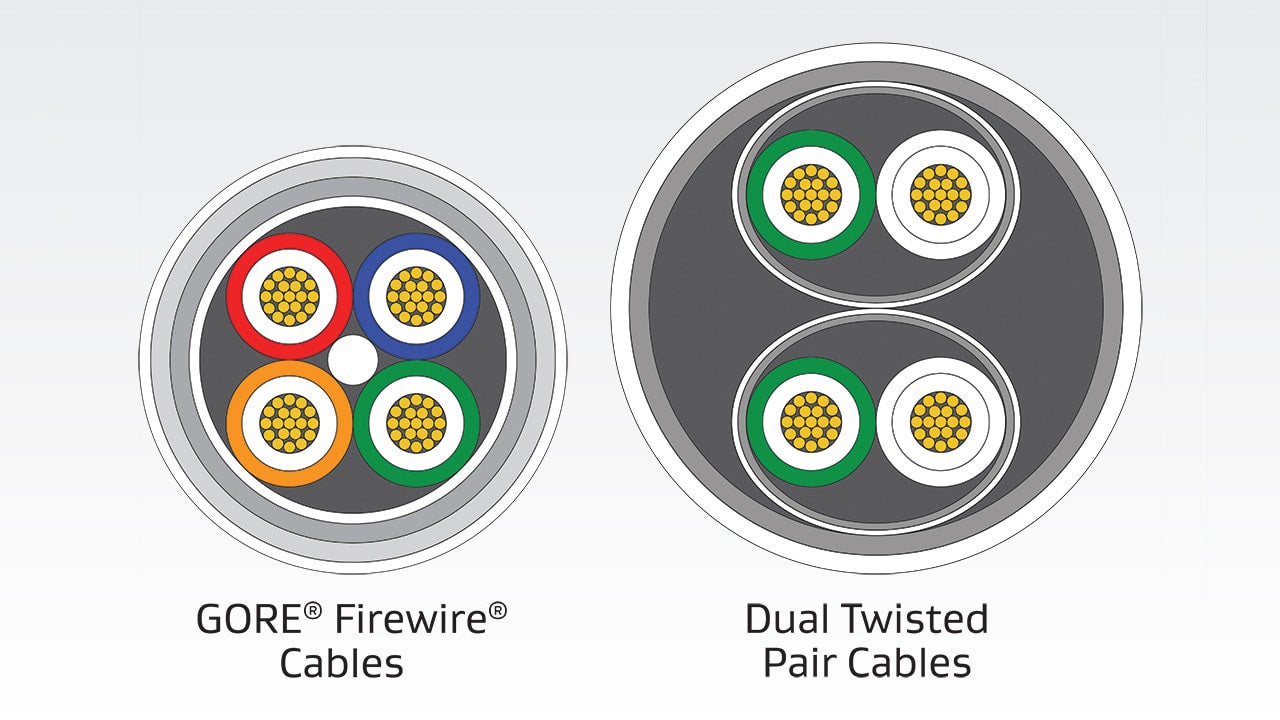

This quadrax cable geometry invented by Gore features a reduced size that’s around 40% smaller than comparable dual twisted pair cables. Our smaller diameters are also up to 30% lighter weight and proven to save as much as 5.2 kg (11.5 lbs.) per aircraft.


High Speed Data Transmission in Military Aircraft. System Lifeline or Costly Afterthought?

Is High-Speed Data Transmission in Defense Aircraft a System Lifetime or Costly Afterthought?

Watch this free on-demand webinar on this topic and listen to Gore experts share their deep industry knowledge and materials expertise while using real-world examples.

GORE® High Speed Data Cables for Aerospace & Defense

GORE® High Speed Data Cables for Aerospace & Defense

Combining dielectric expertise with innovative fluoropolymer materials, we bring a portfolio of standard high data rate cables with proven performance over leading alternatives.

Technical Information

These values demonstrate the electrical, mechanical and environmental performance of GORE FireWire for military and civilian aircraft.

Elec./Mech./Environ. PropertyValue
Signal Transmission Speed Mb/sUp to 400
Standard Impedance Ohms110 +6/-4
Typical Operating Voltage V< 15
Nominal Velocity of Propagation %80
Nominal Time Delay ns/m (ns/ft.)4.10 (1.25)
Capacitance pF/m (pF/ft.)36.1 (11.0)
Typical Skew Within Pair ps/m (ps/ft.)3.5 (1.1)
Dielectric Withstanding Voltage Vrms
  Conductor-to-Conductor
  Conductor-to-Shield

1500
1000
Jacket MaterialEngineered Fluoropolymer
Jacket ColorWhite (Laser Markable)
ConductorSilver-Plated Copper or SPC Alloy
Conductor Color-CodingBlue/Orange, Green/Red
Dielectric MaterialExpanded PTFE/PTFE
Temperature Range °C-55 to +200

Complete the short form below for instant access to selected drawings with technical specifications from W. L. Gore & Associates.

Methodically tested and pre-qualified, GORE FireWire Cables comply with rigorous standards and requirements for aerospace and defense, including:

  • ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part: Flammability
  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ANSI/NEMA WC 27500: Environmental Testing, Jacket and Marking
  • SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)
  • SAE AS5643™: IEEE-1394b Interface Requirements for Military and Aerospace Vehicle Applications
  • SAE AS5643™/2: S200 Copper Media Interface Characteristics Over Extended Distances
  • SAE AS5643™/3: IEEE-1394 Beta PHY Enhancements
  • SAE AS5657A™: Test Plan/Procedure for AS5643 IEEE-1394b Interface Requirements for Military and Aerospace Vehicle Applications (Contact Gore for available data)

GORE FireWire Cables for avionics are available in standard sizes.

RCN8645 (22 AWG)
RCN8647 (24 AWG)
RCB8652 (26 AWG)

Gore’s part numbers below are fully compliant with JSFY18 aircraft requirements.

RCN9206 (22 AWG)
RCN9205 (24 AWG)
RCN9204 (26 AWG)
