Clear Sound, Advanced Particle and Liquid Protection, and Reliable Supply

GORE® Acoustic Vents repel dust, liquids, and contaminants while providing consistent high-quality sound. Customizable in size, shape, protection level, mechanical performance, and installation options, they meet diverse acoustic system requirements, from dust applications to deep immersion.

Features & Benefits
Applications
Custom Solutions
Why Gore
Global Electronics OEMs Prefer GORE Acoustic Vents

waterproof acoustic vents
  • Unmatched Liquid and Particulate Protection: Ensure devices meet industry standards for ingress protection. Our rigorous test protocols exceed industry standards, keeping devices shielded from dust, water, and other damaging elements.
  • Crystal-Clear Audio: Deliver consistent and exceptional sound transmission and clarity, for seamless voice calls and flawless audio experiences.
  • Sustainable Design: Extend device lifespan and reduce electronic waste, contributing to a more sustainable future.

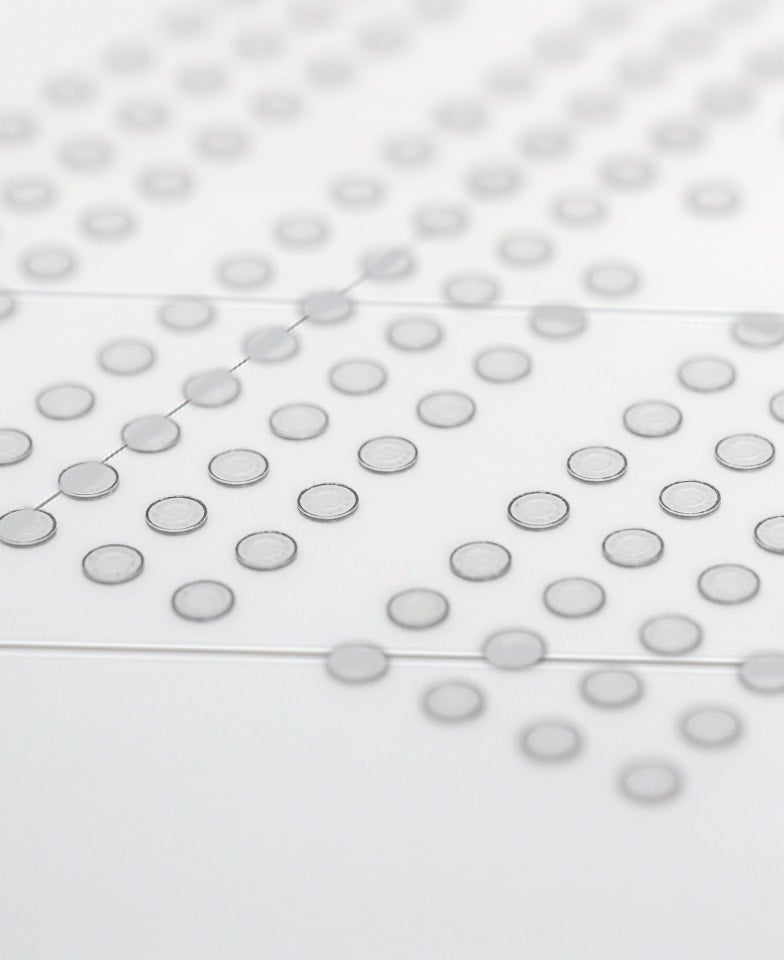

Versatile Acoustic Membrane Technology

GORE acoustic vents waterproof speaker for immersion

You’ll find our vent designs in thousands of the most advanced portable electronics today. The breadth and depth of our acoustic expertise, and the versatility of our acoustic membrane technology, is why leading OEMs choose Gore:

  • Smartphones and feature phones
  • Digital, action and SLR cameras
  • Two-way radios
  • Smartwatches/wearables
  • Microphones, earbuds and headsets
  • Smart speakers and home devices
  • Industrial devices

We offer a full range of high performance standard and customizable material solutions for:

dust and splash protection


Dust and Splash Protection
  • For ratings of IP4X to IP641
  • Typical insertion loss < 0.1 dB
shallow immersion protection


Shallow Immersion Protection
  • For ratings of IP67 (1 m @ 30 minutes) to IP68 (2 m @ 60 minutes / 5 m @ 30 minutes).
  • Typical insertion loss 0.4 dB to 1.4 dB depending upon depth and time.
acoustic vent waterproof watch wearables deep immersion


Deep Immersion Protection
  • For smartphones: up to 50 m @ 10 minutes2
  • For wearables: up to 100 m @15 minutes3
  • Typical insertion loss 2.9 dB to < 4 dB (I.D. 2.0 mm)

Immersion/spray performance depends upon part geometry and stack-up.
Insertion loss is measured @ 1kHz, I.D. 1.6 mm. Assumes back cavity length 1 mm and aperture diameter 1 mm.

  1. When incorporated into most devices
  2. Part I.D. 1.6 mm / O.D. 3.8 mm with back pressure on captive ring
  3. Part I.D. 2.0mm / O.D. 4.2mm with back pressure on captive ring
Leading OEMs know our products and services can help accelerate their development of innovative and differentiated devices in fast-paced, highly competitive markets.  GORE® Portable Electronic Vents have been specified in more than 10 billion devices.

smartphone-red

Product & Application Leadership

circle-check-red

Reliable Performance


handshake-red

Collaborative Approach

map-pin-red

Supply Security

material-red

Materials Science


Global Supply Vector Red

Global Support

Technical Information

Gore monitors and strives to comply with all regulations applicable to our products.

We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/2021.
