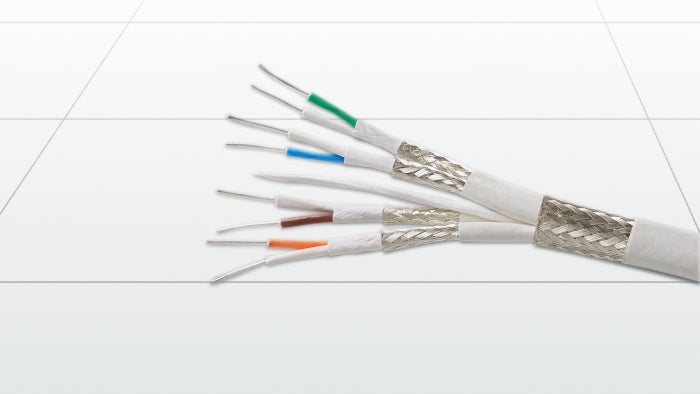

GORE® DVI Cables (Digital Only) for Aerospace & Defense
Our single-link cables reliably support the highest video resolution on displays for optimal viewing in demanding air and defense radar environments.
Optimal Viewing on High-Definition Displays
GORE® DVI Cables (Digital Only) deliver exceptional signal quality and high data rate video transmission in demanding EMI environments. They meet stringent military and aerospace standards for impedance control, insertion loss, skew and EMI shielding while fitting easily into a harness cross-section with other components.
Reliable Performance in Demanding EMI Environments
Unlike industry substitutes, GORE DVI Cables (Digital Only) are built with extremely durable materials proven to defend against complex operational and maintenance conditions, including:
- single-link design for digital component of DVI systems
- temperature- and abrasion-resistant layers
- chemically inert, EMI shielding materials
- lightweight construction with smaller diameters
Our reliable cables offer a host of benefits that improve their overall performance in commercial aircraft, plus military aircraft and ground vehicles, like:
- exceptional signal quality for high-speed video transmission
- support the highest video resolution for optimal viewing on displays
- meet requirements for insertion loss, skew, impedance control and EMI shielding
- robust protection and stable performance in demanding radar environments
- easy fit into standard DVI harnesses with small, lightweight, flexible construction
- compatible with a variety of high-speed connector systems and backshells

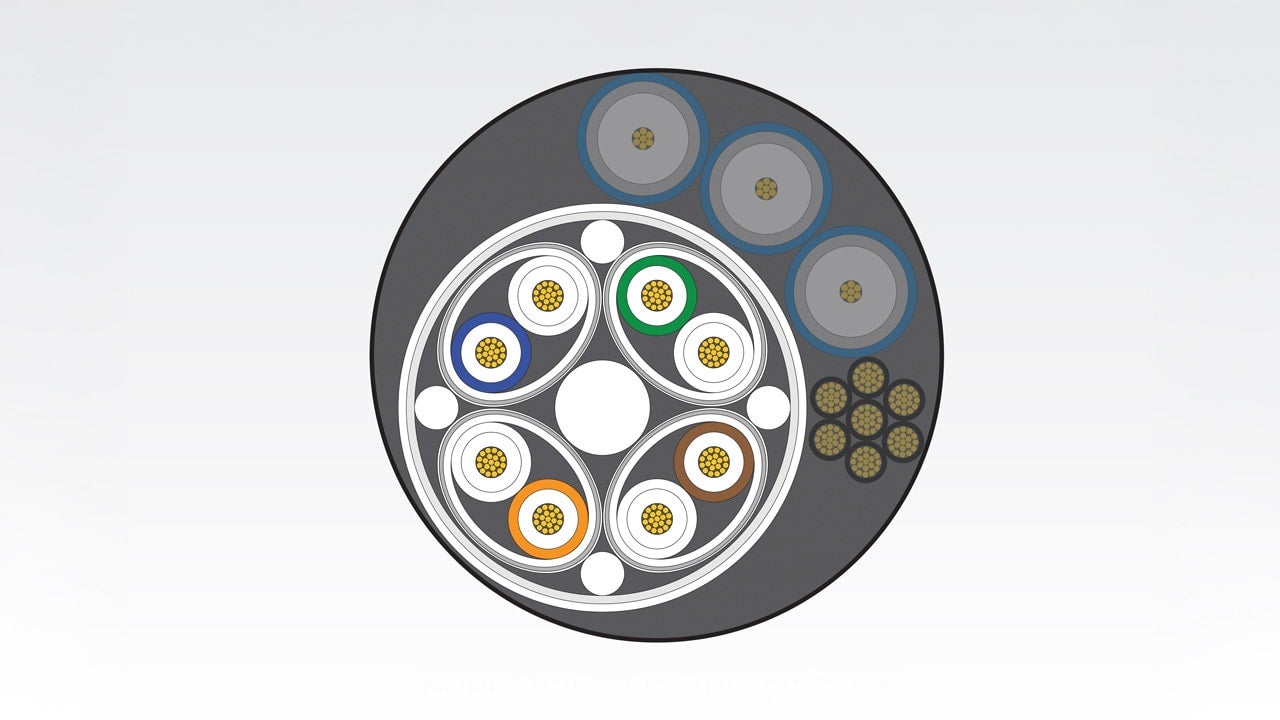

Standard harness cross-section with GORE DVI Cables (Digital Only)
Defense & Commercial Aircraft

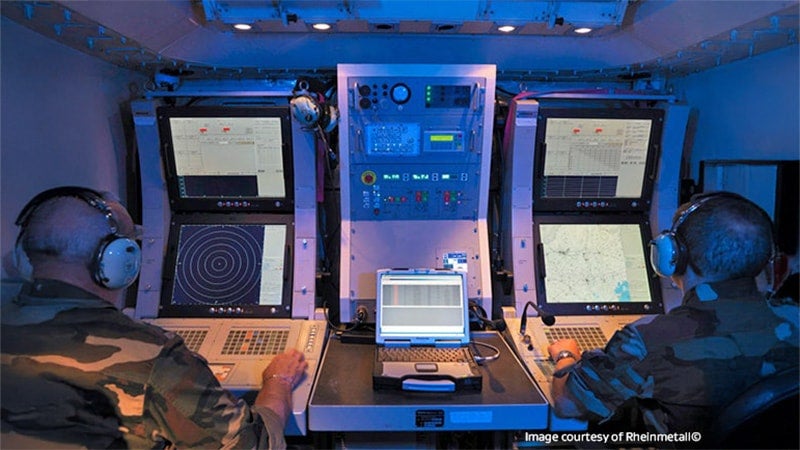

Defense Vehicles
Courtesy of MBDA©
Designed specifically for standard harnesses with digital components, GORE DVI Cables (Digital Only) provide satisfactory results in airborne and defense ground applications, like:
- cockpit & vehicle displays
- crew workstation displays
- mission systems
- flight management systems
- in-flight entertainment (IFE) systems
- weather mapping
Our cables can also be terminated with a variety of leading high-speed connector systems and backshells, like ARINC and MIL-STD-38999 with size 8 contacts.
Is High-Speed Data Transmission in Defense Aircraft a System Lifetime or Costly Afterthought?
Watch this free on-demand webinar on this topic and listen to Gore experts share their deep industry knowledge and materials expertise while using real-world examples.
GORE® High Speed Data Cables for Aerospace & Defense
Combining dielectric expertise with innovative fluoropolymer materials, we bring a portfolio of standard high data rate cables with proven performance over leading alternatives.
Technical Information
These values demonstrate the electrical, mechanical and environmental performance of GORE DVI Cables (Digital Only) for aerospace and defense.
| Elec./Mech./Environ. Property | Value |
|---|---|
| Standard Impedance Ohms | 100 ± 10 |
| Typical Operating Voltage V | < 15 |
| Nominal Velocity of Propagation % | 80 |
| Nominal Time Delay ns/m (ns/ft.) | 4.07 (1.24) |
| Capacitance pF/m (pF/ft.) | 40.0 (12.0) |
| Maximum Skew ps/m (ps/ft.) Pair-to-Pair Within Pair | 52.50 (16.0) 13.12 (4.0) |
| Dielectric Withstanding Voltage Vrms Conductor-to-Conductor Conductor-to-Shield | 1500 1000 |
| Jacket Material | Engineered Fluoropolymer |
| Jacket Color | White (Laser Markable) |
| Conductor | Sliver-Plated Copper Alloy |
| Conductor Color-Coding | Blue/White, Brown/White, Green/White, Orange/White |
| Dielectric Material | Expanded PTFE/PTFE |
| Temperature Range °C | -65 to +200 |
Complete the short form below for instant access to a drawing with technical specifications from W. L. Gore & Associates.
Meticulously tested and pre-qualified, GORE DVI Cables (Digital Only) meet stringent aerospace and defense standards, including:
- ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
- ABD0031 (AITM 3.0005); BSS7239: Toxicity
- ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
- ANSI/NEMA WC 27500: Environmental Testing, Jacket and Marking
- SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)
GORE DVI Cables (Digital Only) for aerospace and defense are available in a standard size 24 AWG.
GSC-01-85249-24S
