Drone Tether Cable with Smaller Design, Better Protection

GORE® Tethered Drone Cables blend reliable high-power and fiber optic cables with high-strength, weather-proof materials in a small-scale hybrid design. They take up less space inside the tether management system, provide durable protection with greater weight stability, and last longer than standard nylon cables.

Features & Benefits
Applications

High-Strength. Low-Weight Materials.

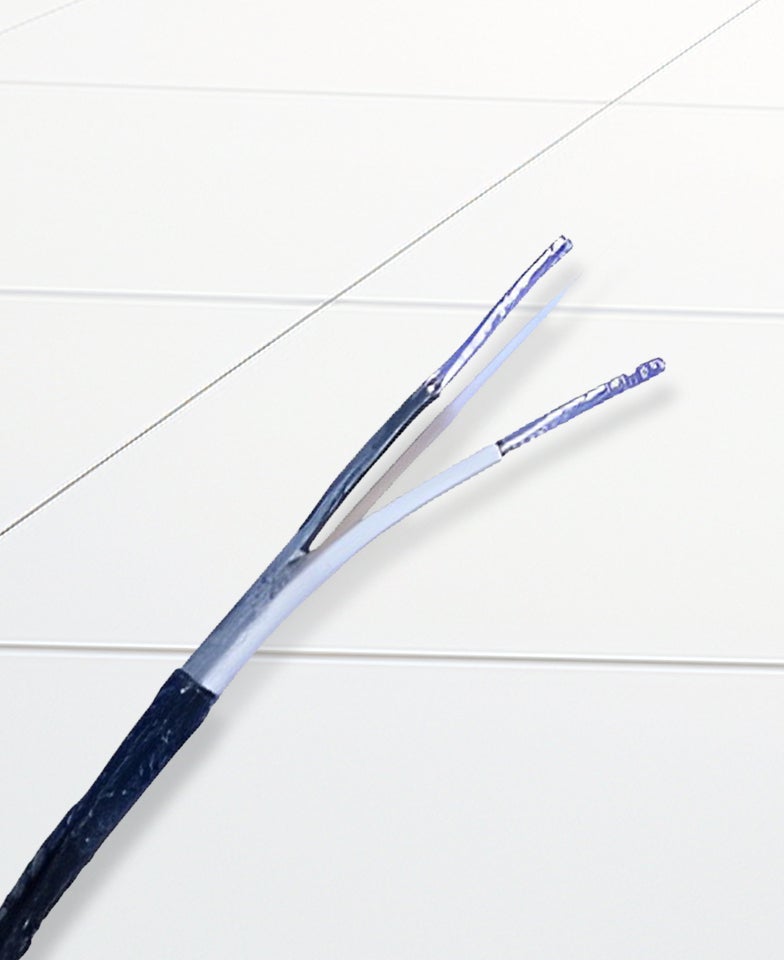

High-strength Gore tethered drone construction

Outperforming standard cables, GORE Tethered Drone Cables bring unique features that give them more durability against harsh environments and contaminants, including:

  • crush- and abrasion-resistant layers
  • chemically inert, weather-proof materials
  • low-friction fiber braid cable jacket

Our hybrid cables offer numerous benefits that enable drones to fly higher, see farther and do more, like:

  • withstand abrasion, weather, terrain, extreme temps, repeated reeling and more
  • less weight pickup for more stability in harsh fluids than nylon cables
  • proven crush-resistant fiber optic cable meets ARINC 802-3 requirements
  • more design options and extra payload from reduced cable design
  • weight savings with 20% smaller diameters than nylon cables
  • deliver continuous high-voltage power, secure signals & high-bandwidth data transfer
  • easier handling, less maintenance, extended cable life and fewer replacements
Military tethered drone cable

Courtesy of Lance Cpl. Rhita Daniel


With proven unrivaled durable performance, GORE Tethered Drone Cables deliver unfailing data transmission, secure signals and high-voltage power in applications like:

  • electro-optical infrared (EO/IR) sensors
  • HD camera & video systems
  • intelligence, surveillance & reconnaissance (ISR)
  • search & rescue operations
  • telecommunications

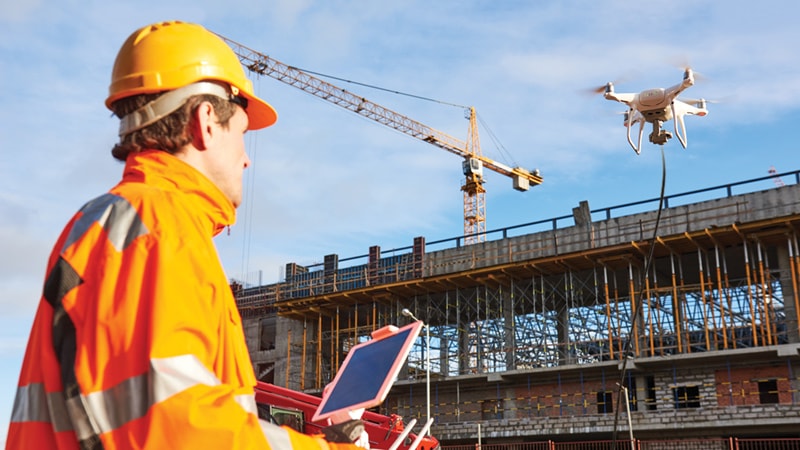

Commercial tethered drone application

The fiber in our hybrid solution can also function as a reliable low-loss coaxial cable for applications that transmit and receive data like:

  • line-of-sight communication
  • mesh drone networks
  • rural network connectivity
  • temporary cell towers
  • downlink video streaming for emergency response, search & rescue, aerial photography, news & events and border patrol
Gore Product Specialist Brian Tallman at AUSA 2018

GORE® Tethered Drone Cables Meet Operational Requirements

Learn more about the unique features of our power and fiber optic solution that meets military and commercial requirements for operating in harsh tethered drone conditions.

Gore Market Development Leader Jeff "Rev" Woods at AUSA 2018

Solving Tethered Drone Issues with Gore’s Rugged Cable

Find out the capabilities of Gore’s hybrid cable solution that can solve many issues with military and commercial tethered drones, particularly security and short battery life.

Technical Information

These values demonstrate the electrical, mechanical and environmental performance of GORE Tethered Drone Cables for military and commercial applications.

Elec./Mech./Environ. PropertyPower PairData PairFiber Optic
Operating Voltagea Vrms250600
Testing Voltage Vrms15001500
Maximum Optical Loss at 1310 nm (dB/km)0.35
Maximum Optical Loss at 1550 nm (dB/km)0.20
Jacket MaterialEngineered Fluoropolymer Fiber BraidEngineered Fluoropolymer Fiber BraidEngineered Fluoropolymer Fiber Braid
Jacket ColorBlackBlackBlack
Insulation ColorBlue/WhiteGray/WhiteBrown
Insulation Wall Thickness mm (in)0.14 (0.006)0.14 (0.006)
ConductorSilver-Plated CopperSilver-Plated Copper
Mode Type µmSingle (900)
Core/Cladding/Coating8 /125/245
Coating TypeHigh-Temperature Acrylate
BufferExpanded PTFE
Dielectric MaterialExpanded PTFE/PTFEExpanded PTFE/PTFEExpanded PTFE/PTFE
Crush/Impact Resistanceb
kgf/cm (lb/in) (ARINC 802-3)
Pass
Tensile Strengthb N (lbs.)
   16 AWG
   20 AWG
   24 AWG

1538 (345)
1092 (245)
910 (204)

1538 (345)
1092 (245)
910 (204)

1538 (345)
1092 (245)
910 (204)
Scrape Abrasionb Cycles,
500 g (1.1 lbs.) (SAE AS4373™)
> 36,000> 36,000> 36,000
Fluid Immersion/Weight Stabilityb
% Absorption (SAE AS4373™)
Pass
> 1 (Salt Water/Diesel)  > 2.5 (Hydraulic)
Pass
> 1 (Salt Water/Diesel) > 2.5 (Hydraulic)
Pass
> 1 (Salt Water/Diesel), > 2.5 (Hydraulic)
Cold Bend Resistanceb
(SAE AS4373™)
PassPassPass
Temperature Range °C-60 to +200-60 to +200-60 to +85c

a. Based on a NEMA HP3 wire.
b. Testing based on size 22 AWG.
c. Attenuation may increase above 85°C.


We extensively test and qualify GORE Tethered Drone Cables to meet the following commercial and defense standards compliance:

  • ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ARINC 802-3: Performance Requirements (RCN9164, RCN9166, RCN9217, RCN9218)
  • SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)

Gore Part NumberConstruction/AWG Size (Stranding)
RCN9164Power Pair: 16 AWG (19/29)
Fiber: 1 Single Mode, 900 micron
RCN9166Power Pair: 20 AWG (19/32)
Fiber: 1 Single Mode, 900 micron
RCN9168Power Pair: 24 AWG (19/36)
Fiber: 1 Single Mode, 900 micron
RCN9188Power Pair: 20 AWG (19/32)
RCN9190Power Pair: 24 AWG (19/36)
RCN9217Power Pair: 16 AWG (19/29)
Data Pair: 28 AWG (19/40)
Fiber: 1 Single Mode, 900 micron
RCN9218Power Pair: 20 AWG (19/32)
Data Pair: 28 AWG (19/40)
Fiber: 1 Single Mode, 900 micron
