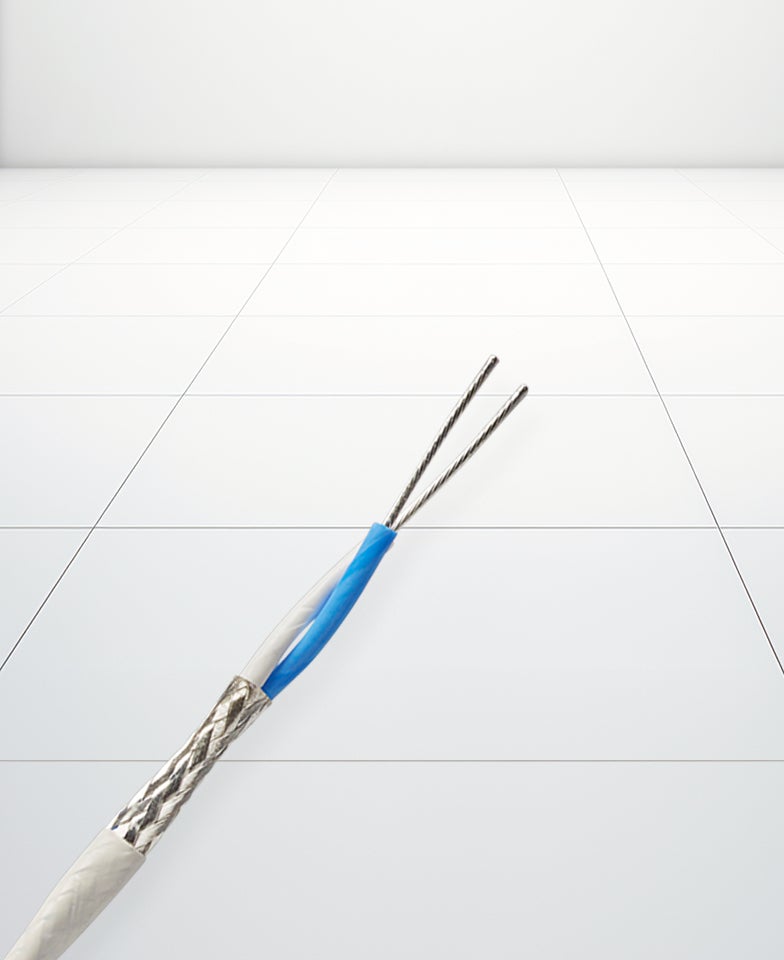

GORE® Shielded Twisted Pair Cables for Aerospace & Defense
Our durable, low-profile cables meet today’s higher data rate requirements with controlled impedance, saving valuable weight in wire & harness applications.
Fast, Durable Solutions That Offer More Weight Savings
GORE® Shielded Twisted Pair Cables can transfer data and video at speeds up to 1 GHz, tolerating mechanical stresses and environmental factors like changing climate zones, constant vibration and rigorous routing. Smaller than alternative round designs, our cables are more flexible and routable in hard-to-reach places.

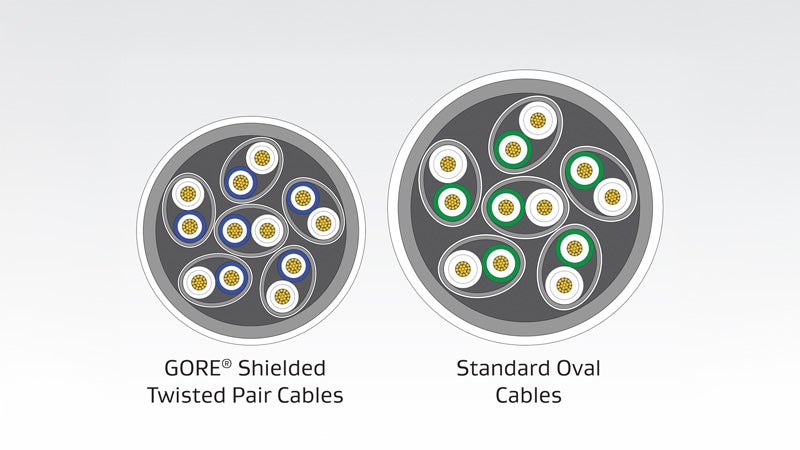

30% smaller
Our STP cables are designed with a low-profile configuration that’s 30% smaller, reducing their overall weight by as much as 27% compared to standard oval cables.
Durable & Lightweight

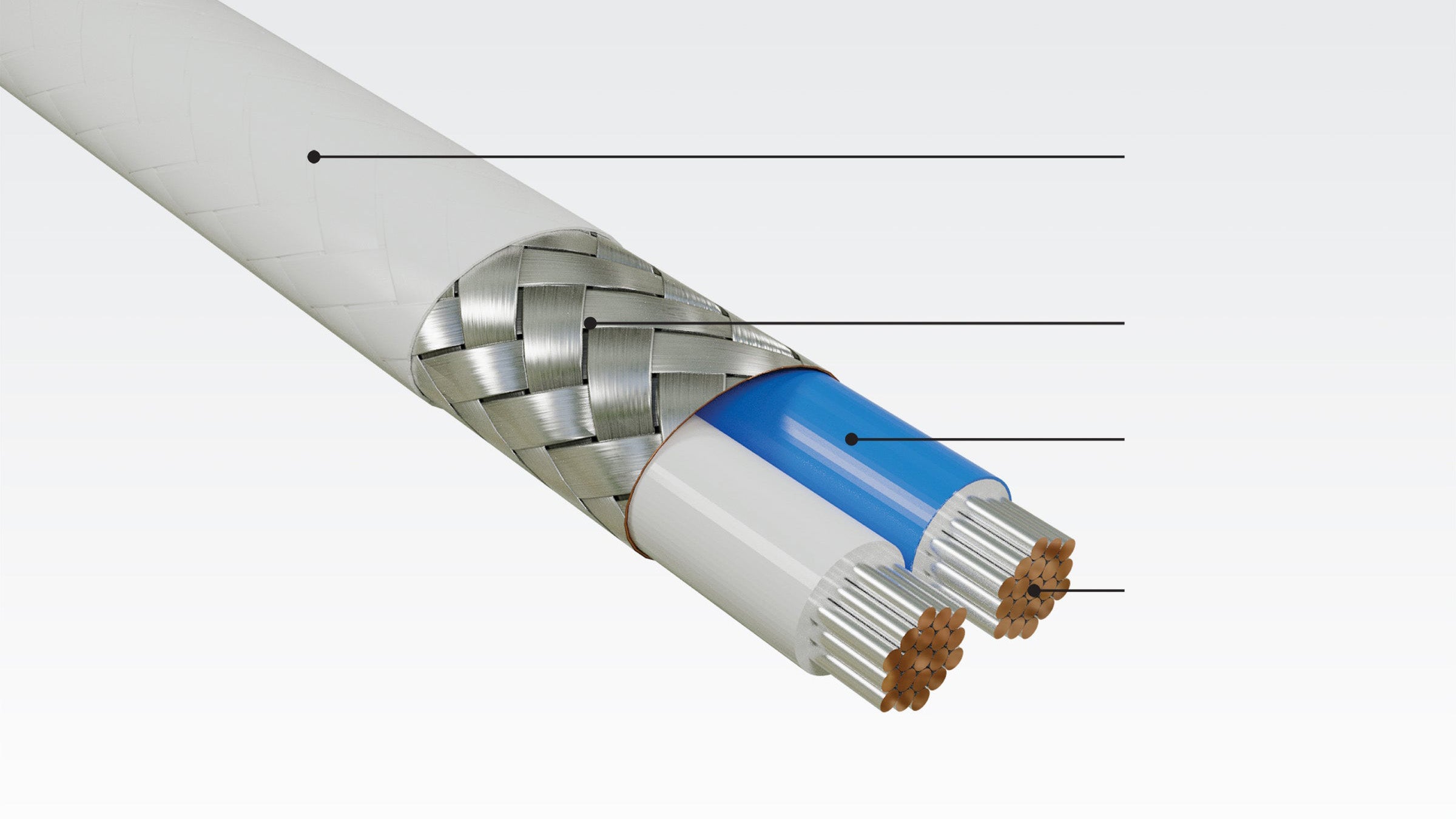

Unlike standard oval or alternative round versions, GORE Shielded Twisted Pair Cables are engineered with unique features that make them more durable against harsh maintenance and operational environments, including:
- abrasion- and temperature-resistant materials
- chemically inert, polyimide-free materials
- low outgassing and radiation-resistant materials
- lightweight construction with smaller diameters
Proven Performance
Our cables provide system architects and engineers with many benefits that improve electrical, mechanical and environmental performance such as:
- reliable differential signals with controlled impedance at 100 ohms
- dependable twisted shielded pair cable data transfer rate up to 1 GHz
- endure extreme temperatures, cut-through, vibration, harsh launches and orbits, more
- improved installation from higher flexibility and tighter bend radius
- compatible with a variety of leading cable connector systems and backshells
- affordable, low-risk solution delivered fast to meet demanding NewSpace program schedules and frequent launch capabilities
- leverage proven performance with 100% failure-free flight record in hundreds of traditional spaceflight programs
For Aerospace & Defense
The reliable performance of GORE Shielded Twisted Pair Cables is well-suited for wire and cable harness applications, like:
- avionics/vetronics digital networks
- cabin management systems
- Ethernet backbone
- single-pair Ethernet (SPE) & power over single-pair Ethernet (PoSPE)
- HD camera/video systems
- high-density connectors
- LVDS devices
- sensor/processor interconnects
- serial buses
Our cables can also be terminated with a variety of leading shielded twisted pair connector systems and backshells, like ARINC and MIL-STD-38999 with differential Twinax sizes 8 and 22D contacts.
For NewSpace
Our low-risk cables are ideal for smaller launch vehicles and satellite applications operating in LEO (low earth orbit) and MEO (medium earth orbit), like:
- digital signal processors
- high-resolution cameras, sensors and detectors
- high-speed subsystem interconnections
- onboard computing
GORE® High Speed Data Cables for Aerospace & Defense
Combining dielectric expertise with innovative fluoropolymer materials, we bring a portfolio of standard high data rate cables with proven performance over leading alternatives.
Gore Solutions for Defense Helicopters
We deliver advanced cables and materials that have been proven over time to ensure mission-critical success, rotary-wing survivability and personnel safety.
Technical Information
These values demonstrate the electrical, mechanical and environmental performance of GORE Shielded Twisted Pair Cables for aerospace and defense.
| Elec./Mech./Environ. Property | Aerospace & Defense | NewSpace |
|---|---|---|
| Signal Transmission Speed GHz | Up to 1 | Up to 1 |
| Standard Impedance Ohms | 100 ± 10 | 100 +/- 6 |
| Typical Operating Voltage V | < 48 | < 48 |
| Nominal Velocity of Propagation % | 80 | 80 |
| Nominal Time Delay ns/m (ns/ft.) | 4.10 (1.25) | 4.10 (1.25) |
| Capacitance pF/m (pF/ft) | 42.6 (13.0) | 42.6 (13.0) |
| Dielectric Withstanding Voltage Vrms Conductor-to-Conductor Conductor-to-Shield | 1500 1000 | 1500 1000 |
| Jacket Material | Engineered Fluoropolymer or PU Halogen-Freea | Extruded Fluoropolymer |
| Jacket Color | EF: White (Laser Markable) PU: Blacka | Yellow |
| Conductor | Silver-Plated Copper or SPC Alloy | Silver-Plated Copper Alloy |
| Conductor Color-Coding | Blue/White | Yellow |
| Dielectric Material | Expanded PTFE/PTFE | Expanded PTFE/PTFE |
| Shielding Material | Silver-Plated Copper | Silver-Plated Copper |
| Temperature Range °C | -65 to +200 -46 to +100a | -200 to +180 |
| Radiation Resistance TID Mrad | — | 10+ |
| Vacuum Stability % (ASTM 595; ECSS-Q-70-02) Volatile Condensable Mass (VCM) Total Mass Loss (TML) | — | < 0.01 < 1.0 |
| Downloads | Data Sheet | Brochure |
a. Based on Gore’s part number GSC-03-85203-VG for military vehicle systems.
We thoroughly test and qualify GORE Shielded Twisted Pair Cables to meet stringent STP cable specification standards for defense aircraft and vehicles and civilian aircraft, including:
- ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability (DXN2600 through DXN2606)
- ABD0031 (AITM 3.0005); BSS7239: Toxicity (DXN2600 through DXN2606)
- ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density (DXN2600 through DXN2606)
- ANSI/NEMA WC 27500: Environmental Testing, Jacket and Marking (DXN2600 through DXN2606)
- VG95218-31: Performance Requirements (GSC-03-85203-VG)
With a thorough understanding of products operating in space, customers’ needs and appropriately scoped NewSpace test procedures, GORE Shielded Twisted Pair Cables are tested and qualified in adherence to strict standards, including:
- ANSI/TIA 644-A: Electrical Characteristics of Low Voltage Differential Signaling (LVDS) Interface Circuits
- ECSS-E-ST-50-12C: Space Engineering - SpaceWire Links, Nodes, Routers and Networks
- ESA ECSS-Q-ST-60-13C, Annex G Class 2: Space Product Assurance — Commercial Electrical, Electronic and Electromechanical (EEE) Components
- NASA EEE-INST-002 Level 2: Instructions for EEE Parts Selection, Screening, Qualification, and Derating
Complete the short form below for instant access to selected drawings with technical specifications from W. L. Gore & Associates.
| Cable Type/Protocol | Construction/AWG Size (Stranding) | Gore Part Number |
|---|---|---|
| Shielded Twisted Pair (Aerospace & Defense) | 20 (19/32) | DXN2600; Alt # GSC-03-84879-00 |
| 22 (19/34) | GSC-03-85203-VG | |
| 22 (19/34) | DXN2601; Alt # GSC-03-84880-00 | |
| 24 (19/36) | DXN2602; Alt # GSC-03-84557-00 | |
| 26 (19/38) | DXN2603; Alt # GSC-03-84823-00 | |
| 28 (19/40) | DXN2604; Alt # GSC-03-84881-00 | |
| 30 (19/42) | DXN2605; Alt # GSC-03-84710-00 | |
| 32 (19/44) | DXN2606 | |
| Shielded Twisted Pair (NewSpace) | 24 AWG | GNSTP100241S |
| 26 AWG | GNSTP100261S | |
| 28 AWG | GNSTP100281S |
