Reliable Performance to Minimize Downtime

With proven durability, GORE® Space Cables, Type SPM, resist demanding launch and mission stress factors. They have outstanding thermal stability, are chemically inert, and can withstand ATOX in LEO environments. Our cables qualified to ESCC 3901 and on the QPL reliably transmit critical data to minimize downtime during missions.

Features & Benefits
Applications
Program Heritage

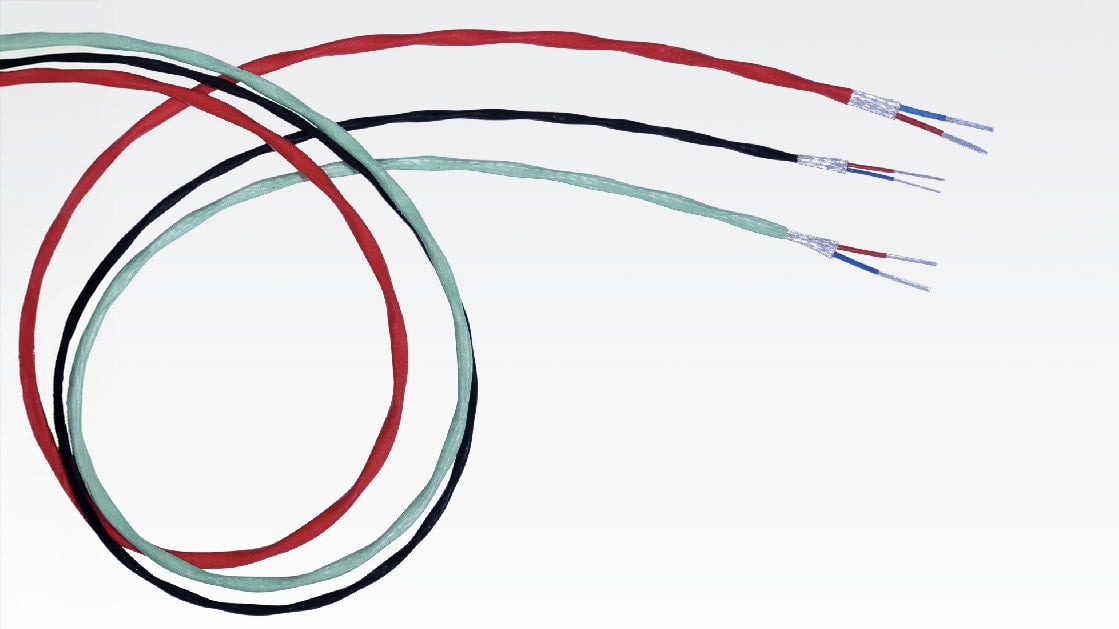

Durable Gore type spm space cables

Durable Construction for Longer Service Life

Engineered with durable features, Type SPM of GORE Space Cables prove beneficial during installation, launch and through mission duration:

  • qualified to ESCC 3901/018 specification and registered on the ESA QPL
  • outstanding thermal stability, ATOX-resistant, chemically inert and more
  • nonstop high-voltage power distribution up to 600 Vrms
  • maintain low-frequency signal integrity for reliable data transmission
  • helps integration teams stay on schedule and avoid costly downtime
ISS Columbus Laboratory Module

© ESA-David Ducros

Reliable Data Transmission in LEO Environments

With durable protection in the most demanding conditions, GORE Space Cables, Type SPM, is ideally suited for the following low earth orbit (LEO) applications:

  • low-frequency signals
  • optical instruments
  • power distribution systems
  • microgravity experiments

Our cables are successfully used in:

  • Automated Transport Vehicles (ATV)
  • European Robotic Arms (ERM)
  • International Space Station (ISS)
  • ISS Columbus Laboratory Module
  • Intermediate Experimental Vehicles (IXV)
Gore products on the International Space Station

© NASA

Spaceflight Program Heritage

For many decades, W. L. Gore & Associates has provided reliable solutions in hundreds of global spaceflight programs with a 100% failure-free flight record.

  • We work closely with major space organizations like the ESA (European Space Agency) and NASA (National Aeronautics and Space Administration) to deliver valued reliability from an ESA-qualified and ISO 9001:2000-certified manufacturing facility.
  • Since 1986 (Gore’s first ESA-qualified product for spaceflight), 10 of our products have been qualified to ESCC 3901/3902/3408 specifications, and 11 are registered on the Qualified Parts List (QPL) – including Type SPM.

Our products have been used in many well-known missions and programs over the years, including:

  • 1969 Apollo 11 First Moon Landing
  • International Space Station
  • Mars Exploration Rover Programs
  • Space Shuttle Programs
  • James Webb Space & Hubble Telescopes
Gore Solutions for Spaceflight

Gore Solutions for Spaceflight

Watch and learn how Gore can help solve the design challenges inherent in space missions, providing decades of proven, reliable solutions to space companies.

Technical Information

GORE Space Cables, Type SPM, meet these technical specifications:

Elec./Mech./Environ. PropertyValue
Maximum Operating Voltage Vrms600
Cable Jacket Material

PFA

Wire Insulation MaterialExpanded PTFE (ePTFE) + PTFE + Polyimide
ConductorSilver-Plated Copper or Copper Alloy, True Concentric
Temperature Range °C-200 to +200

GORE Space Cables, Type SPM, are available in 85 variants from 32 to 12 AWG sizes. When ordering our product, specify ESCC3901018XXB, with “XX” being the appropriate variant number.

Examples include the following:

Variant NumberNumber of CoresOrdering Number
091ESCC390101801B
182ESCC390101818B
243ESCC390101824B
664ESCC390101866B
755ESCC390101875B
857ESCC390101885B
