Outperforms Tubes and Rattle Caps, and Standard Membrane Vents

Responsive pressure equalization and robust contaminant protection can extend the reliability and lifespan of oil-filled drivetrains, transmissions and e-motors. To keep running, they all demand reliable, durable protection from pressure imbalances, leaks and contaminant ingress. Our tube-mount, GORE Gearbox Vents provide that protection, to extend component life.

Features & Benefits
Applications
Vent Design

High-Performance Venting with Gore’s Advanced Materials Technology

Improve component reliability

Our tube-mount, GORE Gearbox Vents have an integrated membrane that effectively blocks contaminants — like water, dust and dirt. They can degrade the performance of oil cooled traditional and e-motors and other e-drivetrain components as well as gearboxes.

Preserve seal integrity

At the heart of these vents is our breathable GORE Membrane. It equalizes pressures under both normal and extreme operating conditions, to avert stress on seals.

Features include:
  • Impact-resistant vent cap and body for added durability
  • Patented hydrophobic and oleophobic GORE membrane optimized for drivetrains, transmissions and e-motors with oil-filled components
  • Integrated pre-filter adds extra protection from oil aerosols, to maintain high-performance venting and extend gearbox service-life
  • Barbed shaft enables easy, secure tube-mounting, and enables shorter, more simplified tube design, routing, and installation

Tube-Mount Vents Safeguard Your Equipment

Drivetrains and oil-filled gearboxes are used in heavy-duty equipment, rail, marine and new energy applications like wind turbines.  GORE Tube-Mount Vents can be used in outdoor electronic devices such as:

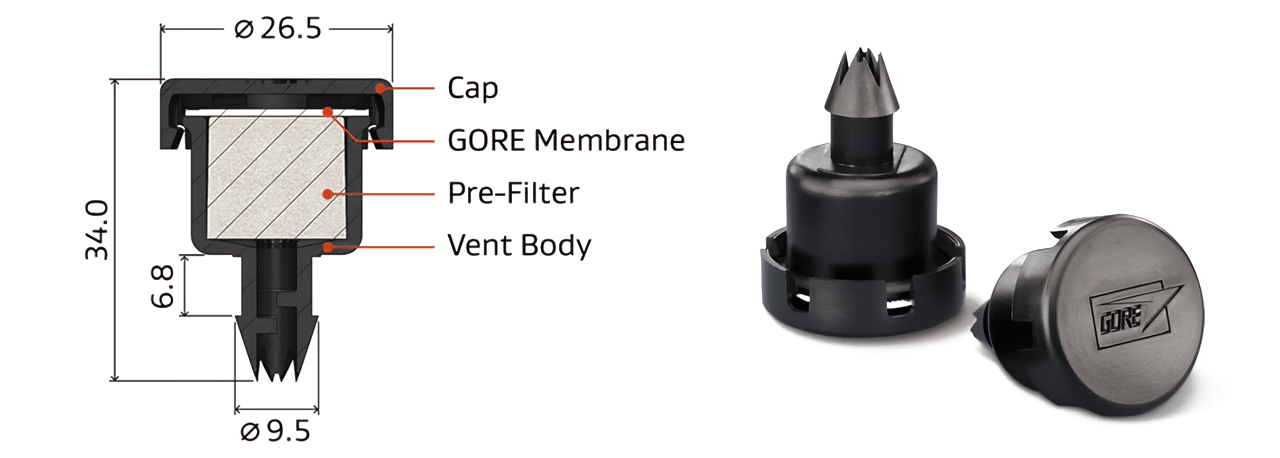

Vent design and dimensions

A comparison of a cross-section of Tube-mount vents vs the actual product.

Units are in mm

Technical Information

Product performance characteristics

Minimum airflow (per part)200 ml/min @ 12 mbar
Water Entry Pressure (assembly)> 345 mbar (> 5.0 psi) for 60 seconds
Ingress Protection (IP)IP66, IP68, IP69K*
Operating temperatures−40 °C to +125 °C
Membrane characteristicHydrophobic and oleophobic

Find out which of our vents can help your enclosure deliver the desired protection level according to Ingress Protection (IP) or NEMA standards.

Gore monitors and strives to comply with all regulations applicable to our products.

We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/2021.
