Reliable Sealing & Surface Protection

GORE® SKYFLEX® Aerospace Materials seal panels and protect surfaces from mechanical forces and harsh contaminants that can severely damage aircraft and helicopter structures. Unlike traditional curing materials, our tapes and gaskets don’t require any cure time, which reduces installation steps and simplifies the process.

Features & Benefits
Applications
Product Types
Dry vs Wet Sealant

Durable & Predictable Performance

Unlike low-temperature cure materials for aircraft, GORE SKYFLEX Aerospace Materials are manufactured with unique features that make them more durable against challenging environmental factors and aircraft conditions, including:

  • chemically inert, non-hazardous materials
  • temperature- and corrosion-resistant materials
  • dry, lightweight, highly conformable materials
  • available in a variety of material sets, forms and sizes

Our SKYFLEX tapes and gaskets provide many benefits that simplify aircraft assembly, increase availability and throughput, and reduce lifecycle costs, like:

  • reliable, predictable sealing and surface protection and gap-filling
  • proven resistance against wide temps, corrosion, abrasion, chemicals, fuels and more
  • easier, quicker installation with fewer process steps and no cure time
  • less replacements, rework and lifecycle costs with reusable seals
  • no operator certification, training or special material handling required
  • low environmental impact and improved safety with non-hazardous materials
Aviation sealant aviation gasket sealants

As one of the industry’s foremost aerospace materials suppliers, we thoroughly test GORE SKYFLEX Aerospace Materials to meet many strict requirements, like SAE AMS3255™.

They’re routinely specified by leading aircraft OEMs because of their proven reliable performance for decades in a variety of secondary structures and removable applications, like:

  • access panels (wing, fuel, LE/TE & dry bay)
  • floorboards & structures (cargo seal & passenger area seal)
  • engine cowlings
  • external fuel tank sealer
  • fairings
  • fuel bladder cavities
  • helicopter tail boom covers
  • wing D-Noses
  • lighting assemblies

Our PX1 Series is specifically designed for permanent load-bearing primary structures requiring robust sealing and corrosion protection while maintaining structural integrity, like:

  • fuselage joints (ribs, stringers, longitudinal/orbital joints, brackets)
  • joints where fasteners provide low strain and still require a seal

Military aircraft tape and gasket sealants

Our materials are approved for use on many fixed-wing and rotary-wing aircraft by OEMs like Airbus, Boeing, Bombardier, COMAC and Embraer. They’re also qualified under Technical Order (T.O.) approvals for the F-16, F-35 and V-22, among many other aircraft, spacecraft and eVTOL programs.

For Legacy Applications

Gore’s portfolio of aircraft legacy sealant tapes
Gore’s Material SetPurposeApplication Uses
100 Series TapeEnvironmental SealingBest for big gaps and/or low compressive forces, like access panels and floorboards.
110 Series TapeEnvironmental SealingIdeal for big gaps and/or very low compressive forces, like access panels and floorboards.
200 Series TapeEnvironmental SealingGreat for sealing gaps over 1 mm (0.04”), like composite fay surfaces and floorboards.
For New Applications

Gore Skyflex tape and gasket portfolio for new applications
Gore’s Material SetPurposeApplication Uses
500 Series GasketEnvironmental SealingBest for applications requiring gaskets over 482.6 mm (19”) or gaps over 1 mm (0.04”) protecting access panels and wing-to-body fairings.
520 Series GasketFuel Sealing ProtectionIdeal for applications that require gaskets over 457.2 (18”) with continuous exposure to fuels or engine oils.
700 Series Tape & Gasket Environmental Sealing and Surface & Hydraulic/Engine Oil Protection Great for sealing most environmental applications, like access panels and leading edge, as well as protecting structures from high vibration, repeated access, abrasion, chafing, oils and fluids.
720 Series Tape & Gasket Hydraulic/Engine Oil & Fuel Sealing Protection Perfect for access panels and other fay surfaces exposed to hydraulic/engine oils and de-icing fluids, as well as protection against vibration, abrasion, corrosion, and chafing.
PX1 Series Tape & GasketLoad Bearing & Corrosion Protection Designed for interfay corrosion protection of load-bearing primary (permanent) aircraft structure applications. Perfect for fuselage structural joints.

Compare GORE SKYFLEX Aerospace Materials against other dry tapes and wet sealants to better understand how each sealant performs in specific environments.

PurposeGore’s Tapes & GasketsPolysulfide Wet SealsPolyurethane TapesStandard PTFE TapesGel Tapes
Surface Protection

✔️

⚠️

✔️

✔️

⚠️

Environmental Sealing

✔️

✔️

🚫

🚫

✔️

Wide Temperature Range

✔️

✔️

🚫

✔️

✔️

Highly Conformable/
Gap Filling

✔️

✔️

🚫

🚫

✔️

Stays under Compression/
No Squeeze Out

✔️

🚫

✔️

✔️

🚫

Non-Curing

✔️

🚫

✔️

✔️

✔️

Easier/Faster Installation

✔️

🚫

✔️

✔️

✔️

Reusable Seals

✔️

🚫

🚫

⚠️

🚫

Non-Hazardous

✔️

🚫

✔️

✔️

✔️

Improved Safety

✔️

🚫

✔️

✔️

✔️

No Special Equipment/PPE

✔️

🚫

✔️

✔️

✔️

“By eliminating the application process from 9 to 3 steps, we reduced our lead time by 8 hours and labor by 139 hours per aircraft. Using a dry tape instead of a wet sealant reduced our overall recurring operating costs by 55%. Gore’s tape was easy to install and helped us meet our tight timeline for faster aircraft availability.”

— Leading Aircraft Manufacturer

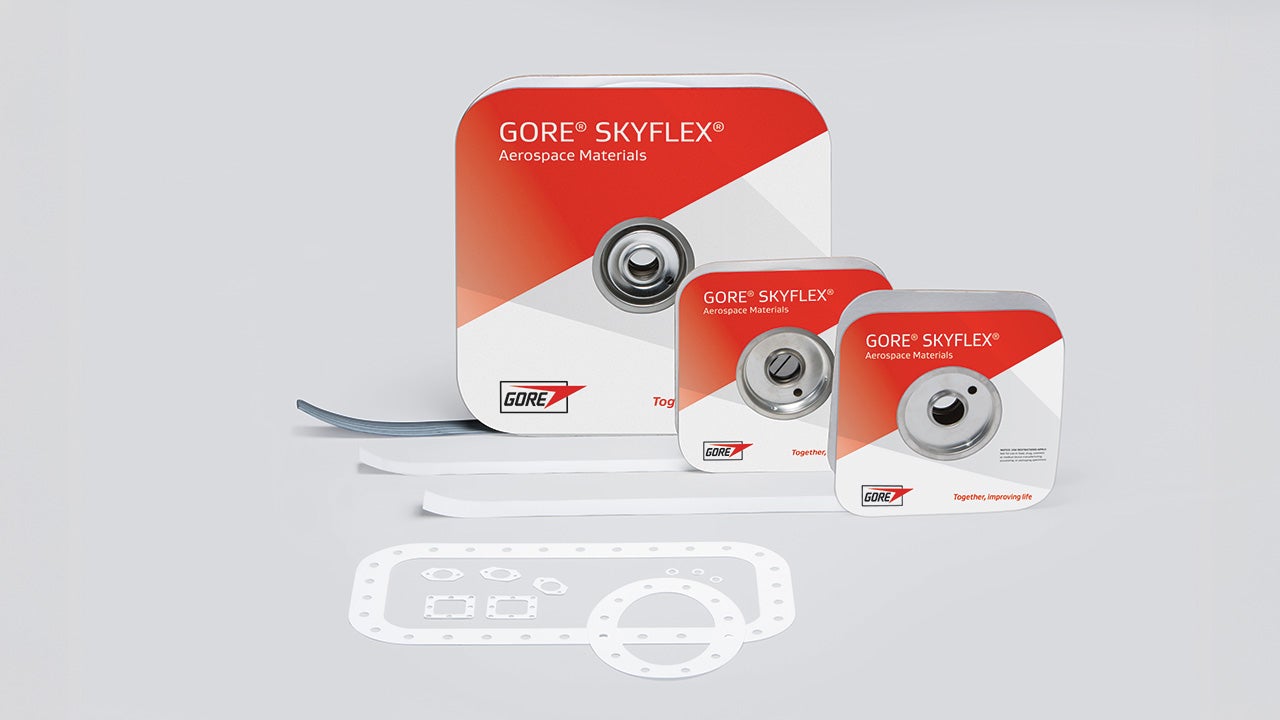

GORE SKYFLEX Aerospace Materials

Gore’s tapes and gaskets contribute to the success of civil and military aircraft programs by protecting airframes, improving turnaround time and maintenance cycles, and saving weight.


Gore’s Tapes & Gaskets for Defense Aircraft

Learn how our materials help get aircraft flight-ready quickly while giving our defense partners the confidence they expect in airframe sealing and surface protection.

Technical Information

GORE SKYFLEX Aerospace Materials are non-hazardous, improving environmental and operator safety. Our tapes and gaskets comply with global environmental regulations set forth by the Canadian Environmental Protection Act (CEPA), the European Chemicals Agency (ECHA) and the U.S. Occupational Safety and Health Administration (OSHA).

Before using our types of aircraft sealant in your application, carefully review our recommended standard practices below to reduce exposure to decomposition by-products.

Wet process installation involves extra time-consuming and labor-intensive steps that can make it difficult to meet production targets, maintenance schedules and budgets. But applying aircraft sealant is much easier and faster using GORE SKYFLEX Aerospace Materials.

Our tapes and gaskets eliminate process steps because there’s no mixing, masking, curing or re-assembling panels. There’s also no special handling required, cleanup after installation or hazardous waste disposal. They’re reusable and compliant over multiple open/close cycles, meaning you can easily remove aircraft panels during inspection without replacing or reworking our materials — unlike an epoxy polysulfide sealant.

Application/PurposeEnvironmental SealingSpecial Environmental SealingSurface Protection
Straight/CurvedVideoVideo
Corners/JointsVideoVideo
FloorboardsVideo
Anti-Chafe/Galvanic IsolatorVideo
Fuel SealingVideo
GasketsVideo
CompilationVideo
Complete InstallationVideo
Repairs/Clean UpVideo

These instructional videos for our aerospace sealants are also available in multiple languages on YouTube.

National Stock Numbers (NSN) for Defense Fixed-Wing Aircraft

Get Full NSN Reference Guide

GSC-21-95241-03
GUA-1017
GUA 1301-1
GSC-21-99467-50
GSC-21-97383-022
GSC-21-97382-022
GSC-21-95302-011
GSC-21-95282-011
GSC-21-95213-011
GSC-21-95303-011
GSC-21-95301-03
GSC-21-97057-024
071212JS-1
GSC-21-96614-04
071212JS-2
GSC-21-96616-04
071312JS-1
GSC-21-96615-04
071312JS-2
GSC-21-96613-04
GSC-21-96427-04
GSC-21-96426-04
GSC-21-96540-04
GSC-21-96541-04
GSC-21-96539-04
GSC-21-96526-04
GSC-21-96527-04
GSC-21-96529-04
GSC-21-96528-04
GSC-21-96513-04
GSC-21-96057-027
GSC-21-96059-027
GSC-21-96514-04
GSC-21-96515-04
GSC-21-96551-04
GSC-21-96552-04
GSC-21-96550-04
GSC-21-96555-04
GSC-21-96554-04
GSC-21-95201-0111
GSC-21-95158-011
GUA 1003-1
GSC-21-95241-011
GUA 1017-1
GSC-21-95201-011
GSC-21-96057-04
GSC-21-96059-04
GSC-21-96062-04
GUA 1002-1
GSC-21-95312-010
GO-DO-0069-1
GSC-21-97158-027
GSC-21-95813-022
GUA 1059-1
GUA 1401-1
GSC-21-95035-010
GUA 1038-1
GUA 6001-100
GUA 6003-100

National Stock Numbers (NSN) for Defense Rotary-Wing Helicopters

Get Full NSN Reference Guide

GSC-21-95062-010
GSC-21-95158-011
GSC-21-95241-011
GSC-21-95248-011
GSC-21-95269-03
GSC-21-95261-011
GSC-21-95265-011
GSC-21-98024-022
GSC-21-98023-022
GSC-21-95946-011
GSC-21-97327-027
GSC-21-97339-027
GSC-21-95831-022
GSC-21-97207-027
GSC-21-97221-027
GSC-21-97222-027
GSC-21-95150-011
GUA 1058-1
GSC-21-95811-022
GSC-21-97382-022
GSC-21-97383-022
GSC-21-97057-024
GSC-21-97308-027

Featured Content

Related Content

Explore More

M-345 Trainer aircraft image courtesy of Leonardo.
