Highest Protection for High Data Rate Copper Wires

GORE® Abrasion Resistant Cable Jacket meets new and existing standards for packaging high data rate wires without sacrificing size, weight or signal transmission performance. Made of a revolutionary fluoropolymer fiber material, our rugged jacket eliminates additional protective sleeving for copper wires installed seats.

Features & Benefits
Applications
Cut-Through Resistance

Thinner, Lighter & More Flexible

Outperforming common industry materials, GORE Abrasion Resistant Cable Jacket offers added features for packaging copper wires, including:

  • revolutionary fluoropolymer fiber material
  • abrasion- and cut-through resistant material
  • chemically inert material
  • thinner, lighter, highly flexible design

Our pioneering cable jacket provides more benefits for best-in-class protection against typical airborne and land conditions, like:

  • meets strict EN3475 and SAE AS4373™ durability requirements
  • superior resistance against abrasion, cut-through, high temperatures and more
  • eliminates protective sleeving required for copper wires installed in seats
  • allows copper wires to transmit high-speed data and video reliably
  • contributes to valuable aircraft and vehicle weight savings
  • easier, faster routing because of more flexibility and tighter bending
  • ideal for packaging GORE High Speed Data Cables or industry alternatives

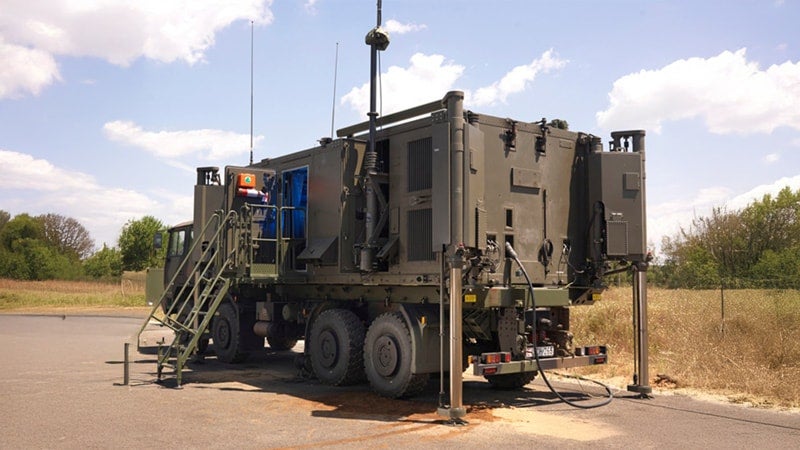

Abrasion resistant cable jacket defense vehicle application

Courtesy of MBDA©


Defense Aircraft & Vehicles
  • Cockpit seats
  • Workstation seats

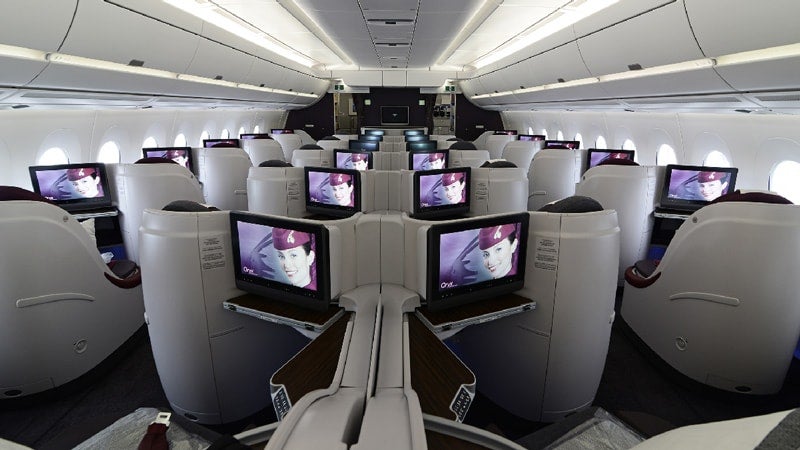

Abrasion resistant cable jacket passenger cabin application

Civilian Aircraft
  • Cabin seats
  • Cockpit seats

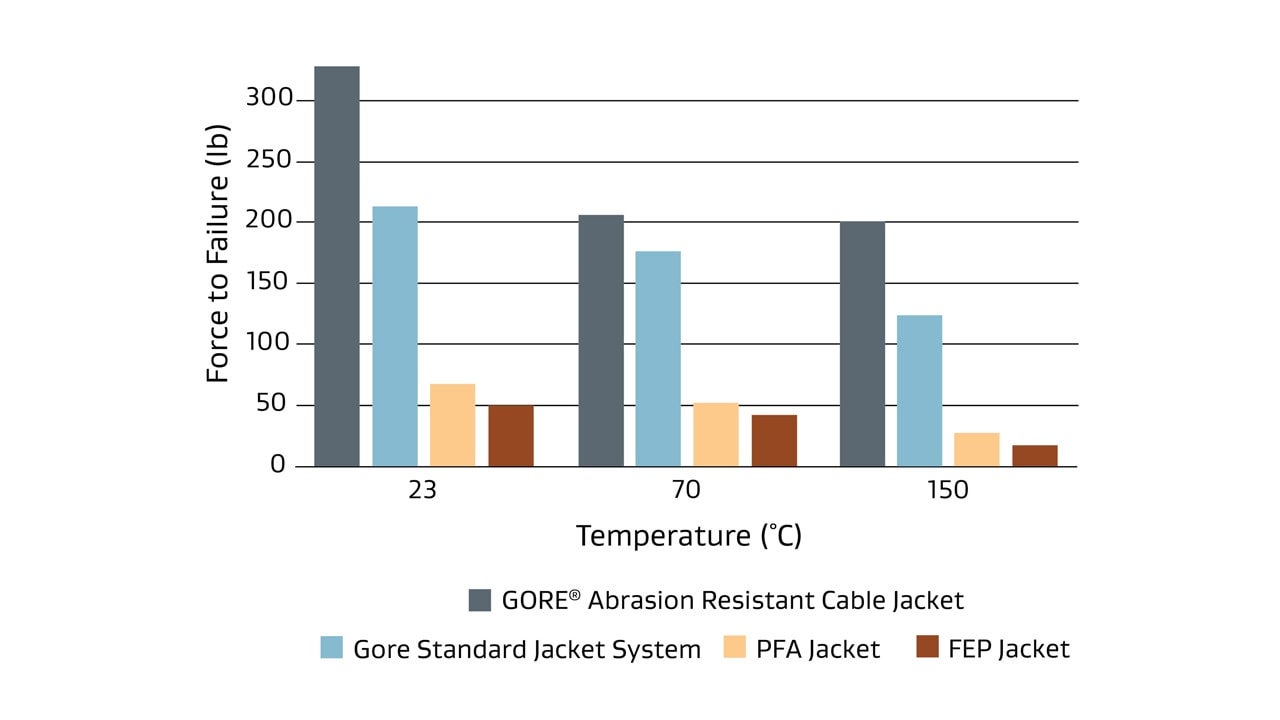

Gore abrasion resistant cable jacket is cut-through resistant at high temperatures

Cut-Through Resistance at High Temperatures

We used SAE AS4373™, Method 703, to compare our 100-ohm high-speed quadrax cables wrapped with our rugged cable jacket against alternatives.

As expected, GORE Abrasion Resistant Cable Jacket drastically outperformed PFA and FEP materials for superior cut-through resistance at high temperatures without cracking, splitting or breaking. Our cable jacket ensures copper wires transmit data and video reliably in the intended application.

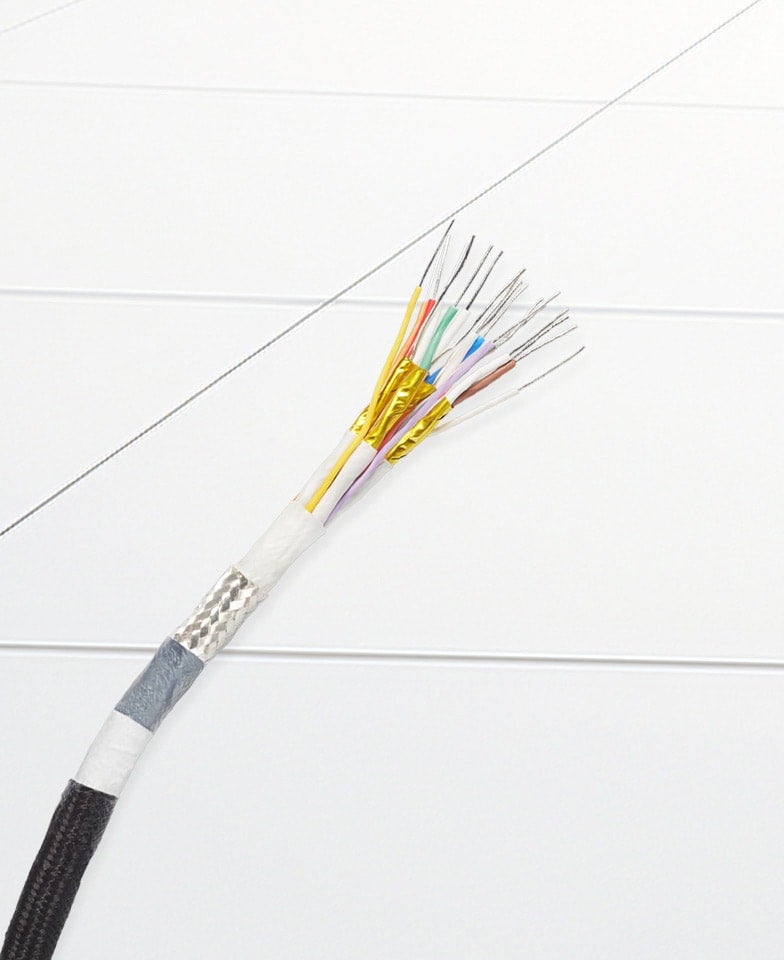

GORE® High Speed Data Cables for Aerospace & Defense

GORE® High Speed Data Cables for Aerospace & Defense

Combining dielectric expertise with innovative fluoropolymer materials, we bring a portfolio of standard high data rate cables with proven performance over leading alternatives.


Gore Solutions for Aerospace & Defense

Gore Solutions for Aerospace & Defense

Learn more about Gore’s wide range of components and materials that have been time-tested and proven to aerospace and defense suppliers.

Technical Information

These values demonstrate the electrical, mechanical and environmental performance of GORE® HDMI Cables, 2.0 version packaged with GORE Abrasion Resistant Cable Jacket.

Elec./Mech./Environ. PropertyValue
Signal Transmission Speed Gb/sUp to 18
Standard Impedance Ohms100 ± 10
Typical Operating Voltage V< 15
Nominal Velocity of Propagation %80
Nominal Time Delay ns/m (ns/ft.)4.10 (1.25)
Capacitance pF/m (pF/ft.)230.0 (70.0)
Maximum Skew Within Pair ps/m (ps/ft.)15.0 (4.6)
Dielectric Withstanding Voltage Vrms
   Conductor-to-Conductor
   Conductor-to-Shield

1500
1000
Jacket MaterialEngineered Fluoropolymer Fiber Braid
Jacket ColorBlack
ConductorSilver-Plated Copper Alloy
Conductor Color CodingHigh-Speed Pairs: Blue/White, Brown/White, Green/White, Red/White
Singles: Orange, Violet, White, Yellow
Triad: Gray, Pink, Tan
Dielectric MaterialExpanded PTFE/PTFE
Cut-Through Resistance kg (lb) (SAE AS4373™-703)
   23°C
   70°C
   150°C

122 (270)
73 (160)
59 (130)
Scrape Abrasion Resistance Cycles (EN3475-503) 30°C & 55°C / F = 1.2 daN> 8,000
Temperature Range °C-65 to +200

GORE Abrasion Resistant Cable Jacket complies with the most current aerospace and defense standards and requirements, including:

  • ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)

The 2.0 version of GORE HDMI Cables packaged with GORE Abrasion Resistant Cable Jacket is available in a standard size.
