Withstands Harsh Space Travel Conditions

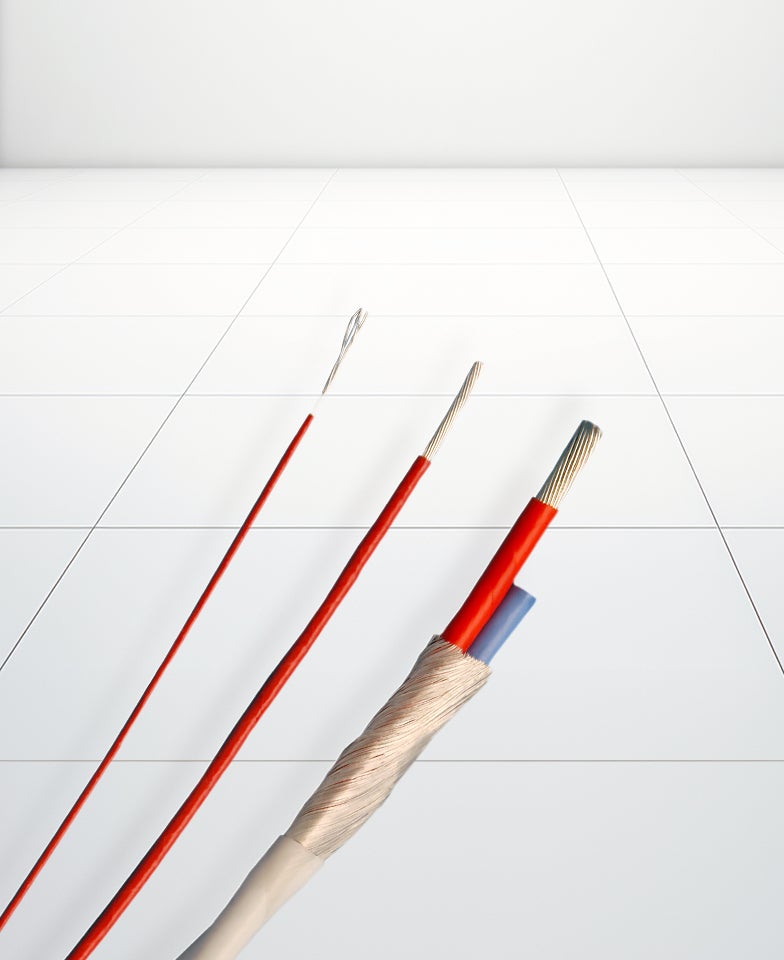

GORE® Space Cables, Type CSWL, are built with temperature- and chemical-resistant materials necessary for space travel. They also reduce the risk of cut-through and material creep. Our cables offer smaller, low-mass diameters with tighter bending and extremely low spring-back for simpler installation and valuable weight savings.

Features & Benefits
Applications
Program Heritage
Robust Mechanical & Electrical Performance

Unlike standard materials, Type CSWL of GORE Space Cables offers unique features that manufacturers and end users can benefit from like:

  • robust protection against extreme temperatures, harsh chemicals and more
  • reduces the risk of insulation cut-through and material creep
  • distributes reliable power up to 600 Vrms with high-quality signal transmission
  • reduces total launch mass for more weight savings and payload
  • flexible construction with tight bending aids in routing and installation
space cables type CSWL application

© ESA - J.Huart

Well-Suited for All Areas — from Propulsion to Optical Systems

GORE Space Cables, Type CSWL, is frequently used in the following applications:

  • launch vehicles
  • low earth orbit (LEO) satellites
  • manned & unmanned space missions
  • transfer vehicles

Notably, our cables are qualified to rigorous ESCC 3901/024 requirements and have been successfully used aboard the Vega Launcher.


Gore products on the International Space Station

© NASA

Spaceflight Program Heritage

For many decades, W. L. Gore & Associates has provided reliable solutions in hundreds of global spaceflight programs with a 100% failure-free flight record.

  • We work closely with major space organizations like the ESA (European Space Agency) and NASA (National Aeronautics and Space Administration) to deliver valued reliability from an ESA-qualified and ISO 9001:2000-certified manufacturing facility.
  • Since 1986 (Gore’s first ESA-qualified product for spaceflight), 10 of our products have been qualified to ESCC 3901/3902/3408 specifications, and 11 are registered on the Qualified Parts List (QPL).

Our products have been used in many well-known missions and programs over the years, including:

  • 1969 Apollo 11 First Moon Landing
  • International Space Station
  • Mars Exploration Rover Programs
  • Space Shuttle Programs
  • James Webb Space & Hubble Telescopes

Gore Solutions for Spaceflight
Gore Solutions for Spaceflight

Watch and learn how Gore can help solve the design challenges inherent in space missions, providing decades of proven, reliable solutions to space companies.

Technical Information

GORE Space Cables, Type CSWL, meet these technical specifications:

Elec./Mech./Environ. PropertyValue
Maximum Operating Voltage Vrms600
Jacket MaterialExpanded PTFE + PFA
Jacket ColorWhite
Insulation MaterialEngineered Fluoropolymer + PTFE
ConductorSilver-Plated Copper or Copper Alloy, True Concentric
Temperature Range °C-200 to +200

GORE Space Cables, Type CSWL, are available in 64 variants from 30 to 12 AWG sizes. When ordering our product, specify ESCC3901024XXB, with “XX” being the appropriate variant number.

Examples include the following:

Variant Number

Number of Cores

Ordering Number

081

ESCC390102408B

412

ESCC390102441B

543

ESCC390102454B

644

ESCC390102464B
