Venting Solutions for Welding Integration

GORE® Protective Vents for Welding Integration are engineered to provide durable oleophobic protection where a welded vent solution is preferred. Welded solutions are typically used in high quantity applications where space is limited and a high IP rating is required, or where shock and vibration requirements are high.

Features & Benefits
Applications
Product Types

Benefits of GORE® Protective Vents

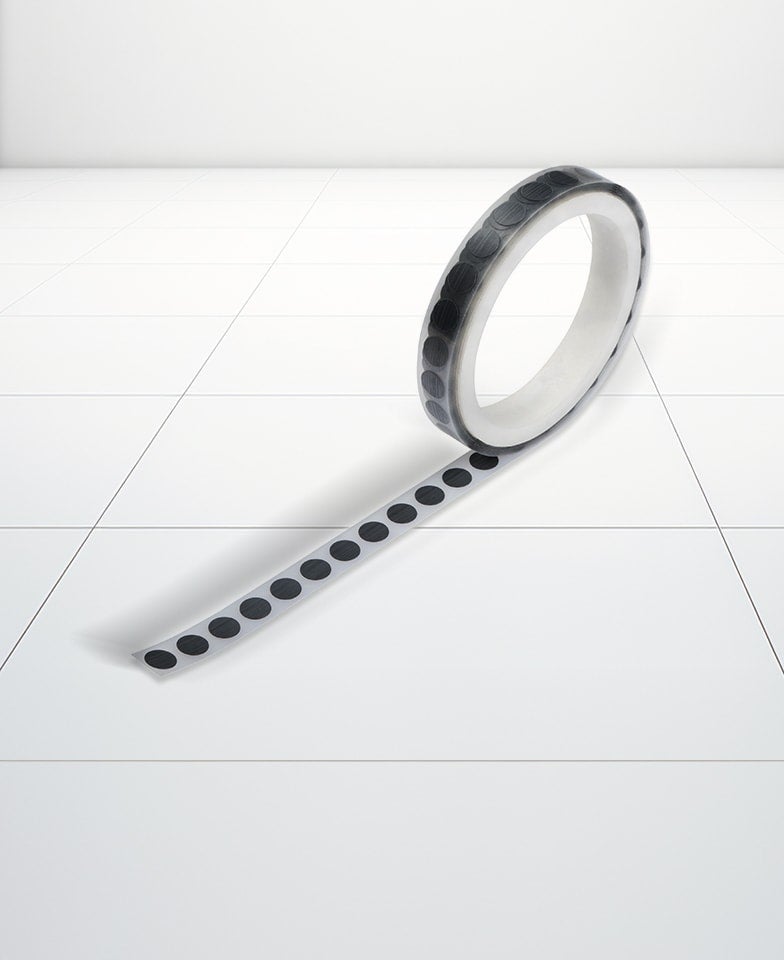

  • Convenient one-up packaging design for automated installation
  • Low profile that is ideal for enclosures with limited spaces
  • Outstanding technical expertise from Gore’s engineering organization, currently supporting over 200 million installations worldwide

Durable ePTFE Weldable Membrane Vent Packaged Specifically for Automated Installation

GORE Weldable Membrane Vents provide a robust mechanical bond in conjunction with rapid equalization of pressures. Welded vents can only be used with enclosures constructed of polymer materials.


GORE Weldable Membrane Vents

VC70008-1

Membrane type:
All ePTFE

Membrane characteristics:
Hydrophobic & oleophobic

Membrane color:
Black

Size:
Ø 7.6 mm

Installations methods:
Heat seal, ultrasonic weld

Part quantity (pieces per roll):
5000 pcs

VE0001SLR

Membrane type:
All ePTFE

Membrane characteristics:
Hydrophobic & oleophobic

Membrane color:
Black

Size:
Ø 10.0 mm

Installations methods:
Heat seal, ultrasonic weld

Part quantity (pieces per roll):
10000 pcs

VE0003AML

Membrane type:
All ePTFE

Membrane characteristics:
Hydrophobic & oleophobic

Membrane color:
Black

Size:
Ø 11.9 mm

Installations methods:
Heat seal, ultrasonic weld

Part quantity (pieces per roll):
5000 pcs

Technical Information

Material Performance
Part numberVC70008-1VE0001SLRVE0003AML
IP rating (IEC 529, 2nd)1

IP65, IP66, IP67, IP682

Water entry pressure

> 0.6 bar for 60 seconds

Typical airflow (Δp = 70 mbar)3100 ml/min185 ml/min270 ml/min
UL-rating / flammability

UL94-V0

UV-resistance (in accordance to UL746C)

UL f2


1 IP ratings are housing design dependent (tested with VE70919)

2 Extended immersion testing: 2 meter for 1 hour (tested with VE70919)

3 Values adjusted for the loss of 1 mm for the welding area

Gore monitors and strives to comply with all regulations applicable to our products.

We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/2021.

Learn More

VC70008-1
VE0001SLR
VE0003AML


Explore More

FOR INDUSTRIAL USE ONLY

Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
