GORE® Protective Vents for Lighting Enclosures
Lighting enclosure vents from Gore rapidly equalize pressure while blocking water and other airborne contaminants. This improves lighting service life and performance.
Reliable Solutions for Failed Seals and Condensation
GORE® Protective Vents for Lighting Enclosures equalize pressure to protect housing enclosures and seals, prevent contamination to protect electronics, and reduce condensation to protect against corrosion. They also reduce explosion hazards by effectively dissipating hazardous gas molecules.
The Smart Solution to Protect Lighting Enclosures
GORE Protective Vents help protect outdoor lighting enclosures from damage. They are proven to:
- provide rapid pressure equalization to extend seal life
- minimize condensation through effective vapor diffusion
- prevent entry of contaminants like dust, dirt and debris
- save weight and costs and eliminate the need for extra-hardened components
- reduce explosion hazards, while maintaining an effective barrier to liquids and particulates

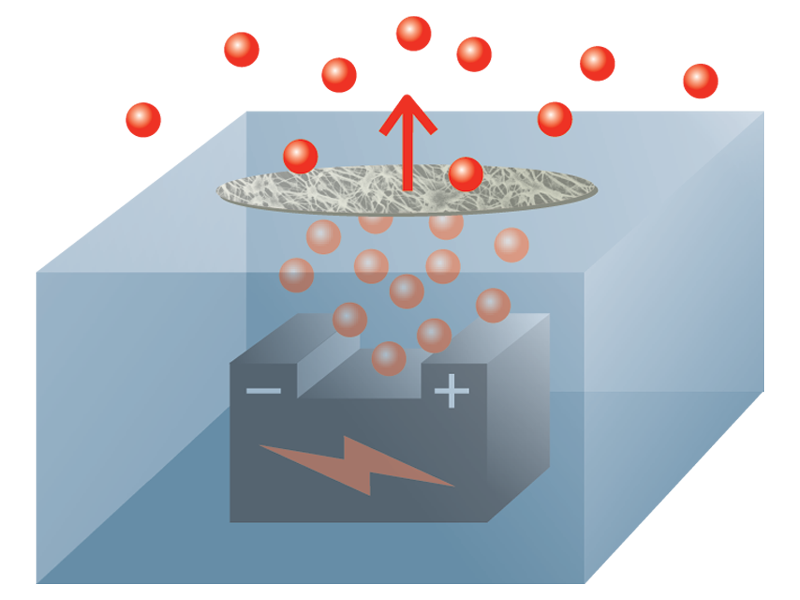

GORE Protective Vents effectively protect against hazardous gas buildup.
Proven Experience and Expertise in a Broad Variety of Lighting Applications
Industrial / Commercial Outdoor Lighting
Emergency Lighting
Outdoor Decorative Lighting
Entertainment Lighting
Marine Lighting
Ballast and Transformers
Adhesive Series
Recommended for low profile housings. Offered for manual or automated installation formats. Can be mounted to interior or exterior wall, against or smooth substrates. Custom designs available with oleophobic or hydrophobic membranes.
Screw-In Series
Designed to durably withstand mechanical stresses and rugged environments. Hydrolytically stable, UV- resistant and temperature-resistant. Oleophobic membranes.
Snap-In Series
Fast, reliable installation ideal for high-throughput or manual production. Suitable for enclosure volumes from less than 0.5 liters up to 30 liters. Oleophobic and hydrophobic (high airflow only) membranes.
Technical Information
To effectively equalize pressure equalization and reduce condensation, follow these placement and position recommendations for GORE® Vents.
GORE Protective Vents can help your outdoor electronic equipment enclosures meet IP enclosure and vented NEMA enclosure protection standards.
Gore monitors and strives to comply with all regulations applicable to our products.
We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/1021.
Adhesive Vents
Series VE7
Series VE8
Series VE9
Snap-in Vents
| Product Name | PolyVent Hysi | PolyVent XS | PolyVent Standard | PolyVent High Airflow | PolyVent High Airflow PRO | ||
|---|---|---|---|---|---|---|---|
| Product Number | PMF100271 | PMF200125 | PMF200128 | PMF200484 | PMF200521 | PMF300681 (gray) | PMF300680 (black) |
Screw-in Vents
| Product Name | PolyVent XS | PolyVent Standard | PolyVent Standard | PolyVent High Airflow | PolyVent High Airflow PRO | PolyVent XL | PolyVent Stainless Steel | PolyVent Ex+ |
|---|---|---|---|---|---|---|---|---|
| Thread Size | M6x0.75 | M12x1 | M12x1.5 | M12x1.5 | M12x1.5 | M32x1.5 | M12x1.5 | M12x1.5 |
| Product Number | PMF100600 | PMF100319 (gray) PMF100318 (black) | PMF100321 (gray) PMF100320 (black) | PMF100586 (gray) PMF100585 (black) | PMF300681 (gray) PMF300680 (black) | PMF200542 | PMF200444 | PMF200400 |
Case Studies
Explore More
FOR INDUSTRIAL USE ONLY
Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
