Reduce Total Launch Mass while Performing Reliably

Qualified to ESCC 3901 and on the ESA QPL, GORE® Space Cables, Type LEW, helps reduce the spacecraft’s total mass and makes room for more payloads and other critical subsystems. Their design is up to 27% smaller and 47% lighter than cables qualified in the same class. Our low-mass cables can save around 35% of weight for a typical mission while delivering continuous power and signals.

Featured Resources

Features & Benefits
Applications
Program Heritage

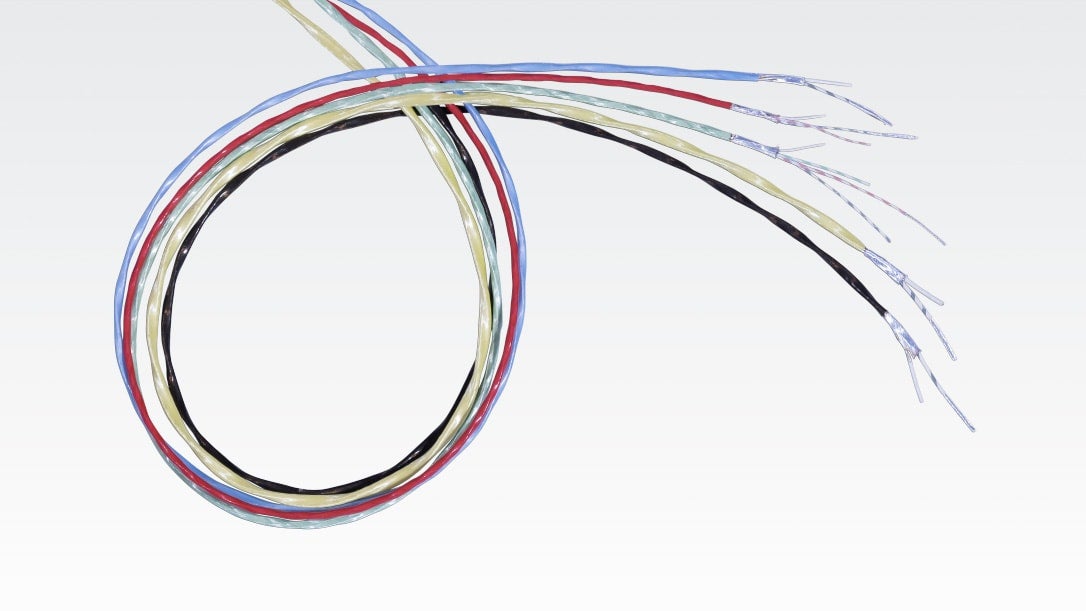

Low mass Gore type lew space cables

Smallest, Lightest Wires & Cables in the ESCC 3901 Class

Type LEW of GORE Space Cables brings specialized features and benefits that improve overall system performance compared to industry alternatives like:

  • qualified to ESCC 3901/026 specification and registered on the ESA QPL
  • low-mass design saves valuable weight of around 35% for a typical mission
  • smaller up to 27% and lighter up to 47% than ESCC 3901/012 cables
  • continuous power up to 600 Vrms and reliable analog or low-frequency signal transfer
  • durable materials protect against extreme temps, abrasion, ATOX, chemicals and more
  • more design and installation options because of high flexibility and tighter bending



Space cables for traditional space applications

© ESA - P. Carril

Proven Reliability in LEO Environments

Built to operate reliably in the harshest low earth orbit (LEO) environments, GORE Space Cables, Type LEW, is ideally suited for the following applications:

  • analog & low-frequency signals
  • box-to-box transmission
  • power distribution systems
  • manned or unmanned spacecraft

Gore products on the International Space Station

© NASA

Spaceflight Program Heritage

For many decades, W. L. Gore & Associates has provided reliable solutions in hundreds of global spaceflight programs with a 100% failure-free flight record.

  • We work closely with major space organizations like the ESA (European Space Agency) and NASA (National Aeronautics and Space Administration) to deliver valued reliability from an ESA-qualified and ISO 9001:2000-certified manufacturing facility.
  • Since 1986 (Gore’s first ESA-qualified product for spaceflight), 10 of our products have been qualified to ESCC 3901/3902/3408 specifications, and 11 are registered on the Qualified Parts List (QPL) – including Type LEW.

Our products have been used in many well-known missions and programs over the years, including:

  • 1969 Apollo 11 First Moon Landing
  • International Space Station
  • Mars Exploration Rover Programs
  • Space Shuttle Programs
  • James Webb Space & Hubble Telescopes
Gore Solutions for Spaceflight
Gore Solutions for Spaceflight

Watch and learn how Gore can help solve the design challenges inherent in space missions, providing decades of proven, reliable solutions to space companies.

Technical Information

GORE Space Cables, Type LEW, meet these technical specifications:

Elec./Mech./Environ. PropertyValue
Maximum Operating Voltage Vrms600
Cable Jacket MaterialSingle Core: Thin-Resistant Fluoropolymer
Multi-Core: Extruded Fluoropolymer
Multi-Core Cable Jacket Color by Wire Size
ISO/(AWG)
- /(28) Red
001/(26) Green
002/(24) Blue
004/(22) Black
006/(20) Yellow
Wire Insulation MaterialThin-Resistant Fluoropolymer
Wire Insulation Color-CodingSingle Core: Natural
Multi-Core: Black, Green, Natural, Red
ConductorSilver-Plated Copper or Copper Alloy, True Concentric
Temperature Range °C-200 to +200

GORE Space Cables, Type LEW, offers several constructions in 21 variants from 28 to 16 AWG sizes. When ordering our product, specify ESCC3901026XXB, with “XX” being the appropriate variant number.

Examples include the following:

ConstructionVariant NumberNumber of CoresOrdering Number
Single Wires011ESCC390102601B
Twisted Pairs102ESCC390102610B
Shielded Twisted Cables214ESCC390102621B
