Low-Profile Adhesive Vents with High Airflow and High Temperature Stability

The GORE Adhesive Vent Series portfolio offers a broad selection of vent sizes, constructions and performance characteristics, including high airflow and high-temperature stability. These stick-on vents withstand the most challenging applications and environmental conditions, reliably protecting sensitive electronics.

Features & Benefits
Applications
Product Types
Quality & Testing

A Durable and Easy-To-Apply Vent Solution

GORE® Protective Vents Adhesive Series provides:

Pressure Equalization

Allows air to flow freely into and out of sealed enclosures, equalizing pressures to reduce stress on enclosure seals

Reliable Ingress Protection

Reliably protect sensitive electronics against ingress of damaging water, salts, corrosive fluids or particulates to enable compliance with industry standards.

Easy & Quick Installation

Install quickly and easily on an enclosure’s interior or exterior, using manual or automated processes.

Strong, Durable Bond

Low-outgassing adhesive forms a strong and durable bond to a wide variety of housing materials, providing reliable performance over time.

Hydrophobic and Oleophobic Protection

Includes our proprietary GORE Membrane to protect your electronic device from water-based and low surface tension fluids.

weatherproof vent in a broad range of challenging applications

These low-profile stick-on air vents offer flexible integration options that can meet the needs of almost any outdoor electronic enclosure, including thin-walled enclosures. The low-outgassing adhesives form a strong and durable bond to a wide variety of housing materials in a broad range of challenging applications:

GORE Protective Vents Adhesive Series portfolio:

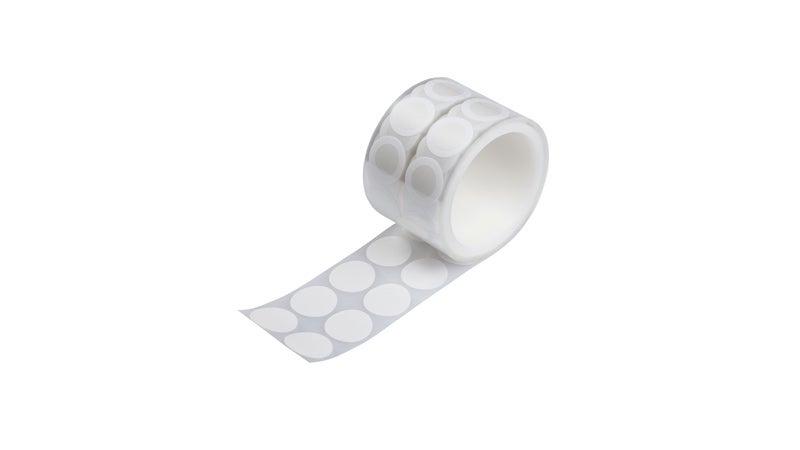

Adhesive Vent Series VE8

Series VE8:
Designed for low profile and high airflow

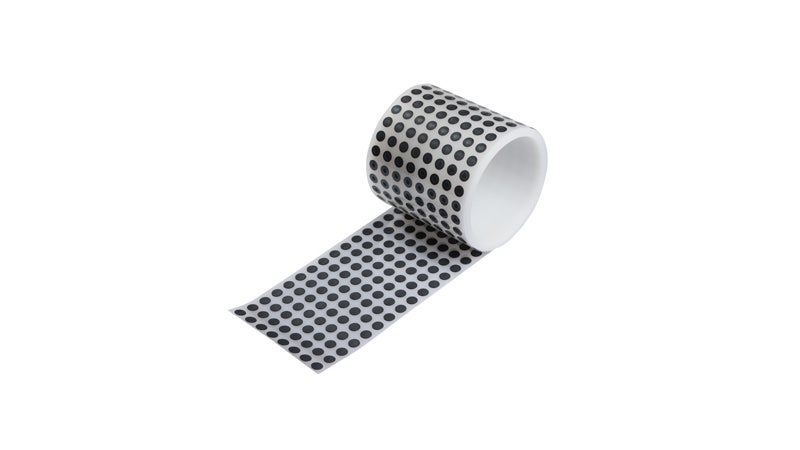

Adhesive Vent Series VE7

Series VE7:
Designed for high-temperature stability

Adhesive Vent Series VE8

Series VE9:
Offering high-temperature stability and high airflow


Integration Options

Available for both manual and automated installation.

Quality & Testing

Products in the Adhesive Vent Series have been fully tested by independent laboratories and certified to meet a range of IEC, UL and DIN testing standards, including durability/resistance to environmental challenges including:

  • IP Ratings
  • Humidity Testing
  • UV Resistance Testing
  • Salt Spray Testing
  • Temperature Testing
  • Flammability Testing
  • Salt Fog Testing
  • Corrosive Gas Testing

Please see the GORE® Adhesive Vents Series datasheet for specific testing information. Testing certificates can be provided upon request.

Technical Information

 Series VE8Series VE7Series VE9
Membrane Characteristic

Oleophobic

Membrane ColorWhiteBlackWhite
Backing MaterialPET nonwoven

None

Backing Material ColorWhite

None

Adhesive TypeAcrylic

Silicone

Mounting OrientationInside mount only

Inside or outside mount

RatingIP64 or IP67 ingress protectionIP64, IP67, IP68 (interior mount)
IP64 (exterior mount applications, depending on housing design
IP64, IP67, or IP68 (interior mount)
IP64 through IP68 for exterior-mount applications, depending on housing design

Gore monitors and strives to comply with all regulations applicable to our products.

We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/2021.

VE70205
VE70308
VE70510
VE70814
VE70919
VE71221
VE72029

VE80205
VE80308
VE80510
VE80814
VE80919
VE81221
VE82029

VE90308
VE90510
VE90814
VE90919
VE91221
VE92029
