Help Outdoor Electronic Devices Withstand Weather and Temperature Changes

GORE® Protective Vents Screw-in Series ensure the safety, reliability and service life of your sealed outdoor electronic devices, even in the harshest environments. The portfolio includes performance options designed for a range of housing materials, enclosure volumes and application requirements as diverse as IK10, UL-94 V-O or “Ex+” ratings.

Features & Benefits
Applications
Product Types
Quality & Testing

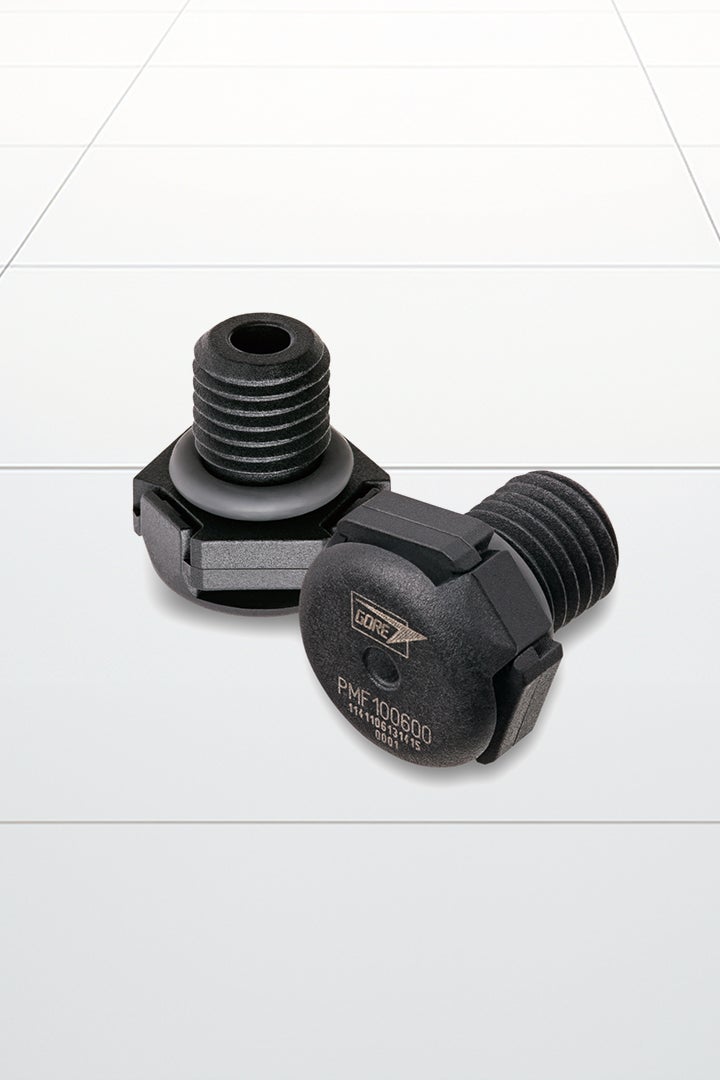

GORE® Protective Vents Screw-in Series provide:


Rapid Pressure Equalization

Rapidly and responsively equalize pressure differentials to reduce stress on seals and connectors in sealed enclosures. The bidirectional air exchange enabled by these vents can also help reduce condensation.

Reliable Solid and Liquid Contamination Prevention

Reliably keep solid and liquid contaminants from entering the enclosure to protect sensitive electronics, even after the vent has been immersed in liquid.

Added Longevity & Mechanical Stability

These screw-in vents are engineered for chemical, UV and temperature resistance, hydrolytic stability, and flammability resistance. One of our stainless steel vents provide the highest mechanical impact resistance rating: IK10 (IEC 62262); another is IECEx and ATEX certified, for equipment operating in potentially explosive environments.

Easy Installation

These flexible, low-profile vents are easy to install in tight spaces, and won’t compromise the look of the most streamlined enclosure designs.

Oleophobic and Hydrophobic Protection

All screw-in vents include our proprietary GORE Membrane which provides both oleophobic and hydrophobic protection up to IP68 and, for all but our most compact vent, IP69K.

Screw-In Vents applications

The threaded vent plug and durable O-ring enable fast, safe integration and help keep the vent reliably secured to the housing. These vents provide long-term pressure equalization and protection for outdoor electronic devices in a broad range of challenging applications:

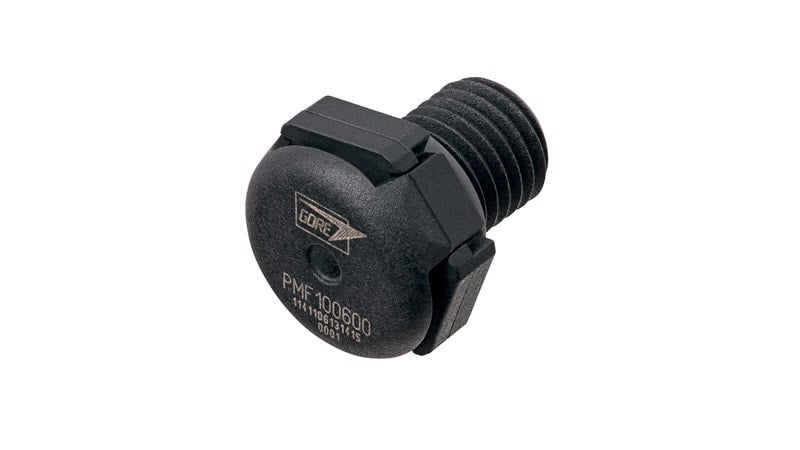

PolyVent XS

GORE® PolyVent XS
Compact, low-profile design; 30% smaller than our Standard vents

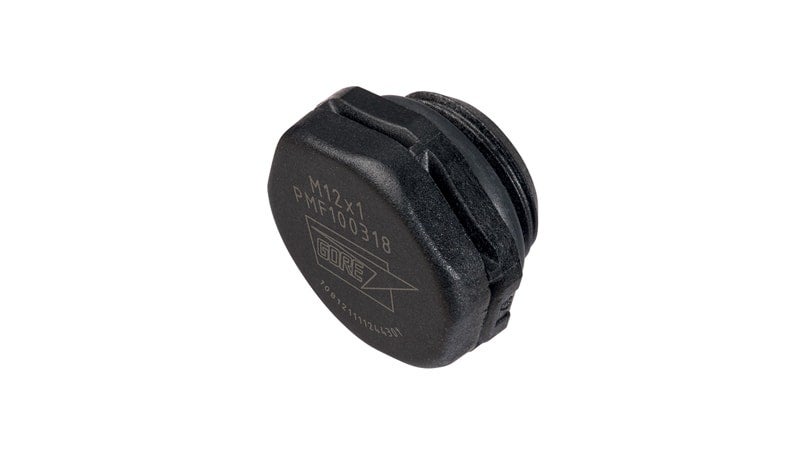

PolyVent Standard

GORE® PolyVent Standard
Available in two colors and two thread sizes for different wall thicknesses and can be used with or without a counter nut

PolyVent High Airflow

GORE® PolyVent High Airflow
Available in two colors, delivers nearly 10 times the airflow as our Standard vents

GORE® PolyVent High Airflow PRO

GORE® PolyVent High Airflow PRO

Delivers up to 90% higher airflow* for rapid pressure equalization. Available in two colors and new robust design for scratch-free assembly and more efficient installation.

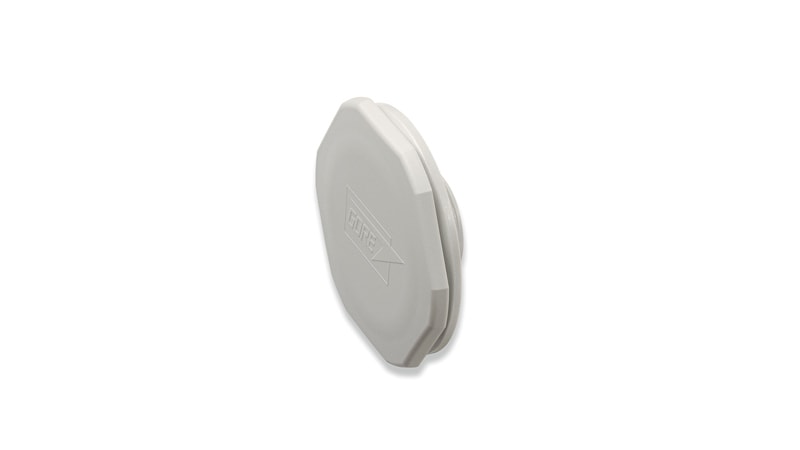

PolyVent XL

GORE® PolyVent XL
Maintains exceptionally high airflow in extra-large enclosures and meets the most rigorous standards

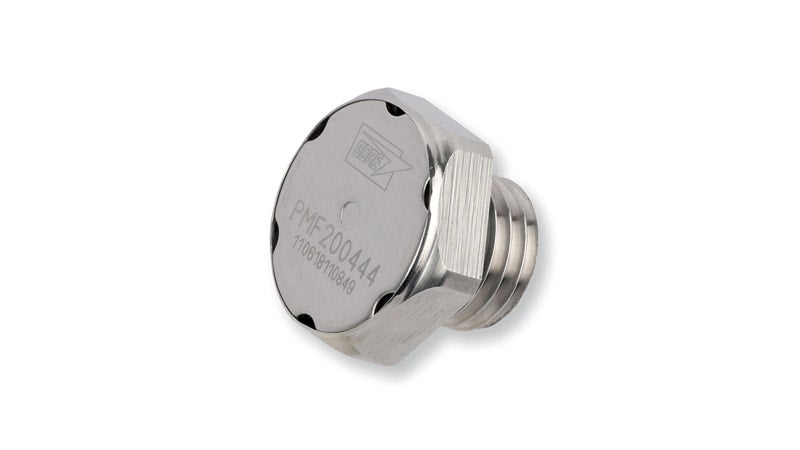

PolyVent Stainless Steel

GORE® PolyVent Stainless Steel
Offers exceptional durability, chemical and corrosion resistance

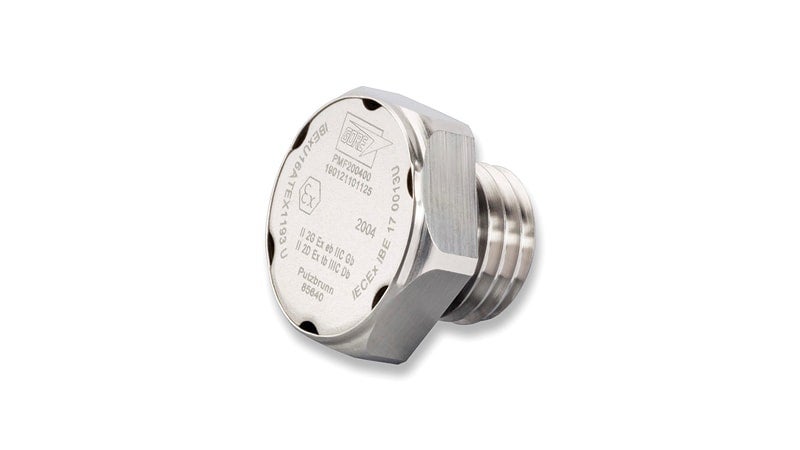

PolyVent Ex+

GORE® PolyVent Ex+
Certified for equipment operating in potentially explosive environments.

Every Screw-In Series vent undergoes in-line quality inspection at Gore before it is shipped. All vents with M6 and M12 thread sizes are individually laser-marked, to provide full product traceability.

Products in the GORE Protective Vents Screw-In Series have been fully tested by independent laboratories and certified to meet a range of IEC and DIN testing standards for durability/resistance to environmental challenges including:



  • IP Ratings
  • Mechanical Impact Testing
  • Solar Industry Testing
  • Salt Fog Testing
  • Temperature Testing
  • Humidity Testing
  • Flammability and UV Resistance Testing
  • Vibration Testing

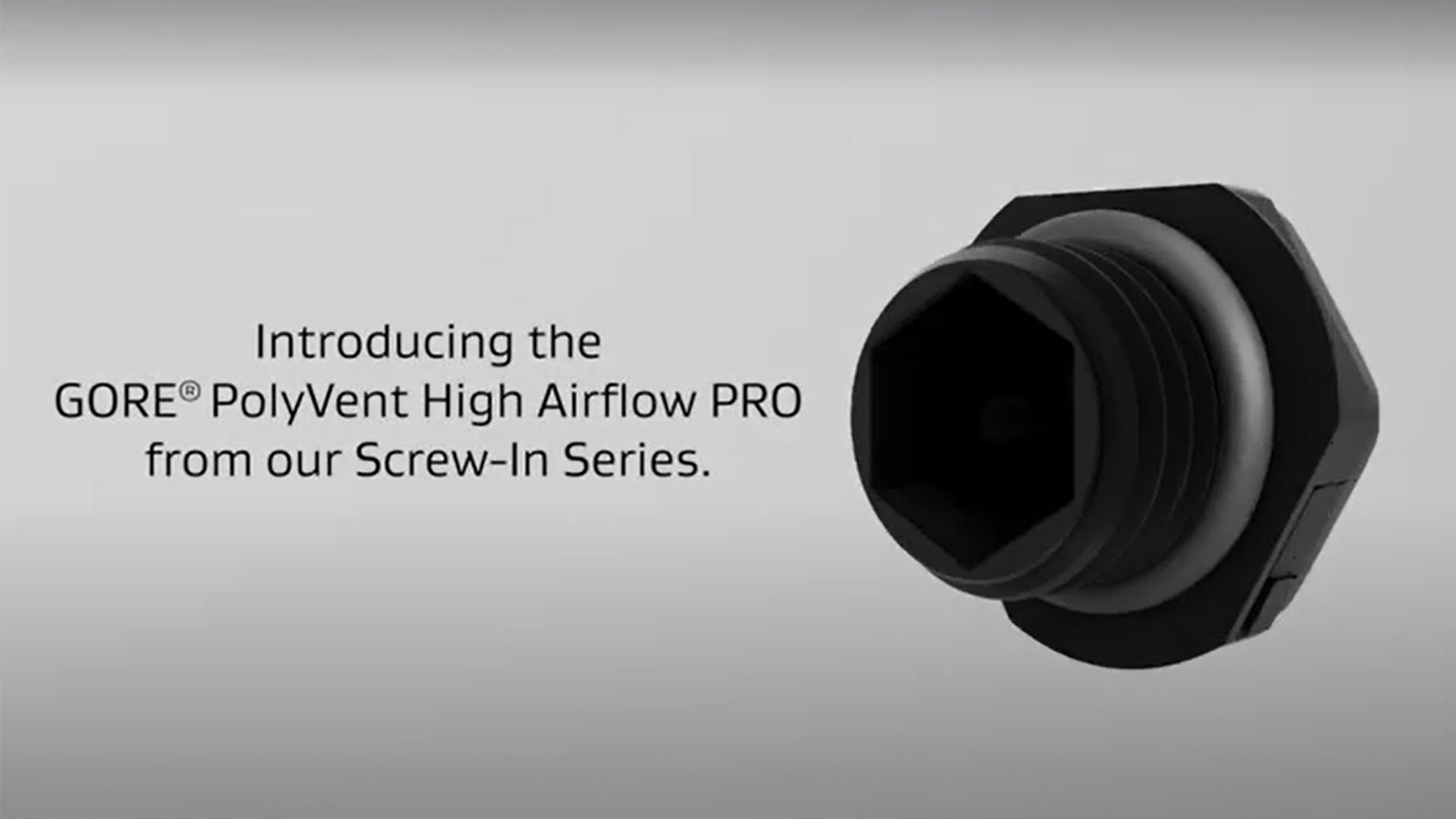

GORE® PolyVent High Airflow PRO

NEW GORE® PolyVent High Airflow PRO

See how our next-gen screw-in enclosure vent is engineered for peak performance and efficiency in harsh conditions.

Use GORE® Protective Vents to equalize pressure and safeguard outdoor electronics.

See How Protective Vents Work

Watch what happens when the temperature changes rapidly.

Technical Information

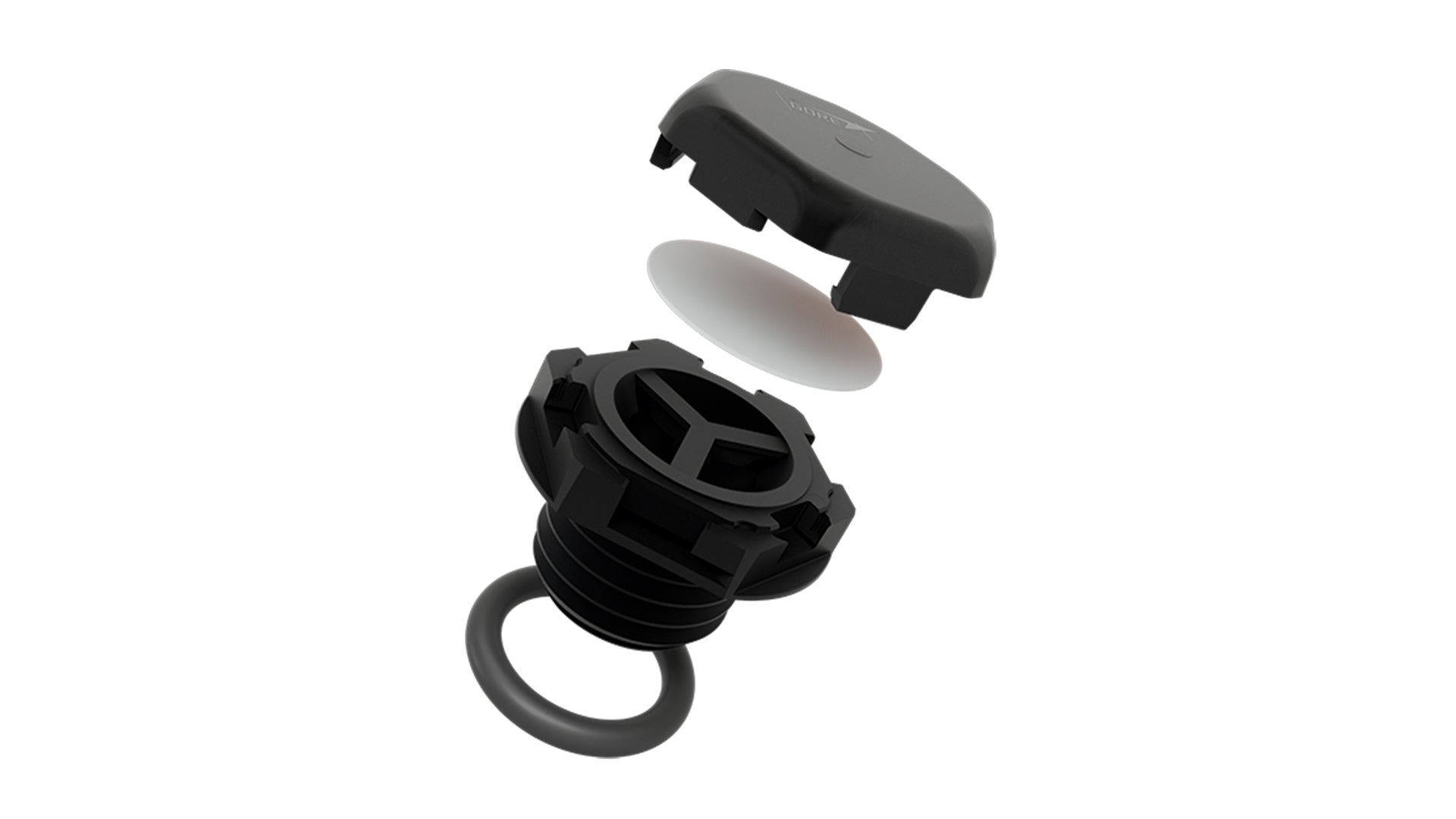

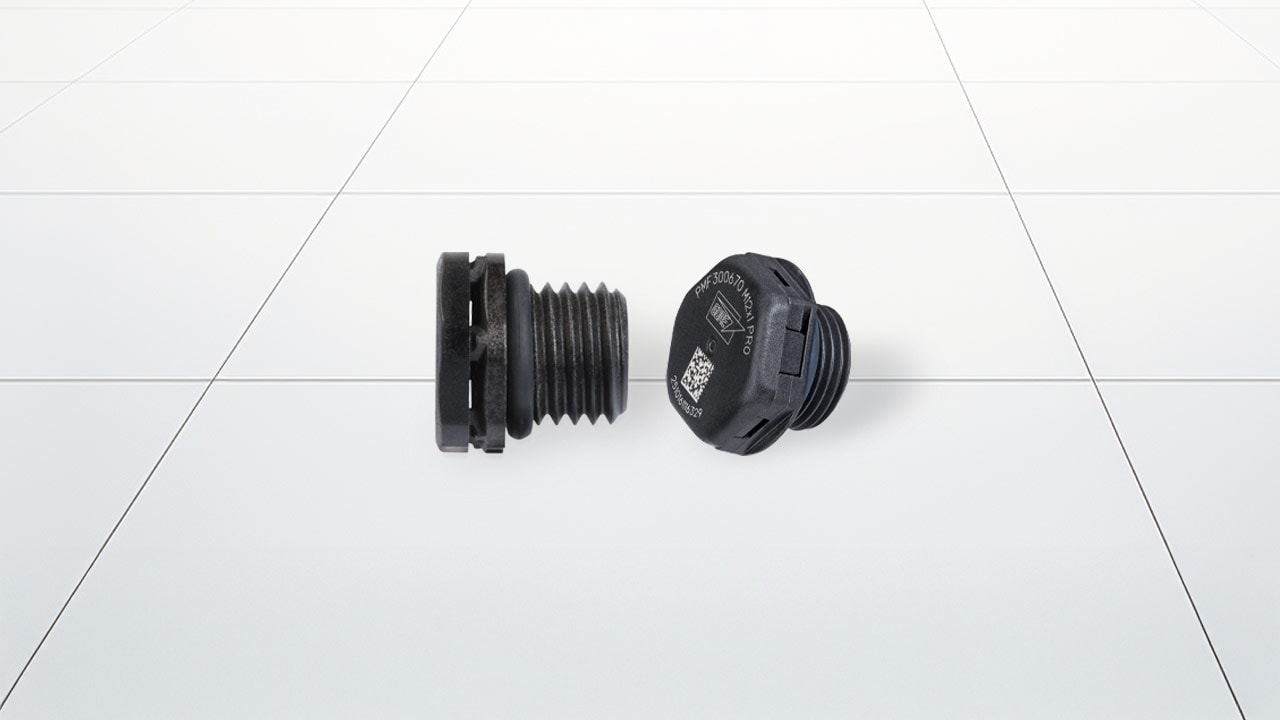

GORE® PolyVent High Airflow PRO
With the new GORE PolyVent High Airflow PRO, you can rely on:

Higher Airflow

  • 90% higher airflow* capacities for faster equalization and optimal protection under any condition

Time-Saving, Efficient Installation

  • Shorter screw-in times, saving assembly time
  • Versatile assembly options: manual, semi-automated, fully automated
  • Scratch-free installation: flaps and shorter thread ensure a secured position in sockets

Uncompromised Protection: IP66 to IP69k Rating

  • Withstands even high-pressure water sprays and immersion

*Typical airflow capacities of 7600 ml/min at 70 mbar


Compare GORE PolyVent High Airflow PRO against other screw-in enclosure vents in our portfolio.

 StandardHigh AirflowHigh Airflow PRO
Airflow✓✓✓✓✓
Traceability✓✓
Part Geometry✓✓
Housing Material UL94-V0✓✓✓✓✓✓
O-Ring Material UL94-V0✓✓✓✓✓✓
Housing GeometrySame geometry - "drop-in solution"

 GORE®
PolyVent XS
GORE® PolyVent
Standard
GORE® PolyVent
High Airflow
GORE® PolyVent
High Airflow PRO
GORE®
PolyVent XL
GORE® PolyVent
Stainless Steel
GORE®
PolyVent Ex+
Ratings, Resistance & CertificationsIP68
(2m/72hrs)
IP68 (2m/1hr)
IP69K
IP68
IP69K
IP68
IP69K
IP68 (2m/1hr)
IP69K
IEC62108
IP68
IP69K
IK10
(IEC62262)
IP68
IP69K
IECEx
ATEX
Enclosure VolumesUp to 2lUp to 5lUp to 50lUp to 95lUp to 200lUp to 20lUp to 2

Gore monitors and strives to comply with all regulations applicable to our products.

We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/2021.

PMF100318 (black)
PMF100319 (gray)
PMF100320 (black)
PMF100321 (gray)
PMF300680 (black)
PMF300681 (gray)

PMF200400
PMF200444
PMF200542

PMF100585 (black)
PMF100586 (gray)
PMF100600
