Durable, High-Quality Acoustic Vents for Microphones

GORE® Acoustic Vents enhance acoustic performance, providing consistent high-quality sound with minimal insertion loss and excellent distortion-resistance in high and low temperatures. These vents offer life-of-vehicle IP6K8 protection against ingress of dust, dirt and water, automotive fluids and oils.

Features & Benefits
Applications
Product Types

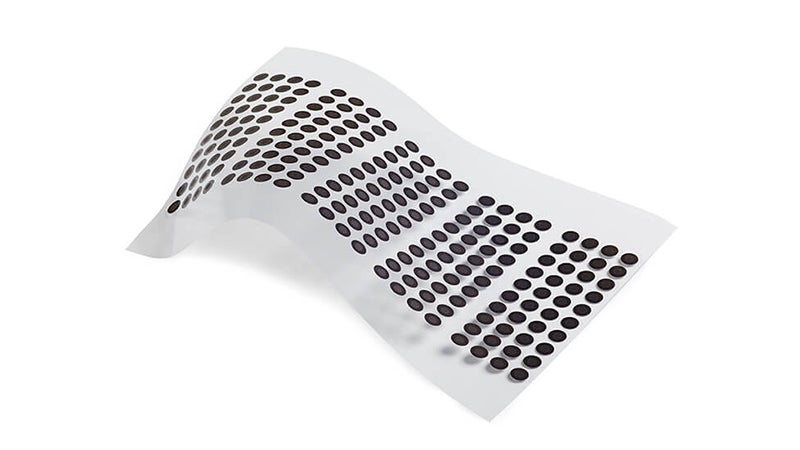

Discover a new dimension in acoustic quality while protecting exterior-mounted microphones in the most challenging environments.

automotive acoustic vents
Durable Ingress Protection Against Dust, Dirt, Water, Auto Fluids and Oils
  • Pressure-sensitive adhesive vent bonds securely, to seal microphone ports reliably
  • Sized for design flexibility: fits acoustic openings up to 2.5 mm diameter
  • IP6K8 dust and water (2 meters/1 hour) ingress protection per ISO 20653
  • Operating temperatures: -40 °C to +105 °C
Minimal Insertion Loss & Excellent Distortion Resistance at High and Low Temps
  • < 2 dB change through 1.5 kHz and
  • < 3 dB change through 5 kHz*
Life-of-Vehicle Protection in Temps -40 °C to +105 °C
  • Validated for automotive durability
  • IATF-certified manufacturing

* Tested using analog MEMS microphone, 1 mm from vent with 1 mm diameter acoustic opening. Design of assembled device will affect performance.

Acoustic Vents for Exterior-Mounted Microphones in Automotive and Mobility Applications

GORE Acoustic Vents are designed to protect externally-mounted microphones used in vehicle sound monitoring / communications and noise cancellation systems.

  • Ideal for external sound-monitoring devices used in ADAS, MaaS*, and other outdoor sensing technologies.
  • For interior microphone applications, please contact your Gore representative.

* Advanced Driver-Assistance Systems, Mobility-as-a-Service

GORE Acoustic Vents can help external mics reliably detect sirens of emergency vehicles

Two ways to reliably protect MEMS or other microphone ports

Pressure-sensitive adhesive vent construction bonds securely and mounts to either PCB at microphone port, or housing interior at aperture.

Gore Automotive Acoustic Vent AVS 700 (AAV10307)

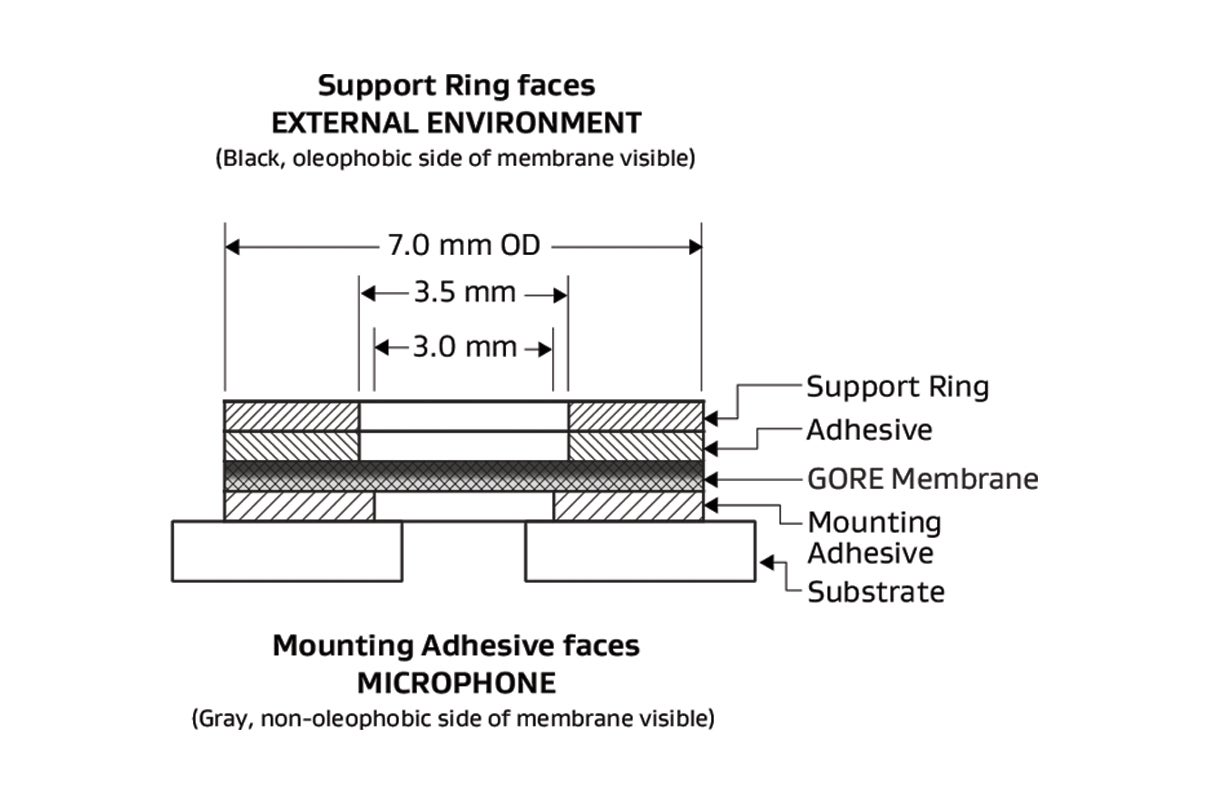

Cross-Section: Gore AVS 700 (AAV10307)

Gore Automotive Acoustic Vent AVS 701 (AAV10307-R)

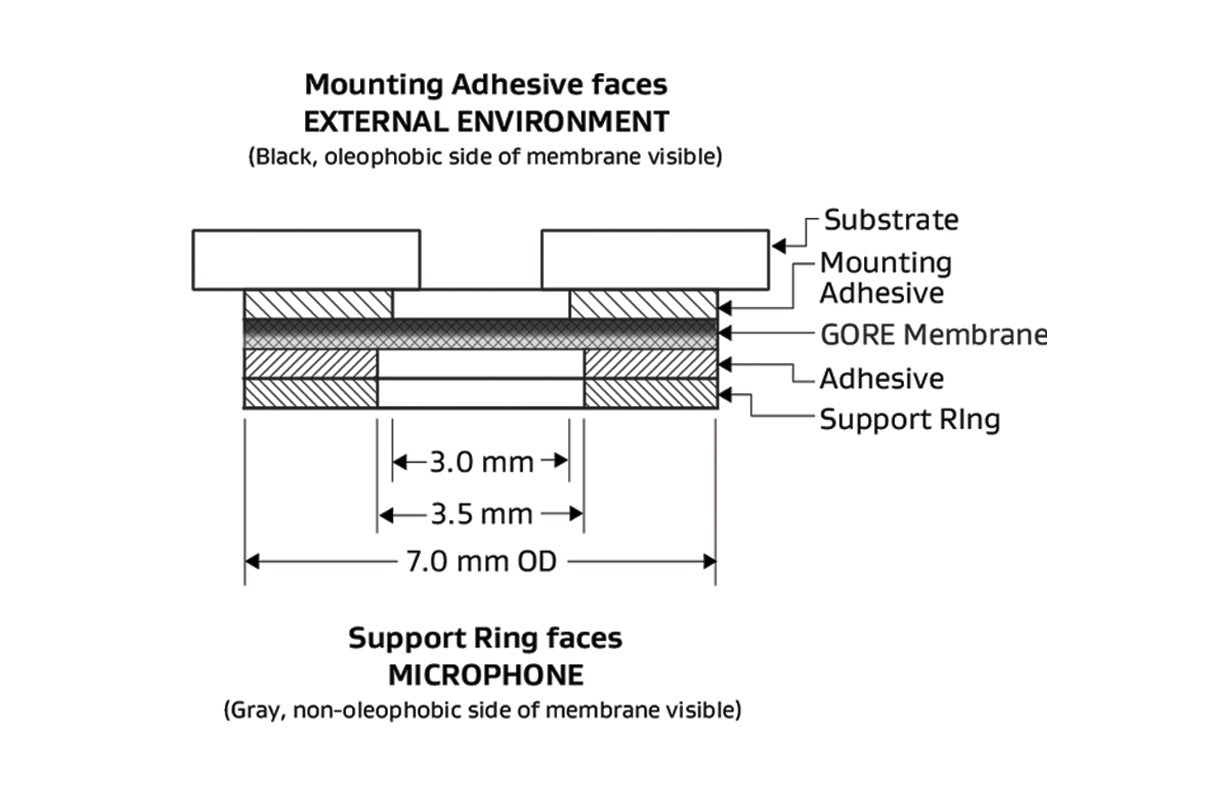

Cross-Section: Gore AVS 701 (AAV10307-R)

GORE Acoustic Vents for Automotive Exterior Microphones

Find out how GORE Acoustic Vents AVS 700 and AVS 701 can enhance the performance of exterior microphones used in vehicle sound monitoring and noise cancellation systems.

Technical Information

Thermal Shock Resistance (ISO 16750-4)
Vent durability under changing temperature conditions

  • Cycling temperatures between -40 °C and +105 °C within 30 seconds
  • 10 minutes conditioning at each temperature; minimum 200 cycles

Fluid Resistance (ISO 16750-5)
Vent protection against typical automotive chemical loads

  • Product performance depends on application method (i.e. cotton cloth, brush, spray, immersion, pouring) and the specific contaminant applied

High-Temperature Resistance
Vent durability under sustained high-temperature conditions

  • Heating to +105 °C for 500 hours

Climate Resistance (IEC 60068-2-67)
Vent durability in hot, humid environments

  • 85 °C temperature
  • 85 % relative humidity
  • 1,000 hours

Salt Spray Resistance (ISO 16750-4)
Vent resistance to salt, water and mist over an extended period

  • According to IEC 60068-2-52
  • Test Method 5 (equals a four-week test period)



We commit to every customer that “our products will do what we say they will do" — and we stand behind that promise with our worldwide resources, expertise, and quality processes.

Easy installation, long-lasting quality

These all-membrane vents (with no backing material) are designed for manual installation on substrates that include all typical housing metals and plastics, and all typical circuit board materials.

Our hydrophobic and oleophobic vents provide very low insertion loss through the audible frequency range, as well as life-of-vehicle protection against contaminant ingress — even in challenging on-road environments.

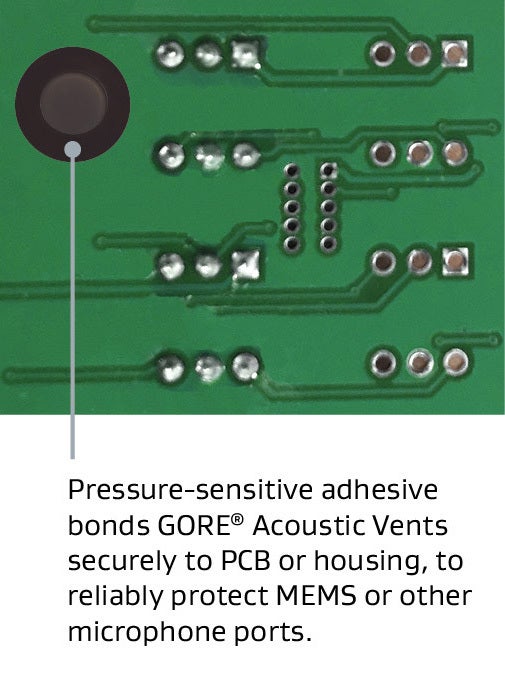

GORE Acoustic Vents bond securely to PCB or housing

Gore monitors and strives to comply with all regulations applicable to our products.

We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/2021. 

Learn More

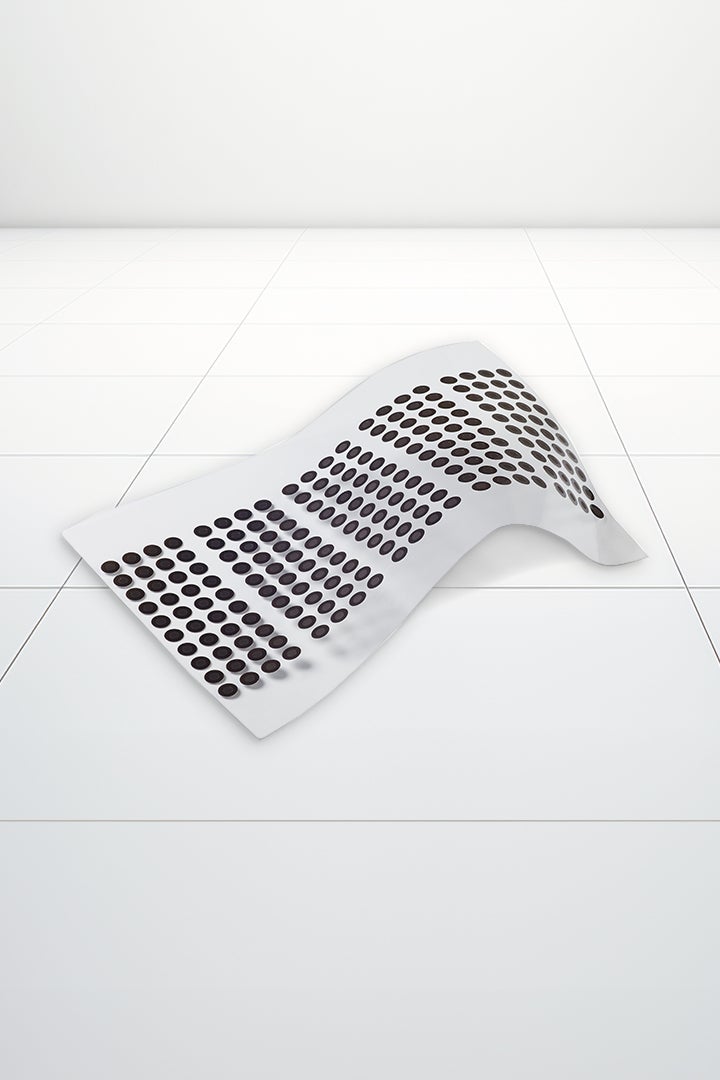

Adhesive vents for manual installation

Product Name
Order number for samples
Product Number
Order number for series production
AVS 700AAV10307
AVS 701AAV10307-R
