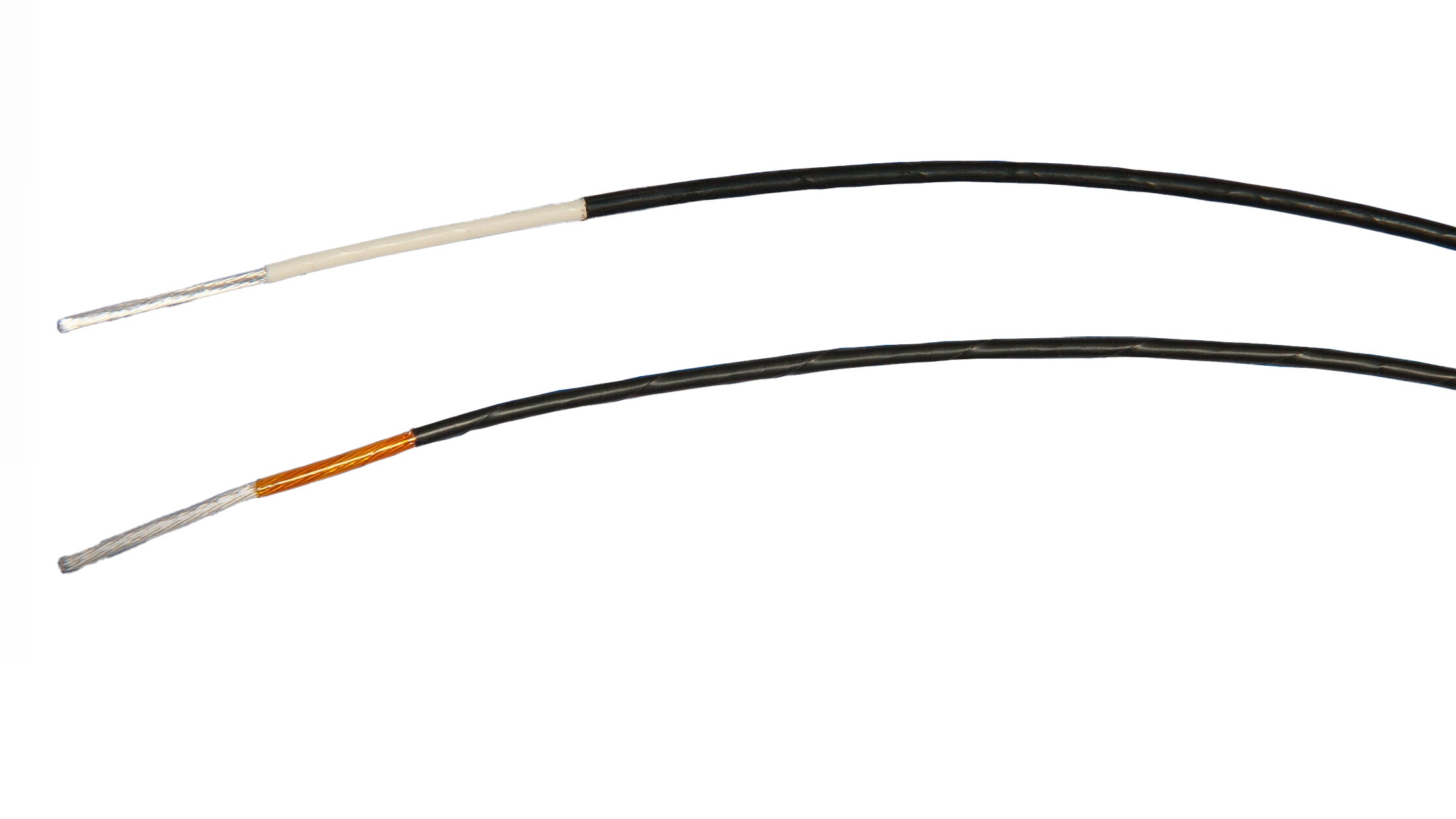

GORE® Space Cables, Type ASW
Our anti-static wire features unique materials that effectively drain static electricity and reliably protect vital interconnects from short-circuiting.
Effectively Drain Static Electricity
GORE® Space Cables, Type ASW, have conductive or semi-conductive jacket materials that durably protect against static build-up over time, eliminating short circuits in vital interconnects. Flexible and lightweight, they’re perfect for critical systems that require constant wire and cable movement in LEO and GEO environments.
Durable & Flexible Anti-Static Wires
Highlighting specialized materials, Type ASW of GORE Space Cables provides several features and benefits that ensure successful missions like:
- durable protection against static electricity that builds up over time
- eliminates short-circuiting in vital interconnects operating in moving systems
- resists wide temperatures, ATOX, chemicals, abrasion and more
- distributes reliable high voltage power up to 600 Vrms
- reduces total launch mass for more spacecraft weight savings
- easier installation with highly flexible, lightweight construction

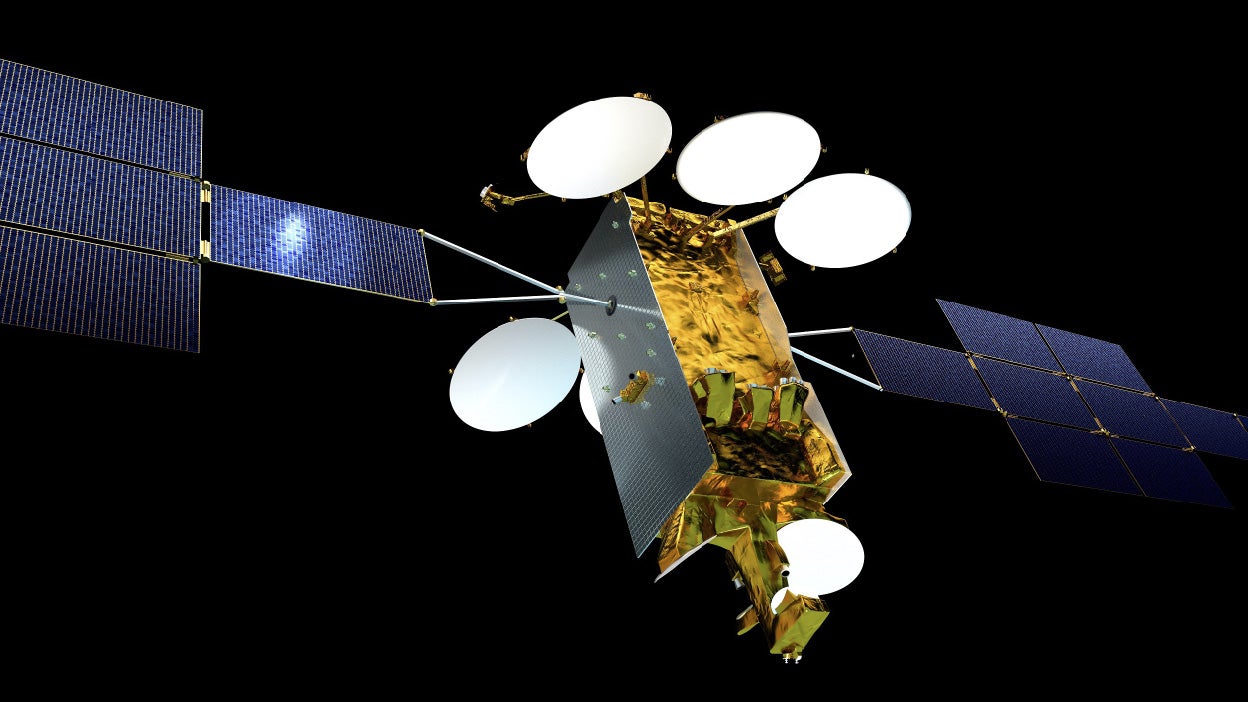

© Airbus Defense and Space
Long-Lasting Performance in GEO & LEO Environments
Precisely designed for moving systems, GORE Space Cables, Type ASW, prove reliable in the following low earth orbit (LEO) and geostationary earth orbit (GEO) applications:
- ion thrusters
- solar array wiring
- stationary plasma thrusters
Our anti-static wires are used in the Eurostar E3000 and LS 1300 communications satellites.
© NASA
Spaceflight Program Heritage
For many decades, W. L. Gore & Associates has provided reliable solutions in hundreds of global spaceflight programs with a 100% failure-free flight record.
- We work closely with major space organizations like the ESA (European Space Agency) and NASA (National Aeronautics and Space Administration) to deliver valued reliability from an ESA-qualified and ISO 9001:2000-certified manufacturing facility.
- Since 1986 (Gore’s first ESA-qualified product for spaceflight), 10 of our products have been qualified to ESCC 3901/3902/3408 specifications, and 11 are registered on the Qualified Parts List (QPL).
Our products have been used in many well-known missions and programs over the years, including:
- 1969 Apollo 11 First Moon Landing
- International Space Station
- Mars Exploration Rover Programs
- Space Shuttle Programs
- James Webb Space & Hubble Telescopes
Gore Solutions for Spaceflight
Watch and learn how Gore can help solve the design challenges inherent in space missions, providing decades of proven, reliable solutions to space companies.
Technical Information

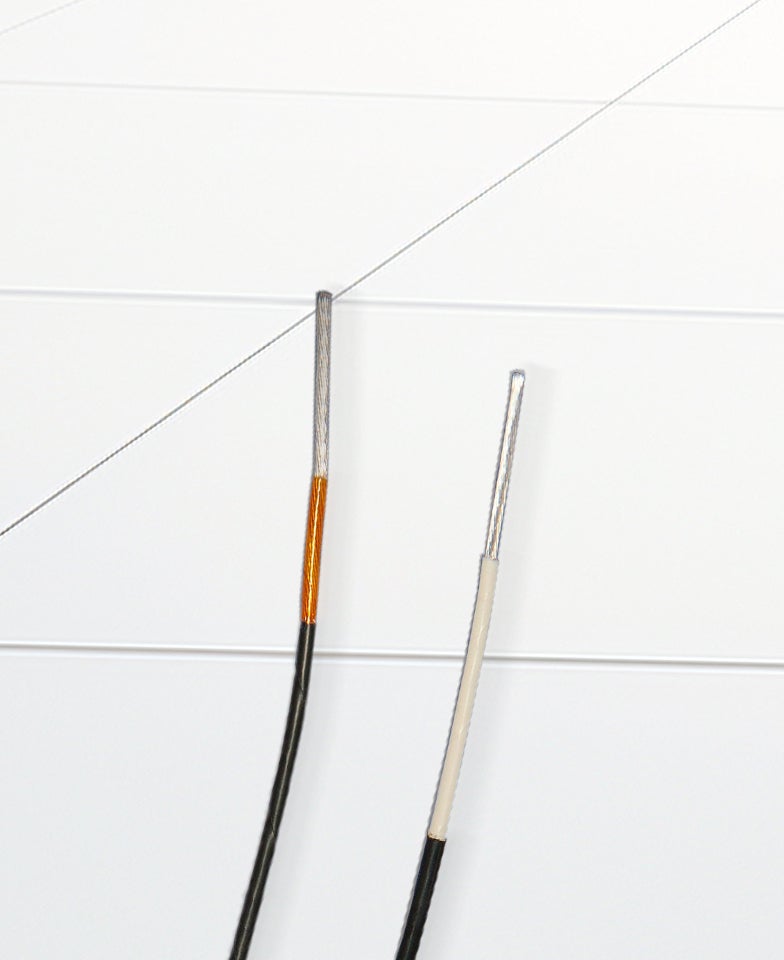

GORE Space Cables, Type ASW, meet these technical specifications:
| Elec./Mech./Environ. Property | Value |
|---|---|
| Maximum Operating Voltage Vrms | 600 |
| Jacket Material | GEO: Conductive Film LEO: Semi-Conductive Fluoropolymer |
| Jacket Color | Black |
| Insulation Material | GEO: Expanded PTFE + Polyimide LEO: Engineered Fluoropolymer |
| Conductor | Silver-Plated Copper or Copper |
| Temperature Range °C | -200 to +200 |
| Application | Number of Cores | AWG Size | Gore Part Number |
|---|---|---|---|
| GEO | 1 | 22 | GSC-05-83601-00 |
| 1 | 24 | GSC-05-83602-00 | |
| 1 | 20 | GSC-05-83603-00 | |
| LEO | 1 | 20 | GSC-05-84612-00 |
| 1 | 22 | GSC-05-84613-00 | |
| 1 | 24 | GSC-05-84614-00 |
