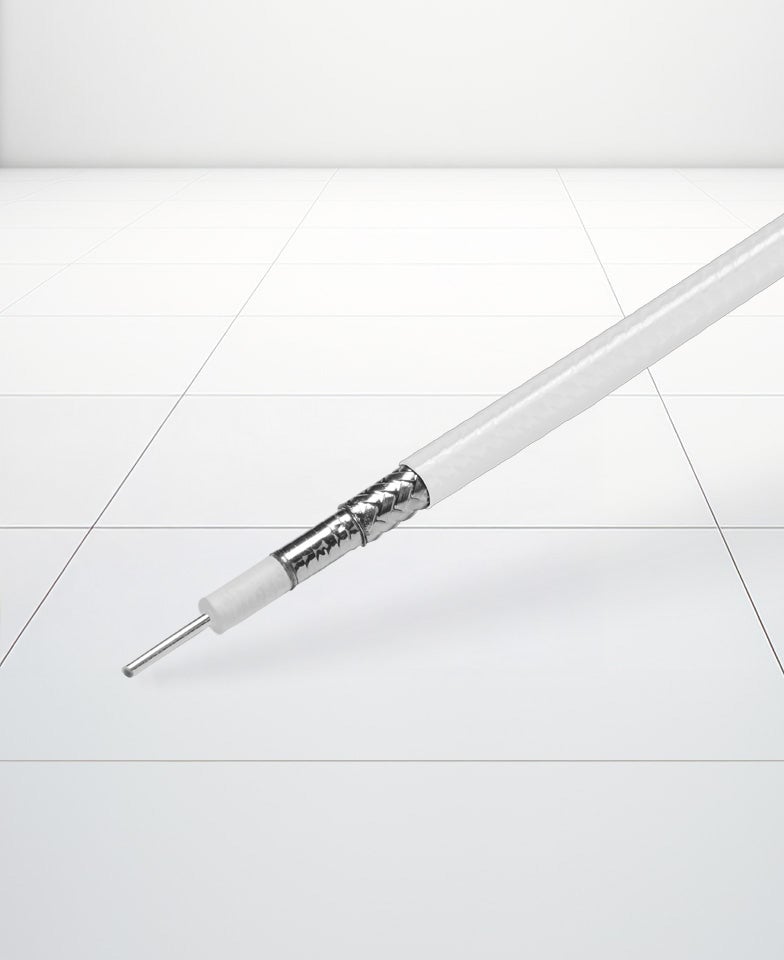

GORE® Coaxial Cables for Aerospace & Defense
Our reliable cables offer a smaller, lighter, more durable design for valuable weight savings, simplified routing and reduced operating costs.
Add Durability While Saving Weight with High-Speed Coaxial Cables
GORE® Coaxial Cables in a downsized design operate reliably with controlled impedance at 50 and 75 ohms. They’re proven to optimize signal transmission with low loss up to 12 GHz in avionics and vetronics. With proven outstanding shielding effectiveness, our cables also reduce RF interference among vital systems.
Durable against Challenging Conditions
We manufacture GORE Coaxial Cables with specialized features that make them more durable against challenging operational, environmental and maintenance conditions, including:
- chemically inert materials
- electromagnetic interference (EMI) shielding materials
- abrasion- and temperature-resistant layers
- smaller, lighter cable diameters
These coax cables provide a handful of benefits that ensure their reliability and extended life in avionics and vetronics, like:
- optimized signal transmission with low loss up to 12 GHz
- proven to maintain controlled impedance at 50 & 75 ohms
- outstanding EMI shielding effectiveness for less RF interference
- superior protection against extreme temperatures, weather, abrasion, more
- significant weight savings due to a compact constructions
- easier routing with more flexibility and tighter bend radius

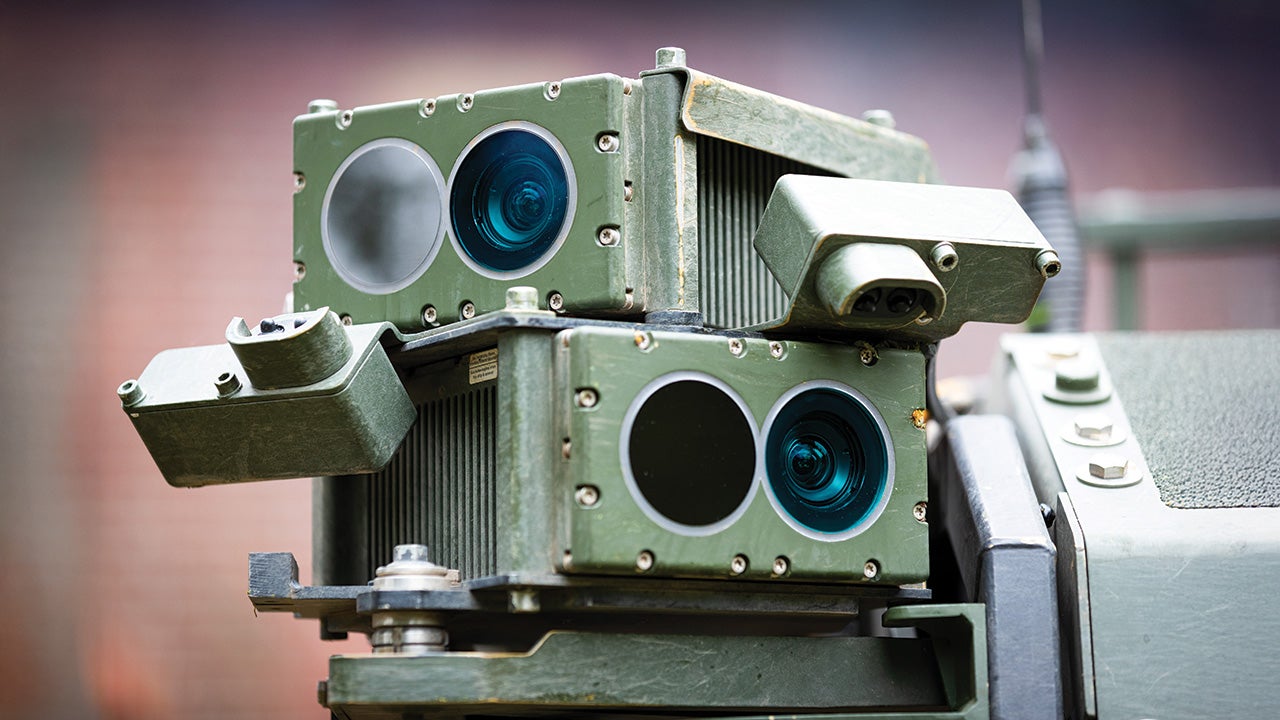

Courtesy of Rheinmetall©
Aerospace & Defense
Designed specifically for 4K HD-SDI systems, our 75-ohm coaxial cable speeds up to 12 GHz optimize signals and video transmission with ultra-low loss in military aircraft and vehicles, as well as commercial aircraft.
Aircraft Only
For military and commercial aircraft requiring controlled impedance at 50 ohms, our cables offer a direct replacement for standard RG400 cables. They optimize signal transmission at coaxial cable speeds up to 3 GHz with 10% lower loss in avionics.
| Application | Avionics & Vetronics Displays | Box-to-Antennas | Communications Systems | HD Camera & Video Systems | Inflight Entertainment (IFE) Systems | Navigation Systems | Remote-Controlled Turret Cameras |
|---|---|---|---|---|---|---|---|
| 75 Ohms | ✓ |
|
| ✓ |
|
| ✓ |
| 50 Ohms |
| ✓ | ✓ |
| ✓ | ✓ |
|
GORE Coaxial Cables yield substantial size and weight savings without losing mechanical robustness or electrical stability. The downsized design of our 50-ohm version is 30% smaller and 60% lighter than RG400 cables.
By replacing the RG400 version with Gore’s 50-ohm cable in an IFE system on an Airbus 330/340 passenger airliner, the weight savings is 22 kg (48 lbs.).
If all of the RG400 cables were replaced with our 50-ohm cables in a typical large cabin business jet, the expected weight savings would be approximately 19 kg (42 lbs.).
Technical Information
These values demonstrate the electrical, mechanical and environmental performance of GORE Coaxial Cables for aerospace and defense.
Elec./Mech./Environ. Property | 75 Ohms | 50 Ohms |
|---|---|---|
Signal Transmission Speed GHz | Up to 12 | Up to 3 |
Standard Impedance Ohms | 75 ± 2 | 50 ± 2 |
Typical Operating Voltage V | < 250 | 250 |
Nominal Velocity of Propagation % | > 80 | > 80 |
Nominal Time Delay ns/m (ns/ft.) | 4.0 (1.26) | 4.0 (1.26) |
Capacitance pF/m (pF/ft.) | 53.2 (16.2) | 80.0 (24.4) |
Shielding Effectiveness dB through 2 MHz | >100 | — |
Nominal Dielectric Constant | 1.7 | 1.7 |
Jacket Material | Engineered Fluoropolymer | Extruded FEP |
Jacket Color | White (Laser Markable) | White (Laser Markable) |
Conductor | Silver-Plated Copper | Silver-Plated Copper |
Dielectric Material | Expanded PTFE | FEP over Expanded PTFE |
Temperature Range °C | -55 to +200 | -65 to +200 |
Downloads |
We rigorously test the reliability of GORE Coaxial Cables to ensure they meet the following aerospace and defense industry standards, including:
- EN4604-003: Cable Characteristics for Signal Transmission (50 ohms)
- FAR Part 25, Appendix F, Part I: Flammability
- MIL-C-17/128: Electrical Performance Requirements for Radio Frequency, Flexible RG400 Coaxial Cable (50 ohms)
- SMPTE 292M: Bit-Serial Digital Interface for High Definition Television (HDTV) (75 ohms)
- SMPTE 424M: 3 Gb/s Signal/Data Serial Interface for HDTV (75 ohms)
- SMPTE 2081-1: 6 Gb/s Signal/ Data Serial Interface for HDTV (75 ohms)
- SMPTE 2082-1: 12 Gb/s Signal/ Data Serial Interface for HDTV (75 ohms)
GORE Coaxial Cables for avionics and vetronics are available in standard sizes.
75 Ohms

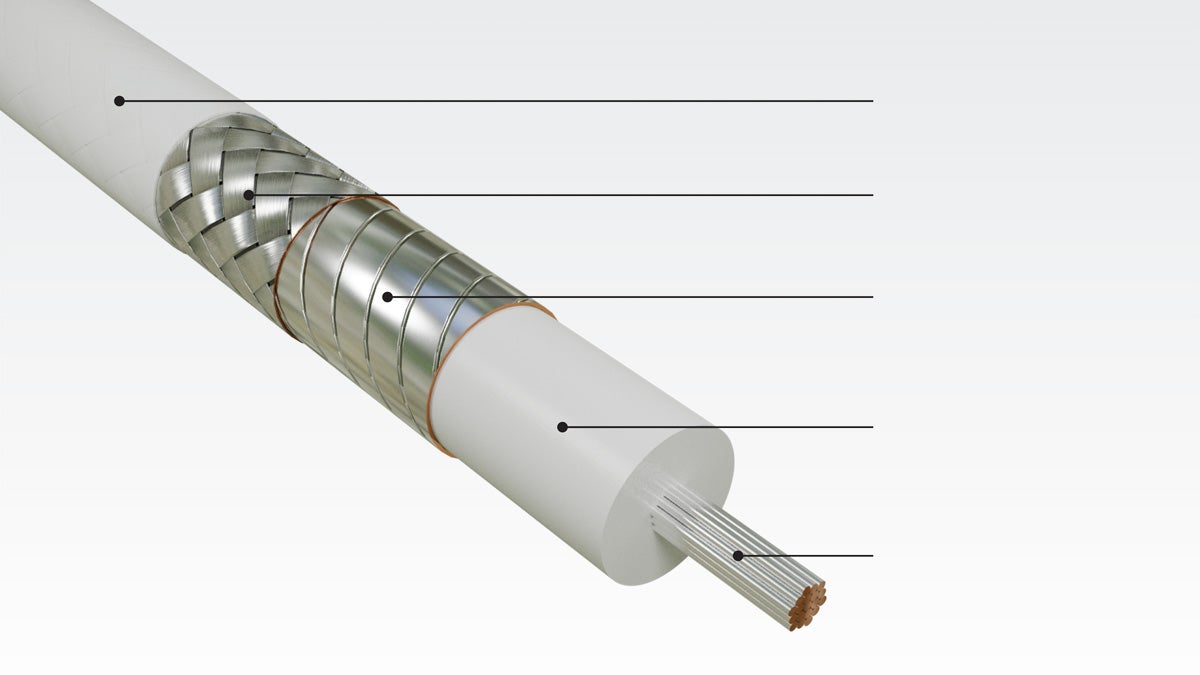

CXN3671 (22 AWG)
CXN3680 (26 AWG)
50 Ohms
GSC-03-81748-00 (19 AWG)
