Controlled-Impedance Cables Provide High-Quality Signals

Built for speed and accuracy, GORE® CAN Bus Cables reliably send high-quality signals for secure data transmission up to 1 GHz while maintaining 120-ohm controlled impedance. Our cables endure whatever conditions they encounter, from rapid temperature changes and repeated vibration to trouble-free routing.

Features & Benefits
Applications
Inverted Dielectric
More Durable in Challenging Environments

We construct GORE CAN Bus Cables with exceptional features that protect against demanding operational and maintenance conditions, including:

  • temperature- and abrasion-resistant materials
  • chemically inert materials
  • inverted dielectric aerospace design

These cables offer many benefits that improve their overall performance in civil aircraft and defense aircraft and vehicles like:

  • high-quality signals for fast, secure data transmission up to 1 GHz
  • proven controlled impedance at 120 ohms
  • versatile protection against extreme mechanical and environmental stress
  • trouble-free routing with improved flexibility and reduced bend radii
  • easier wire prep and insertion in smaller aircraft connector systems
  • compatible with a variety of high-speed connector systems and backshells

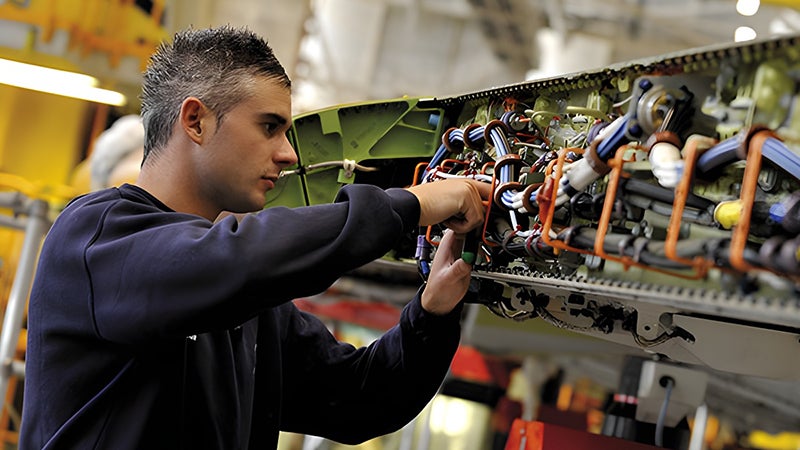

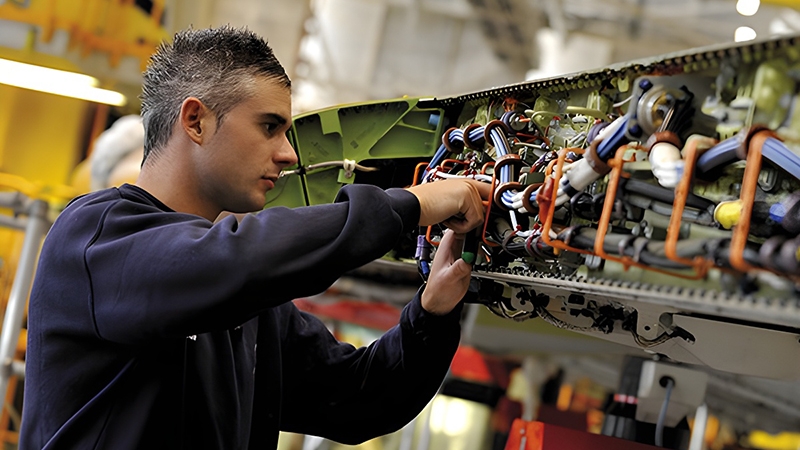

Defense & Civil Aircraft

Trouble-free installation in defense and civil aircraft areas

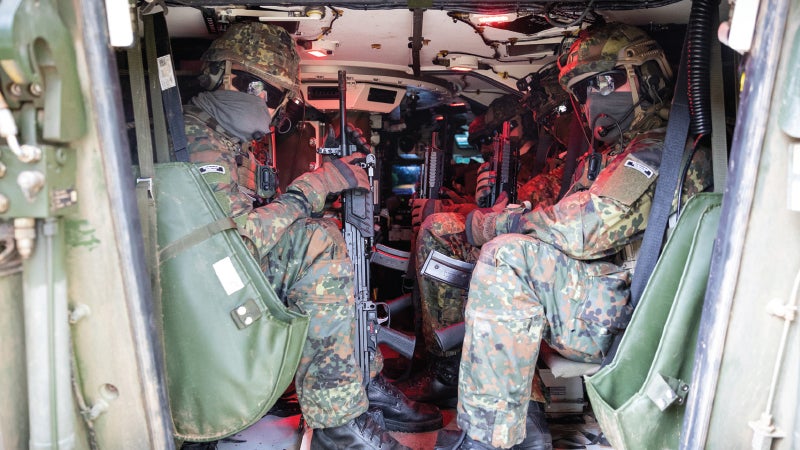

Defense Vehicles

Easier routing in military vehicle areas

GORE CAN Bus Cables are suitable for today’s faster avionics and vetronics digital networks and other applications requiring secure, accurate, and constant high data rate transfer like:

  • avionics & vetronics digital networks
  • cabin management systems
  • controller area networks (CAN Bus)
  • data links
  • electronic diagnostics
  • mission systems
  • serial buses

Our cables can also be terminated with a variety of leading high-speed connector systems and backshells, like ARINC and MIL-STD-38999 with size 8 and 22D contacts.

Gore inverted dielectric aerospace design

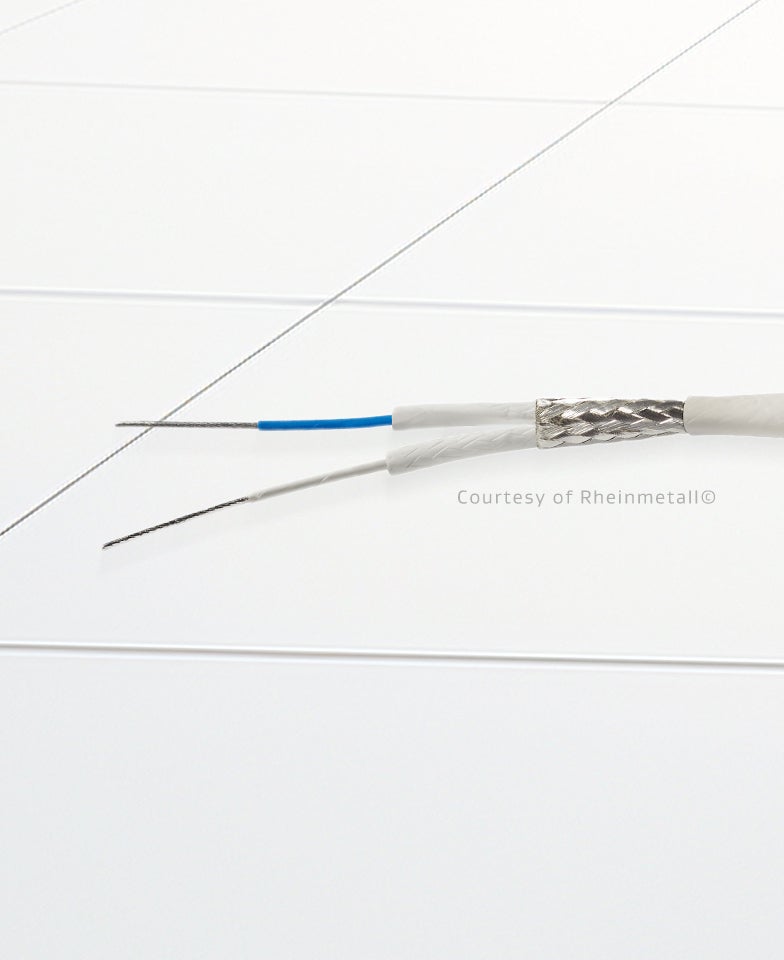

Unique Inverted Dielectric Design

With Gore’s unique inverted dielectric, aircraft maintainers don’t have to remove insulation from the end and apply heat shrink, which makes wire prep and insertion into smaller connectors and holes much easier.

GORE® High Speed Data Cables for Aerospace & Defense

GORE® High Speed Data Cables for Aerospace & Defense

Combining dielectric expertise with innovative fluoropolymer materials, we bring a portfolio of standard high data rate cables with proven performance over leading alternatives.

High Speed Data Transmission in Military Aircraft. System Lifeline or Costly Afterthought?

Is High-Speed Data Transmission in Defense Aircraft a System Lifetime or Costly Afterthought?

Watch this free on-demand webinar on this topic and listen to Gore experts share their deep industry knowledge and materials expertise while using real-world examples.

Technical Information

These values demonstrate the electrical, mechanical and environmental performance of GORE CAN Bus Cables for aerospace and defense.

Elec./Mech./Environ. PropertiesValue
Signal Transmission Speed GHzUp to 1
Standard Impedance Ohms120 ± 10
Typical Operating Voltage V< 48
Nominal Velocity of Propagation %80
Nominal Time Delay ns/m (ns/ft.)4.10 (1.25)
Capacitance pF/m (pF/ft.)42.0 (12.8)
Dielectric Withstanding Voltage Vrms
  Conductor-to-Conductor
  Conductor-to-Shield

1500 / 700a
1000
Jacket MaterialEngineered Fluoropolymer
Jacket ColorWhite (Laser Markable)
ConductorSliver-Plated Copper or SPC Alloy
Conductor Color-CodingBlue/White
Dielectric MaterialExpanded PTFE/PTFE
Temperature Range °C-65 to +200

a. Based on Gore’s part number GSC-03-84793-VG for military vehicle systems.


Complete the short form below for instant access to selected drawings with technical specifications from W. L. Gore & Associates.

With a thorough understanding of products operating in aerospace and defense, GORE CAN Bus Cables are tested and qualified to comply with the following industry standards:

  • ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ANSI/NEMA WC 27500: Environmental Testing, Jacket and Marking
  • SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)
  • SAE J1128™: Low Voltage Primary Cable
  • SAE J1939™: Serial Control and Communications Heavy Duty Vehicle Network
  • VG95218-31: Performance Requirements (GSC-03-84793-VG)

GORE CAN Bus Cables for avionics and vetronics are available in standard sizes.

GSC-03-85752-22D
GSC-03-84793-VG
GSC-03-85752-24D
GSC-03-85752-26D

We also offer our cables with an additional drain wire:

GSC-03-86523-00 (24 AWG)
GSC-03-86524-00 (26 AWG)
