Follow a few simple steps and fill out the form below to design your high flex flat cable that meets your exact equipment needs.

  • Choose from the most common components used in the industry to begin building your own cable that meets your specific application needs and requirements.
  • Choose your desired core for each pod. You can choose up to two cores per pod.
  • Describe the application in which the cable will be used. Optionally, you can estimate your initial and annual quantity requirements.

Once you submit the form, a Gore representative will contact you. For more information or to discuss your specific application needs and requirements, contact us today.

Also, find out more about GORE® Trackless High Flex Cables for semiconductor production equipment.

Our customized high flex flat cable solutions have revolutionized the semiconductor and flat panel display (FPD) equipment industries. They enable higher yields with high reliability that help reduce particle formation and optimize flex life for high-precision, automated machinery applications.

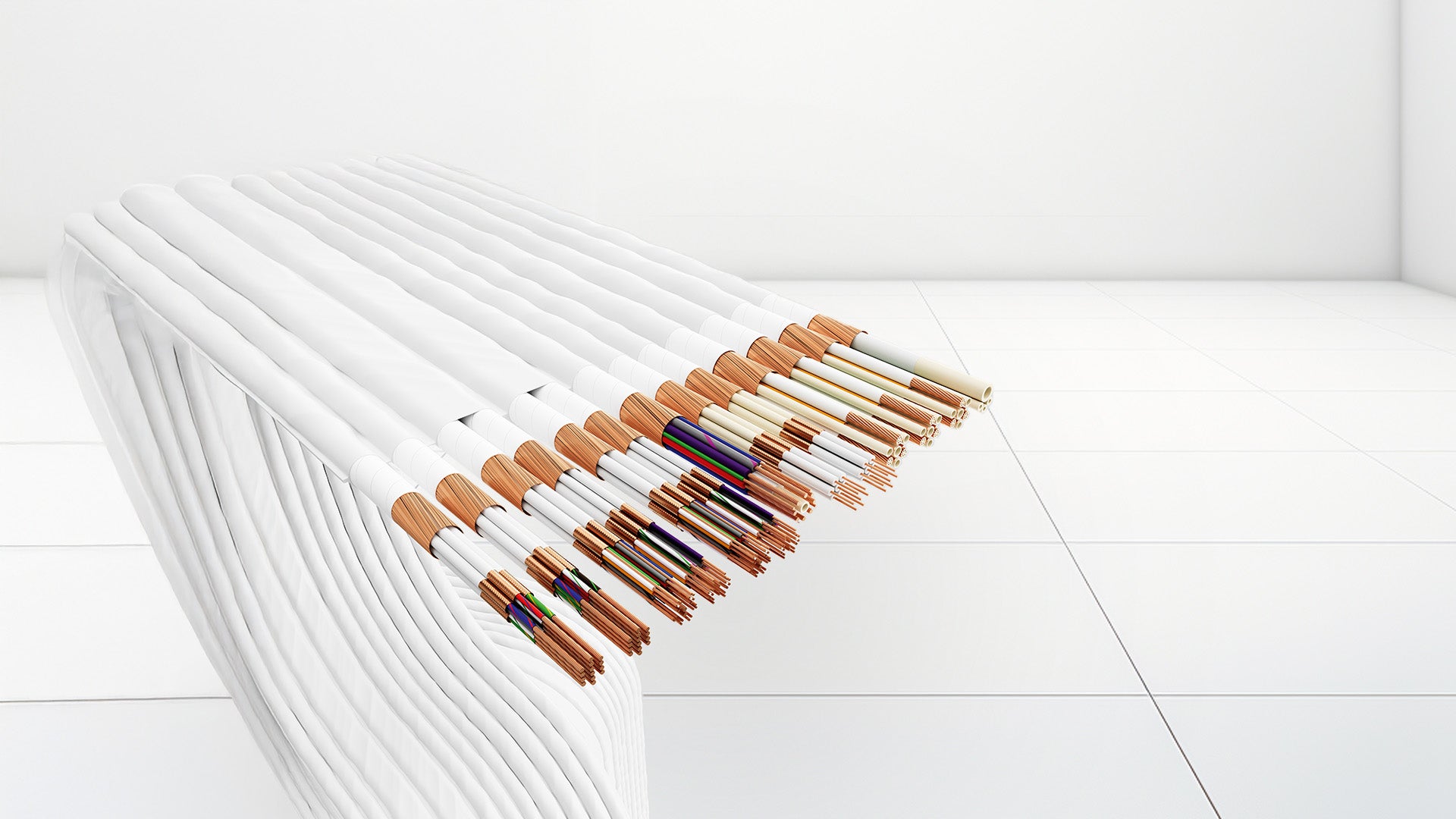

High Flex and Automation Cables

high flex cable core 201 cutaway

201

Shielded Power Cable

  • 3 x AWG 16
  • ePTFE binder over shield (not an insulator)
  • Colors: yel-grn, red, wht
  • Ratings: 600V rms
  • Dimensions: 5.0mm (0.20")
  • Note: Formerly A
high flex cable core 202 cutaway

202

Shielded Power Cable

  • 4 x AWG 18
  • ePTFE binder over shield (not an Insulator)
  • Colors: yel-grn, red, wht, blu
  • Ratings: 300V rms
  • Dimensions: 4.7mm (0.18")
  • Note: Formerly B
high flex cable core 203 cutaway

203

Shielded Power Cable

  • 4 x AWG 20
  • ePTFE binder over shield (not an Insulator}
  • Colors: yel-grn, red, wht, blu
  • Ratings: 600V rms
  • Dimensions: 4.5mm (0.18")
  • Note: Formerly B
high flex cable core 204 cutaway

204

Unshielded Signal Cable

  • 7 Twisted Pairs AWG 26
  • Colors: wht-blk/blk, wht-brn/brn, wht-red/red, wht-org/org, wht-yel/yel, wht-grn/grn, wht-blu/blu
  • Ratings: 300V rms
  • Dimensions: 4.0mm (0.16")
  • Note: Formerly D
high flex cable core 205 cutaway

205

Shielded Signal Cable

  • 5 Twisted Pairs AWG 26
  • ePTFE binder over shield (not an Insulator)
  • Colors: wht-blk/blk, wht-brn/brn, wht- red/red, wht-org/org, wht-yel/yel
  • Ratings: 300V rms
  • Dimensions: 4.2mm (0.17")
  • Note: Formerly R
high flex cable core 201 cutaway

206

Signal Cable

  • 3 Shielded Twisted Pairs AWG 26
  • 300V rated Insulation over shield
  • Colors: wht-blk/blk, wht-brn/brn, wht-red/red
  • Ratings: 300V rms
  • Dimensions: 4.6mm (0.18")
  • Note: Formerly F
high flex cable core 207 cutaway

207

Video Cable / 75 ohm Cable

  • 3 Coaxes
  • 300V rated insulation over shield
  • Colors: all white
  • Ratings: 75 Ohm RG 1798 Equivalent
  • Dimensions: 4.8mm (0.19")
  • Note: Formerly G
high flex cable core 208 cutaway

208

Video Cable / 50 ohm Cable

  • 3 Coaxes
  • 300V rated Insulation over shield
  • Colors: all white
  • Ratings: 50 Ohm RG 316 Equivalent
  • Dimensions: 5.0mm (0.19")
  • Note: Formerly H
high flex cable core 209 cutaway

209

Ethernet/ Cat 5e Equivalent

  • 4 Twisted Pairs with overall shield AWG 26 ePTFE binder over shield (not an Insulator)
  • Colors: wht-brn/brn, wht-org/org, wht-blu/blu, wht-grn/grn
  • Ratings: 100 Ohm +/-15 Ohm 50V rms
  • Dimensions: 4.7mm (0.18")
  • Note: Formerly I
high flex cable core 210 cutaway

210

IEEE 1394a / IEEE 1394b

  • 2 Shield Twisted Pairs AWG 28, 2 Conductors AWG 22 with overall shield ePTFE binder over shield (not an Insulator)
  • Colors: red x grn, blu x org, blk, wht
  • Ratings: IEEE 1394a / lEEE 1394b
  • Dimensions: 5.7mm (0.22")
  • Note: Formerly J
high flex cable core 211 cutaway

211

Shielded Power

  • 2 x AWG 22
  • ePTFE binder over shield (not an Insulator)
  • Colors: blk/wht
  • Ratings: 300V rms
  • Dimensions: 2.7mm (0.11")
  • Note: Formerly K
high flex cable core 215 cutaway

215

Fiber Optic

  • Multi-Mode Glass Fiber Thermoplastic Jacket
  • Color: blk/blk
  • Strain Relief: Aramid Filber Braid
  • Ratings: 62.5 / 125 micron
  • Dimensions: 2.5mm (0.10")
  • Note: Formerly P
high flex cable core 216 cutaway

216

Shielded Power or Ground Cable

  • 1 x AWG 12 ePTFE binder over shield (not an insulator}
  • Color: gray
  • Ratings: 600V rms
  • Dimensions: 4.0mm (0.16")
  • Note: Formerly P
high flex cable core 217 cutaway

217

Shielded Power Cable w/Thermister

  • 4 x AWG 16
  • Colors: yel-grn, red, wht, blk
  • 2 x AWG 22
  • Colors: blk/wht
  • ePTFE binder over the shield (not an Insulator)
  • Ratings: 600V rms (AWG 16) / 300V rms (AWG 22)
  • Note: Formerly R
high flex cable core 218 cutaway

218

Encoder Cable (Heidenhain Compatible)

  • 4 Twisted Pairs AWG 26
  • Colors: brn/grn, yel/vio, gry/pnk, red/blk
  • 4 XAWG 24
  • Colors: wht, brn-grn, wht-grn, blu
  • ePTFE binder over shield (not an Insulator)
  • Ratings: 300V rms
  • Dimensions: 5.0 mm (0.20")
  • Note: Formerly S
