GORE® Automotive Vents for Powertrain
Our compact, rugged powertrain vents stand up to harsh operating conditions, and can reduce overall system cost.
Simplify Powertrain Engineering
Gore’s high-performance powertrain vents provide robust and reliable protection for electrified and traditional powertrain components. Our vents can help simplify component design and validation and can provide a single, standardized venting solution when a drive unit assembly is used across multiple vehicle configurations or models.
Now available, our next-gen powertrain product types are redefining what’s possible in high-performance venting.
Next-Gen Longest-Life Screw-In Powertrain Vent
(SMPL / VE2048M16)
- Highest pre-filter capacity in Gore’s portfolio enables the longest venting life.
- Higher airflow than our standard vents.
- Easy screw-in integration with a smaller thread size allowing for a smaller protrusion through the component housing; vent replacement, if required, is easy.
Next-Gen Compact Screw-In Powertrain Vent
(SMPL / VE2048M22)
- Compact construction with a pre-filter housed in the threads, making it very low profile.
- Higher airflow and higher pre-filter capacity than our standard vents for even longer service life.
- Easy screw-in integration to housing; vent replacement, if required, is easy.
Next-Gen Longer-Life Tube-Mount Powertrain Vent
(SMPL / VE2048P)
- Higher airflow and higher pre-filter capacity than our standard vents for even longer service life.
- Easy drop-in vent replacement in current designs with the same dimensions and installation method as our standard version; vent replacement, if required, is easy.
Standard Direct-Fit Powertrain Vent
(AVS 2148 / VE2148)
- Compact, low-profile construction enables more design options, especially for space-constrained e-drivetrain and e-motor applications.
- High airflow and integrated pre-filter capacity enable long service life.
- Direct-fit (vent mounted directly into component housing) can streamline sourcing, supply and assembly efforts.
- Easy snap-fit integration to housing.
Standard Tube-Mount Powertrain Vent
(AVS 41 / VE2048)
- High airflow and integrated pre-filter capacity enable long service life.
- Tube-mount “distances” vent from potential exposure to high temperatures or lubricants.
- Tube format enables more flexibility in routing, especially for traditional powertrain components.
- Easy integration into existing applications; vent replacement, if required, is easy.
Even Stronger Long-Term Performance

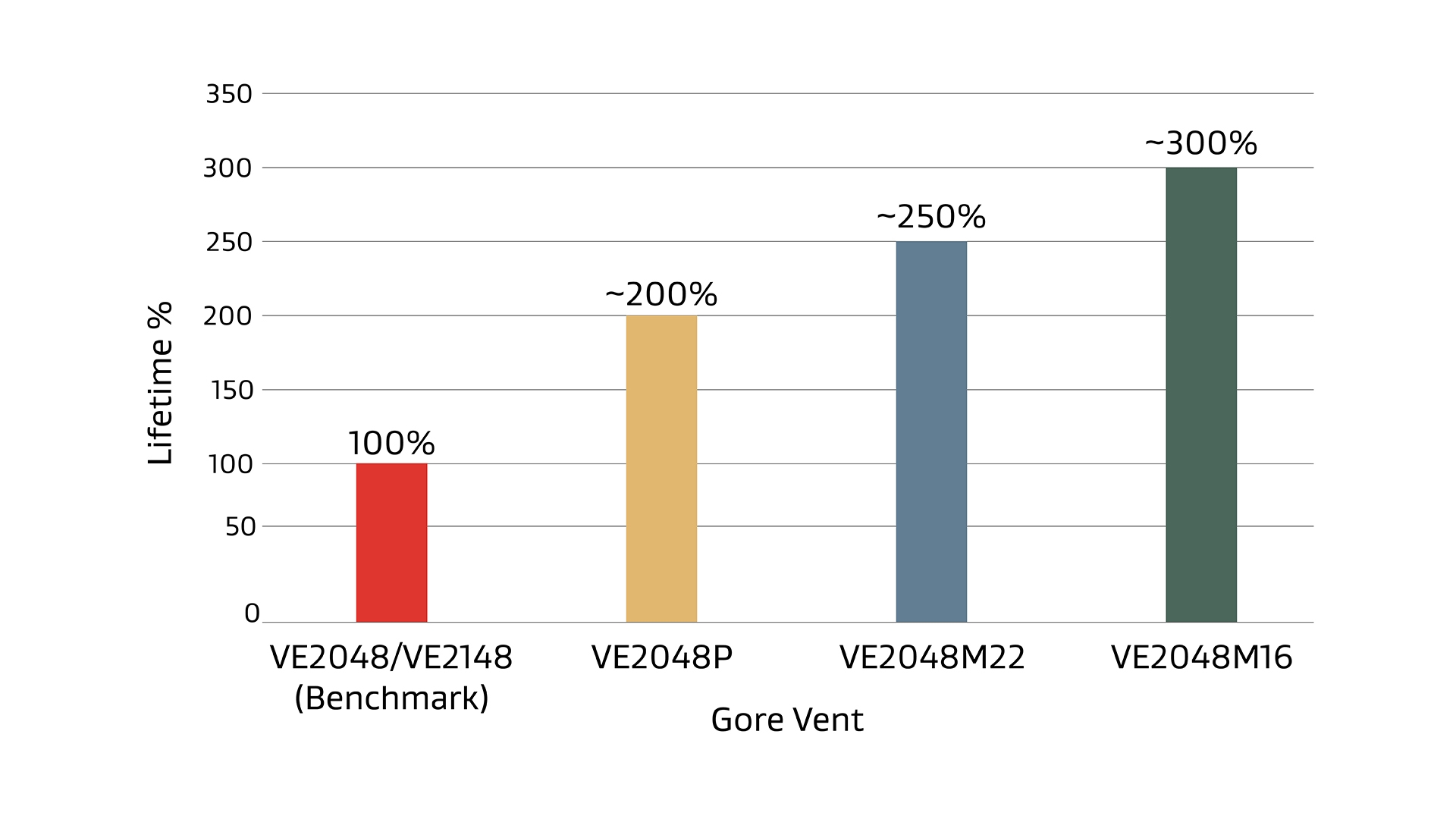

Gore’s next-gen powertrain vents deliver even longer lifetime across our VE2048 portfolio — up to 3.25x more than our standard benchmark vents. Results are based on our lab testing to evaluate and validate our vents under relevant field conditions.
Lifetime =Time of airflow decline to 300 ml/min @ 7 kPa.
Fewer Vent Replacements & Less Total Costs

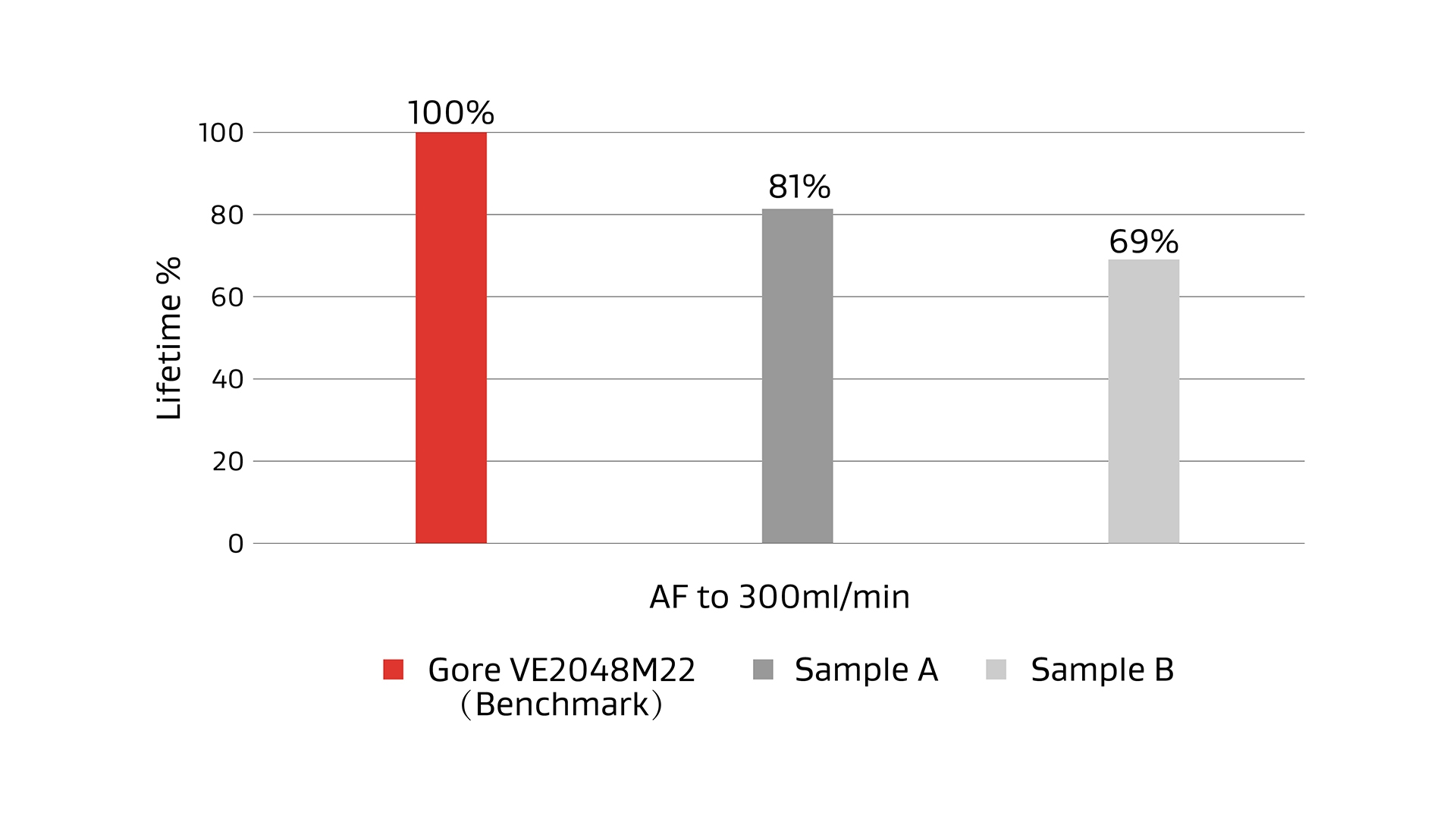

In relative lifetime testing, our next-gen compact screw-in vent maintained airflow performance longer than competing vents, which reached key airflow thresholds significantly sooner. Results demonstrate our vent’s superior resistance to performance degradation under laboratory test conditions.
GORE Automotive Vents for Powertrain deliver high performance and durable protection, to:
Increased Airflow and Longer Life
Our next-gen vents enhance protection with higher airflow, rapid pressure equalization, a wider temperature range, easy installation and longer lifetime.
Improve Component Reliability
The GORE Membrane blocks contaminants that can degrade component performance, while our advanced, higher-capacity pre-filter technology protects the Membrane from internal oil aerosols.
Preserve Seal Integrity
The higher airflow in our breathable GORE Membrane allows for even better pressure equalization under extreme operating conditions to reduce stress on seals.
Meet Global OEM Standards
Our vents’ performance complies with OEM standards for water wading and fluid containment.
Streamline Validation and Reduce Design Cycles
These waterproof vents can eliminate vent-related wading test “fails” and associated engineering redesign time.
Proven Product Performance
Innovation Capabilities
Service & Operational Support
Technical Specifications
We commit to every customer that “our products will do what we say they will do" — and we stand behind that promise with our worldwide resources, expertise, and quality processes.
Gore monitors and strives to comply with all regulations applicable to our products.
We have worked with our suppliers to eliminate PFOA from our supply chain. Our products meet EU REACH regulations EU 1907/2006 and EU 2019/2021.
For Powertrain Components
| Product Type | Product Name Order number for samples | Product Number Order number for series production |
|---|---|---|
Next-Gen Longest-Life Screw-In Vent | SMPL-VE2048M16 | VE2048M16 |
Next-Gen Compact Screw-In Vent | SMPL-VE2048M22 | VE2048M22 |
Next-Gen Longer-Life Tube-Mount Vent | SMPL-VE2048P | VE2048P |
Standard Direct-Fit Vent | AVS 2148 | VE2148 |
Standard Tube-Mount Vent | AVS 41 | VE2048 |
