GORE® Foam Liner: High Roll-Off Series - Our Highest Protection for Your Most Demanding Applications
New GORE® Foam Liner: High Roll-Off Series

Unprecedented performance for your most extreme challenges.

GORE Foam Liner: High Roll-Off Series - Our Highest Protection for Your Most Demanding Applications

GORE Foam Liners High Roll-Off Series (3FL-363G) delivers unprecedented venting performance, to enhance the safety of your most hazardous formulations in the most challenging circumstances.

GORE® Packaging Vents’ new High Roll-Off Series puts our most advanced membrane technology in a full-surface foam liner, to achieve a new level of resistance to container deformation and leaks.

The High Roll-Off Series means greater confidence in package integrity, and greater peace of mind about safety – especially for applications where your most hazardous or aggressive chemicals, agrochemicals, institutional cleaners or household chemicals are exposed to the most extreme conditions during storage, transport or handling.



A new standard for airflow

  • Outstanding roll-off characteristics deliver unprecedented ‘residual airflow’ (after contact with even the most aggressive liquids), due to a proprietary, roll-off optimized GORE™ Membrane that was designed to keep packaging safe and intact over its lifetime.
  • Full-surface construction delivers very high ‘initial airflow’ (prior to liquid contact), because the breathable GORE™ Membrane extends across the whole surface of the liner and promotes more rapid, continuous pressure equalization.





About WEP and LEP

WEP measures a vent’s leak-resistance to water. LEP measures a vent’s leak resistance to other liquids – which typically have surface tension much lower than water, so they may more easily penetrate the vent, even though water would not. LEP resistance to a given fluid is critical to preventing leaks in real-world conditions – as when a container falls over in transport or handling. Gore‘s High Roll-Off Series has been tested for both extremely high WEP resistance, and unprecedented LEP resistance to a wide variety of formulations with varied surface tensions and viscosities.

A new achievement in liquid resistance

  • Unprecedented Liquid Entry Pressure (LEP) resistance means greater leak-resistance during shipping and handling, especially for very aggressive, viscous or low surface-tension liquids that defeat other vents.
  • Extremely high Water Entry Pressure (WEP) resistance outperforms our prior technologies and complies with high regulatory standards.



For added peace of mind AND productivity

The new High Roll-Off Series truly is one solution for the most aggressive chemicals, for the most challenging real-world conditions, and for all flat cap designs.

  • Chemical manufacturers can feel more confident about the security of their hazardous, high-viscosity or low surface-tension formulations all along the supply chain, because the new High Roll-Off Series offers unprecedented performance and protection.
  • Cap and container manufacturers can streamline logistics and inventory, since the High Roll-Off Series is a drop-in replacement for other liners in all flat-cap designs, in a wide variety of applications.

The new GORE Foam Liner High Roll-Off Series (3FL-363G) is available as single-and multi-up roll goods, in various widths. Cut parts can also be offered.





GORE Foam Liner: High Roll-Off Series (3FL-363G)

Order Number CM700363G

Typical Application

Bottles

Packaging Content

  • Hazardous Chemicals
  • Institutional Cleaners
  • Liquid Fertilizer
Product Performance Characteristics

Typical Airflow at dP = 12 mbar

0.4 l/h/cm2

Residual Airflow (after liquid contact)*

  • 95% measured with Gore Test Solution 1
    (viscosity 3.2 mPas)
  • 90% measured with Gore Test Solution 2
    (viscosity 9.6 mPas)

Water Entry Pressure (WEP)

> 2.7 bar

Liquid Entry Pressure (LEP)**

  • 2.0 bar with nitric acid (surface tension 41 mN/m)
  • 1.7 bar with n-Butyl-Acetate (surface tension 31 mN/m)
  • 0.3 bar with acetic acid (surface tension 27 mN/m)

Drop-Test Optimized

Yes

Traceability

On lot level

Membrane / Liner Construction

ePTFE / PE foam

Thickness

1.1 mm

Active Vent Area

Full Surface (Full diameter of liner)

Venting Method

Cap thread venting
(venting through hole in cap also possible)

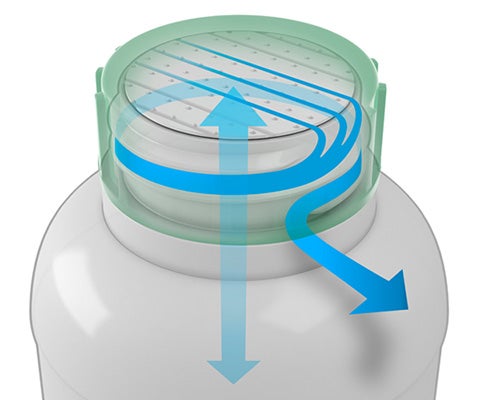

Cap thread venting diagram

Complex
Wide Table
Off

* We have tested the High Roll-Off Series with a wide range of fluids. Contact Gore if you would like to learn more about how different viscosities have a direct impact on Residual Airflow.

** We have LEP-tested the High Roll-Off Series with a wide range of fluids. Contact Gore if you would like to learn more about how liquids with different surface tensions have a direct impact on Liquid Entry Pressure.
