Overview

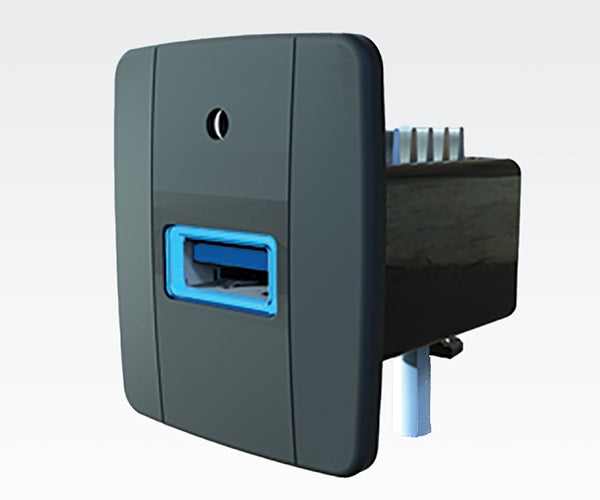

Passengers expect to download IFE content and charge their devices quickly and easily on their portable devices when traveling. Pilots expect to receive necessary data in the cockpit. So aircraft cables need to upload/download content and charge devices as fast as possible.

Added Durability for Lifetime Performance

GORE USB Cables in 2.0 and 3.1 versions equally deliver non-stop signal transmission up to 10 Gb ensuring high volumes of content are uploaded and downloaded in time. Our cable bundles also support the latest power management systems so passengers and flight crews can charge their portable electronic devices quickly and easily. Just as important, they withstand the harshest aircraft environments because of the added durability in the construction that provides enhanced protection for a long lifecycle.

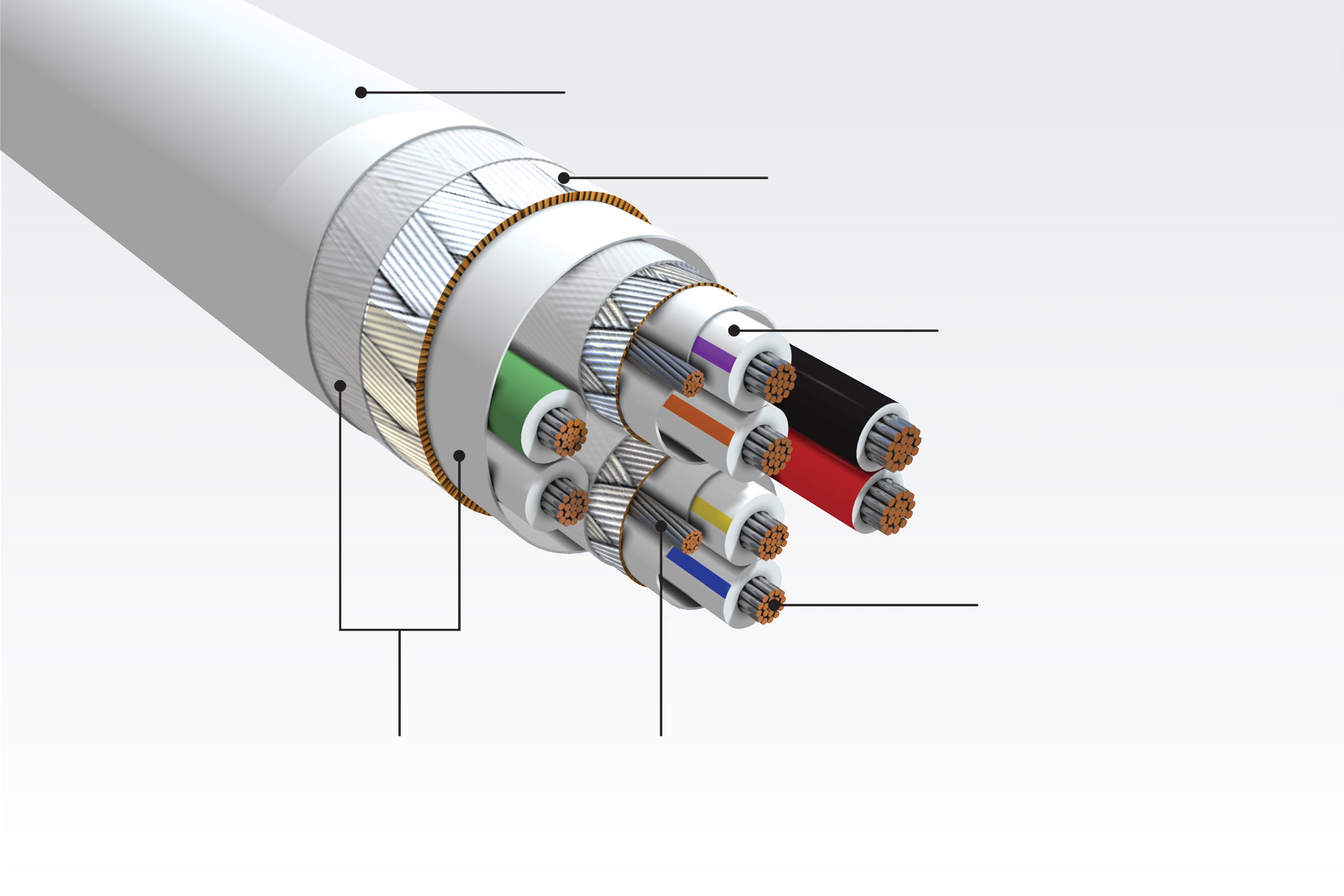

USB Cable Construction
A
B
C
D
E
F

Engineered fluoropolymer jacket

Close

Braided shield

Close

Color-coded composite dielectric

Close

Silver-plated copper alloy conductor

Close

Drain wire

Close

ePTFE binder

Close

Sturdy bundle design of GORE USB Cables

Applications

GORE USB Cables are engineered to perform reliably in a variety of aircraft applications, including:

  • content loading
  • data transfer
  • digital video systems
  • electronic flight bag (EFB)
  • portable electronic devices
  • power remote devices

If you have any questions or to discuss your specific application needs, please contact a Gore representative.

Benefits

GORE USB Cables provide aircraft system architects and engineers with many benefits that improve electrical and mechanical performance such as:

  • non-stop signals for high-speed data transmission up to 10 Gb
  • ensure high volumes of content are uploaded/downloaded instantly
  • support latest power management systems to charge devices quickly
  • sturdy bundle design withstands extreme environments for long lifecycle
  • compatible with variety of high-speed aerospace connector systems/backshells
  • selected pre-qualified samples with short lead times for prototyping and evaluation
  • low technical risk based on validated product performance in real-world conditions

For more information about the benefits of our cables, please contact a Gore representative.

Properties

These values demonstrate the electrical, mechanical and environmental performance of GORE USB Cables.

Electrical Property Value
Standard Impedance (Ohms)
  High-Speed Pairs
  Low-Speed Pairs

90 ± 5
90 ± 10
Typical Operating Voltage (V) < 15
Nominal Velocity of Propagation (%) 80
Nominal Time Delay ns/m (ns/ft) 4.07 (1.24)
Capacitance pF/m (pF/ft) 50.0 (15.2)
Maximum Skew Within Paira ps/m (ps/ft) 15.0 (4.6)
Dielectric Withstanding Voltage (Vrms)
  Conductor-to-Conductor
  Conductor-to-Shield

1500
1000

a Shielded twisted pairs only.

Mechanical / Environmental Property Value
Jacket Material Engineered Fluoropolymer
Jacket Color White (Laser Markable)
Conductor Silver-Plated Copper Alloy
Conductor Color Coding High-Speed Pairs: Blue/White, Yellow/White, Orange/White, Violet/White
Low-Speed Pairs: Green/White
Power: Black/Red
Dielectric Material ePTFE/PTFE
Temperature Range (°C) -65 to +200
Part Numbers & Drawings

Download the drawings to view cable characteristics, like diameter, weight, minimum bend radius, and insertion loss.

Part Number AWG Size (Stranding)
2.0 Version
RCN8800-22D-22P-H Data Pair: 22 (19/34)
Power Pair: 22 (19/34)
RCN8800-24D-22P-H Data Pair: 24 (19/36)
Power Pair: 22 (19/34)
RCN8800-26D-24P-H Data Pair: 26 (19/38)
Power Pair: 24 (19/36)
3.1 Version
GSC-03-84761-24D Data Pair: 26 (19/38)
Power Pair: 24 (19/36)

Qualifications

GORE USB Cables have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ANSI/NEMA WC 27500: Environmental Testing, Jacket and Marking
  • CS/FAR Part 25, Section 25.853, Appendix F, Part I (b)(7): Flammability
  • SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)

Fill out a short form to receive a complimentary sample of our pre-qualified cables for prototyping and evaluation from our authorized global distributors, Air Cost Control (Europe) or WireMasters (US).
