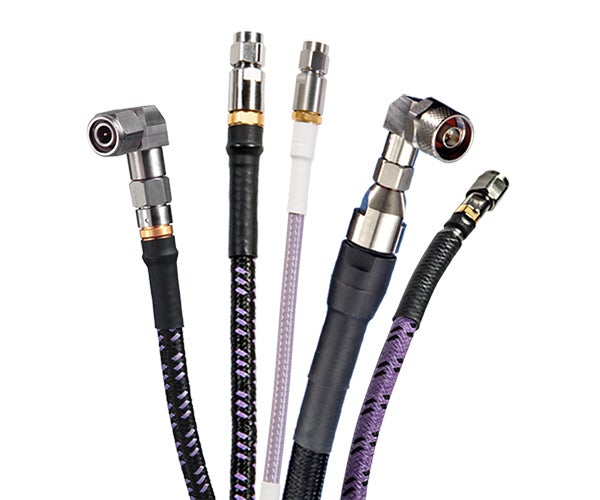

GORE® Microwave/RF Assemblies, 7 Series for Defense Aircraft
Gore’s durable assemblies are designed particularly to keep out water, vapor, fuel and other hazardous contaminants that can severely compromise critical mission systems. With a smaller, more flexible construction, our assemblies are proven to provide exceptional mechanical protection and electrical performance unmatched by standard rigid assemblies.
Contact Us
United States
+1 866 271 5954
Germany
+49 9144 6010
+49 9144 6816 (fax)
UK
+44 1382 56 1511
+44 1382 56 1007 (fax)
Italy
+39 045 6209 209
+39 045 6209 165 (fax)
France
+33 1 5695 6565
+33 1 5695 6401 (fax)
Spain
+34 93 480 6900
+34 93 373 7850 (fax)
Sweden
+46 31 7067800
+46 31 864226 (fax)
China (Beijing)
+86 10 5707 4999
+86 10 5707 4900 (fax)
China (Shanghai)
+86 21 5172 8299
+86 21 6247 9199 (fax)
China (Shenzhen)
+86 755 8359 8262
+86 755 8359 1654 (fax)
South Korea
+82 2 393 3411
+82 2 393 1285 (fax)
Japan
+81 3 6746 2582
+81 3 6746 2571 (fax)
Resource Library
Aerospace

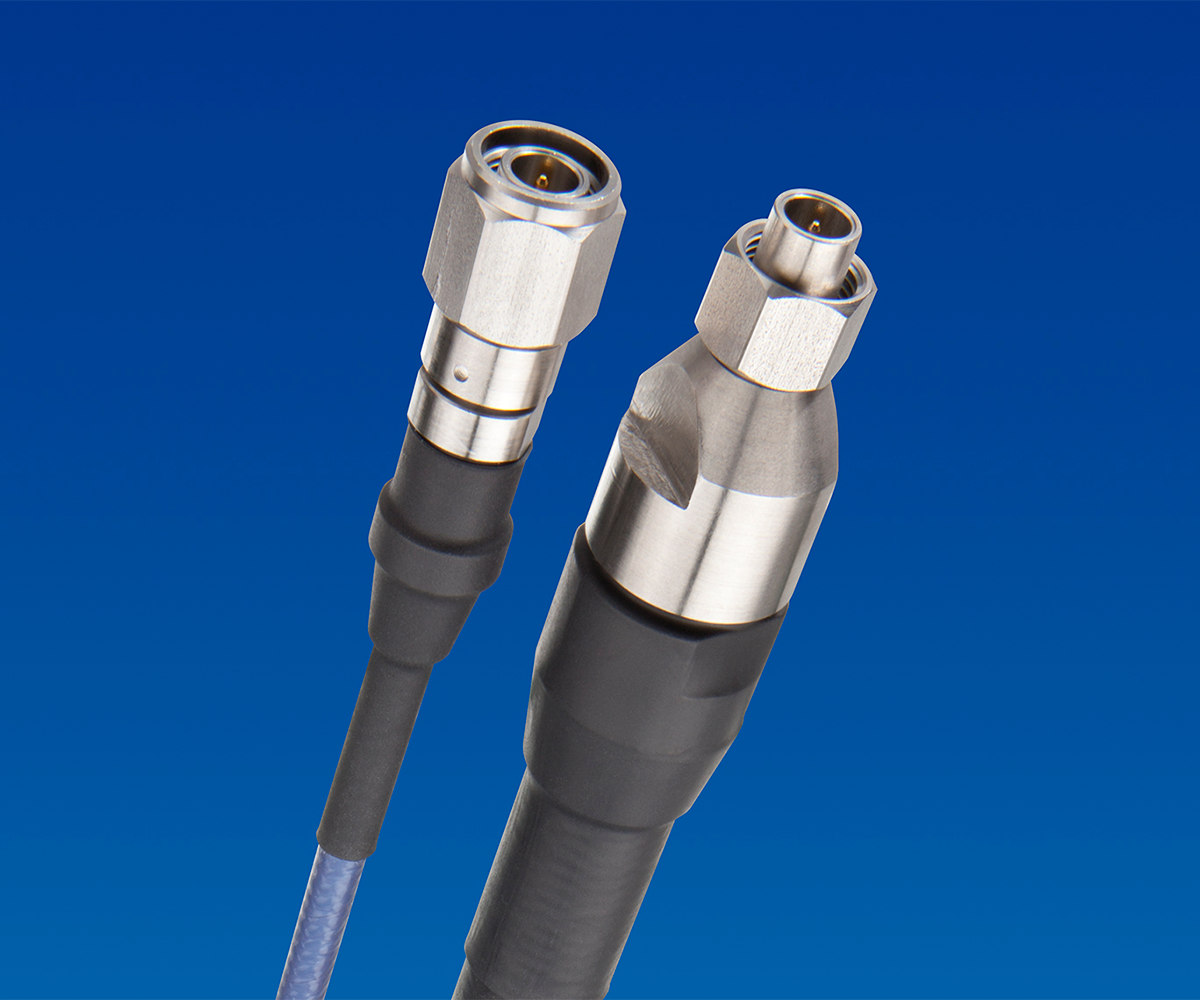

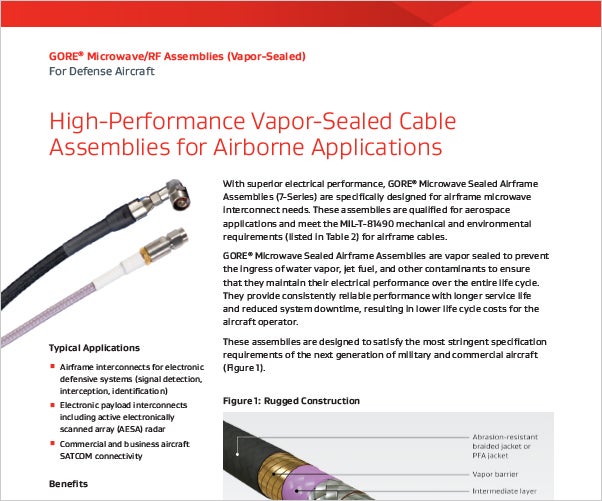

Data Sheet: GORE® Microwave/RF Assemblies, 7 Series for Defense Aircraft
Data Sheets, 367.48 KB
Qualified and tested to meet strict defense industry standards, W. L. Gore & Associates’ GORE® Microwave/RF Assemblies, 7 Series for Defense Aircraft are specifically designed for airframe microwave interconnect needs. These vapor-sealed cable assemblies are backed by comprehensive qualification data to support product claims.
English (U.S.)
All Resources For GORE® Microwave/RF Assemblies, 7 Series for Defense Aircraft
- Videos (11)
- Technical Information (7)
- Industry Articles (3)
- White Papers (2)
- Authorized Distributors (2)
- Data Sheets (1)
- FAQ (1)
- Part Number Information (1)
Overview
The aerospace environment routinely exposes microwave/RF assemblies to harsh contaminants such as fuels, oils and chemicals that can quickly degrade aircraft structures and cause assembly failure in sensitive avionics. In fact, globally more than 75% of microwave/RF assemblies are frequently replaced because of damage during installation or operation according to our independent studies and research. Costs can quickly add up with replacing assemblies, extra labor and more maintenance and downtime!
Vapor-Sealed for Durable Performance
GORE Microwave/RF Assemblies, 7 Series is engineered precisely to prevent the ingress of water vapor, fuel and other hazardous contaminants. Our award winning assemblies routinely maintain low insertion/return loss and excellent phase stability at frequencies up to 40 gigahertz (GHz).
Not only that, our robust assemblies provide outstanding shielding effectiveness against electromagnetic interference that can compromise signal integrity and reduce the quality of signal transmission. We also offer robust, low-profile connector options designed specifically to complement assembly performance, minimizing loss and reflection for optimized signal transmission.
When it comes to installation, aircraft maintainers will find it much easier to route our assemblies in confined areas because they’re smaller and more flexible with a tighter bend radius. You can be confident that our 7 Series won’t break or fail during routing like other standard assemblies that are more rigid.
The 7 Series is thoroughly tested and qualified for military airborne applications. They meet stringent mechanical/environmental requirements such as MIL-T-81490. All of this means superior performance over the aircraft’s lifetime, fewer replacements, reduced system downtime and lower total costs.

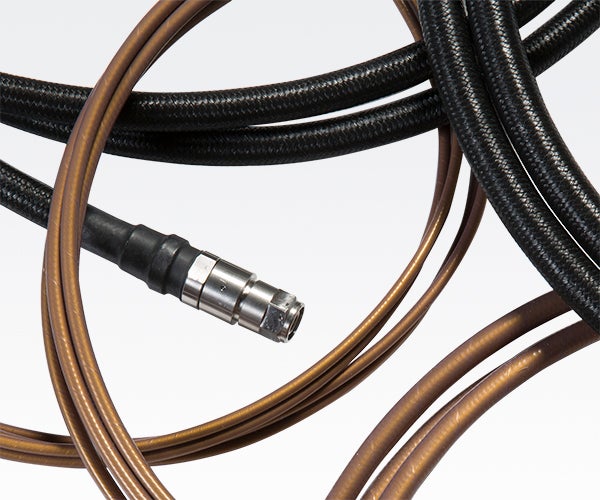

Vapor-sealed construction of GORE Mircowave/RF Assemblies, 7 Series
Applications
GORE Microwave/RF Assemblies, 7 Series is engineered to perform reliably in military airborne applications, including:
- active electronically scanned array (AESA) radar
- electronic defensive systems (signal detection, interception, identification)
- SATCOM antenna connectivity
If you have any questions or to discuss your specific application needs, please contact a Gore representative.
Benefits
GORE Microwave/RF Assemblies, 7 Series provides system architects and engineers with many benefits that improve electrical and mechanical performance such as:
- durable vapor sealing prevents ingress of water vapor and hash contaminants
- maintains low insertion/return loss with excellent phase stability up to 40 GHz
- less RF interference among electronic systems due to outstanding shielding effectiveness
- smaller diameter with greater flexibility and tighter bend radius for ease of installation
- longer system life for reduced downtime and less total costs
- increased design flexibility with a variety of robust,low-profile connector options
- meets stringent mechanical/environmental requirements such as MIL-T-81490
For more information about the benefits of our assemblies, please contact a Gore representative.
Properties
These values demonstrate the electrical, mechanical and environmental performance of GORE Microwave/RF Assemblies, 7 Series.
Download the data sheet for more technical information, including qualifications, connector options, and ordering information.
Electrical
| Electrical Property | Cable Type | ||||
|---|---|---|---|---|---|
| 7G | 75 | 7E | 7L | 7M | |
| Max Frequency (GHz) | 40.0 | 18.0 | 18.0 | 7.0 | 2.0 |
| Impedance (ohms) | 50±1 | 50±1 | 50±1 | 50±1 | 50±1 |
| Dielectric Constant | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| Insertion Loss at Max Frequency (dB/m [dB/ft]) |
2.56 (0.78) |
1.05 (0.32) |
0.62 (0.19) |
0.33 (0.10) |
0.129 (0.04) |
| Velocity of Propagation | 85% | 85% | 85% | 85% | 85% |
| Time Delay (Nominal) (ns/m [ns/ft]) |
3.94 (1.2) |
3.94 (1.2) |
3.94 (1.2) |
3.94 (1.2) |
3.94 (1.2) |
| Shielding Effectiveness (dB to Max Frequency) |
>90 | >90 | >90 | >90 | >90 |
Mechanical and Environmental
| Mechanical / Environmental Property | Cable Type | ||||
|---|---|---|---|---|---|
| 7G | 75 | 7E | 7L | 7M | |
| Nominal Outer Diameter (mm [in]) |
3.80 (0.150) |
5.30 (0.210) |
8.50 (0.335) |
12.32 (0.485) |
14.35 (0.565) |
| Nominal Weight (g/m [oz/ft]) |
36.0 (0.39) |
63.0 (0.67) |
150 (1.61) |
262.0 (2.82) |
328.0 (3.52) |
| Minimum Bend Radius (mm [in]) |
19.0 (0.75) |
25.0 (1.0) |
50.0 (2.0) |
62.5 (2.5) |
80.0 (3.15) |
| Center Conductor | Solid | Solid | Solid | Stranded | Solid |
| Operating Temperature °C (°F)a |
-58 to +200 (-72 to +392) |
-58 to +200 (-72 to +392) |
-58 to +200 (-72 to +392) |
-58 to +200 (-72 to +392) |
-58 to +200 (-72 to +392) |
| Crush Resistance (kgf/cm [lb/in]) |
8.95 (50.0) |
8.95 (50.0) |
8.95 (50.0) |
8.95 (50.0) |
8.95 (50.0) |
aContact Gore for applications with an operating temperature > 175°C.
