GORE® Fibre Channel Cables for Civil Aircraft

Proven on many airborne platforms, our low-dielectric cable geometry maximizes the performance of quadrax cable constructions. Commercial high-speed interconnects from Gore enhance noise immunity, improve EMI suppression, and maintain signal integrity because successful flights depend on constant real-time communications.

Contact Us

+1 800 626 7708

Germany

+49 9144 6010

+49 9144 6816 (fax)

UK

+44 1382 56 1511

+44 1382 56 1007 (fax)

Italy

+39 045 6209 209

+39 045 6209 165 (fax)

France

+33 1 5695 6565

+33 1 5695 6401 (fax)

Spain

+34 93 480 6900

+34 93 373 7850 (fax)

Sweden

+46 31 7067800

+46 31 864226 (fax)

China (Beijing)

+86 10 5707 4999

+86 10 5707 4900 (fax)

China (Shanghai)

+86 21 5172 8299

+86 21 6247 9199 (fax)

China (Shenzhen)

+86 755 8359 8262

+86 755 8359 1654 (fax)

South Korea

+82 2 393 3411

+82 2 393 1285 (fax)

Japan

+81 3 6746 2582

+81 3 6746 2571 (fax)

Resource Library

Fiber Channel Cables for Aircraft

Aerospace

Download technical information — including cable properties/characteristics, applications, qualifications, connector options, cable preparation, and ordering information.

English (U.S.)

All Resources For GORE® Fibre Channel Cables for Civil Aircraft

Overview

Today’s aircraft environment requires cables that can carry loads of data at higher speeds in advanced avionics. Aircraft cables are also subjected to challenging conditions and must be able to survive extreme temperatures, tricky wiring in less space, and harsh contaminants to name a few. Cables play a key role in system performance and can quickly fail if they get damaged or break, putting missions and aircrews at risk.

Consistent Signal Integrity

GORE Fibre Channel Cables enhance noise immunity and EMI suppression while maintaining consistent signal integrity at data rates up to 1 GHz in hazardous aircraft environments. We use the field cancellation properties of a balanced quadrax cable design, so our high-speed cables can transmit 2 differential signals within the same shield without interfering with each other.

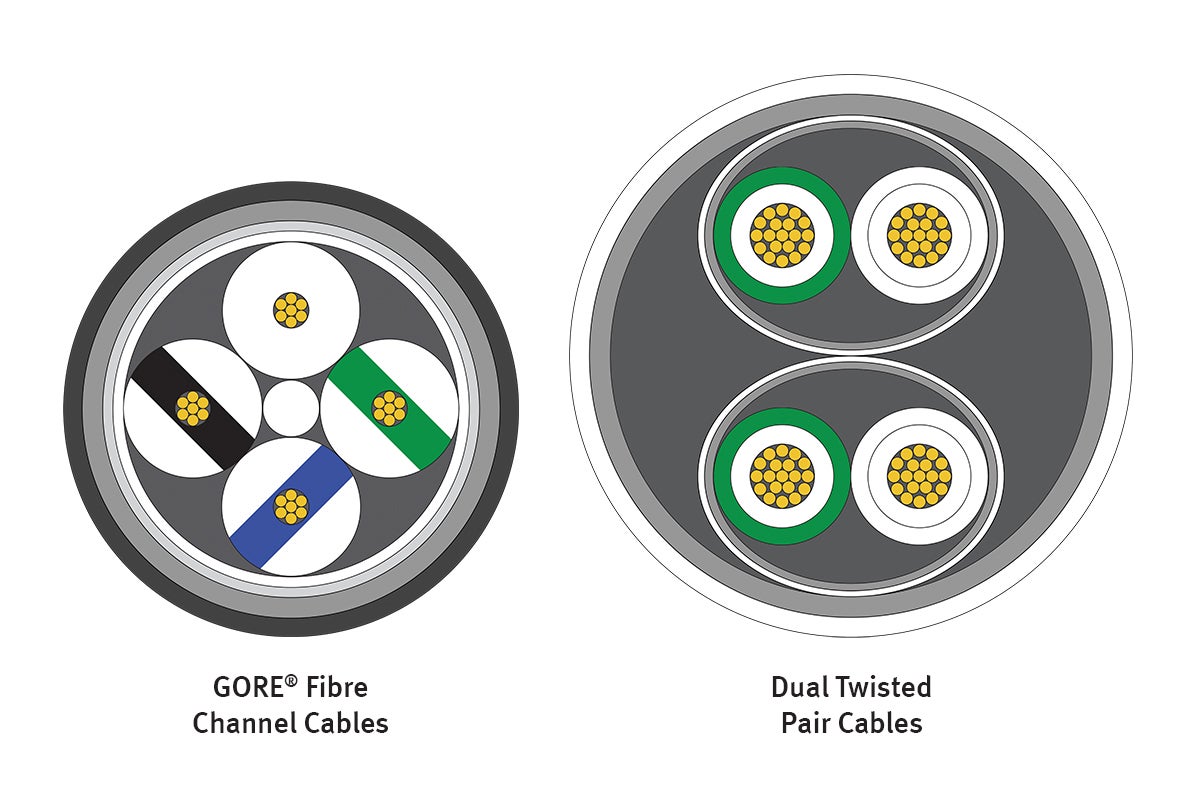

Smaller size of GORE Fibre Channel Cables

Low-Dielectric Cable Geometry

We also boost durability and protection with our unique materials that resist high temps, harsh chemicals, contaminants, and more. Our cables are proven on many airborne platforms, like the Falcon 7X and more. Flight crews can always depend on receiving crucial information in real-time with our cables installed in the aircraft they fly.

Low-Dielectric Cable Geometry

Our innovative fluoropolymer technologies deliver cables that have a smaller diameter compared to dual twisted pair cables. These fibre channel cables have a quadrax design that’s 40% smaller, which also makes them lighter weight without sacrificing toughness. They’re built to last and perform reliably for as long as the aircraft remains in service. Our low-dielectric cables are also more flexible with a tighter bend radius making aircraft wiring much easier during routing for maintainers.

Fibre Channel Cable construction
A
B
C
D
E
F
G

Fluorinated ethylene propylene (FEP) jacket

Close

Aluminized polyimide shield

Close

Color-coded composite dielectric

Close

Silver-plated copper alloy conductor

Close

FEP filler

Close

ePTFE binder

Close

Braided shield

Close

Tough construction of GORE Fibre Channel Cables

Applications

GORE Fibre Channel Cables are engineered to perform reliably in a variety of aircraft applications, including:

  • active electronically-scanned arrays (AESA)
  • cabin/flight management systems
  • tactical aircraft moving maps

If you have any questions or to discuss your specific application needs, please contact a Gore representative.

Benefits

GORE Fibre Channel Cables provide aircraft system architects and engineers with many benefits that improve electrical and mechanical performance such as:

  • enhanced noise immunity and EMI suppression while maintaining consistent signal integrity up to 1 GHz
  • balanced design enables 2 differential signals to transmit within the same shield without interference
  • increased durability with materials resistant to wide temperatures and chemicals
  • low-dielectric quadrax geometry is 40% smaller than dual twisted pair cables
  • easier routing due to lightweight design, excellent flexibility, and tighter bend radius
  • compatible with variety of high-speed aerospace connector systems/backshells
  • selected pre-qualified samples with short lead times for prototyping and evaluation
  • low technical risk based on validated product performance in real-world conditions

For more information about the benefits of our cables, please contact a Gore representative.

Properties

These values demonstrate the electrical, mechanical and environmental performance of GORE Fibre Channel Cables.

Electrical Property Value
Standard Impedance (Ohms) 150 ± 10
Typical Operating Voltage Rating (V) < 15
Nominal Velocity of Propagation (%) 87
Nominal Time Delay ns/m (ns/ft) 4.0 (1.22)
Capacitance pF/m (pF/ft) 28.2 (8.6)
Typical Skew Within Pair ps/m (ps/ft) 3.0 (0.9)
Dielectric Withstanding Voltage (Vrms)
  Conductor-to-Conductor
  Conductor-to-Shield

1500
1000
Mechanical / Environmental Property Value
Jacket Material FEP
Jacket Color Black
Conductor Silver-Plated Copper Alloy
Conductor Color-Coding Black/White Stripe, Blue/White Stripe, Green/White Stripe, Solid White
Dielectric Material ePTFE
Temperature Range (°C) -65 to +200
Part Number and Drawing

Download the drawing to view cable characteristics, like diameter, weight, minimum bend radius, and insertion loss.

Part Number AWG Size (Stranding)
RCN8328 26 (7/34)

Qualifications

GORE Fibre Channel Cables have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.

  • ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
  • ABD0031 (AITM 3.0005); BSS7239: Toxicity
  • ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
  • ANSI/NEMA WC 27500: Environmental Testing, Jacket and Marking
  • ANSI X3.303: Fibre Channel Physical and Signaling Interface-3 (FC-PH-3)
  • EN3475-503: Test Methods for Scrape Abrasion
  • SAE AS4373™: Test Methods for Insulated Electric Wire (Contact Gore for available data)

Fill out a short form to receive a complimentary sample of our pre-qualified cables for prototyping and evaluation from our authorized global distributors, Air Cost Control (Europe) or WireMasters (US).

Connector Options

GORE Fibre Channel Cables, 150 ohms, and coaxial cables can be terminated with commercially available connectors to create assemblies for civil applications. Connectors options used between-the-box include DB-9 plug and receptacles, and MIL-C-38999 size 11. These connectors provide optimized performance in the smallest possible connector package. Benefits include:

  • Insert configuration maintains quadrax geometry through connector interface
  • Improved Z° match minimizes reflections for clean eye patterns
  • Standard size 22D contacts provide high reliability and ease of use
  • Series 3 coupling provides enhanced EMI performance
Description Gore Part Number Impedance (ohms) Image
M24308/4-1F DB-9 (D-sub) plug Approx. 100 M24308/4-1F



M24308/2-1F DB-9 (D-sub) receptacle Approx. 100 M24308/2-1F



MIL-DTL-38999 series III, shell size 11 (plug), military (composite) FCN1059 150  MIL-DTL-38999 series III, shell size 11 (plug), military (composite)



MIL-DTL-38999 series III, shell size 11 (jam nut), military (composite) FCN1058 150 MIL-DTL-38999 series III, shell size 11 (jam nut), military (composite)



MIL-DTL-38999 series III, shell size 11 (receptacle), military (composite) FCN1060 150 MIL-DTL-38999 series III, shell size 11 (receptacle), military (composite)



Gore also offers a variety of connector options for GORE Fibre Channel Cables used inside-the-box.

Description Image   Description Image
SMP (50 ohm) SMP (50 ohm)   SSMC (50 ohm) SSMC
SMA (50/75 ohm) SMA   MCX (50/75 ohm) MCX
