HASSLE-FREE INSTALLATION & DURABLE PROTECTION.
Vehicle systems require wires and cables that can deliver the highest performance no matter the conditions on land during critical operations. W. L. Gore & Associates offers various solutions that fulfill that need while reducing weight, installation complexities and overall costs. Our products meet and even exceed industry requirements for vectronics digital networks, mission systems, signals intelligence, digital camera/video systems and more.
SUPERIOR LEVELS OF PROTECTION
Military OEMs (original equipment manufacturers) and system suppliers are now demanding better protection for cables connected to vectronics. But, they also want cables packaged in thinner, lighter materials to save valuable weight in vehicles.

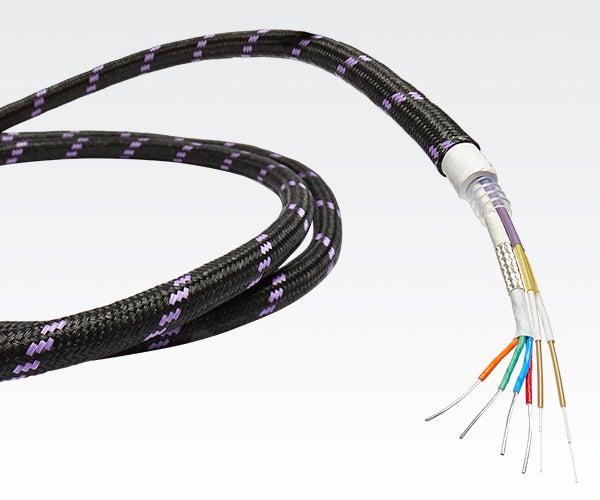

Engineered with extremely durable materials resistant to crushing and abrasion, GORE Cable Protection Systems provide some of the highest levels of protection available in the industry. We designed them for packaging GORE High Speed Data Cables or industry alternatives.
Our cable jacket systems are durable enough to tolerate in-vehicle conditions, like complicated routing in cramped electrical systems, constant vibration, harmful chemicals, and harsh fuels and oils. They also defend against demanding land environments, like extreme weather changes with hot and cold temperatures, hard rain, sand, mud and more.
During installation in cable runs and sharp edges in vehicles, our cable jacket systems allow copper wires and fiber optics to float freely without getting damaged or failing. They’re also highly flexible, offering tighter bend capability without exceeding the minimum bend radius compared to alternative designs.
These thinner, lighter jacket systems contribute to weight savings as well, lending space for other vital systems and equipment in military vehicles. Overall, installers will find it much easier and faster to route wires and fiber wrapped in our jacket systems without over-bending or breaking them in tight configurations.
When you want copper wires and fiber optics that are routable and fit for duty, package them with GORE Cable Protection Systems for ultimate protection, hassle-free installation, weight savings and less maintenance.
Features & Benefits
GORE Cable Protection Systems are engineered with unique features that make them more durable against challenging environmental factors and in-vehicle conditions, including:
- abrasion-resistant, crush-resistant and chemically inert materials
- thinner, lighter weight jacket design
- maximum flexibility with tighter bending capability
Our jacket systems provide vehicle system architects and engineers with many benefits that improve electrical, mechanical and environmental performance such as:
- superior levels of durability and protection than alternative designs
- resist crushing, abrasion, and other harsh land and in-vehicle conditions
- allow copper and fiber to move freely within the jacket system without damage or failure
- hassle-free routing due to high flexibility and tighter bending without exceeding MBR
- thinner, lighter jacket design saves valuable weight in vehicles

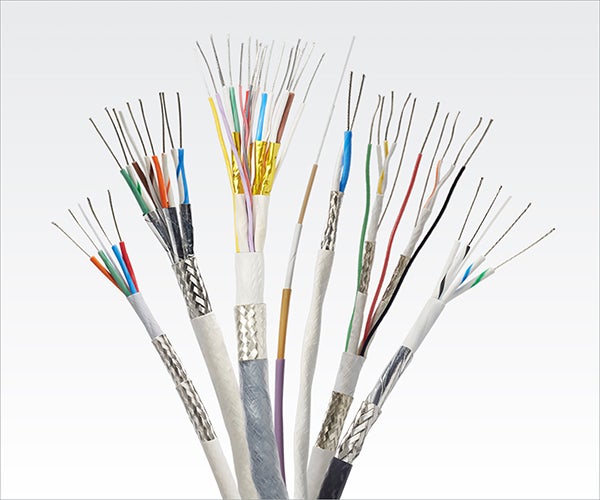

- designed for packaging GORE High Speed Data Cables or industry alternatives
- compatible with M85049/88 connector backshells, adaptors and similar banding platform backshells
For more information about the features and benefits of our cable protection systems, contact a Gore representative today.
These values demonstrate the mechanical and environmental performance of GORE Cable Protection Systems for defense land systems.
|Mechanical / Environmental Property||Value|
|Jacket Material||Expanded PTFE/PTFE|
|Jacket Color||Black with Violet Stripes|
|Temperature Range °C||-65 to +260|
PART NUMBERS & DRAWINGS
We invite you to download our drawings to view cable jacket characteristics, like diameter sizes, weight and minimum bend radii.
GORE Cable Protection Systems for Defense Land Systems have undergone substantial qualification testing to ensure they meet the most current industry standards and our customers’ requirements.
- ABD0031 (AITM 2.0005); BSS7230; FAR Part 25, Appendix F, Part I: Flammability
- ABD0031 (AITM 3.0005); BSS7239: Toxicity
- ABD0031 (AITM 3.0008B); BSS7238; FAR Part 25, Appendix F, Part V: Smoke Density
- SAE AS81914™/1-6: Plastic Convoluted Tubing Requirements
For more information about the qualifications of our cable protection systems, contact a Gore representative today.
LEARN MORE ABOUT GORE CABLE PROTECTION SYSTEMS OR ORDER NOW
Our durable jacket systems meet vehicle OEM and system supplier demands for higher levels of protection. To find out more or discuss your specific military application needs, contact a Gore representative today. Or, place your order now by reaching out to one of our authorized distributors.
We also invite you to view Termination Instructions for our cable protection systems with M85049/88 connector backshells and adapters, as well as backshells with a similar banding platform.
