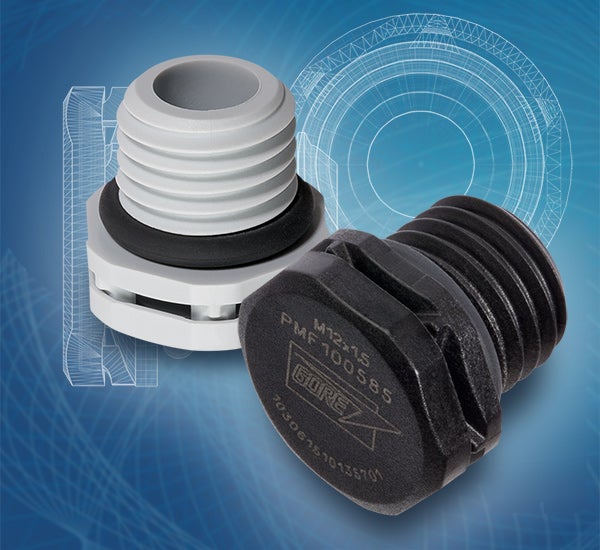

New PolyVent High Airflow Brings Next-Generation Performance to GORE® Protective Vents Screw-In Series

Gore's new PolyVent High Airflow introduces a new level of protection for outdoor enclosures up to 50 l. It provides TWICE the airflow with the same reliable IP as the prior-generation vent, and has an improved O-ring that is UL-rated for flammability resistance. PolyVent High Airflow provides advanced protection against the extreme conditions that can damage seals and sensitive electronics.


New PolyVent High Airflow Brings Next-Generation Performance to GORE Protective Vents Screw-In Series

Gore's new PolyVent High Airflow incorporates next-generation technology that provides a new level of protection and safety for outdoor enclosures that are exposed to extreme conditions. The advanced performance of this new vent is also ideal for outdoor electronics manufacturers who need higher airflow to:

  • Design larger enclosures (up to 50 liters air volume)
  • Adopt more cost-efficient enclosure designs
    (thinner walls, less rugged seals)
Design larger enclosures (up to 50 liters air volume) Adopt more cost-efficient enclosure designs (thinner walls, less rugged seals)

With twice the airflow, reliable ingress protection and enhanced flammability resistance, new PolyVent High Airflow:

  • Delivers airflow of up to 4,000 ml/minute at 70 mbar pressure differential – TWICE the airflow of the prior “HA” vent
  • Meets the most rigorous ingress protection standards: IP66, IP67, IP68 (1 hour immersion at 2 m) and IP69k (high-pressure steam)
  • Features an improved O-ring that is UL 94 V-0-rated (as are the vent body and cap) for flammability resistance.
  • Provides oleophobic as well as hydrophobic resistance

While these new vents incorporate distinct performance upgrades, they are engineered and manufactured to the same sizes and quality specifications as prior-generation “HA” vents. Designed for screw-in installation, Gore’s new PolyVent High Airflow is available in two colors: PMF100585 – Black, and PMF100586 – Grey.

Product Information
Product Name PolyVent High Airflow
Thread Size M12x1.5
Product Number PMF100585 – Black / PMF100586 – Grey
Product Performance Characteristics
Typical airflow 4000 ml/min (dp = 70 mbar)
Laminate: membrane / backing material ePTFE/Polyester (PET)
Membrane characteristic Oleophobic
Vent body & cap: material Polyamide (PA6)
Vent body & cap: color Black: RAL 9011 / Grey: RAL 7035
Wrench size 16 mm
Installed height 5.6 mm
O-ring material Silicone 60 Shore A
Backing nut: material / color / part number Plastic / Grey / M10510-009
Traceability Yes
Design and Dimensions

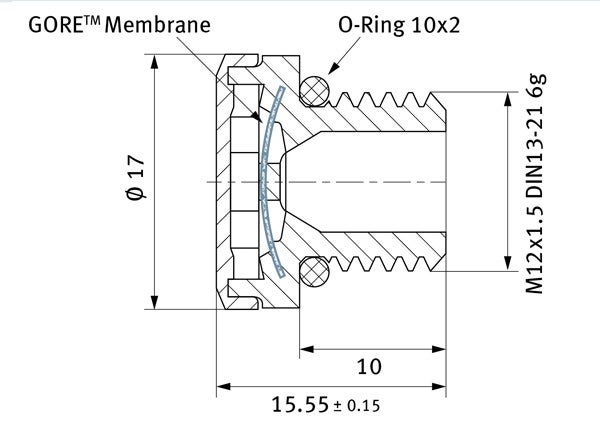

Units are in mm PolyVent High Airflow dimensions
Recommended Installation
  • Install on a flat, vertical housing surface where water or other contaminants will not pool.
  • Orient the membrane so that it faces the external environment.

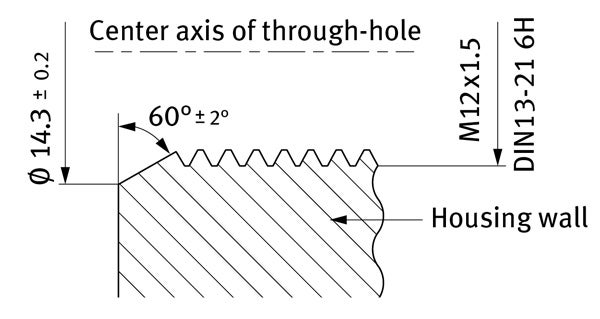

PolyVent High Airflow installation
