Sample Product Inventory for Prototyping & Evaluation
Gore's copper, fiber optic and hybrid cable solutions for airborne and defense applications support the latest open-source architectures and standardized protocols. For example, Ethernet, CAN Bus, FireWire®, USB, HDMI, Fibre Channel and more. Our products meet and even exceed rigorous industry standards, like SAE AS5670™, ARINC-803, STANAG 4754 and VG95218-31.
Browse our sample inventory of pre-qualified solutions in the table below and download drawings for more technical specifications. Complimentary samples are available with short lead times based on in-stock availability and shipped by our authorized global distributors — WireMasters (U.S.) and A.E. Petsche Co./Pansystem or Air Cost Control (Europe).
Original equipment manufacturers (OEMs) can now validate and support low-rate production using our standard products in their specific applications with lower technical and business risks to aviation and military programs.
Order your complementary samples today! Need help with available materials for your sample, prototype or small production requirements?

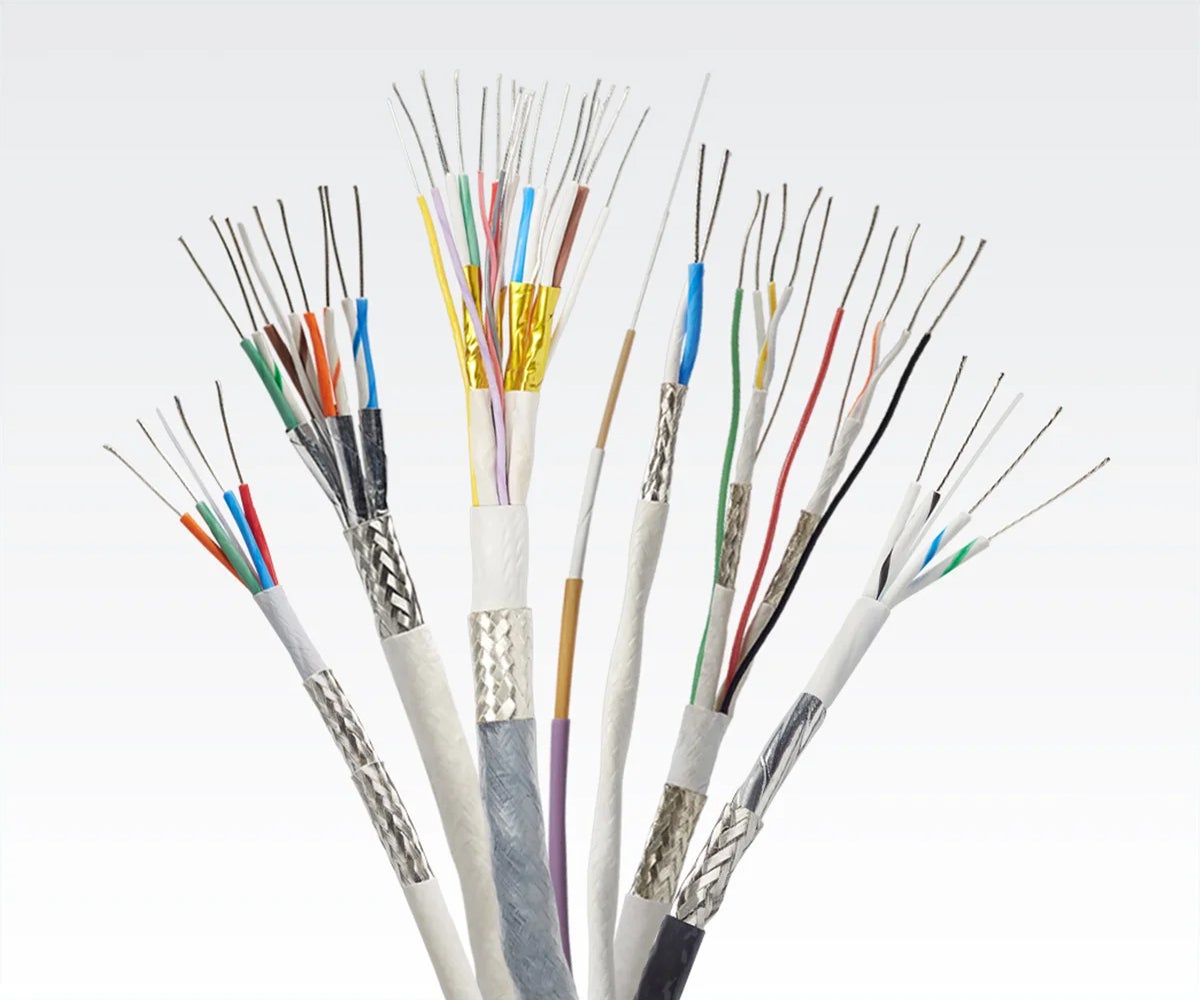

High-Speed Data Cables Sample Inventory
| Cable Type / Protocol | Construction | Impedance (Ohms) | Gore Part Number & Drawing |
|---|---|---|---|
| Shielded Twisted Pair | Single Pair (20 AWG) | 100 | DXN2600 |
| Single Pair (22 AWG) | 100 | GSC-03-85203-VG | |
| Single Pair (22 AWG) | 100 | DXN2601 | |
| Single Pair (24 AWG) | 100 | DXN2602 | |
| Single Pair (26 AWG) | 100 | DXN2603 | |
| Single Pair (28 AWG) | 100 | DXN2604 | |
| Single Pair (30 AWG) | 100 | DXN2605 | |
| Single Pair (32 AWG) | 100 | DXN2606 | |
| CAN Bus | Single Pair (24 AWG) | 120 | GSC-03-84793-VG |
| Single Pair (24 AWG) | 120 | GSC-03-85752-24D | |
| Ethernet (Cat8) | 4 pairs (24 AWG) | 100 | RCN9235-24 |
| 4 pairs (28 AWG) | 100 | RCN9235-26 | |
| Ethernet (Cat6A) | 4 Pairs (24 AWG) | 100 | GSC-01-85237-VG |
| 4 Pairs (24 AWG) | 100 | RCN8966-24 | |
| 4 Pairs (24 AWG) | 100 | RCN9034-24 | |
| 4 Pairs (26 AWG) | 100 | RCN8966-26 | |
| 4 Pairs (26 AWG) | 100 | RCN9047-26 | |
| 4 Pairs (28 AWG) | 100 | RCN9034-28 | |
| Ethernet (Cat5e) | 2 Pairs (26 AWG) | 100 | RCN9133-26 |
| Ethernet (Cat5e) | Quadrax (24 AWG) | 100 | GSC-03-84608-00 |
| Quadrax (26 AWG) | 100 | GSC-03-84820-00 | |
| Quad | Quadrax (24 AWG) | 100 | RCN8752 |
| Quadrax (26 AWG) | 100 | RCN8982 | |
| Quadrax (28 AWG) | 100 | RCN8973 | |
| FireWire® (IEEE 1394b) | Quadrax (22 AWG) | 110 | RCN8645 |
| Quadrax (24 AWG) | 110 | RCN8647 | |
| Quadrax (26 AWG) | 110 | RCN8652 | |
| Fibre Channel | Quadrax (26 AWG) | 150 | RCN8328 |
| USB (2.0) | Data/Power (22 AWG) | 90 | RCN8800-22D-22P-H |
| Data (24 AWG) Power (22 AWG) |
90 | RCN8800-24D-22P-H | |
| Data (26 AWG) Power (24 AWG) |
90 | RCN8800-26D-24P-H | |
| USB (3.0) | Data (26 AWG) Power (22 AWG) |
90 | GSC-01-85201-VG |
| USB (3.1) | Data (26 AWG) Power (24 AWG) |
90 | GSC-03-84761-24D |
| HDMI (2.0) | Hybrid | 100 | RCN9121 |
| DVI (Digital Only) | 4 Pairs (24 AWG) | 100 | GSC-01-85249-24S |
Fiber Optic Cables Sample Inventory
| Cable Type / Protocol | Construction | Core / Cladding / Coating | Gore Part Number & Drawing |
|---|---|---|---|
| Simplex | 1.8 mm, OM1 | 62.5/125/245 | GSC-13-84640-07 |
| 1.8 mm, OM2 | 50/125/245 | GSC-13-84639-07 | |
| 1.8 mm, OM3 | 50/125/245 | GSC-13-84943-07 | |
| 1.8 mm, OM4 | 50/125/245 | GSC-13-85423-07 | |
| Simplex | 1.2 mm, OM2 | 50/125/250 | FON1307 |
| Simplex | 900 micron, OM1 | 62.5/125/245 | GSC-13-85067-00 |
| Ribbon | 12 Fiber, OM2 | 50/125/245 | FON1214/4/12 |
| 12 Fiber, OM3 | 50/125/245 | FON1256/4/12 |
Tethered Drone Cables Sample Inventory
| Cable Type / Protocol | Construction | Operating Voltage Vrms | Core / Cladding / Coating | Gore Part Number & Drawing |
|---|---|---|---|---|
| Power Pair | Single Pair (20 AWG) | 600 | -- | RCN9188 |
| Power Pair | Single Pair (24 AWG) | 600 | -- | RCN9190 |
| Hybrid | Power Pair: 16 AWG Fiber: 900 micron | 600 | 8/125/245 | RCN9164 |
| Hybrid | Power Pair: 20 AWG Fiber: 900 micron | 600 | 8/125/245 | RCN9166 |
| Hybrid | Power Pair: 24 AWG Fiber: 900 micron | 600 | 8/125/245 | RCN9168 |
FireWire is a registered trademark of Apple, Inc., in the U.S. and other countries.
