Gore Electronic Products Design Center
The Gore Electronic Products Design Center features tools and information to help you design and select electronic components and materials. Request a sample or a quotation, engage Gore's technical experts in a design dialogue, or take advantage of our library of design and technical information.
Thank you for your interest in Gore's electronic products. We look forward to working with you on your design project.
Design Tools for Electronic Products

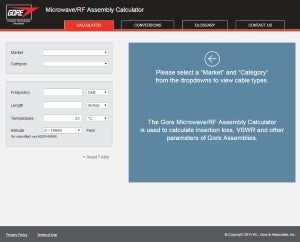

Microwave / RF Assembly Calculator
The Gore Microwave/RF Assembly Calculator is used to calculate insertion loss, VSWR and other parameters of Gore Assemblies.

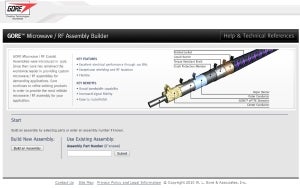

Microwave / RF Assembly Builder
Configure a microwave / RF assembly and request a quote. Calculate insertion loss, attenuation, and power handling. View a data sheet for each assembly.

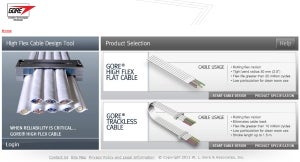

High Flex Cable and Trackless Cable Design Tool
Gore's interactive design guide provides step-by-step instructions to configure GORE® High Flex Round or Flat Cable or GORE® Trackless Cable from standard components. The tool enables shorter design time, quick lead times and small prototype quantities. Additionally, your custom designs can be saved and submitted to Gore for a free quote.
