High-Voltage Cables

Through our specially engineered Corona-Resistant PTFE insulation, GORE High-Voltage Cables provide a minimum of 10,000 hours of reliable performance at maximum voltage ratings, reducing the time needed for running cables in a spacecraft.

Contact Us

+1 800 626 7708

Germany

+49 9144 6010

+49 9144 6816 (fax)

UK

+44 1382 56 1511

+44 1382 56 1007 (fax)

Italy

+39 045 6209 209

+39 045 6209 165 (fax)

France

+33 1 5695 6565

+33 1 5695 6401 (fax)

Spain

+34 93 480 6900

+34 93 373 7850 (fax)

Sweden

+46 31 7067800

+46 31 864226 (fax)

China (Beijing)

+86 10 5707 4999

+86 10 5707 4900 (fax)

China (Shanghai)

+86 21 5172 8299

+86 21 6247 9199 (fax)

China (Shenzhen)

+86 755 8359 8262

+86 755 8359 1654 (fax)

South Korea

+82 2 393 3411

+82 2 393 1285 (fax)

Japan

+81 3 6746 2582

+81 3 6746 2571 (fax)

Resource Library

Shuttle docked at a space station

Aerospace Spaceflight

Download technical information — including cable properties/variants, program heritage, and ordering information for geostationary orbit (GEO), low earth orbit (LEO), high-current, high-voltage, and dataline applications.

English (U.S.)

All Resources For High-Voltage Cables

Overview

Extend Product Life for High-Voltage Cables

Running cables in a spacecraft is time-consuming and difficult. GORE High-Voltage Cables reduce the frequency of this task by providing a minimum of 10,000 hours of reliable performance at maximum voltage ratings — ratings that are based on years of test data recorded under actual operating conditions.

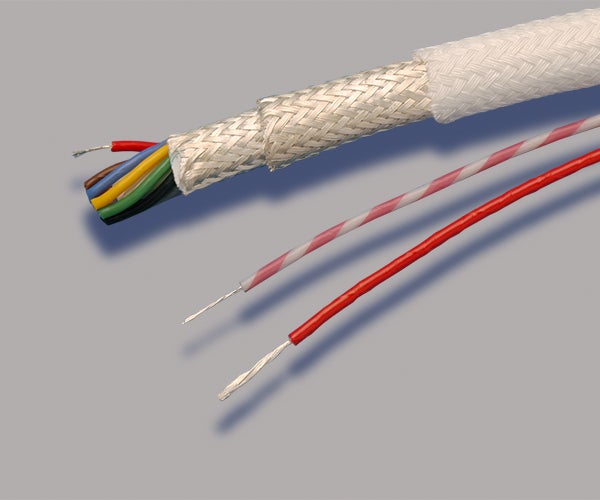

Available as hook-up wire, ribbon cable or round cable, GORE High-Voltage Cables are specifically designed for applications that require high reliability for long periods of time, such as power supplies and amplifiers, traveling wave tubes, and high-voltage routing.

The Science Behind the Cables

The key to the outstanding performance of GORE High-Voltage Cables is the proprietary material used in the cable insulation: expanded polytetrafluoroethylene (ePTFE). Using this proprietary technology, we have developed a specialized Corona-Resistant PTFE. Gas molecules trapped inside the insulation can ionize and cause corona discharge when high voltages are applied, ultimately causing damage to the insulation, which in turn causes more gas molecules to ionize.

GORE® CR-PTFE allows the gas molecules to escape through the membrane without damaging the insulation. Because PTFE fibers are chemically inert and thermally stable, GORE® High-Voltage Cables can be used even at cryogenic temperatures or as high as 300°C for short periods of time.

To protect against the excess gases that occur during ascent into orbit, an additional jacket made of microporous GORE-TEX® fibers can be added to the cables. This jacket allows gas molecules and air to flow completely out of the cable, thereby eliminating the possibility of damage to the cable.

Applications

GORE High-Voltage Cables are typically used in:

  • traveling wave tubes (TWTs)
  • power supplies and routers
  • high-voltage routing

Because of the cables’ high performance — drawing from the benefits of their Corona-Resistant (CR) PTFE insulation — the cables have been used on many critical space missions, including:

  • European Communications Satellite (ECS)
  • European Remote-Sensing Satellite (ERS)
  • Hot Bird satellites
  • Intelsat satellite communications
  • RADARSAT satellites

For more than 25 years, we’ve provided highly reliable cable solutions for the space industry. The 100% success rate of our cables demonstrates our commitment to collaborating with customers when developing reliable and durable cables for these demanding applications.



Features & Benefits

GORE High-Voltage Cables feature a specially engineered Corona-Resistant (CR) PTFE insulation. CR-PTFE has many beneficial features — the material is:

  • chemically inert and non-flammable
  • highly resistant to electromechanical stress cracking
  • available in wide range of AWG sizes

These features benefit manufacturers and users by providing:

  • outstanding reliability in extreme environments
  • long-lasting life because of specialized insulation
  • reliable performance over a wide range of temperatures
  • valued reliability delivered from an ESA-qualified and a DIN EN ISO 9001:2000-certified manufacturing facility


Additionally, we provide superior sales and technical support from Gore’s worldwide engineering team. If you have any questions about the features and benefits of GORE High-Voltage Cables, please contact us

Properties

All GORE High-Voltage Cables meet these technical specifications.

Property Value
Maximum Operating Voltage 1.5 kV AC (3.0 kV DC) to 16 kV AC (36 kv DC)
Conductor Silver-plated copper or copper alloy, true concentric
Insulation Corona-resistant PTFE
Outer Jacket Expanded PTFE and/or PTFE
Temperature Range -200°C to +180°C



Resources

Learn more about GORE High-Voltage Cables in a thorough data sheet and a white paper discussing the properties of cables that ensure peak electrical performance.



Recent News

Event

Gore at Aircraft Survivability Equipment (ASE) & Cribbins Symposiums

November 18, 2019 - November 21, 2019

Come by booth 429 and explore our collection of high-performance cables and materials that are trusted by the defense sector because they help ensure readiness, survivability, and mission success.

Event

Gore at 2019 Space Tech Expo

November 19, 2019 - November 21, 2019

Visit us in Booth H50! We'll be exhibiting qualified GORE® Space Cables and Assemblies that have been proven and trusted for decades in hundreds of global spaceflight programs, including the iconic Apollo 11 mission to the moon.

We'll also be presenting reliable, cost-effective solutions for the NewSpace economy. On November 20th at 11:15 am CET, you're invited to listen to our expert share his industry knowledge and materials expertise to help you navigate wire and cable requirements for NewSpace missions.

Press Release

Gore Showcasing New and Time-Proven Solutions at 2019 Space Tech Expo

Posted November 14, 2019

Gore will exhibit an extensive collection of qualified GORE® Space Cables and Assemblies at the 2019 Space Tech Expo in Bremen, Germany on November 19-21 in Booth H50. Gore will also be a featured speaker on November 20th at 11:15 am CET.

Press Release

New Design Options: GORE® High Speed Data Cables for Prototyping & Evaluation in Aircraft

Posted November 6, 2019

Gore now offers new design options in the company’s sample inventory of GORE® High Speed Data Cables to continue to meet aerospace industry needs and new protocols. The expanded sample inventory includes 8 new part numbers ranging from OM4 fiber optics 1.8 mm Simplex, CAN Bus shielded pair, Ethernet specialty quadrax, and shielded twisted pair.

View all News & Events
