GORE® Trackless High Flex Cables for Semiconductor Production Equipment
Lightweight, self-supporting cables eliminate a cable carrier track or chain for a simpler cable management system and solve challenges with particulation, vibration, size and weight. Our cables have a smooth motion for increased positioning accuracy, faster speeds, easier installation and cleaner operation. They can help semiconductor fabricators improve throughput and yield, reducing maintenance and total cost of ownership.
Contact Us
United States
+1 800 356 4622
Germany
+49 9144 6010
+49 9144 6816 (fax)
UK
+44 1382 56 1511
+44 1382 56 1007 (fax)
Italy
+39 045 6209 209
+39 045 6209 165 (fax)
France
+33 1 5695 6565
+33 1 5695 6401 (fax)
Spain
+34 93 480 6900
+34 93 373 7850 (fax)
Sweden
+46 31 7067800
+46 31 864226 (fax)
China (Beijing)
+86 10 5707 4999
+86 10 5707 4900 (fax)
China (Shanghai)
+86 21 5172 8299
+86 21 6247 9199 (fax)
China (Shenzhen)
+86 755 8359 8262
+86 755 8359 1654 (fax)
South Korea
+82 2 393 3411
+82 2 393 1285 (fax)
Japan
+81 3 6746 2582
+81 3 6746 2571 (fax)
Resource Library
Portfolio: GORE® High Flex Cables for Semiconductor Applications
Data Sheets, 1.35 MB
As chips become smaller and more powerful, higher levels of process cleanliness and data rates continue to increase in semiconductor and FPD equipment. W. L. Gore & Associates offers proven solutions with more durability, flexibility and reliability that solve these complex issues to increase throughput and yield, reduce maintenance and total costs, and be ready for the future.
English (U.S.)
All Resources For GORE® Trackless High Flex Cables for Semiconductor Production Equipment
- Data Sheets (3)
Product Overview
INCREASE THROUGHPUT & YIELD, REDUCE TOTAL COST OF OWNERSHIP
Manufacturers want cable solutions offering cleanliness and durability that help automated equipment to operate at the highest speeds and output with more precision and less downtime.

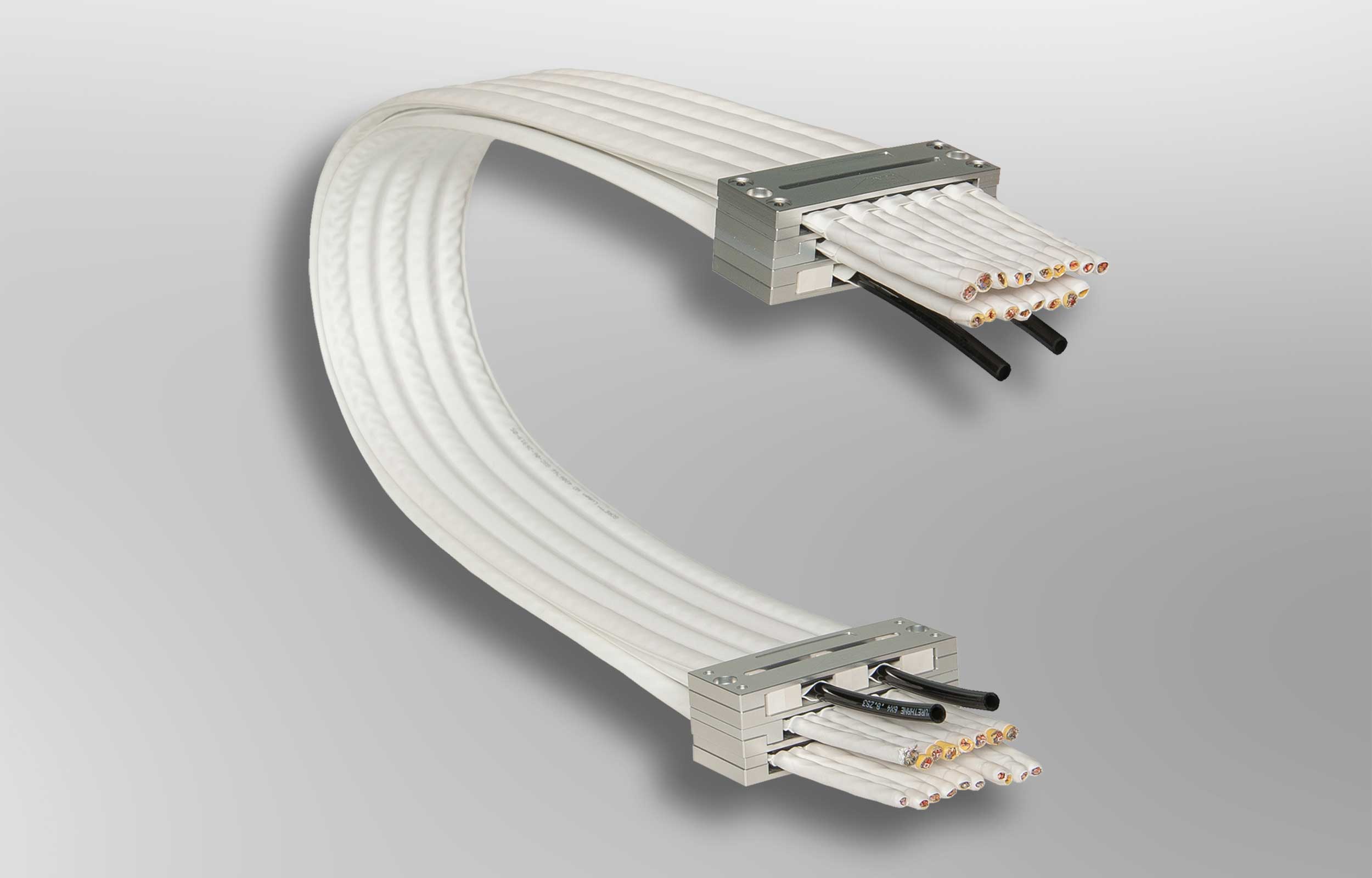

GORE Trackless High Flex Cables deliver increased positioning accuracy with faster speeds, smooth linear motion, as well as easier installation and cleaner operation. These self-supporting cables eliminate cable chains or conveyors. And they can solve many problems related to particulation, vibration, size, weight and costly maintenance caused by traditional cable chains and tracks.
Using our robust trackless high flex cable in automated equipment allows manufacturers to reduce overall system footprint, increase throughput and yield, decrease maintenance and reduce total costs
SIMPLER CABLE MANAGEMENT SYSTEM

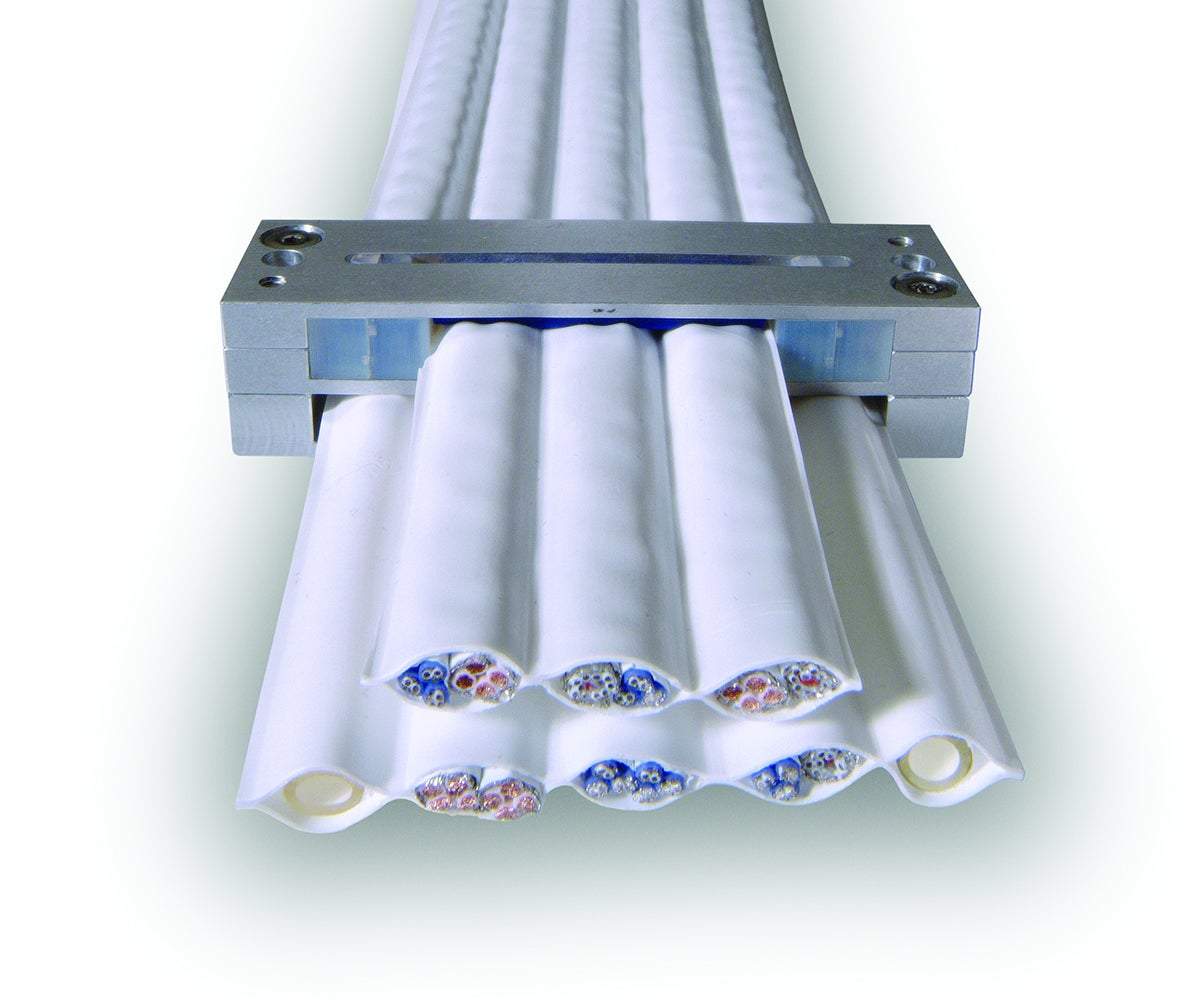

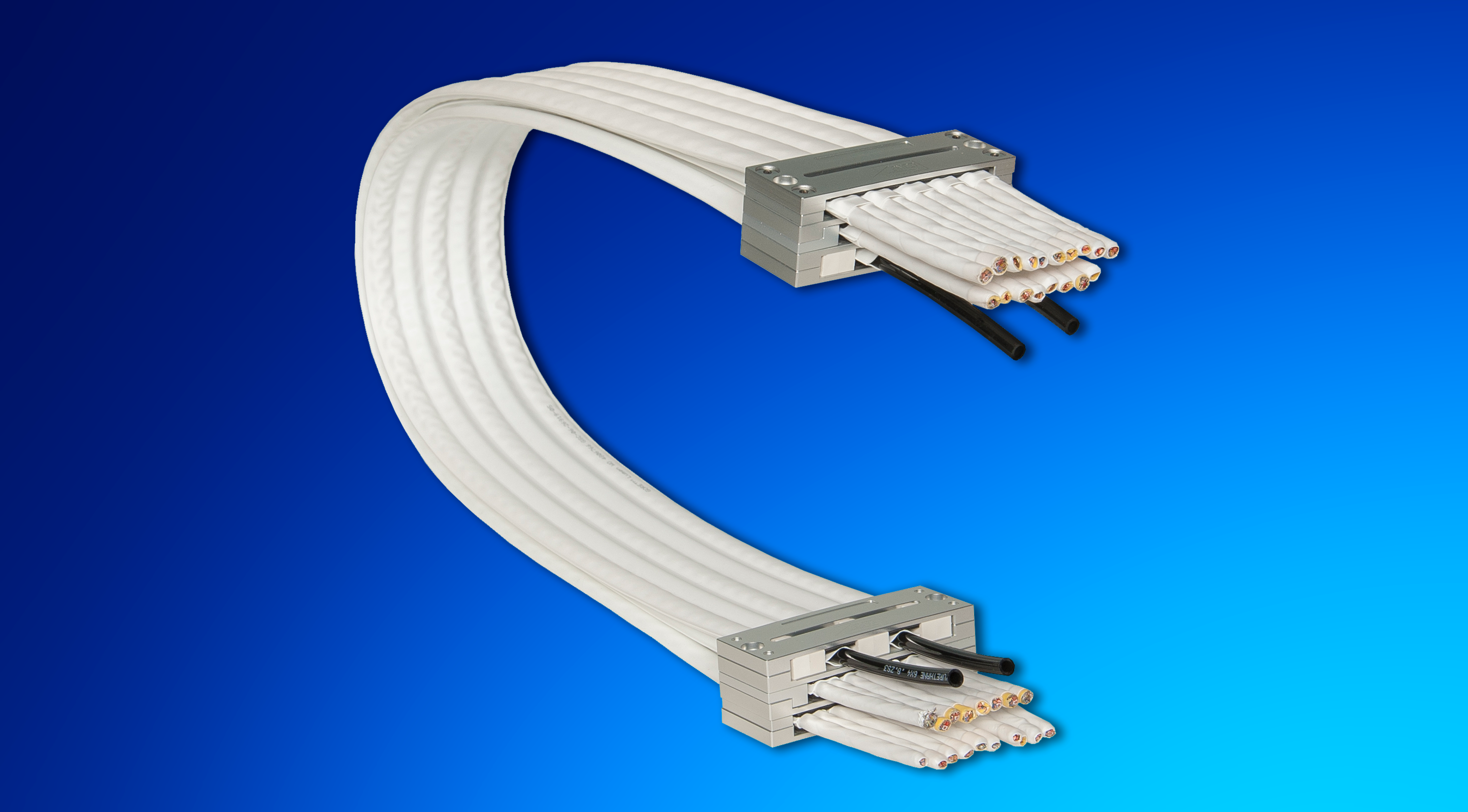

We combine electrical and pneumatic lines into one low-profile trackless flexible cable assembly for a simpler cable management system. Our cables’ flat construction helps reduce the total weight of the moving cable system by eliminating cable chains. Manufacturers can even stack multiple layers of our cables to reduce the overall system footprint.
When it comes to the size of a flat cable versus round cable, the durable materials in our flat cables are 1/2 to 1/3 the thickness of most round cables and meet UL requirements for safety and flame resistance. With a proven flex life under a tight bend radius, these lightweight cables make installation much easier and have performance characteristics that give system designers peace of mind.
Reduce Particulation
Certified to ISO Class 1, GORE Trackless High Flex Cables can be reliably used in cleanroom environments that require low particulation. Using the calculations defined in VDI Guideline 2083 and ISO 14644-1, the Fraunhofer Institute in Germany determined our low-particulation cable has less than 0.1% probability of emitting particulates. They maintain low particulation levels for repeated flexing.
Get more details about the Cable Particulation Study for Cleanroom Environments from the Fraunhofer Institute.
Applications
With proven high flex life and reliability, GORE Trackless High Flex Cables are used in a variety of semiconductor production equipment, including:
- cleanroom automation
- advanced packaging equipment
- front-end wafer inspection
- wafer metrology equipment
- semiconductor automated optical inspection (AOI)
- semiconductor processing equipment

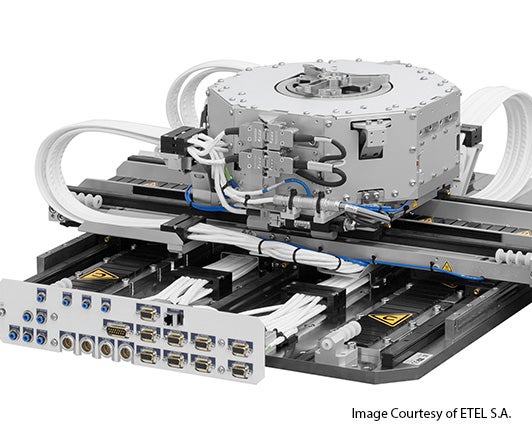

- linear motion stages
