GORE® DVI Cables (Digital Only) for Defense Aircraft

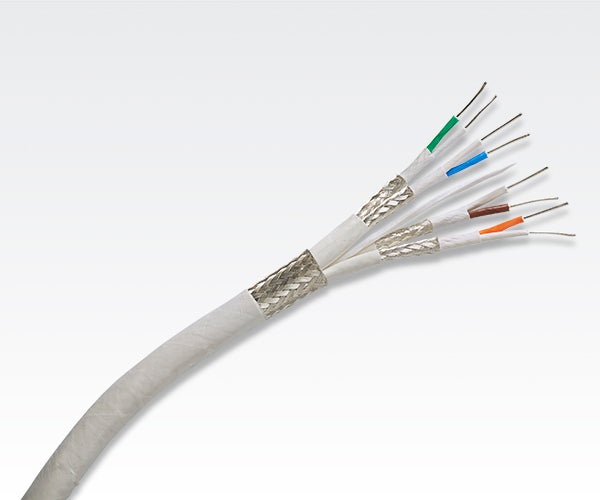

Single-link Gore cables are adequately crafted for the digital component of DVI systems and fit effortlessly into standard harness designs. Our lightweight, robust cables meet stringent military aviation requirements, reliably stream high-speed video and support high-resolution aircraft displays in demanding radar environments.
