GORE® Vents reliably protect sensitive electronics from dirt, water, heat and humidity, to keep material handling, construction and agricultural equipment performing reliably in the harshest operating conditions.

English (U.S.)

All Resources For GORE® Protective Vents for Heavy Duty Equipment

Overview

Increase Equipment Life Expectancy and Performance Reliability
GORE® Protective Vents for Heavy Duty Equipment - Applications

When customers invest in heavy-duty equipment, they expect exceptional durability and reliable performance. Yet the harsh operating environments can threaten the performance and life expectancy of sensitive electronics, causing reliability problems and expensive warranty claims.

GORE Protective Vents provide the optimal combination of breathability and barrier protection to enhance the survival of electronic components in the most demanding applications. In heavy-duty construction, agricultural or material handling equipment, GORE® Vents reliably protect against dirt, dust, condensation, humidity and water.

Vents from Gore can extend the service life of electronics in heavy-duty equipment, reducing maintenance costs, warranty claims and customer frustrations, because they:

  • rapidly equalize housing pressures, to avert premature seal failure
  • prevent ingress of moisture, wind-driven rain and particulates and other contaminants
  • reduce condensation that can corrode sensitive electronics
  • eliminate the need for “ruggedized” housings, reducing costs and weight
  • provide a compact, venting structure that is easily installed and integrated

Why Vent?

Electronic enclosures that are installed outdoors are vulnerable to a wide range of environmental hazards that can affect the performance, reliability and life expectancy of the sensitive electronics within.

Problems for Outdoor Electronics:

Failed Seals

Enclosure seal

Pressure differentials are created when a sealed enclosure is exposed to rapid, extreme or recurring changes in ambient conditions. Extreme changes in temperature (a sudden thunderstorm on a hot, sunny day), altitude changes (in transit), or the constant heating and cooling cycle of an internal heat source – any of these can cause a pressure differential within a sealed enclosure. A rapid decrease in temperature, for example, can create a vacuum inside the enclosure. If this pressure differential is not dissipated, the vacuum places continual stress on the housing seals. Over time, this can cause seals to fail, allowing moisture and other contaminants such as dust, dirt and other particulates to be drawn inside.

Condensation

Cloudy pane due to condensation

In addition to failed seals, moisture can get inside enclosures by diffusion – the process by which vapor moves by natural molecular motion through the walls of a polymer enclosure. When water vapor enters a sealed enclosure and has no way to escape, it will condense to a liquid state. If this condensation remains inside the sealed enclosure, it can compromise lens function and corrode sensitive electronics and battery contacts.

Reliable Solutions with GORE Protective Vents:

Equalize Pressures to Protect Housing Enclosures and Seals

GORE Protective Vents rapidly equalize pressure differentials within sealed enclosures, effectively preventing the internal vacuums or pressure build-ups that stress housing seals. In non-vented housings, pressure differentials as low as 70 mbar (1 psi) can cause seals to leak after repeated temperature cycles. GORE Vents reliably protect against premature seal failure, to preserve the integrity of the enclosure.

Equalize Pressures to Protect Housing Enclosures and Seals

Prevent Contamination to Protect Electronics

GORE Protective Vents reliably block ingress of a wide range of contaminants, from rain and insects to dirt, dust, sand and other particulates. Yet GORE Vents allow air molecules to pass through, preventing the formation of vacuums that could pull external contaminants in. With vents from Gore, components perform reliably, with lower maintenance or warranty costs.

Air passes through the membrane. Liquids and particles are repelled.

Reduce Condensation to Protect Against Corrosion

GORE Protective Vents enable water vapor molecules to diffuse through the microporous membrane, and pass freely out of the enclosure. By reducing the amount of internal moisture, internal surfaces such as lenses are protected from condensation, and electronics are protected from premature failure due to corrosion.

Water vapor molecules pass through the membrane

Protect Against Hazardous Gas Buildup

During normal operation and recharging cycles, batteries can generate heat and emit hydrogen or other gases. This can create a hazardous, or even explosive, situation. GORE Protective Vents effectively dissipate hazardous gas molecules. By continuously equalizing pressures inside and outside the battery compartment, they reduce explosion hazards, while maintaining an effective barrier to liquids and particulates.

Gas molecules pass through the membrane

Applications

Venting Solutions for a Variety of Heavy-Duty Equipment and Applications
Construction Equipment
Construction Equipment GORE Vents reliably protect electronic systems in earth moving equipment, in road construction equipment, and in equipment for the mining industry.
Material Handling Equipment
Material Handling In cranes, in forklifts and other warehouse equipment, GORE Protective Vents can keep the electronic components operating at peak performance.
Agricultural Equipment
Agricultural Equipment An investment in tractors, harvesting and cultivating equipment, or forestry equipment is protected for longer when GORE Vents extend the life expectancy of outdoor electronics.

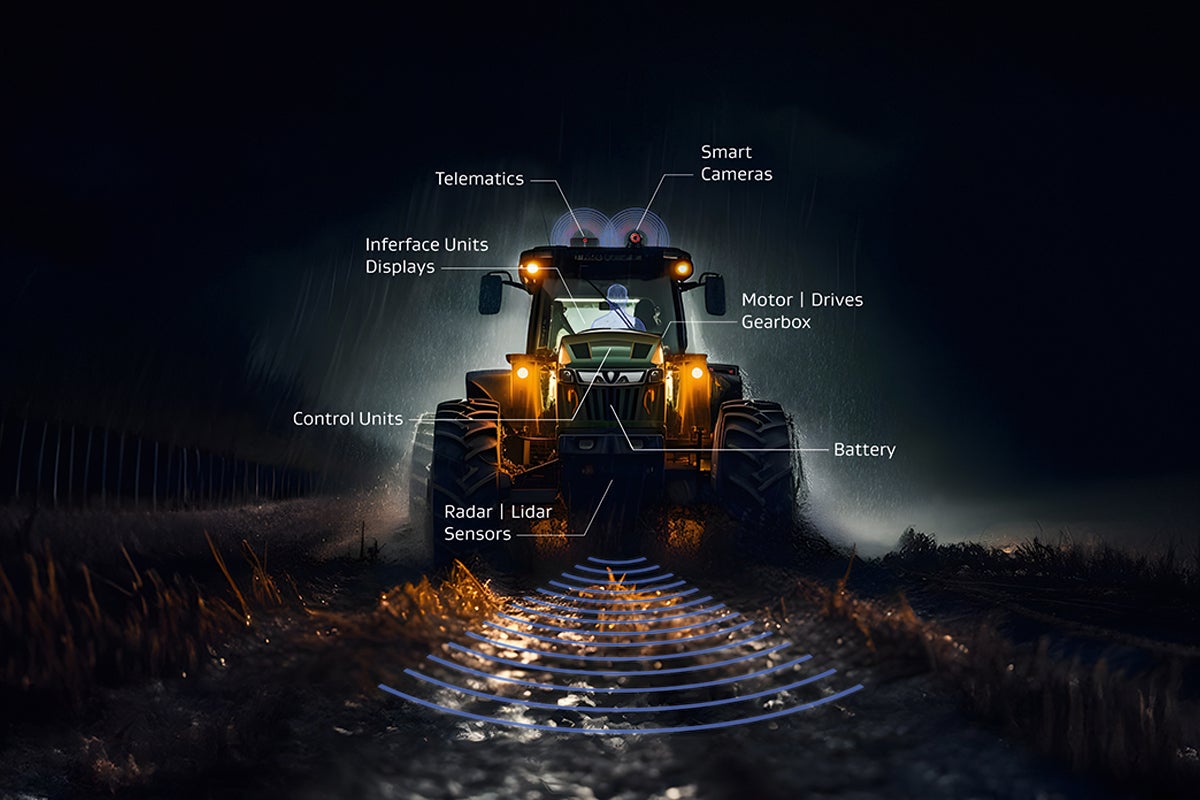

Today's construction, agricultural and material handling equipment relies on sophisticated electronics to get the job done. And wherever you find those electronics, you can find GORE Protective Vents. They reliably protect all types of enclosures in all types of heavy-duty equipment applications.

Heavy Duty vehicles

Product Comparison

NEW GORE® PolyVent XS

NEW GORE® PolyVent XS

Realize Streamlined Designs With a 30% Smaller Vent. Learn more.

ENHANCED: GORE<sup>®</sup> PolyVent Stainless Steel

ENHANCED: GORE® PolyVent Stainless Steel

Now top-rated for mechanical impact resistance. Compare all Screw-In Series options.

* IK10 rating applies to this GORE® Vent, not the device.

Screw-In Series

Screw-In vents provide durable protection against water, salts and corrosive liquids, even after immersion. The threaded shaft and durable O-ring provide increased mechanical stability, and these hydrolytically-stable vents are UV- and temperature-resistant, for added durability and longer product life. Designed for easy installation in any application, these rugged vents come in different styles:

GORE PolyVent XS GORE® PolyVent XS
has a compact, low-profile design that meets some of the industry’s toughest standards, making it ideal for today’s smaller (up to 2 l) housings.
GORE PolyVent Standard GORE® PolyVent Standard (M12x1 and M12x1.5)
offers reliable venting for volumes up to 5 l, and comes in two colors and two thread sizes for different wall thicknesses. The longer thread (M12x1.5) can be installed with or without counter nut.
GORE PolyVent High Airflow GORE® PolyVent High Airflow (M12x1.5)
has the protection level of “Standard” – with nearly ten times the airflow. For housings up to 50 liters, it easily manages the strong pressure differentials caused by extreme weather.
GORE PolyVent XL GORE® PolyVent XL
maintains exceptionally high airflow in extra-large enclosures (volumes up to 200 l) and meets the most rigorous standards, such as solar resistance (IEC 62108).
GORE PolyVent Stainless Steel with IK10 ENHANCED: GORE® PolyVent Stainless Steel
now with IK10, delivers the highest mechanical impact resistance as exceptional durability, corrosion- and chemical resistance, to reliably protect enclosures up to 20 liters in the most rugged environments.
GORE PolyVent Ex+ GORE PolyVent Ex+
is both IECEx and ATEX certified for equipment operating in potentially explosive environments and offers exceptional venting performance for enclosures up to 20 liters in volume.

Snap-In Series

Snap-In Vents deliver robust venting performance and consistent, long-lasting protection in very harsh environments. Engineered specifically for high-throughput production applications, these vents can be quickly installed with semi- or fully- automated equipment. Most products in this series are individually laser-marked, for full product traceability. Four performance options are available to accommodate different housing sizes and provide varying speeds of pressure equalization:

GORE PolyVent Hysi GORE® PolyVent Hysi
offers fast, economical integration, and the option to inside-mount for nearly-invisible installation. For enclosure volumes up to 2 liters.
GORE PolyVent XS NEW: GORE® PolyVent XS
is 30% smaller than PolyVent Standard, for light-weight, thin-walled enclosures with volumes up to 5 liters.
GORE PolyVent Standard GORE® PolyVent Standard
offers reliable performance in many applications, for enclosure volumes up to 5 liters.
GORE PolyVent High Airflow GORE® PolyVent High Airflow,
in hydrophobic or oleophobic versions, delivers high airflow for enclosure volumes up to 30 liters.

Adhesive Series

Low-profile adhesive vents provide the flexible integration options for almost any application. They can be installed quickly and easily on the interior or exterior of an enclosure, using manual or automated processes. While these vents can easily be customized for the demands and geometry of a specific application, our standard product portfolio offers a wide variety of sizes, designs and constructions.

Existing customers using parts not listed here, please contact us.

GORE Adhesive Vent VE7 GORE® Adhesive Vent Series VE7
For enclosures with rough or smooth surfaces. These durable all membrane constructions offer high temperature stability.
GORE Adhesive Vent VE8

GORE® Adhesive Vent Series VE8
For interior housing mount applications requiring high airflow with oleophobicity.

GORE Adhesive Vent VE9

GORE® Adhesive Vent Series VE9
For enclosures with rough or smooth surfaces. These durable all membrane constructions offer high temperature stability and are engineered for higher airflow.
