GORE® Automotive Vents for Powertrain
Simplify designing, validating and protecting electrified and traditional powertrain components with waterproof direct-fit or tube-mount GORE Automotive Vents. Our compact, rugged powertrain vents stand up to harsh operating conditions, and can reduce overall system cost.
Contact Us
United States
+1 800 346 7391
Australia
+61 2 9473 6800
Brazil
+55 11 5502 7800
China
+86 21 5172 8299
France
+33 1 5695 6565
Germany
+49 89 4612 2211
India
+91 22 6768 7000
Italy
+39 045 6209 240
Japan
+81 3 6746 2570
Korea
+82 2 393 3411
Mexico
+52 81 8288 1281
Scandinavia
+46 31 706 7800
Singapore
+65 6733 2882
Spain
+34 93 480 6900
South America
+55 11 5502 7800
Sweden
+46 31 7067800
Taiwan
+886 2 2173 7799
United Kingdom
+44 1506 460123
Resource Library

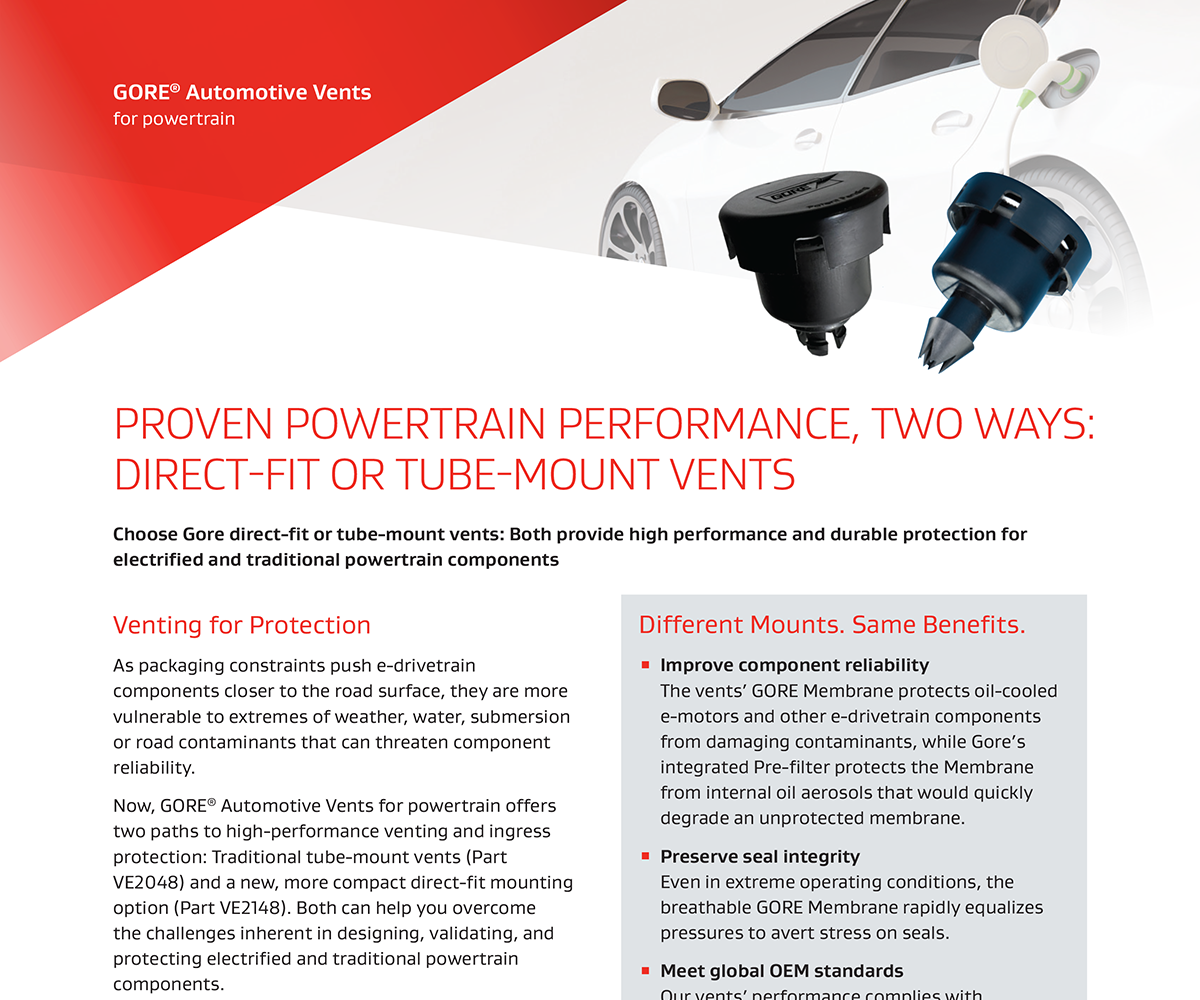

GORE® Automotive Vents for Powertrain: AVS 2148 (Product Number VE2148) and AVS 41 (Product Number VE2048)
Data Sheets, 945.86 KB
Designed for high performance in electrified and traditional powertrain components. These durable, waterproof direct-fit and tube-mount vents provide responsive pressure equalization and reliable ingress protection that meets global OEM standards for water wading and fluid containment.
All Resources For GORE® Automotive Vents for Powertrain
- Industry Articles (2)
- Brochures (1)
- Case Studies (1)
- Data Sheets (3)
- FAQ (1)
- Technical Information (13)
Overview
PROVEN POWERTRAIN PERFORMANCE: GORE DIRECT-FIT AND TUBE-MOUNT VENTS
As packaging constraints push e-drivetrain components closer to the road surface, they are even more vulnerable than traditional powertrains to environmental challenges — road contaminants, extreme weather, submersion — that can threaten component reliability.
Gore’s high-performance powertrain vents provide robust and reliable protection for electrified and traditional powertrain components.
Our vents can help simplify component design and validation. They can also eliminate the need to redesign vent tube routing when using the same drive unit assembly across multiple vehicle configurations or models.
CHOOSE FROM TWO MOUNTING STYLES
Compact direct-fit vents
(AVS 2148 / VE2148)
Traditional tube-mount vents
(AVS 41 / VE2048)
TYPICAL APPLICATIONS

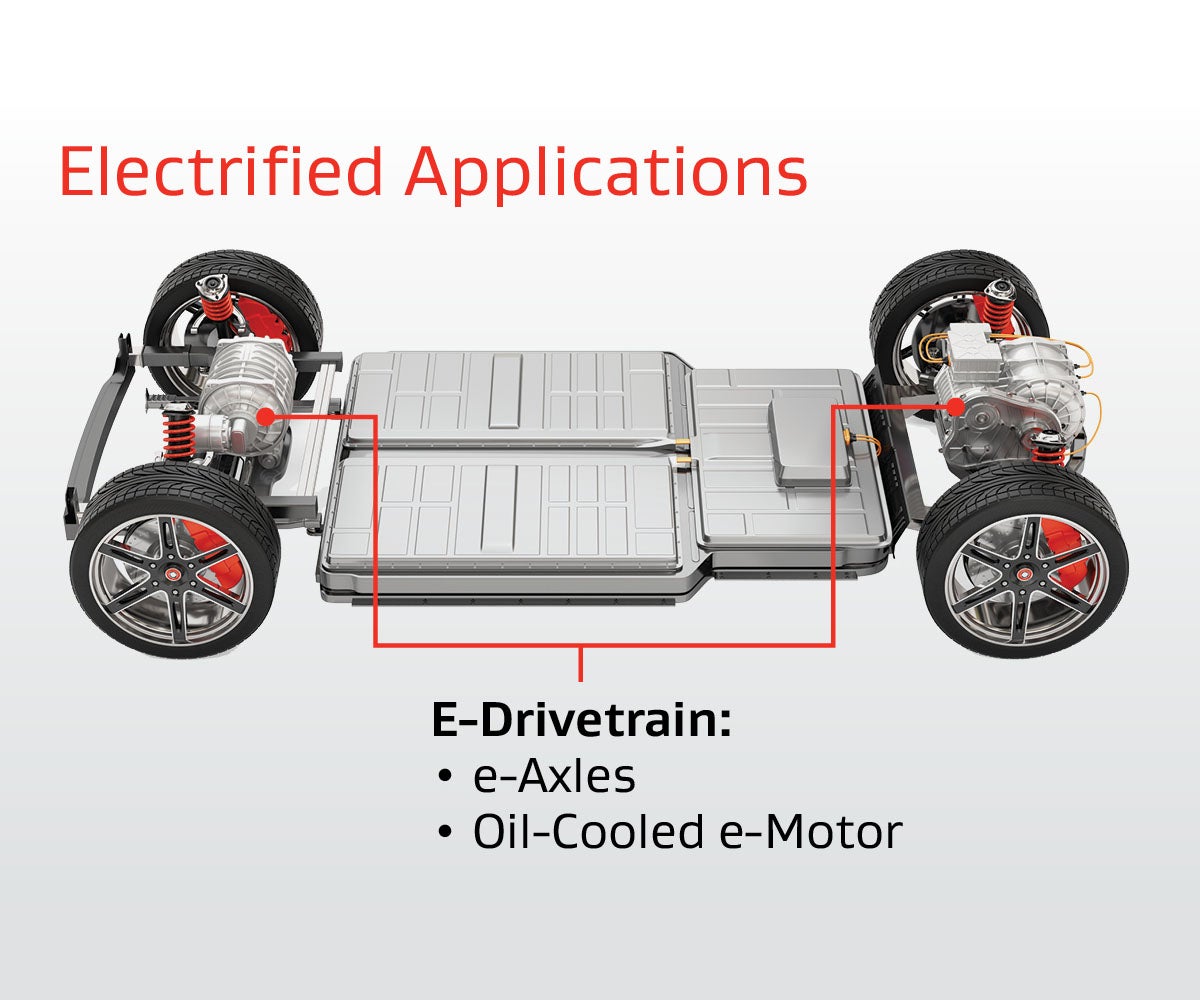

For electrified powertrain components
- e-Axles
- Oil-cooled e-motors
For traditional powertrain components
- Transfer cases
- Power transfer units
- Solid beam axles
- Rear/front drive modules
DIFFERENT MOUNTING. SAME BENEFITS.
Gore Direct-Fit compact powertrain vents and traditional Tube-Mount Vents’ high performance and durable protection can help you:
Improve component reliability
The GORE Membrane blocks contaminants that can degrade component performance, while the integrated Pre-Filter protects the Membrane from internal oil aerosols.
Preserve seal integrity
Our breathable GORE Membrane rapidly equalizes pressures, even under extreme operating conditions, to reduce stress on seals.
Meet global OEM standards
Our vents’ performance complies with OEM standards for water wading and fluid containment.
Streamline validation and reduce design cycles
These waterproof vents can eliminate vent-related wading test “fails” and associated engineering redesign time.
BACKED BY GORE
Proven Product Performance
Innovation Capabilities
Service & Operational Support
Product Comparison
PROVEN PERFORMANCE IN TWO MOUNTING STYLES

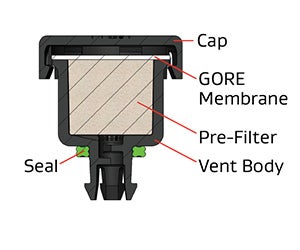

Gore’s Direct-Fit Powertrain Vent
(AVS 2148 / VE2148)
- Compact, low-profile construction enables more design options, especially for space-constrained e-drivetrain and e-motor applications.
- Direct-fit (vent mounted directly into component housing) can streamline sourcing, supply and assembly efforts.
- Easy snap-fit integration to housing

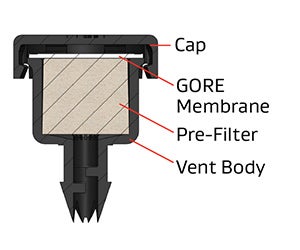

Gore’s Tube-Mount Powertrain Vent
(AVS 41 / VE2048)
- Tube-mount “distances” vent from potential exposure to high temperatures or lubricants.
- Tube format enables more flexibility in routing, especially for traditional powertrain components.
- Easy integration into existing applications; vent replacement, if required, is easy.
Want design & installation guidelines for Gore’s powertrain vents?
Please contact your Gore representative to request the Direct-Fit guide or the Tube-Mount guide.
