Industrial Fluids Filtration Solutions
GORE™ Membrane Filter Sock and Tube assemblies provide highly efficient ePTFE membrane filtration for use in tubular backpulse liquid filtration systems.
+1 800 437 5427
+55 11 5502 7800
Tubular Back-Pulse Filters Product Brochure
Brochures, 614.34 KB
GORE® Membrane filter socks and GORE® Filter tube assemblies are highly efficient ePTFE membrane filters for use in tubular backpulse liquid filtration systems. They provide excellent filtration efficiency and economical performance in high flow rate and/or high feed solids applications.
All Resources For Industrial Fluids Filtration Solutions
- Data Sheets (7)
- Brochures (3)
GORE™ Membrane Filter Sock and Tube assemblies provide excellent filtration efficiency and economical performance in high flow rate and/or high feed solids applications due to a combination of GORE™ membrane's unique properties and extensive application and manufacturing expertise.
GORE membrane filter socks and GORE® filter tube assemblies are used in Kraft pulp mills, Chlor-Alkali plants and other process or wastewater filtration applications in chemical processing industries. GORE™ membrane filter socks have a unique microporous membrane surface that prevents particles from becoming imbedded inside the membrane structure. The membranes are available in several different micron ratings and are laminated to a polypropylene felt, a polyester felt, or a felt made with Gore fibers depending on the chemical and thermal requirements of the application.
Markets & Applications
Kraft Pulp Mills
GORE membrane filter socks are used in white liquor and lime mud wash tubular pressure filters in the pulp and paper industry.
The membranes, available in several different micron ratings, are laminated to a polypropylene felt support. An all welded construction and special EPDM O-rings are used to greatly reduce the potential for bypassing found in other sock constructions.
- Higher throughput
- Less frequent acid washings
- Better upset recoverability
- Longer effective life
Depending on your location, GORE membrane filter socks can be purchased directly, through licensed agents or OEM's. Please contact us for more information.
Chlor Alkalai Processing

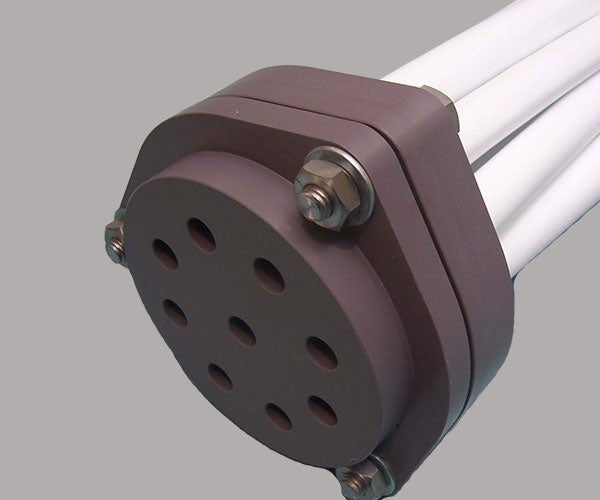

GORE® Filter Tube Assemblies and GORE® Membrane Filter Socks (available in both PP and ePTFE felts) are used to purify the brine regardless of source in the Chlor-alkali process. Purifying various process/wastewater streams in 100’s of installations worldwide, we have proven the success of our precoat-free technology in replacing a traditional three step filtration system (clarifier, sand filter, precoat filter) with a one-step filter. Our new GORE® Filter Tube Assemblies offer the additional benefits of higher surface area and improved sealing characteristics providing higher flow rates in a convenient, easy to install format.
Data Sheet: High Durability Filter Sock - Polypropylene Felt 441 g/m2 (13 oz/yd2)
Data Sheets, 69.37 KB
View all Resources for GORE Membrane Filter Sock and Tube assemblies
FOR INDUSTRIAL USE ONLY
Not for use in food, drug, cosmetic or medical device manufacturing, processing, or packaging operations.
