Data Sheet: GORE™ IDC Ribbon Cable - Color Coded Conductors
Data Sheets, United States
The GTS811 cable series is used in applications with discrete wiring/IDC terminations, systems with soldered/IDC terminations, high reliability systems, and in high/low temperature environments.
High Performance Color Coded Cable
GORE IDC Ribbon Cables provide excellent electrical performance and protection from extreme thermal and chemical environments. These cables have industry-standard individual conductor color coding for accurate discrete wire termination and cable polarity identification. The color coding can be in accordance with EIA-359-A or DIN VDE 47100. They are vacuum compatible, resistant to aging, and conform to UL Styles 1371 and 1538.
The GTS811 cable series is used in applications with discrete wiring/IDC terminations, systems with soldered/IDC terminations, high reliability systems, and in high/low
temperature environments.

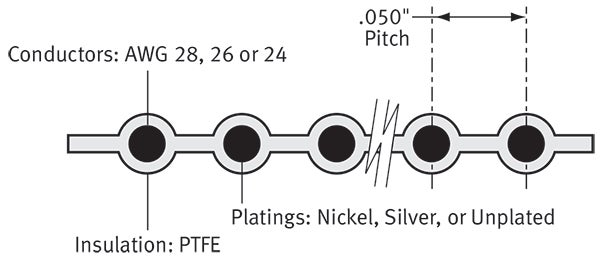

Key Features
- UL conformity
- Color coding to EIA-359-A or DIN VDE 47100
- .050” pitch
- 28, 26, or 24 AWG conductors
- PTFE insulation
Key Benefits
- Superior electrical performance
- Extreme thermal resistance
- Chemical immunity
- Individual conductor color coding
- Vacuum compatible
- Resistant to aging

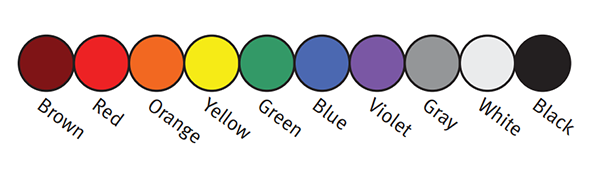

Cable Color Code
| 28 AWG | One side of cable is red |
|---|---|
| 26 AWG | One side of cable is blue |
| 24 AWG | One side of cable is black |

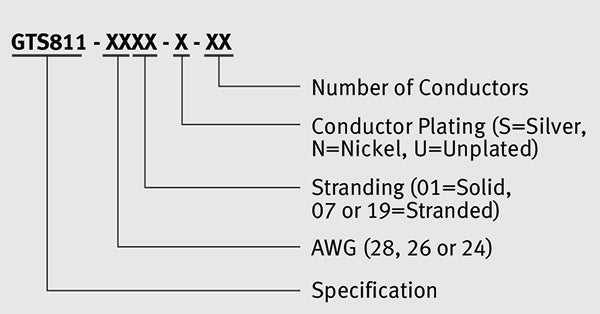

Ordering Information
Electrical Properties
| Property | Unit | 28 AWG | 26 AWG | 24 AWG |
|---|---|---|---|---|
| Voltage Rating | RMS | 300 | 300 | 300 |
| Dielectric Withstand Voltage | RMS | 2000 | 2000 | 2000 |
| Insulation Resistance | MΩ*km | 500 | 500 | 500 |
| Characteristic Impedance | ||||
| Ground, Signal, Ground | Ω | 125 | 105 | 90 |
| Capacitance | ||||
| Ground, Signal, Ground | pf/ft | 9.8 | 12.5 | 13.2 |
| Time Delay | ns/ft | 1.15 | 1.17 | 1.18 |
| Velocity of Propagation | as % of air | 92 | 90 | 88 |
| Effective Dielectric Constant | ε | 1.18 | 1.22 | 1.25 |
Mechanical Properties
| Property | 28 AWG | 26 AWG | 24 AWG |
|---|---|---|---|
| Temperature Range | |||
| Nickel-Plated Conductors | –65°C to +260°C | –65°C to +260°C | –65°C to +260°C |
| Silver-Plated Conductors | –65°C to +200°C | –65°C to +200°C | –65°C to +200°C |
| Unplated Conductors | –65°C to +150°C | –65°C to +150°C | –65°C to +150°C |
Chemical Resistance
| Chemical | 28 AWG | 26 AWG | 24 AWG |
|---|---|---|---|
| Acids: Hydrochloric, Sulfuric, Nitric | Excellent | Excellent | Excellent |
| Alkalis | Excellent | Excellent | Excellent |
| Hydrocarbons | |||
| Aliphatic, Aromatic | Excellent | Excellent | Excellent |
| Halogenated | Good to Excellent | Good to Excellent | Good to Excellent |
| Alcohol | Excellent | Excellent | Excellent |
| Overall Chemical Resistance | Excellent | Excellent | Excellent |
