In high-speed, continuous-flex applications, some cables may degrade or fatigue because of continuous abrasion in high temperatures. With a robust yet flexible construction, GORE IDC High Flex Ribbon Cables remain reliable after continuous use.

Heading
GORE® IDC High Flex Ribbon Cables
Overview
1

Flex applications in high-speed automated and other high-stress devices can cause the highest quality round cables to fail. Over time — and especially in low-vacuum settings and/or in extreme temperatures — the constant flexing and/or abrasion can degrade and fatigue the cables.

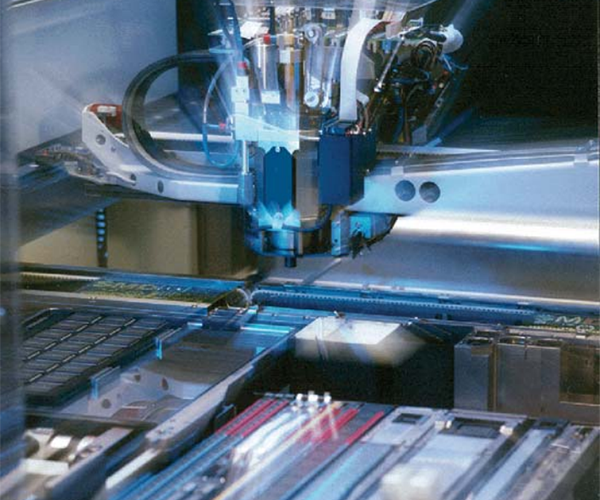

GORE IDC High Flex Ribbon Cables Application Image

High-stress environments can degrade and fatigue cables over time.

In such applications, ribbon power cables outlast standard power cables. The flex life of ribbon cable is 100 times longer than that of round cable, and ribbon cable is one-fourth the weight of round cable. Ribbon cable reduces the mass of moving cable bundles, allowing greater acceleration, less vibration and oscillation, and decreased wear.

GORE IDC High Flex Ribbon Cables provide reliability and superior flex life performance in these demanding, high-stress environments. The cables also demonstrate superior durability despite abrasion, the effects of which can be exacerbated in extreme temperatures. In fact, the GFX617 cable series has sparked a small revolution in high-speed, continuous-flex applications because no other cables on the market can demonstrate comparable flex life.

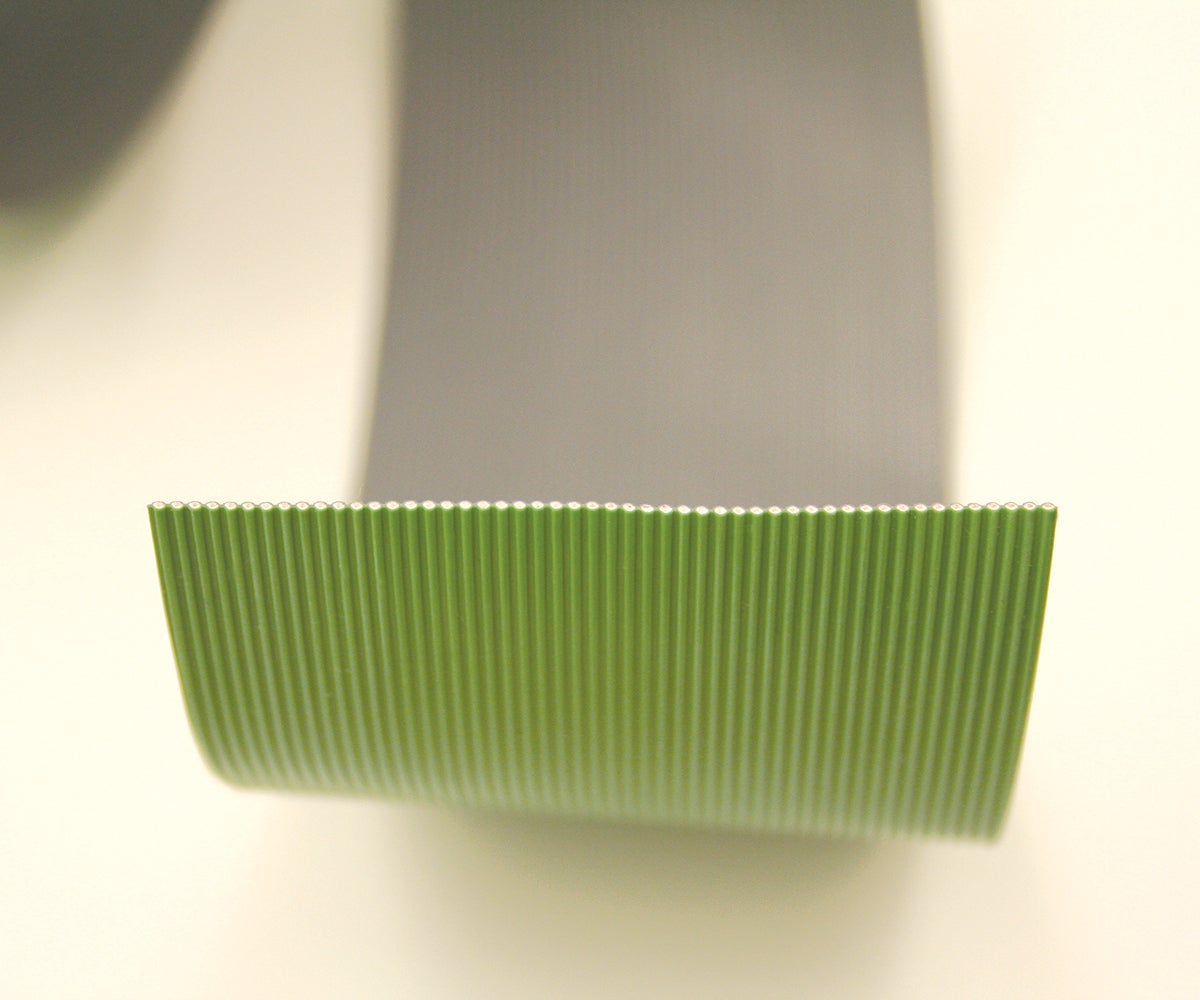

GORE IDC High Flex Ribbon Cables

With the cables’ composite PTFE insulation, they’re both durable and flexible.

The GFX617 cable series is .050" pitch ribbon cable with conductors available in either 28 or 26 AWG. The cables conform to UL Style 20453, and are often used in linear motion, inspection, and pick-and-place applications.

In high-stress environments where round cables and other ribbon cables may eventually fail, GORE IDC High Flex Ribbon Cables provide the toughness and flexibility to ensure reliable performance over time.

Features & Benefits
1

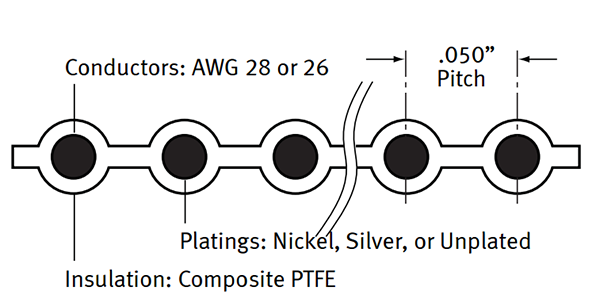

GORE IDC High Flex Ribbon Cables deliver the robust construction and flexibility needed in high-stress environments. The cables feature:

  • .050" pitch
  • 26 AWG or 28 AWG conductors
  • conductor plating: silver, nickel or unplated
  • composite PTFE insulation

As a result, manufacturers and end users report:


  • superior flex life
  • prevents system downtime
  • reliable performance in demanding environments
  • non-outgassing for vacuum environments


Additionally, Gore’s worldwide engineering team provides superior sales and technical support. If you have any questions about the cables’ features or benefits, please contact us.

Properties
3

GORE IDC High Flex Ribbon Cables demonstrate the superior electrical, mechanical and flexing properties required in high-speed, continuous-flex applications. For the full list of properties, please download the product data sheet

Ordering Information
3
GORE™ IDC High Flex Ribbon Cables Ordering Information

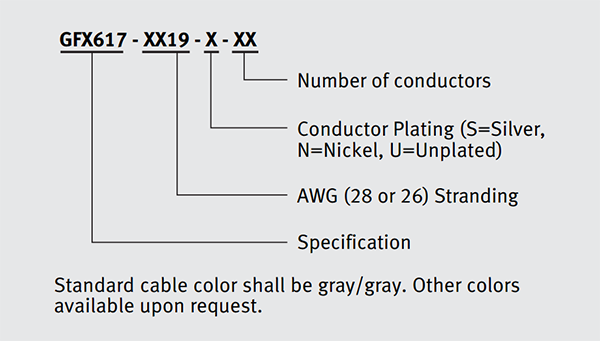

When ordering GORE IDC High Flex Ribbon Cables, please refer to your application needs and provide your ordering specifications in this format:

If you have any further questions or need more information, please contact us.

Resources
1
Featured Resource(s)

Cables - Data Sheet - GORE IDC Ribbon Cable High Flex - US

Related Products

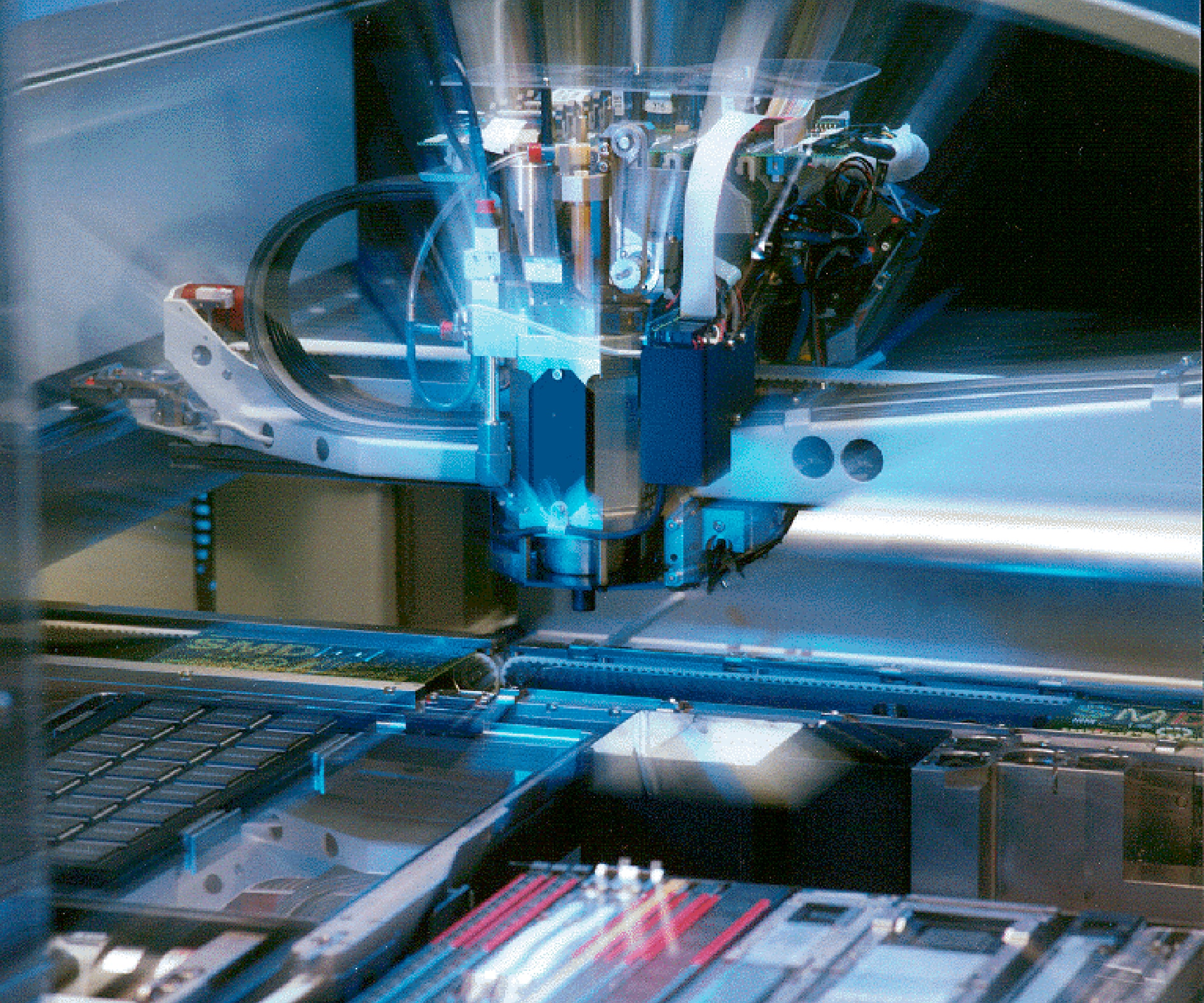

The High Flex GFX617 cable series is often used in linear motion, inspection, and pick-and-place applications.

Content Type
Data Sheets
Heading
Data Sheet: GORE™ IDC Ribbon Cable - High Flex
Paragraphs
Column Item

Cables - Column Item - Resource - IDC High Flex Data Sheet Col L - US

Paragraphs
High Flex Life Cable
2

GORE IDC High Flex Ribbon Cables provide reliability and superior flex life performance in demanding environments. The GFX617 cable series has sparked a small revolution in high speed continuous-flex applications because no other cables on the market can demonstrate comparable flex life. The GFX617 cable series is .050" pitch ribbon cable with conductors available in either 28 or 26 AWG. These cables conform to UL Style 20453. These cables are often used in linear motion, inspection, and pick-and-place applications.>/p>

GORE™ IDC Ribbon Cable

Cables - Column Item - Resource - IDC High Flex Data Sheet Col R - US

Paragraphs
Construction

Key Features

  • .050" pitch
  • 26 AWG or 28 AWG conductors
  • Conductor Plating: Silver, Nickel, or Unplated
  • Composite PTFE insulation

Key Benefits

  • Superior flex life
  • Prevents system downtime
  • Reliable performance in demanding environments
  • Non-outgassing for vacuum environments
Ordering Information

Properties

Property Unit 28 AWG 26 AWG
Capacitance
Ground, Signal, Ground pf/ft 8.1 9.7
Characteristic Impedance
Ground, Signal, Ground Ω 128 110
Velocity of Propagation as % of air 88 85
Time Delay ns/ft 1.17 1.21
Effective Dielectric Constant ε 1.30 1.40
Voltage Rating RMS 300 300



Electrical
Property 28 AWG 26 AWG
Temperature Range
Nickel-Plated Conductors –65°C to +260°C –65°C to +260°C
Silver-Plated Conductors –65°C to +200°C –65°C to +200°C
Unplated Conductors –55°C to +150°C –55°C to +150°C



Mechanical
Property 28 AWG 26 AWG
Minimum Flex Life 3/4" radius 100,000,000 cycles 50,000,000 cycles



Flexing
Download

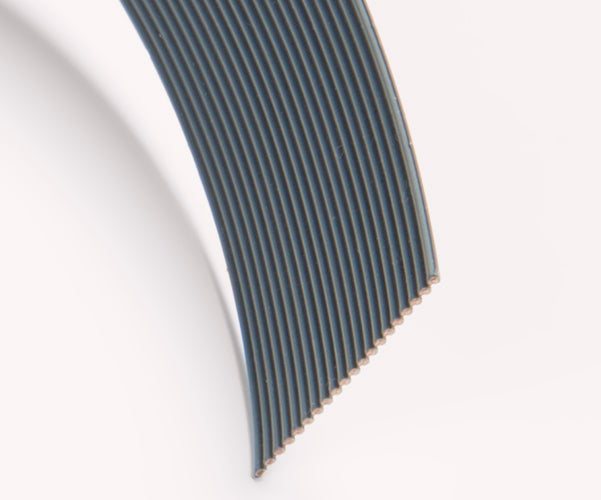

Resource Image
GORE IDC Ribbon Cable High Flex
