Overview

Chemical processors use glass-lined steel pipe and equipment to deal with aggressive media under demanding conditions. Yet the inherent demands of such systems can make it challenging to maintain a tight, lasting seal and prevent leaks that can pose hazards to the equipment, and to the working environment.

GLASS-LINED STEEL SEALING CHALLENGES
  • High temperatures
  • Alternating system pressures
  • Limited gasket loads
  • Deviations in flanges / sealing surfaces
GORE GASKET TAPE SERIES 1000

GORE Gasket Tape Series 1000 addresses all the challenges of reliably sealing large glass-lined flanges. Made of 100% expanded PTFE (ePTFE), this highly conformable sealant tape is chemically inert, and highly resistant to creep, cold flow and clamp-force loss. Its proprietary barrier core maintains an extra-tight seal even at low loads.

icon 1

Highly creep resistant, to maintain gasket load

icon 2

Highly conformable, to seal surface deviations

icon 3

Barrier core for extra tightness at low loads

icon 4

Chemically-inert 100% ePTFE protects full width of flange

Cutaway drawing shows four ways GORE® Gasket Tape Series 1000 protects glass-lined flanges from leaks.

» Discover all the performance advantages of GORE Gasket Tape Series 1000: view our product flyer.

CONTACT US

Applications

GORE Gasket Tape Series 1000 offers the performance and versatility to reliably seal a range of industrial glass-lined equipment, in diverse applications with harsh process conditions.

  • Processes that use highly-aggressive media, for example, in the chemical processing or mining and minerals industries.
  • Any glass-lined columns, mixer vessels, or reactor, storage and receiver tanks with glass-lined steel flanges that are large (≥ DN600/ASME 24”) or non-standard.
APPLICATIONS FOR GORE GASKET TAPE SERIES 1000
A diagram of piping and equipment highlights diverse applications for GORE Gasket Tape Series 1000 including columns, reactors, mixers and tanks.

GORE® Gasket Tape Series 1000 addresses all the challenges of reliably sealing large glass-lined steel flanges.

» It’s easy to find the right GORE® Gasket for your application: view our Product Selection Guide.

CONTACT US

Performance Benefits

With Gore’s advanced ePTFE material technology and its proprietary barrier core, our Series 1000 gasket tape enables high-performance, high-reliability sealing.

Why consider ePTFE tape

Unique barrier core technology

  • Barrier core engineered to amplify the available load.
  • Seals more than 10 times tighter than other ePTFE gasket tapes. (Especially important where glass-lined reactor safety is a consideration.)

Outstanding conformability to deviations

  • Seals deviations even at low gasket stress.
  • Easily passes the bubble test, for trouble-free mechanical completion (MC) or start-up.
Computational analysis shows cross-section of GORE Gasket Tape Series 1000 exhibits optimal sealing stress

Cross section of GORE® Gasket Tape Series 1000 checked with Finite Element Analysis (FEA) model. Red indicates optimal sealing stress.

Optimal form for easy handling

  • Gasket can be customized on-site.
  • No fabrication lead-time required.
  • Convenient spool format simplifies and speeds handling & transport.
  • Adhesive backing enables easy installation in ambient temperatures from 2–50 °C (36–122 °F).
  • Faster, less complicated shimming tape technique for larger deviations.
  • Reduces inventory costs.
Gore Gasket Tape Series 1000 is easy to install whether industrial glass-lined equipment surface temperatures are that of a hot summer day,d or nearly freezing.

Installation temperature window is effective from hot summer conditions to almost freezing surface temperature.

Reliable and long-term seal

  • Barrier core creates a tight seal that impedes even highly-permeating media.
  • Provides chemical protection across the full flange width (100% ePTFE).
  • Tape is engineered to resist creep and clamp-force loss.
  • Allows full use of specification range of the glass-lined steel equipment.
  • Enables longer maintenance cycles, as demanded by leading chemical producers.
Even after exposure to aggressive media, this cross-section of GORE Gasket Tape Series 1000 still retains its sealing integrity.

Cross-section shows how well GORE Gasket Tape Series 1000 endures in challenging conditions with aggressive media.

» See how GORE Gasket Tape Series 1000 can help you reliably contain aggressive media, protect glass-lined steel equipment and reduce emissions: view our Product Flyer.

CONTACT US


GORE GASKET TAPE SERIES 1000 OUTPERFORMS THE COMPETITION

Outperforms envelope gaskets

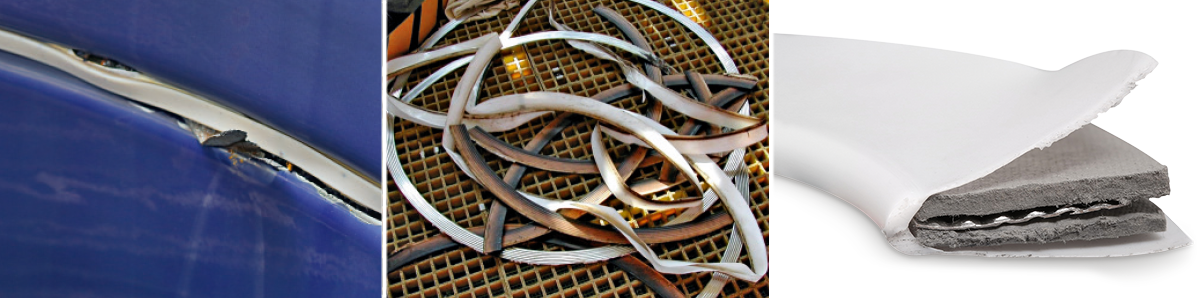

Three images of envelope gaskets show how they can degrade and fail in glass-lined steel equipment containing aggressive media.

Aggressive media can cause common envelope gaskets to degrade or fail, creating risks for personnel and potential for equipment/corrosion damage, production downtime and related costs.

Problems with large envelope gaskets: Solutions with Gore’s Series 1000 gasket tape:
Material mix doesn’t offer overall chemical resistance: Microcracks on the PTFE envelope will allow diffusion which can destroy the inner core Provides chemical protection across the full flange width (100% ePTFE)
Limited seal reliability/durability over time and process cycles can require more frequent maintenance and downtime. Exceptional creep resistance enables longer maintenance cycles, as demanded by leading chemical producers.
Limited conformability to flange deviations. May complicate mechanical completion or delay start-up. Outstanding conformability to deviations enables reliable sealing even at low gasket stress. Easily passes the bubble test, for trouble-free mechanical completion (MC) or start-up.
Typically fabricated off-site, with long lead times. Customize gasket on-site — no fabrication lead-time.
Time-consuming/complex installation procedures. Easy handling, and adhesive backing enables easy installation. Faster, less complicated shimming tape solution for larger flange deviations.
Related supply-chain challenges (availability, shipping/logistics complications). Assured supply; simplifies and speeds transport and handling.
Inventory costs and issues. Reduces inventory carrying costs.



Outperforms other ePTFE tapes

Problems with other ePTFE gaskets: Solutions with Gore’s Series 1000 gasket tape:
Limited seal tightness especially at low stress. Seals more than 10 times tighter than other ePTFE gasket tapes.
Gaskets’ limited durability may require glass-lined steel equipment at less than full specification range. Allows full use of entire specification range of the glass-lined steel equipment.
Requires shimming even at lower deviations. May complicate mechanical completion or delay start-up. Outstanding conformability to deviations enables reliable sealing even at low gasket stress. Easily passes the bubble test, for trouble-free mechanical completion (MC) or start-up.
Limited seal reliability/durability over time and process cycles can require more frequent maintenance and downtime. Exceptional creep resistance enables longer maintenance cycles, as demanded by leading chemical producers.



Outperforms filled PTFE gaskets

Problems with filled ePTFE gaskets: Solutions with Gore’s Series 1000 gasket tape:
Typically fabricated off-site, with long lead times. Customize gasket on-site — no fabrication lead-time.
Related supply-chain challenges (availability, shipping/logistics complications). Assured supply; simplifies and speeds transport and handling.
May be dovetailed for easier transport, which can result in emissions through the non-overlapping dovetail joints. Product supplied on a convenient spool. Installs using skived joints to maintain a tight, reliable seal.
Inventory costs and issues. Reduces inventory carrying costs.
Time-consuming/complex installation procedures. Easy handling, and adhesive backing enables easy installation. Faster, less complicated shimming tape solution for larger flange deviations.
Limited conformability to flange deviations. May complicate mechanical completion (MC) or delay start-up. Outstanding conformability to deviations enables reliable sealing even at low gasket stress. Easily passes the bubble test, for trouble-free mechanical completion (MC) or start-up.
Limited seal reliability/durability over time and process cycles can require more frequent maintenance and downtime. Exceptional creep resistance enables longer maintenance cycles, as demanded by leading chemical producers.



CONTACT US

Technical Specifications

Technical Information

Material
  • 100% expanded PTFE (polytetrafluoroethylene), with multidirectional strength
  • This product is supplied with an adhesive backer only to aid in the product installation
Chemical Resistance Chemical resistance to all media pH 0-14, except molten alkali metals and elemental fluorine. Chemical resistance to all media pH 0-14, except molten alkali metals and elemental fluorine.
Operating Range

The maximum applicable pressure and temperature depend mainly on the equipment and installation.


  • Typical Use: from -60 °C to 230 °C (-76 °F to 445 °F);
    industrial full vacuum(1) to 10 bar (145 psi).
  • Maximum Use: -269 °C to 315 °C (-452 °F to 600 °F);
    full vacuum to 16 bar (230 psi) for flanges up to DN 2000/ASME 80".


Be aware that flange surface irregularities may cause high peak loads. Please contact Gore if further guidance is required.

For applications outside the typical use range, Gore recommends an application specific engineering design calculation and extra care during installation.
Shelf Life Expanded PTFE is not subject to aging and can be stored indefinitely. To ensure optimal adhesive function, we recommend use within two years of date of purchase when stored under normal(2) conditions


(1) absolute pressure of 1 mmHg (Torr) = 133 Pa = 1.33 mbar = 0.019 psi
(2) 21 °C (70 °F) 50% Relative Humidity

Available Sizes

GORE® Gasket Tape Series 1000 is manufactured to metric dimensions. Choose from multiple widths, thicknesses and lengths, in any combination.

Width Thickness Length
40 mm (1.5") 6 mm (1/4") 5 m (16')
55 mm (2") 9 mm (3/8") 10 m (32')
65 mm (2.5")   15 m (49')
  • Select a tape width that is the same as, or wider than, your flange width.
  • Select 6 mm thickness for deviations up to 1.7 mm (0.07”) without shimming.
  • Select 9 mm thickness for deviations up to 2.5 mm (0.10”) without shimming.
  • For larger deviations, consider adding Gore Series 1000 Shimming Tape.

Gore Series 1000 Shimming Tape is 3 mm (1/8") thick and 5 m (16') long, in any of the above widths. Select shimming tape to the same width as your Series 1000 gasket tape.

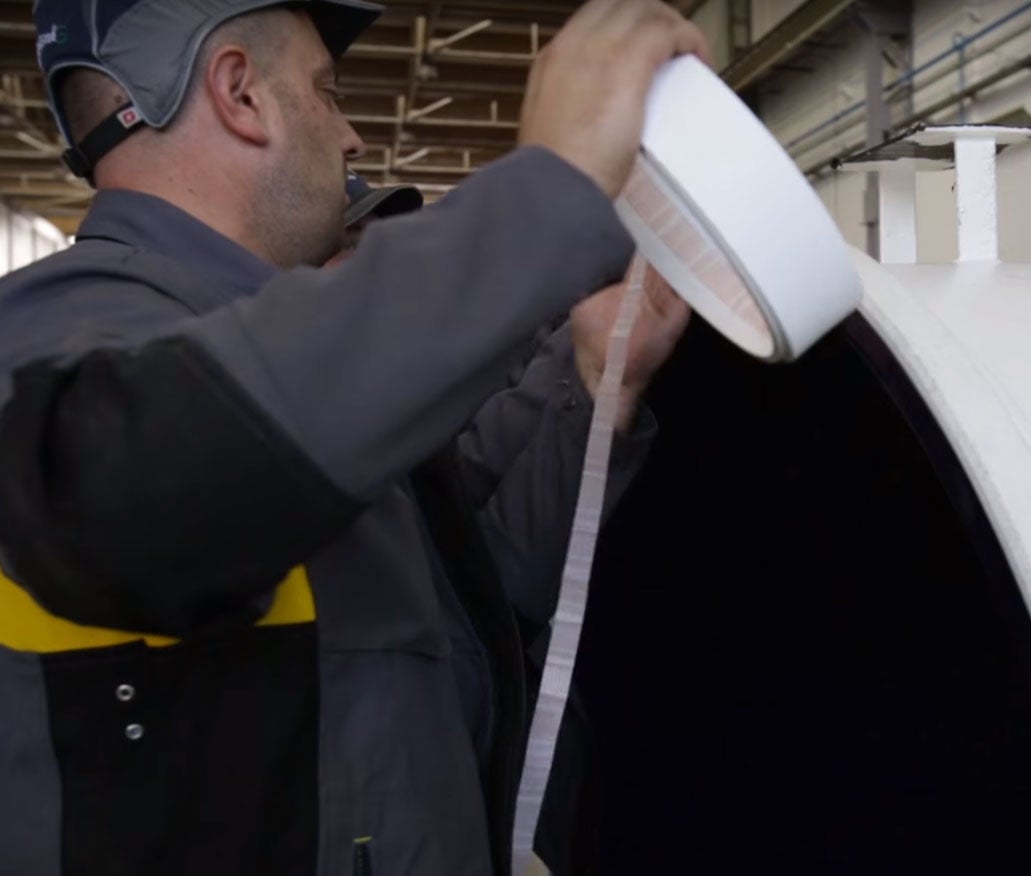

See how fast and easy it is to reliably seal a large flange with GORE Gasket Tape Series 1000:

» Get the Installation Guide
» Watch the one-minute video

Test Data

Compression

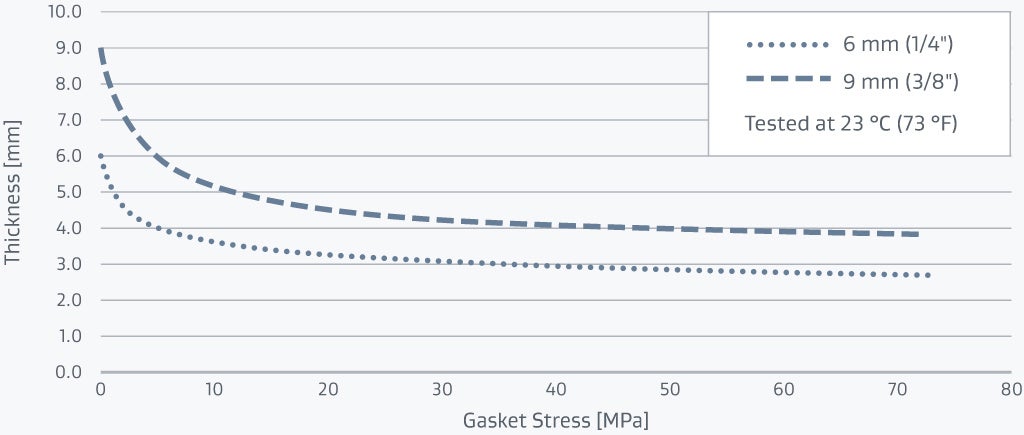

GORE® Gasket Tape Series 1000 compression curve

Creep Relaxation

  Thickness
6 mm (1/4")		 Thickness
9 mm (3/8")
PQR, 150 °C (302 °F) 0.49 0.41
PQR, 230 °C (445 °F) 0.36 0.29


Based on EN 13555 creep relaxation test protocol (PQR).
This testing was conducted with a fixture stiffness of 500 kN/mm, with 2 stripes of 250 mm x 55 mm with a starting stress of 10 MPa.

Sealability

  Thickness
6 mm (1/4")		 Thickness
9 mm (3/8")
Qmin (0.1) 9 MPa
(1,305 psi)		 13 MPa
(1,885 psi)
Qmin (0.01) 14 MPa
(2,030 psi)		 18 MPa
(2,610 psi)
Qsmin up to L0.0001 and QA > 5 MPa 5 MPa
(725 psi)		 5 MPa
(725 psi)
m 5 5
y 9 MPa
(1,305 psi)		 13 MPa
(1,885 psi)


Based on EN 13555 leakage test protocol. DN 200 PN 10 plattens, 10 bar nitrogen, 30 mm wide tape.

Conformability

  Thickness
6 mm (1/4")		 Thickness
9 mm (3/8")
Stress to seal 0.1 mg/(m•s) measured on
test plattens with a groove		 9 MPa
(1,300 psi)		 13 MPa
(1,885 psi)
Stress to seal 0.01 mg/(m•s) measured on
test plattens with a groove		 14 MPa
(2,030 psi)		 18 MPa
(2,610 psi)


Based on EN 13555 leakage test protocol. DN 200 PN 10 plattens, with 0.5 mm deep groove with sloped edges cut into the plattens, 10 bar nitrogen, 30 mm wide tape.

Maximum Surface Stress (Crush Resistance)

  Thickness
6 mm (1/4")		 Thickness
9 mm (3/8")
Max. surface stress at 23 °C (73 °F) 70 MPa
(10,150 psi)		 70 MPa
(10,150 psi)


2 x 250 mm x 55 mm strips, 500 kN/mm, 0.1 MPa/s load rate, 15 min hold time, no visible damage.


Certificates & Application Information

TA Luft

For the TA Luft(1) test, the seal is installed in a DN40/PN40 steel flange, usually with a gasket stress of 30 MPa. The flange is then exposed to a defined temperature for minimum 48 hours. After cool down, leakage rate is measured over a period of at least 24 hours. The test pressure is 1 bar helium.

The ultimate final leakage rate after a test duration of 24 hours must remain below 10–4 mbar*l/(s*m) for the seal to qualify according to TA Luft.

No test procedure currently exists for glass-lined steel. Therefore Gore has conducted modified tests for this certification. A DN 200 / PN 10 steel flange with a gasket stress of 25 MPa was utilized.

TA Luft certificate is available for thickness 6 mm.

(1) Federal Ministry of Germany for the Environment, Nature Conservation, Building and Nuclear Safety: First General Administrative Regulation Pertaining the Federal Emission Control Act (Technical Instructions on Air Quality Control - TA Luft), Joint Ministerial Gazette, July 30, 2012.

Safety Information

GORE® Gasketing products meet the definition of an article; therefore, a Material Safety Data Sheet (MSDS) or Safety Data Sheet (SDS) is not required. However, for your convenience, a Product Safety Sheet, which details the intended use and proper handling of our articles, is provided.

Gore Quality Management System

The Gore Sealant Technologies Quality Management System is certified in accordance with ISO 9001.

» Get full product details and technical specifications: view our Data Sheet.

CONTACT US

Resources

Flyer: GORE Gasket Tape Series 1000 Overview

Product Flyer: GORE® Gasket Tape Series 1000

Brochures, 812.69 KB

Datasheet: Gasket Tape Series 1000

Data Sheet: GORE® Gasket Tape Series 1000

Data Sheets, 210.21 KB

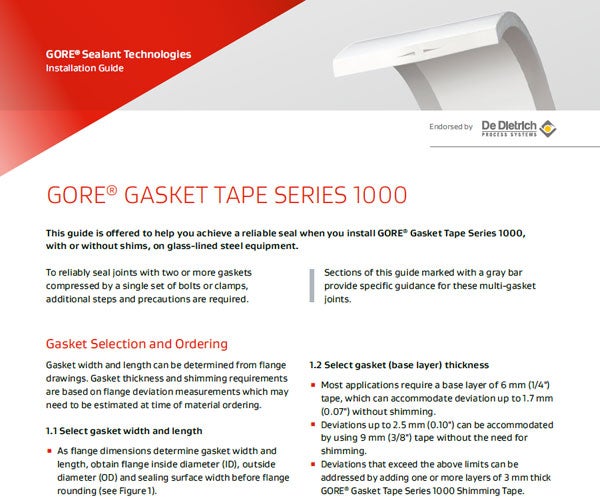

Thumbnail image of Gasket Tape Series 1000 Installation Instructions
