With industry-standard color coding on each conductor, GORE Color-Coded IDC Ribbon Cables provide accurate and discrete wire termination to prevent interference. And with their PTFE insulation, the cables are resistance to chemicals, extreme temperatures and aging.



Heading
GORE® Color-Coded IDC Ribbon Cables
Overview
1

In critical electrical applications where interference can be a factor, the reliability of your cables can be a factor, too.

GORE IDC Ribbon Cables maintain excellent electrical performance and effectively shield against interference. With their industry-standard individual conductor color coding — which can be in accordance with EIA-359-A or DIN VDE 47100 — the cables provide easy-to-use, accurate, and discrete cable polarity identification and wire termination that prevents RF signals from reflecting back from the end of the cable. Even in extreme thermal and chemical environments, the cables remain durable and dependable.

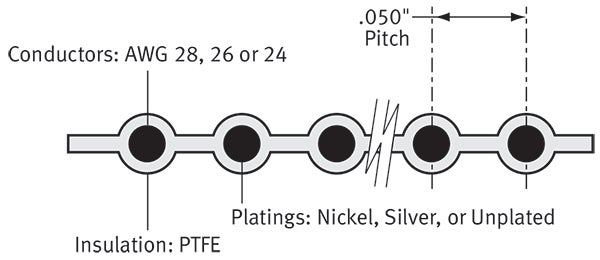

The cables’ conductors have a 0.050” pitch and are available in AWG 28, 26 or 24.

The cables’ conductors have a 0.050” pitch and are available in AWG 28, 26 or 24.

Additionally, the cables are vacuum compatible and resist aging, and conform to UL Styles 1371 and 1538.

The GTS811 cable series is used in applications with discrete wiring/IDC terminations, systems with soldered/IDC terminations, high reliability systems and in high/low temperature environments, ensuring electrical performance in even the most unforgiving environments.

Features and Benefits
1

The most obvious feature of GORE Color-Coded IDC Ribbon Cables is its array of colors, which make installing and monitoring the cables more easy, safe and dependable. Additional features include:


  • UL conformity
  • color coding to EIA-359-A or DIN VDE 47100
  • .050" pitch
  • availability in 28, 26, or 24 AWG conductors
  • Chemically inert PTFE insulation

As a result, manufacturers and end users report:


  • superior electrical performance
  • extreme thermal resistance
  • chemical immunity
  • individual conductor color coding
  • vacuum compatibility
  • resistance to aging

Additionally, Gore’s worldwide engineering team provides superior sales and technical support. If you have any questions about the cables’ features or benefits, please contact us.

Color Coding
1

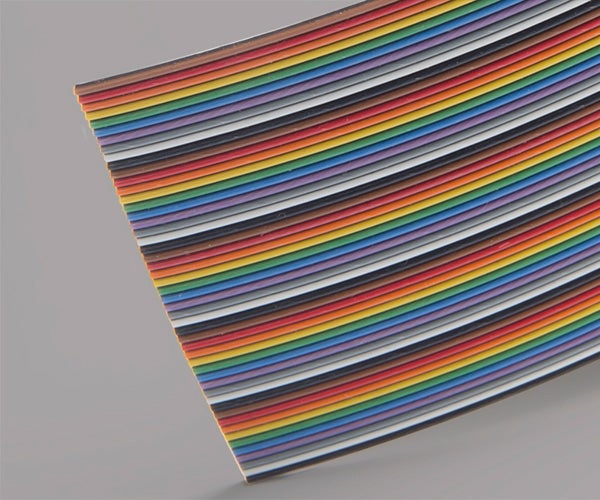

GORE™ Color-Coded IDC Ribbon Cables color system

GORE Color-Coded IDC Ribbon Cables have a color system that makes them easy to install and monitor during use. Colors can be coded according to EIA-359-A or DIN VDE 47100, and they differ based on the AWG needed in your application: 28, 26 or 24.

  • 28 AWG: one side of the cable is red
  • 26 AWG: one side of the cable is blue
  • 24 AWG: one side of the cable is black
Properties
1

GORE Color-Coded IDC Ribbon Cables demonstrate a wide temperature range, excellent chemical resistance and other beneficial electrical, mechanical and chemical properties. For the full list of properties, please <a href="/node/4481/">download the product data sheet</a>.

Ordering Information
1

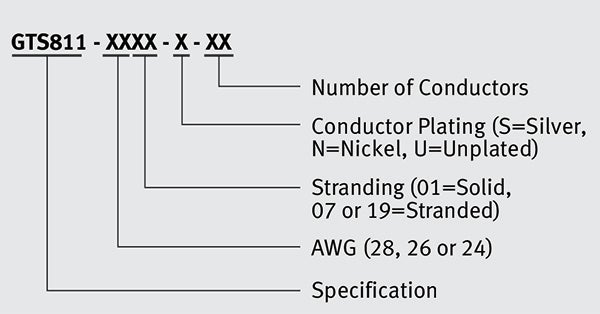

Ordering Format

When ordering GORE Color-Coded IDC Ribbon Cables, please refer to your application needs and provide your ordering specifications in this format:

If you have any further questions or need more information, please contact us

Resources
1
Featured Resource(s)

Cables - Data Sheet - GORE IDC Ribbon Cable Color Coded - US

Related Products

The GTS811 cable series is used in applications with discrete wiring/IDC terminations, systems with soldered/IDC terminations, high reliability systems, and in high/low temperature environments.

Content Type
Data Sheets
Heading
Data Sheet: GORE™ IDC Ribbon Cable - Color Coded Conductors
Paragraphs
High Performance Color Coded Cable
2
2
Column Item

Cables - PS - Color Coded IDC Data Sheet - Left Col 1 - US

Paragraphs

GORE IDC Ribbon Cables provide excellent electrical performance and protection from extreme thermal and chemical environments. These cables have industry-standard individual conductor color coding for accurate discrete wire termination and cable polarity identification.  The color coding can be in accordance with EIA-359-A or DIN VDE 47100. They are vacuum compatible, resistant to aging, and conform to UL Styles 1371 and 1538.

The GTS811 cable series is used in applications with discrete wiring/IDC terminations, systems with soldered/IDC terminations, high reliability systems, and in high/low
temperature environments.

Key Features

  • UL conformity
  • Color coding to EIA-359-A or DIN VDE 47100
  • .050” pitch
  • 28, 26, or 24 AWG conductors
  • PTFE insulation

Key Benefits

  • Superior electrical performance
  • Extreme thermal resistance
  • Chemical immunity
  • Individual conductor color coding
  • Vacuum compatible
  • Resistant to aging
The cables’ conductors have a 0.050” pitch and are available in AWG 28, 26 or 24.
28 AWG One side of cable is red
26 AWG One side of cable is blue
24 AWG One side of cable is black



Complex
Cable Color Code
GORE™ Color-Coded IDC Ribbon Cables color system

Ordering Information

Ordering Format

Cables - PS - Color Coded IDC Data Sheet - Right Col 1 - US

Paragraphs
Property Unit 28 AWG 26 AWG 24 AWG
Voltage Rating RMS 300 300 300
Dielectric Withstand Voltage RMS 2000 2000 2000
Insulation Resistance MΩ*km 500 500 500
Characteristic Impedance
Ground, Signal, Ground Ω 125 105 90
Capacitance
Ground, Signal, Ground pf/ft 9.8 12.5 13.2
Time Delay ns/ft 1.15 1.17 1.18
Velocity of Propagation as % of air 92 90 88
Effective Dielectric Constant ε 1.18 1.22 1.25



Electrical Properties
Property 28 AWG 26 AWG 24 AWG
Temperature Range
Nickel-Plated Conductors –65°C to +260°C –65°C to +260°C –65°C to +260°C
Silver-Plated Conductors –65°C to +200°C –65°C to +200°C –65°C to +200°C
Unplated Conductors –65°C to +150°C –65°C to +150°C –65°C to +150°C
Mechanical Properties
Chemical 28 AWG 26 AWG 24 AWG
Acids: Hydrochloric, Sulfuric, Nitric Excellent Excellent Excellent
Alkalis Excellent Excellent Excellent
Hydrocarbons
Aliphatic, Aromatic Excellent Excellent Excellent
Halogenated Good to Excellent Good to Excellent Good to Excellent
Alcohol Excellent Excellent Excellent
Overall Chemical Resistance Excellent Excellent Excellent
Chemical Resistance
