Case Study Dunkermotoren

Dunkermotoren, a global manufacturer with operations in Germany, the United States and China, provides solar tracking solutions that are installed worldwide. This equipment combines a DC or brushless DC (BLDC) motor, integrated electronics and gearbox to track the sun’s location for photovoltaic, concentrated photovoltaic and concentrated solar power systems. These systems are installed in locations that experience extreme weather conditions such as long hours of direct sunlight, wide temperature ranges, high winds, dust, hail and driving rain. Therefore, the electronics and motors must be protected against these environmental conditions to ensure reliable performance for the systems’ expected service life.

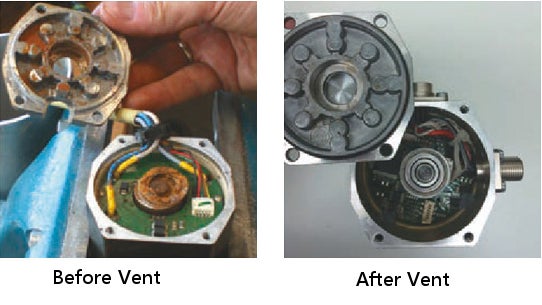

Dunkermotoren engineered a sealed housing with O-rings and connector seals to protect its motor components from liquid and contaminant ingress; however, the motors were experiencing corrosion issues once installed in the field. These issues increased customer returns and warranty claims. When developing their new STM™ system, they focused on improving the motor’s durability to meet the intended service life and increase customer satisfaction.

Challenge

The exposure to the direct sun during the day and cool temperatures at night causes significant temperature changes outside the housing. In addition, a sudden rainstorm on a hot sunny day can result in the temperature dropping rapidly. In an enclosure designed to be completely sealed, these changes can cause significant pressure differentials inside the housing, which can create in a vacuum that puts stress on the housing seals. Over time, this fatigue can lead to failures — creating leak paths for liquid and particulate contaminants. However, providing an opening to allow the housing to release pressure (in other words, breathe) creates a known leak path. Therefore, this opening would need some level of protection. For the new design, Dunkermotoren’s engineering team decided to test various venting options to eliminate potential seal failure due to pressure differentials.

Solution

Case study: Dunkermotoren application

"GORE® Protective Vents extend the life of our motors by achieving the durability of IP67 against exposure to harsh environments. Gore's engineers understood our requirements and worked like part of our team to ensure that our products deliver the performance our customers expect."

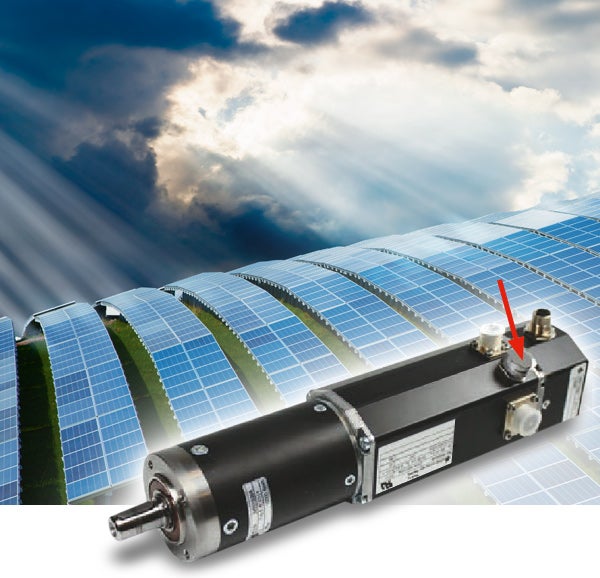

Based on feedback from their customers, the engineering team decided to evaluate GORE® Protective Vents. Gore’s application engineers collaborated with the Dunkermotoren engineers to evaluate several GORE® Protective Vents in both environmental chamber tests and field tests. Based on the results of these tests and the need to integrate the vent into an existing product design, Gore recommended a GORE® Metal Vent. This vent equalizes pressure within the motor by maintaining sufficient airflow to allow air and moisture vapor to pass in and out of the enclosure freely. At the same time, the vent serves as a barrier to provide a high level of ingress protection (IP*) against liquid, dirt, dust, salt and other contaminants. The rugged screw-in construction of GORE® Metal Vents extends the system’s service life and is easy to integrate into new or existing product designs.

According to Will Vinson, President of Dunkermotoren USA, Inc., a division of AMETEK Precision Motion Control, their goal was to develop a more durable product to exceed service-life expectations. “With our new STM™ product, we wanted to deliver a tracking system that would last for the expected life of the solar energy system — more than 20 years. GORE® Protective Vents extended the life of our motors by achieving the durability of IP67 protection against exposure to harsh environments. Gore’s engineers understood our requirements and worked like part of our team to ensure that our products deliver the performance our customers expect.”
