Designed to meet the challenges of today's headlamps

Image of AVS 113 surface logo identifying genuine GORE® Automotive Vent

Make sure it's a genuine GORE Vent AVS 113 when you want faster condensation clearing, potentially with fewer vents per lamp.

Today's sleek, high-value LED headlamp assemblies are vulnerable to more frequent condensation events, require more advanced ingress protection, and often have limited space available for vent placement.

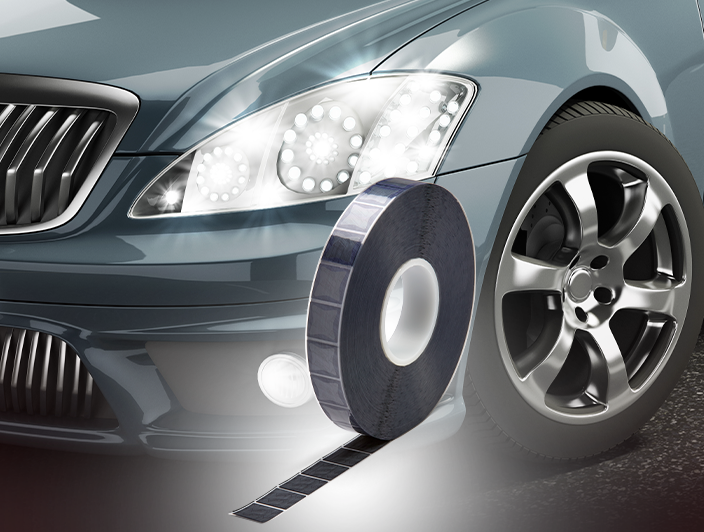

Gore’s new low-profile adhesive vent AVS 113 enhances headlamp clearing and protection

Reduces condensation risk and speeds clearing for the life of the vehicle:

  • Reduces risk of condensation events — events are less frequent and less severe
  • Improves condensation clearing performance — can enable lenses to clear more quickly
  • Maximizes moisture vapor transfer — Gore’s highest diffusion per membrane area could mean you can use fewer vents per lamp

Protects the integrity of high-value lamp assemblies for the life of the vehicle:

  • Maintains strong, lasting bond to housing — durable silicone adhesive effectively resists infiltration by fluids and water sprays
  • Delivers reliable protection against ingress of fine dust, dirt and water — target frames are not required, but may be used if desired
  • Provides rapid, responsive equalization of pressures within the housing interior — membrane sheds fluids rapidly after contact, to maintain breathability

Get Data Sheet

Proven to enable faster headlamp clearing … even with fewer total vents

Test 1 Test 2 Test 3
ONE AVS 113 cleared25% fasterThan THREE cap vents in a truck LED headlamp

ONE AVS 113 cleared

16% faster

than ONE AVS 100 vent in a truck halogen headlamp

TWO AVS 113 cleared

28% faster

than TWO AVS 9 vents in an SUV LED headlamp

Tests, conducted at 70 °C, compare OEM headlamp with standard venting solution to same OEM headlamp with AVS 113 instead of standard venting solution.

Want faster clearing time for your headlamps?

Find out how new GORE Automotive Vent AVS 113 compares to your current headlamp venting solution, and how faster clearing could enhance your lamp’s reliability and longevity, as well as your brand image.

Speak with your Gore representative today!
